024 - Front Suspension

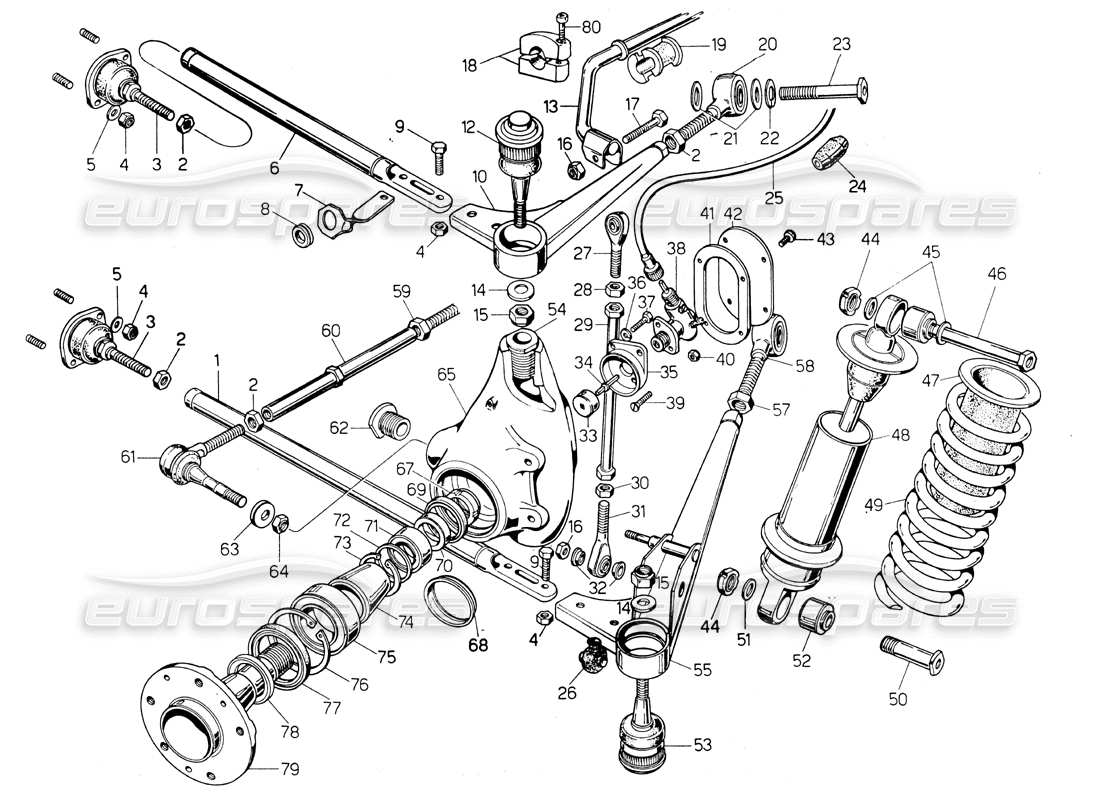

Lamborghini Countach LP400 Front suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                                              #
                                                                                                                                                              Part number
                                                                                                                                                              Description
                                                                                                                                                              Price
                                                                                                                                                              # 001
                                                                                                                                                              MPN: 005109527
                                                                                                                                                              TIE ROD
                                                                                                                                                              from £504.09
                                                                                                                                                              from £504.09
                                                                                                                                                              # 002
                                                                                                                                                              MPN: 008201411
                                                                                                                                                              NUT
                                                                                                                                                              from £10.57
                                                                                                                                                              from £10.57
                                                                                                                                                              # 003
                                                                                                                                                              MPN: 005109558
                                                                                                                                                              SNODO
                                                                                                                                                              from £114.41
                                                                                                                                                              from £114.41
                                                                                                                                                              # 004
                                                                                                                                                              MPN: N0111849
                                                                                                                                                              NUT
                                                                                                                                                              from £1.39
                                                                                                                                                              from £1.39
                                                                                                                                                              This part replaces part number 008200809
                                                                                                                                                              # 005
                                                                                                                                                              MPN: N90179103
                                                                                                                                                              WASHER
                                                                                                                                                              from £0.98
                                                                                                                                                              from £0.98
                                                                                                                                                              This part replaces part number 008400801
                                                                                                                                                              # 006
                                                                                                                                                              MPN: 005109519
                                                                                                                                                              PUNTONE PER BRACCIO SUPERIORE
                                                                                                                                                              from £85.28
                                                                                                                                                              from £85.28
                                                                                                                                                              # 007
                                                                                                                                                              MPN: 005112900
                                                                                                                                                              SUPPORT
                                                                                                                                                              from £68.90
                                                                                                                                                              from £68.90
                                                                                                                                                              # 009
                                                                                                                                                              MPN: 008100821
                                                                                                                                                              BOLT
                                                                                                                                                              Supersession
                                                                                                                                                              Supersession
                                                                                                                                                              # 010
                                                                                                                                                              MPN: 005109516
                                                                                                                                                              BRACCIO SUPERIORE SINISTRO
                                                                                                                                                              from £161.26
                                                                                                                                                              from £161.26
                                                                                                                                                              # 011
                                                                                                                                                              MPN: 005109515
                                                                                                                                                              BRACCIO SUPERIORE DESTRO
                                                                                                                                                              from £161.26
                                                                                                                                                              from £161.26
                                                                                                                                                              # 012
                                                                                                                                                              MPN: 005109534
                                                                                                                                                              SNODO
                                                                                                                                                              from £203.38
                                                                                                                                                              from £203.38
                                                                                                                                                              # 013
                                                                                                                                                              MPN: 005112482
                                                                                                                                                              BARRA DI TORSIONE ANTERIORE
                                                                                                                                                              from £244.59
                                                                                                                                                              from £244.59
                                                                                                                                                              # 014
                                                                                                                                                              MPN: 008401420
                                                                                                                                                              WASHER
                                                                                                                                                              from £12.90
                                                                                                                                                              from £12.90
                                                                                                                                                              # 015
                                                                                                                                                              MPN: 008201406
                                                                                                                                                              NUT
                                                                                                                                                              from £0.58
                                                                                                                                                              from £0.58
                                                                                                                                                              # 016
                                                                                                                                                              MPN: 008200809
                                                                                                                                                              NUT
                                                                                                                                                              Supersession
                                                                                                                                                              Supersession
                                                                                                                                                              # 017
                                                                                                                                                              MPN: 008100807
                                                                                                                                                              BOLT
                                                                                                                                                              from £0.53
                                                                                                                                                              from £0.53
                                                                                                                                                              # 018
                                                                                                                                                              MPN: 005112480
                                                                                                                                                              SUPPORT
                                                                                                                                                              from £121.88
                                                                                                                                                              from £121.88
                                                                                                                                                              # 019
                                                                                                                                                              MPN: 005112481
                                                                                                                                                              BUSH
                                                                                                                                                              from £51.49
                                                                                                                                                              from £51.49
                                                                                                                                                              # 020
                                                                                                                                                              MPN: 005109521
                                                                                                                                                              SNODO
                                                                                                                                                              from £187.63
                                                                                                                                                              from £187.63
                                                                                                                                                              # 021
                                                                                                                                                              MPN: 008401421
                                                                                                                                                              WASHER
                                                                                                                                                              from £0.51
                                                                                                                                                              from £0.51
                                                                                                                                                              # 022
                                                                                                                                                              MPN: 008411502
                                                                                                                                                              WASHER
                                                                                                                                                              from £1.58
                                                                                                                                                              from £1.58
                                                                                                                                                              # 024
                                                                                                                                                              MPN: 005110524
                                                                                                                                                              GOMMINO DI TENUTA CAVO CONTA KM..
                                                                                                                                                              from £16.73
                                                                                                                                                              from £16.73
                                                                                                                                                              # 025
                                                                                                                                                              MPN: 005109721
                                                                                                                                                              CAVO RINVIO CONTA KM.
                                                                                                                                                              from £190.23
                                                                                                                                                              from £190.23
                                                                                                                                                              # 026
                                                                                                                                                              MPN: 005109714
                                                                                                                                                              PROTEZIONE PER SNODO SFERICO
                                                                                                                                                              from £16.55
                                                                                                                                                              from £16.55
                                                                                                                                                              # 027
                                                                                                                                                              MPN: 005206964
                                                                                                                                                              SNODO SFERICO
                                                                                                                                                              SEE 005227295/005227298
                                                                                                                                                              from £72.47
                                                                                                                                                              from £72.47
                                                                                                                                                              BALL JOINT (005227295) Eurospares Approved Part - New (to order)
                                                                                                                                                              Adapter Bushing (005227298) is also required
                                                                                                                                                              BALL JOINT (005227295) Genuine Lamborghini - New In stock
                                                                                                                                                              Adapter Bushing (005227298) is also required
                                                                                                                                                              # 028
                                                                                                                                                              MPN: 008201016
                                                                                                                                                              NUT
                                                                                                                                                              from £14.30
                                                                                                                                                              from £14.30
                                                                                                                                                              This part replaces part number 008201034
                                                                                                                                                              # 029
                                                                                                                                                              MPN: 005109781
                                                                                                                                                              TIE ROD
                                                                                                                                                              from £104.20
                                                                                                                                                              from £104.20
                                                                                                                                                              # 030
                                                                                                                                                              MPN: 008201014
                                                                                                                                                              NUT
                                                                                                                                                              from £3.86
                                                                                                                                                              from £3.86
                                                                                                                                                              # 031
                                                                                                                                                              MPN: 005206963
                                                                                                                                                              BALL JOINT
                                                                                                                                                              SEE 005227296/005227298
                                                                                                                                                              Supersession
                                                                                                                                                              Supersession
                                                                                                                                                              # 032
                                                                                                                                                              MPN: 005109713
                                                                                                                                                              BUSH
                                                                                                                                                              from £5.15
                                                                                                                                                              from £5.15
                                                                                                                                                              # 033
                                                                                                                                                              MPN: 005109749
                                                                                                                                                              PRESA MOTO PER RINVIO CONTA KM. .
                                                                                                                                                              from £102.89
                                                                                                                                                              from £102.89
                                                                                                                                                              # 034
                                                                                                                                                              MPN: 005109748
                                                                                                                                                              ALBERINO PRESA MOTO DAL RINVIO CONTA KM.
                                                                                                                                                              from £73.75
                                                                                                                                                              from £73.75
                                                                                                                                                              # 035
                                                                                                                                                              MPN: 005109747
                                                                                                                                                              FLANGIA ATTACCO RINVIO CONTA KM.
                                                                                                                                                              # 036
                                                                                                                                                              MPN: 008410602
                                                                                                                                                              WASHER
                                                                                                                                                              from £27.90
                                                                                                                                                              from £27.90
                                                                                                                                                              # 037
                                                                                                                                                              MPN: 008700614
                                                                                                                                                              SCREW
                                                                                                                                                              Supersession
                                                                                                                                                              Supersession
                                                                                                                                                              # 038
                                                                                                                                                              MPN: 005109724
                                                                                                                                                              RINVIO CONTA KM.
                                                                                                                                                              from £795.00
                                                                                                                                                              from £795.00
                                                                                                                                                              # 039
                                                                                                                                                              MPN: 008700622
                                                                                                                                                              SCREW
                                                                                                                                                              from £3.70
                                                                                                                                                              from £3.70
                                                                                                                                                              # 040
                                                                                                                                                              MPN: 008200606
                                                                                                                                                              NUT
                                                                                                                                                              Supersession
                                                                                                                                                              Supersession
                                                                                                                                                              # 041
                                                                                                                                                              MPN: 005110441
                                                                                                                                                              GASKET
                                                                                                                                                              from £2.12
                                                                                                                                                              from £2.12
                                                                                                                                                              # 042
                                                                                                                                                              MPN: 005109690
                                                                                                                                                              COPERCHIETTO SUL PORTAMOZZO
                                                                                                                                                              # 043
                                                                                                                                                              MPN: 008700302
                                                                                                                                                              SCREW
                                                                                                                                                              from £1.58
                                                                                                                                                              from £1.58
                                                                                                                                                              # 044
                                                                                                                                                              MPN: 008251702
                                                                                                                                                              RING NUT
                                                                                                                                                              from £2.41
                                                                                                                                                              from £2.41
                                                                                                                                                              This part replaces part number 008251701
                                                                                                                                                              # 045
                                                                                                                                                              MPN: 008401710
                                                                                                                                                              WASHER
                                                                                                                                                              from £26.12
                                                                                                                                                              from £26.12
                                                                                                                                                              # 046
                                                                                                                                                              MPN: 008101701
                                                                                                                                                              BOLT
                                                                                                                                                              from £42.70
                                                                                                                                                              from £42.70
                                                                                                                                                              # 047
                                                                                                                                                              MPN: 005205680
                                                                                                                                                              RIPARO IN GOMMA
                                                                                                                                                              from £65.63
                                                                                                                                                              from £65.63
                                                                                                                                                              # 048
                                                                                                                                                              MPN: 005109614
                                                                                                                                                              AMMORTIZZATORE ANTERIORE
                                                                                                                                                              # 049
                                                                                                                                                              MPN: 005109698
                                                                                                                                                              SPRING
                                                                                                                                                              # 050
                                                                                                                                                              MPN: 008101704
                                                                                                                                                              BOLT
                                                                                                                                                              from £7.60
                                                                                                                                                              from £7.60
                                                                                                                                                              # 051
                                                                                                                                                              MPN: 008401708
                                                                                                                                                              WASHER
                                                                                                                                                              from £1.62
                                                                                                                                                              from £1.62
                                                                                                                                                              # 052
                                                                                                                                                              MPN: 005109529
                                                                                                                                                              SNODO
                                                                                                                                                              from £77.28
                                                                                                                                                              from £77.28
                                                                                                                                                              # 053
                                                                                                                                                              MPN: 005109520
                                                                                                                                                              SNODO
                                                                                                                                                              from £165.26
                                                                                                                                                              from £165.26
                                                                                                                                                              # 054
                                                                                                                                                              MPN: 005109670
                                                                                                                                                              BUSSOLA PER SNODO
                                                                                                                                                              # 055
                                                                                                                                                              MPN: 005109540
                                                                                                                                                              BRACCIO INFERIORE SINISTRO
                                                                                                                                                              from £734.94
                                                                                                                                                              from £734.94
                                                                                                                                                              # 056
                                                                                                                                                              MPN: 005109541
                                                                                                                                                              BRACCIO INFERIORE DESTRO
                                                                                                                                                              from £734.94
                                                                                                                                                              from £734.94
                                                                                                                                                              # 057
                                                                                                                                                              MPN: 008201811
                                                                                                                                                              NUT
                                                                                                                                                              from £4.73
                                                                                                                                                              from £4.73
                                                                                                                                                              # 058
                                                                                                                                                              MPN: 0051004566
                                                                                                                                                              COMPLESSIVO SNODO
                                                                                                                                                              from £287.07
                                                                                                                                                              from £287.07
                                                                                                                                                              # 059
                                                                                                                                                              MPN: 008201412
                                                                                                                                                              NUT
                                                                                                                                                              from £11.53
                                                                                                                                                              from £11.53
                                                                                                                                                              # 060
                                                                                                                                                              MPN: 004309568
                                                                                                                                                              TUBO PER REGISTRO TIRANTE SCATOLA GUIDA
                                                                                                                                                              from £38.60
                                                                                                                                                              from £38.60
                                                                                                                                                              # 061
                                                                                                                                                              MPN: 005109530
                                                                                                                                                              SNODO
                                                                                                                                                              from £610.44
                                                                                                                                                              from £610.44
                                                                                                                                                              # 062
                                                                                                                                                              MPN: 005109746
                                                                                                                                                              BUSSOLA PER SNODO
                                                                                                                                                              from £141.37
                                                                                                                                                              from £141.37
                                                                                                                                                              # 063
                                                                                                                                                              MPN: 008401221
                                                                                                                                                              WASHER
                                                                                                                                                              from £18.12
                                                                                                                                                              from £18.12
                                                                                                                                                              # 064
                                                                                                                                                              MPN: 008201206
                                                                                                                                                              NUT
                                                                                                                                                              from £3.70
                                                                                                                                                              from £3.70
                                                                                                                                                              # 065
                                                                                                                                                              MPN: 005112050
                                                                                                                                                              PORTAMOZZO RUOTA SINISTRA ANTERIORE
                                                                                                                                                              from £5,615.86
                                                                                                                                                              from £5,615.86
                                                                                                                                                              # 066
                                                                                                                                                              MPN: 005112051
                                                                                                                                                              PORTAMOZZO RUOTA DESTRA ANTERIORE
                                                                                                                                                              from £5,615.86
                                                                                                                                                              from £5,615.86
                                                                                                                                                              # 067
                                                                                                                                                              MPN: 008253001
                                                                                                                                                              RING NUT
                                                                                                                                                              from £37.40
                                                                                                                                                              from £37.40
                                                                                                                                                              # 068
                                                                                                                                                              MPN: 005110442
                                                                                                                                                              CONTENITORE PARAOLIO
                                                                                                                                                              from £138.46
                                                                                                                                                              from £138.46
                                                                                                                                                              # 069
                                                                                                                                                              MPN: 008613801
                                                                                                                                                              SEALING RING
                                                                                                                                                              from £8.17
                                                                                                                                                              from £8.17
                                                                                                                                                              # 070
                                                                                                                                                              MPN: 005109783
                                                                                                                                                              SPACER
                                                                                                                                                              from £23.59
                                                                                                                                                              from £23.59
                                                                                                                                                              # 072
                                                                                                                                                              MPN: 005109784
                                                                                                                                                              SPESSORAZIONE PER CUSCINETTO
                                                                                                                                                              from £49.91
                                                                                                                                                              from £49.91
                                                                                                                                                              # 073
                                                                                                                                                              MPN: 008576601
                                                                                                                                                              SEEGER RING
                                                                                                                                                              from £0.53
                                                                                                                                                              from £0.53
                                                                                                                                                              # 074
                                                                                                                                                              MPN: 005112053
                                                                                                                                                              SPACER
                                                                                                                                                              from £219.72
                                                                                                                                                              from £219.72
                                                                                                                                                              # 075
                                                                                                                                                              MPN: 008524502
                                                                                                                                                              BEARING
                                                                                                                                                              from £90.38
                                                                                                                                                              from £90.38
                                                                                                                                                              # 076
                                                                                                                                                              MPN: 008577501
                                                                                                                                                              SEEGER RING
                                                                                                                                                              from £0.96
                                                                                                                                                              from £0.96
                                                                                                                                                              # 077
                                                                                                                                                              MPN: 008616003
                                                                                                                                                              SEALING RING
                                                                                                                                                              from £10.53
                                                                                                                                                              from £10.53
                                                                                                                                                              # 078
                                                                                                                                                              MPN: 005210407
                                                                                                                                                              SPACER
                                                                                                                                                              from £43.53
                                                                                                                                                              from £43.53
                                                                                                                                                              # 079
                                                                                                                                                              MPN: 005112052
                                                                                                                                                              MOZZO PORTA RUOTA
                                                                                                                                                              from £506.60
                                                                                                                                                              from £506.60
                                                                                                                                                              # 080
                                                                                                                                                              MPN: 008700609
                                                                                                                                                              SCREW
                                                                                                                                                              Supersession
                                                                                                                                                              Supersession
