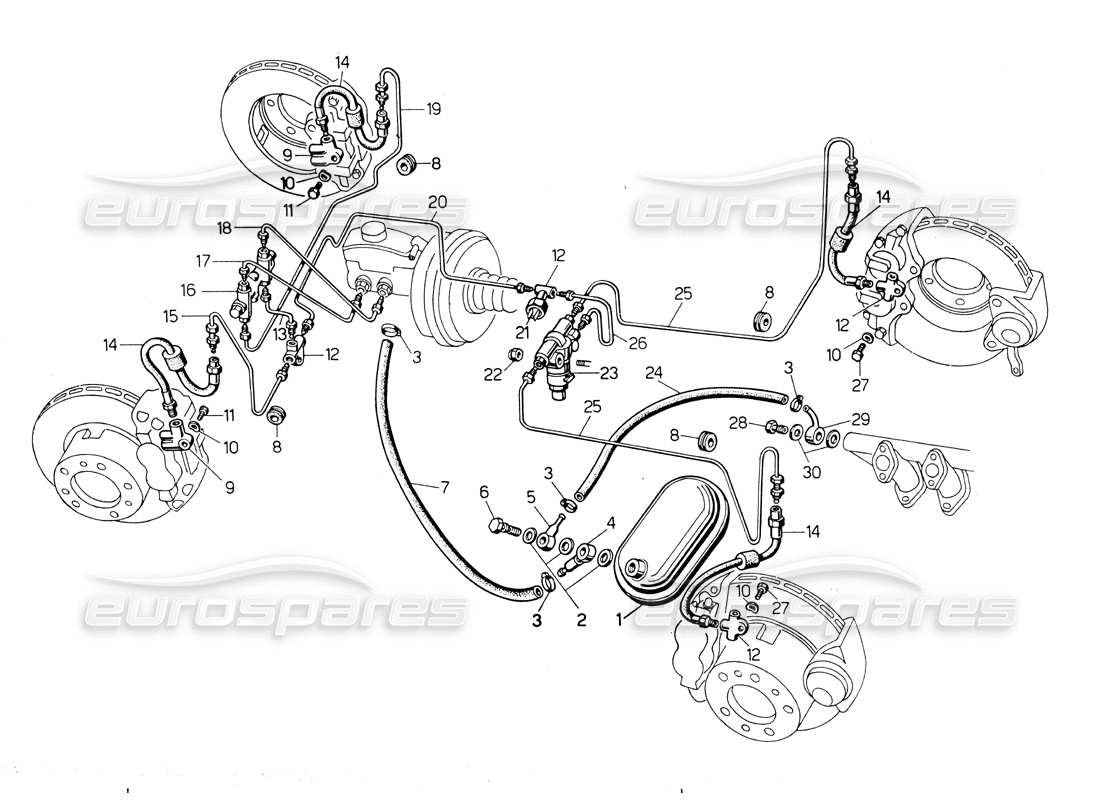

Lamborghini Countach LP400 Braking system Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 003204974
VACUM TANK
from £303.49
from £303.49
# 002
MPN: 003101513
WASHER
from £0.97
from £0.97
# 003
MPN: 008830205
JUBILEE CLIP
from £4.27
from £4.27
# 004
MPN: 003204607
UNION
from £64.35
from £64.35
# 005
MPN: 003101518
VALVOLA DI NON RITORNO PER SERVOFRENO
from £109.86
from £109.86
# 006
MPN: 003101486
BOLT
from £20.23
from £20.23
# 007
MPN: 003210387
TUBO DAL SERVOFRENO AL VACUM
from £67.49
from £67.49
# 008
MPN: 008610502
RUBBER GROMMET
from £2.53
from £2.53
# 009
MPN: 003108672
UNION
from £36.67
from £36.67
# 010
MPN: 008410602
WASHER
from £27.90
from £27.90
# 011
MPN: 008100603
BOLT
from £0.93
from £0.93
# 012
MPN: 003208682
UNION
from £34.66
from £34.66
# 013
MPN: 003110365
TUBO DEL TRE VIE AL.DISP. DI SICUREZZA
from £13.72
from £13.72
# 014
MPN: 003208683
FLEXIBLE PIPE
from £31.20
from £31.20
# 015
MPN: 003110363
TUBO PER FRENI ANTERIORI PARTE SINISTRA
from £190.29
from £190.29
# 016
MPN: 003112854
DISPOSITIVO DI SICUREZZA
# 017
MPN: 003110373
TUBO DEL DISP. DI SICUREZZA AL SERVOFRENO
from £18.58
from £18.58
# 018
MPN: 003210372
TUBO DAL DISP.
from £48.43
from £48.43
# 019
MPN: 003110364
TUBO PER FRENI ANTERIORI PARTE DESTRA
from £199.40
from £199.40
# 020
MPN: 003210366
TUBO DAL DISPOSITIVO DI SIC. AL TRE VIE
# 021
MPN: 003208693
CONTATTO PER STOP
from £85.39
from £85.39
# 022
MPN: 008200809
NUT
Supersession
Supersession
# 023
MPN: 003210357
VALVOLA LIMITATRICE DI PRESSIONE
from £162.93
from £162.93
# 024
MPN: 003210386
TUBO DALLA PRESA SUL MOTORE ALLA VALVOLA
from £25.04
from £25.04
# 025
MPN: 003210358
TUBO DALLA VALVOLA LIMITATRICE AL TUBO FLOSS.
from £281.88
from £281.88
# 026
MPN: 003210367
TUBO DAL TRE VIE STOP ALLA VALVOLA
from £13.14
from £13.14
# 027
MPN: 008100629
BOLT
from £0.53
from £0.53
# 028
MPN: 003101941
BOLT
from £2.64
from £2.64
# 029
MPN: 003204610
UNION
from £89.49
from £89.49
# 030
MPN: 008401610
WASHER
from £6.32
from £6.32
