lamborghini countach lp400 gear shift lever parts diagram

014 - Gear shift lever

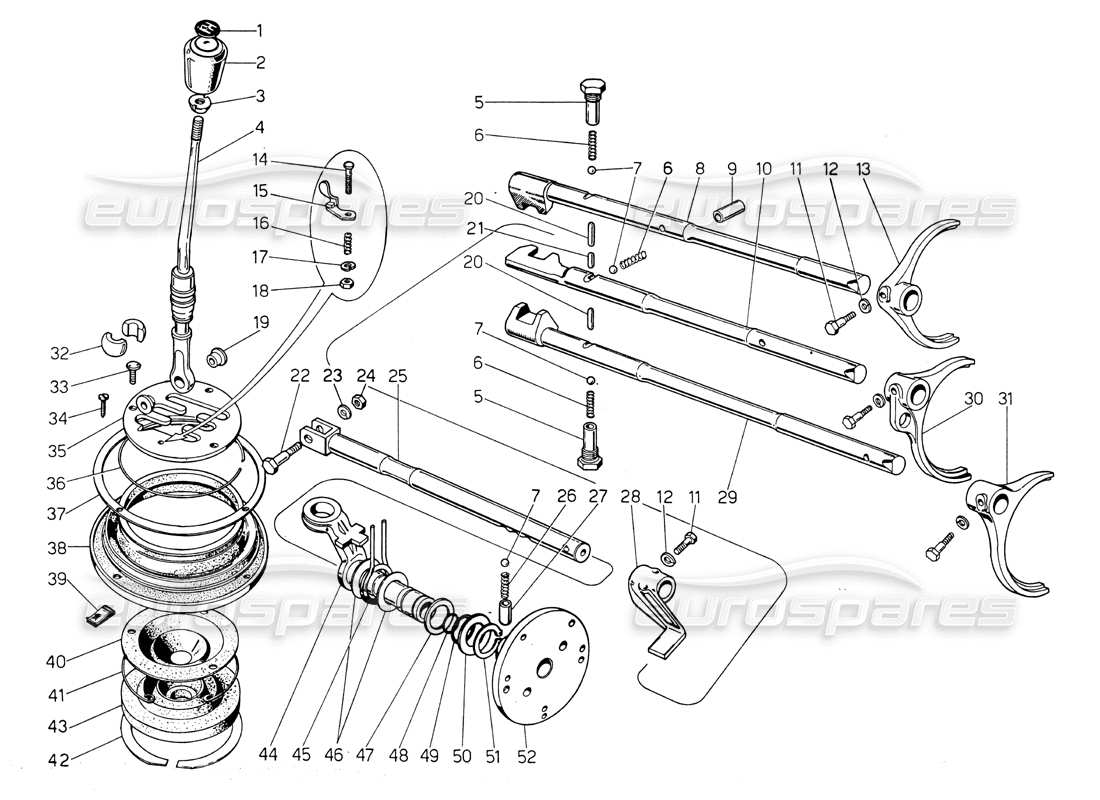

Lamborghini Countach LP400 Gear shift lever Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                          #
                                                                                                          Part number
                                                                                                          Description
                                                                                                          Price
                                                                                                          # 001
                                                                                                          MPN: 002410655
                                                                                                          PLACCHETTA INDICAZIONE MARCE
                                                                                                          from £47.21
                                                                                                          from £47.21
                                                                                                          # 002
                                                                                                          MPN: 002410654
                                                                                                          POMELLO
                                                                                                          from £346.72
                                                                                                          from £346.72
                                                                                                          This part replaces part number 002410134 which we have in stock
                                                                                                          # 003
                                                                                                          MPN: 002410653
                                                                                                          RING NUT
                                                                                                          from £27.28
                                                                                                          from £27.28
                                                                                                          # 004
                                                                                                          MPN: 002410440
                                                                                                          LEVER
                                                                                                          from £458.26
                                                                                                          from £458.26
                                                                                                          # 005
                                                                                                          MPN: 002409896
                                                                                                          BUSSOLA GUIDA SFERE
                                                                                                          from £196.92
                                                                                                          from £196.92
                                                                                                          # 006
                                                                                                          MPN: 086311249
                                                                                                          SPRING
                                                                                                          from £3.07
                                                                                                          from £3.07
                                                                                                          This part replaces part number 002402242 - and 1 more. Click to view details
                                                                                                          # 007
                                                                                                          MPN: 008910701
                                                                                                          SFERA
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 008
                                                                                                          MPN: 002409893
                                                                                                          ASTA.INNESTO 4ª E 5ª VELOCITA
                                                                                                          # 009
                                                                                                          MPN: 002401765
                                                                                                          BUSH
                                                                                                          from £10.95
                                                                                                          from £10.95
                                                                                                          # 010
                                                                                                          MPN: 002409892
                                                                                                          ASTA INNESTO 2ª E 3ª VELOCITA
                                                                                                          from £255.36
                                                                                                          from £255.36
                                                                                                          # 011
                                                                                                          MPN: 008100628
                                                                                                          BOLT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 012
                                                                                                          MPN: 008410603
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 013
                                                                                                          MPN: 002409883
                                                                                                          FORK 4ª AND 5ª SPEED
                                                                                                          from £401.29
                                                                                                          from £401.29
                                                                                                          # 014
                                                                                                          MPN: 008700635
                                                                                                          SCREW
                                                                                                          from £14.38
                                                                                                          from £14.38
                                                                                                          # 015
                                                                                                          MPN: 002410634
                                                                                                          FERMO DI SICUREZZA PER R.M.
                                                                                                          from £53.31
                                                                                                          from £53.31
                                                                                                          # 016
                                                                                                          MPN: 002403369
                                                                                                          SPRING
                                                                                                          from £20.81
                                                                                                          from £20.81
                                                                                                          # 017
                                                                                                          MPN: 008410602
                                                                                                          WASHER
                                                                                                          from £28.66
                                                                                                          from £28.66
                                                                                                          # 018
                                                                                                          MPN: 008200606
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 019
                                                                                                          MPN: 002403702
                                                                                                          BUSH
                                                                                                          from £41.09
                                                                                                          from £41.09
                                                                                                          # 020
                                                                                                          MPN: 002407979
                                                                                                          PUNTALINO PER ASTE LATERALI
                                                                                                          from £19.37
                                                                                                          from £19.37
                                                                                                          # 021
                                                                                                          MPN: 002409897
                                                                                                          PUNTALINO PER ASTA CENTRALE
                                                                                                          from £173.80
                                                                                                          from £173.80
                                                                                                          # 022
                                                                                                          MPN: 002402934
                                                                                                          SCREW
                                                                                                          from £18.17
                                                                                                          from £18.17
                                                                                                          # 023
                                                                                                          MPN: 008410806
                                                                                                          WASHER
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 024
                                                                                                          MPN: 008200806
                                                                                                          NUT
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 025
                                                                                                          MPN: 002409876
                                                                                                          PIVOT
                                                                                                          from £236.30
                                                                                                          from £236.30
                                                                                                          # 026
                                                                                                          MPN: 002403246
                                                                                                          SPRING
                                                                                                          from £3.62
                                                                                                          from £3.62
                                                                                                          # 027
                                                                                                          MPN: 002403245
                                                                                                          BUSH
                                                                                                          from £33.74
                                                                                                          from £33.74
                                                                                                          # 028
                                                                                                          MPN: 002409887
                                                                                                          LEVER
                                                                                                          from £531.47
                                                                                                          from £531.47
                                                                                                          # 029
                                                                                                          MPN: 002411681
                                                                                                          ASTA INNESTO LA VELACITA A RM
                                                                                                          from £226.35
                                                                                                          from £226.35
                                                                                                          # 030
                                                                                                          MPN: 002409882
                                                                                                          FORK 2A AND 3A SPEED
                                                                                                          # 031
                                                                                                          MPN: 002409881
                                                                                                          FORK 1ST SPEED AND REVERSE
                                                                                                          from £401.29
                                                                                                          from £401.29
                                                                                                          # 032
                                                                                                          MPN: 002409875
                                                                                                          SFERA PER LEVA COMANDO CAMBIO
                                                                                                          from £111.94
                                                                                                          from £111.94
                                                                                                          # 033
                                                                                                          MPN: 008700634
                                                                                                          SCREW
                                                                                                          from £22.97
                                                                                                          from £22.97
                                                                                                          # 034
                                                                                                          MPN: 008700506
                                                                                                          SCREW
                                                                                                          from £0.53
                                                                                                          from £0.53
                                                                                                          # 035
                                                                                                          MPN: 002409437
                                                                                                          SELETTORE
                                                                                                          from £281.08
                                                                                                          from £281.08
                                                                                                          # 036
                                                                                                          MPN: 002409438
                                                                                                          SEEGER RING
                                                                                                          from £8.96
                                                                                                          from £8.96
                                                                                                          # 037
                                                                                                          MPN: 002409922
                                                                                                          RING
                                                                                                          from £55.97
                                                                                                          from £55.97
                                                                                                          # 038
                                                                                                          MPN: 002410638
                                                                                                          CUFFIA ESTERNA
                                                                                                          from £44.27
                                                                                                          from £44.27
                                                                                                          # 039
                                                                                                          MPN: 002412243
                                                                                                          NUT
                                                                                                          from £2.12
                                                                                                          from £2.12
                                                                                                          # 040
                                                                                                          MPN: 002412784
                                                                                                          CUFFIA PER LEVA COMANDO CAMBIO .
                                                                                                          from £39.35
                                                                                                          from £39.35
                                                                                                          # 041
                                                                                                          MPN: 002412670
                                                                                                          SEEGER RING
                                                                                                          from £15.25
                                                                                                          from £15.25
                                                                                                          # 042
                                                                                                          MPN: 002412671
                                                                                                          RING
                                                                                                          from £14.38
                                                                                                          from £14.38
                                                                                                          # 043
                                                                                                          MPN: 002412672
                                                                                                          CUFFIA INTERNA PER LEVA COMANDO CAMBIO
                                                                                                          Supersession
                                                                                                          Supersession
                                                                                                          # 044
                                                                                                          MPN: 002410314
                                                                                                          SUPPORT
                                                                                                          from £344.91
                                                                                                          from £344.91
                                                                                                          # 045
                                                                                                          MPN: 002410451
                                                                                                          SPRING
                                                                                                          from £30.55
                                                                                                          from £30.55
                                                                                                          # 046
                                                                                                          MPN: 008403302
                                                                                                          WASHER
                                                                                                          from £9.66
                                                                                                          from £9.66
                                                                                                          # 047
                                                                                                          MPN: 008402601
                                                                                                          WASHER
                                                                                                          from £14.98
                                                                                                          from £14.98
                                                                                                          # 048
                                                                                                          MPN: 008601705
                                                                                                          SEALING RING
                                                                                                          from £0.51
                                                                                                          from £0.51
                                                                                                          # 049
                                                                                                          MPN: 008602101
                                                                                                          SEALING RING
                                                                                                          from £1.71
                                                                                                          from £1.71
                                                                                                          # 050
                                                                                                          MPN: 008402602
                                                                                                          WASHER
                                                                                                          from £6.97
                                                                                                          from £6.97
                                                                                                          # 051
                                                                                                          MPN: 008582601
                                                                                                          SEEGER RING
                                                                                                          from £3.65
                                                                                                          from £3.65
                                                                                                          # 052
                                                                                                          MPN: 002409791
                                                                                                          DISTANZIALE PER SUPPORTO LEVA CORN. CAMBIO
                                                                                                          from £232.99
                                                                                                          from £232.99
