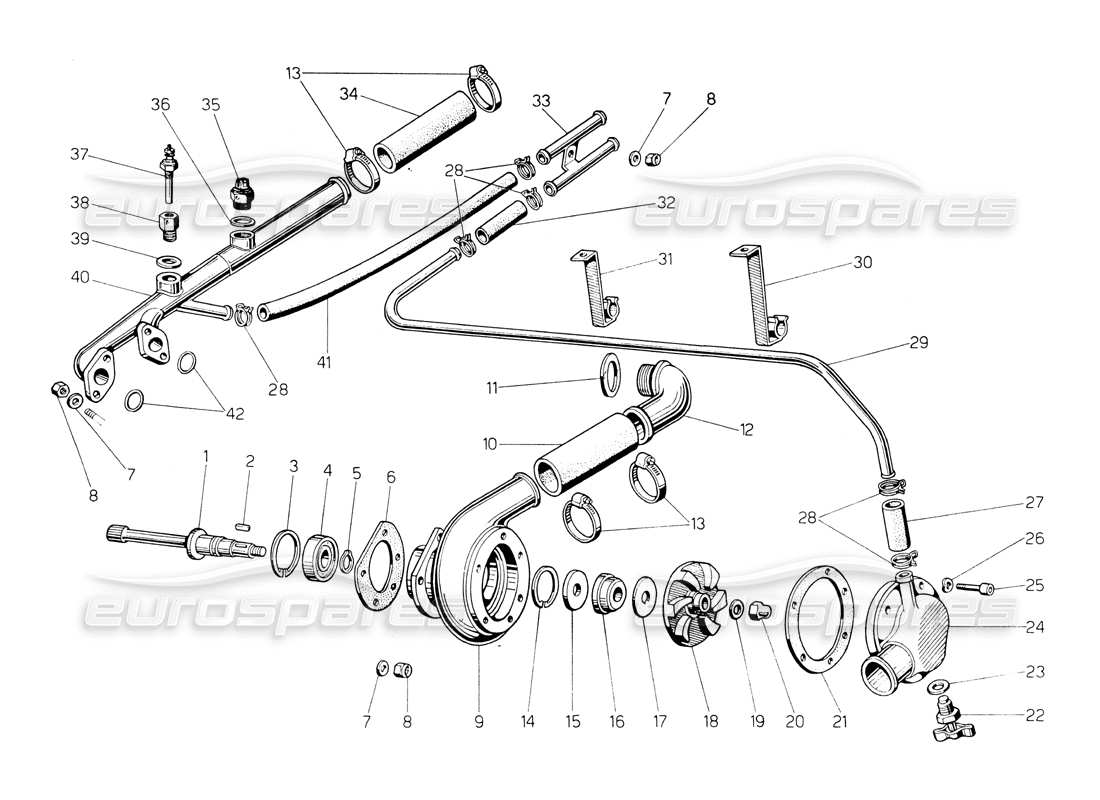

Lamborghini Countach LP400 Water pump and system Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 001
                                                                                    MPN: 001700395
                                                                                    ALBERO COMANDO POMPA ACQUA .
                                                                                    from £226.55
                                                                                    from £226.55
                                                                                    # 002
                                                                                    MPN: 008860401
                                                                                    Key
                                                                                    from £17.77
                                                                                    from £17.77
                                                                                    # 003
                                                                                    MPN: 008574301
                                                                                    SEEGER RING
                                                                                    from £1.70
                                                                                    from £1.70
                                                                                    # 004
                                                                                    MPN: 008501705
                                                                                    BEARING
                                                                                    from £26.56
                                                                                    from £26.56
                                                                                    # 005
                                                                                    MPN: 008581501
                                                                                    SEEGER RING
                                                                                    from £0.54
                                                                                    from £0.54
                                                                                    # 006
                                                                                    MPN: 001700391
                                                                                    GASKET
                                                                                    from £7.38
                                                                                    from £7.38
                                                                                    # 007
                                                                                    MPN: 008400606
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 008
                                                                                    MPN: 008200606
                                                                                    NUT
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 009
                                                                                    MPN: 001710049
                                                                                    CORPO POMPA ACQUA
                                                                                    # 010
                                                                                    MPN: 001701983
                                                                                    MANICOTTO MANDATA ACQUA AL BASAMENTO
                                                                                    from £38.78
                                                                                    from £38.78
                                                                                    # 011
                                                                                    MPN: 001701783
                                                                                    GASKET
                                                                                    from £6.02
                                                                                    from £6.02
                                                                                    # 012
                                                                                    MPN: 001704506
                                                                                    TUBO ENTRATA ACQUA NEL BASAMENTO
                                                                                    from £732.35
                                                                                    from £732.35
                                                                                    # 013
                                                                                    MPN: 008835004
                                                                                    JUBILEE CLIP
                                                                                    from £6.14
                                                                                    from £6.14
                                                                                    This part replaces part number 008830201
                                                                                    # 014
                                                                                    MPN: 07M109381
                                                                                    SEEGER RING
                                                                                    from £1.16
                                                                                    from £1.16
                                                                                    This part replaces part number 008573501 - and 1 more. Click to view details
                                                                                    # 015
                                                                                    MPN: 001712753
                                                                                    WASHER
                                                                                    from £119.32
                                                                                    from £119.32
                                                                                    This part replaces part number 001700369 - and 1 more. Click to view details
                                                                                    # 016
                                                                                    MPN: 008611703
                                                                                    WATER PUMP SEAL
                                                                                    from £225.00
                                                                                    from £225.00
                                                                                    # 017
                                                                                    MPN: 001712752
                                                                                    WASHER
                                                                                    from £20.75
                                                                                    from £20.75
                                                                                    This part replaces part number 001700397
                                                                                    # 018
                                                                                    MPN: 001709854
                                                                                    GIRANTE POMPA ACQUA
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 019
                                                                                    MPN: WHT000768
                                                                                    WASHER
                                                                                    from £1.31
                                                                                    from £1.31
                                                                                    This part replaces part number 008410806 - and 1 more. Click to view details
                                                                                    # 020
                                                                                    MPN: 008201005
                                                                                    NUT
                                                                                    from £7.28
                                                                                    from £7.28
                                                                                    # 021
                                                                                    MPN: 001704578
                                                                                    GASKET
                                                                                    from £11.46
                                                                                    from £11.46
                                                                                    # 022
                                                                                    MPN: 001701905
                                                                                    RUBINETTO DI SCARICO
                                                                                    from £65.54
                                                                                    from £65.54
                                                                                    # 023
                                                                                    MPN: 001701906
                                                                                    WASHER
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 024
                                                                                    MPN: 001921992
                                                                                    COVER
                                                                                    supersedes to the following 2 parts 001721992 & 008931804
                                                                                    from £3,160.27
                                                                                    from £3,160.27
                                                                                    # 025
                                                                                    MPN: 008700614
                                                                                    VITO
                                                                                    Supersession
                                                                                    Supersession
                                                                                    # 026
                                                                                    MPN: 008410602
                                                                                    WASHER
                                                                                    from £27.90
                                                                                    from £27.90
                                                                                    # 027
                                                                                    MPN: 001711387
                                                                                    MANICOTTO DALLA POMPA AT TUBO FRA LE TESTE
                                                                                    from £14.55
                                                                                    from £14.55
                                                                                    # 028
                                                                                    MPN: 008830124
                                                                                    JUBILEE CLIP
                                                                                    from £0.67
                                                                                    from £0.67
                                                                                    # 029
                                                                                    MPN: 001711290
                                                                                    TUBO FRA LE TESTE
                                                                                    from £375.26
                                                                                    from £375.26
                                                                                    # 030
                                                                                    MPN: 001711800
                                                                                    SUPPORT
                                                                                    from £130.57
                                                                                    from £130.57
                                                                                    # 032
                                                                                    MPN: 001711388
                                                                                    TUBO DALLA GUINZIONE AL TUBO FRA LE TESTA
                                                                                    from £24.21
                                                                                    from £24.21
                                                                                    # 033
                                                                                    MPN: 001726817
                                                                                    GIUNZIONE PER TUBAZIONE RISCALDATORE
                                                                                    from £140.55
                                                                                    from £140.55
                                                                                    # 034
                                                                                    MPN: 001711338
                                                                                    SLEEVE
                                                                                    from £33.34
                                                                                    from £33.34
                                                                                    # 035
                                                                                    MPN: 001313159
                                                                                    INTERRUTTORE TERMOMETRICO
                                                                                    # 036
                                                                                    MPN: 008402202
                                                                                    WASHER
                                                                                    from £2.69
                                                                                    from £2.69
                                                                                    # 037
                                                                                    MPN: 001810336
                                                                                    TERMOCOPPIA TEMPERATURA ACQUA
                                                                                    # 038
                                                                                    MPN: 001810335
                                                                                    RIDUZIONE PER TERMOCOPPIA
                                                                                    # 039
                                                                                    MPN: 008401408
                                                                                    WASHER
                                                                                    from £1.29
                                                                                    from £1.29
                                                                                    # 040
                                                                                    MPN: 001719926
                                                                                    UNION
                                                                                    from £48.92
                                                                                    from £48.92
                                                                                    # 041
                                                                                    MPN: 001711393
                                                                                    TUBO DAL RACCORDO ALLA GIUNZIONE
                                                                                    from £18.37
                                                                                    from £18.37
                                                                                    # 042
                                                                                    MPN: 008602303
                                                                                    SEALING RING
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number GN-01236
                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
