lamborghini countach lp400 crankshaft parts diagram

005 - crankshaft

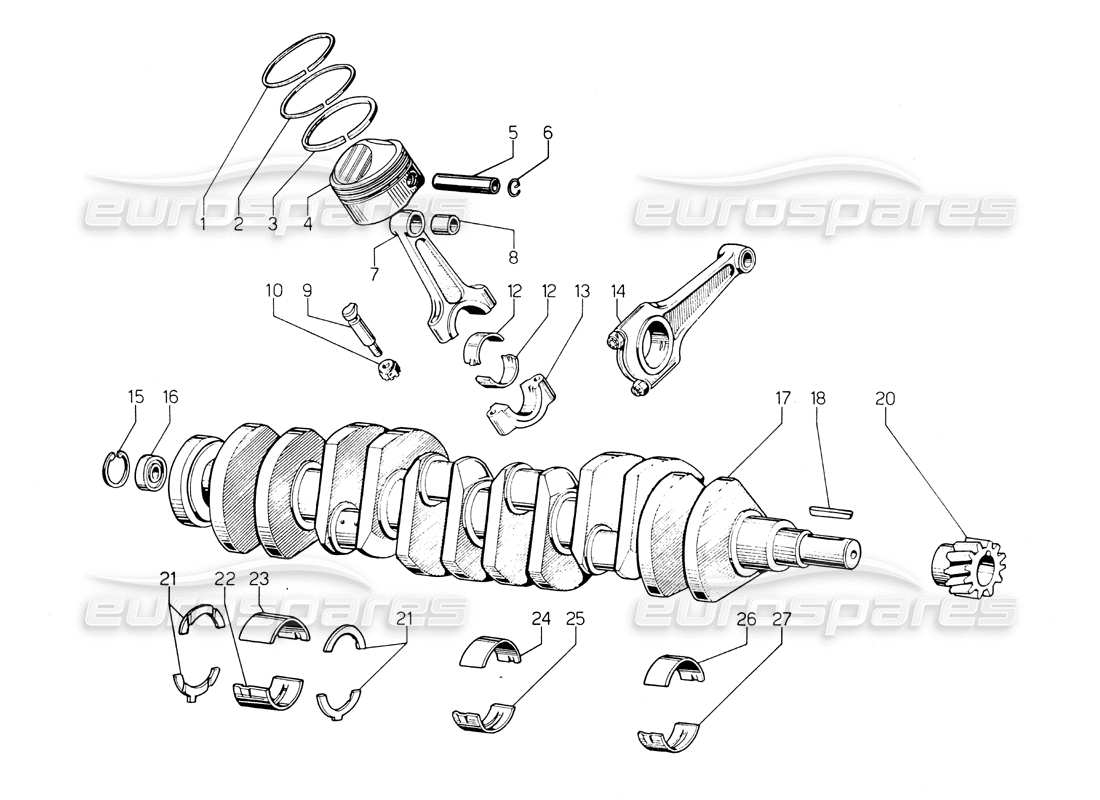

Lamborghini Countach LP400 Crankshaft Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 000
                                                  MPN: 001406861
                                                  MAINS & BIG END BEARINGS SET +10
                                                  from £2,995.00
                                                  from £2,995.00
                                                  # 000
                                                  MPN: 001406862
                                                  MAINS & BIG END BEARINGS SET +20
                                                  from £2,695.00
                                                  from £2,695.00
                                                  # 000
                                                  MPN: 001436738
                                                  MAINS & BIG END BEARINGS SET STD
                                                  from £2,995.00
                                                  from £2,995.00
                                                  # 001
                                                  MPN: 001402908
                                                  SEGMENTO SUPERIORE
                                                  from £86.04
                                                  from £86.04
                                                  # 002
                                                  MPN: 001402907
                                                  SEGMENTO INFERIORE
                                                  from £98.07
                                                  from £98.07
                                                  # 003
                                                  MPN: 001402906
                                                  RING
                                                  from £45.31
                                                  from £45.31
                                                  # 005
                                                  MPN: 001400398
                                                  SPINOTTO PER PISTONE
                                                  from £110.28
                                                  from £110.28
                                                  # 006
                                                  MPN: 008572101
                                                  SEALING RING
                                                  from £0.50
                                                  from £0.50
                                                  # 007
                                                  MPN: 001413099
                                                  PARTESUPERIORE BIELLA
                                                  # 008
                                                  MPN: 001413206
                                                  LITTLE END BUSH
                                                  from £69.96
                                                  from £69.96
                                                  # 009
                                                  MPN: 001405755
                                                  CON ROD BOLT
                                                  from £110.68
                                                  from £110.68
                                                  This part replaces part number 001400359
                                                  # 010

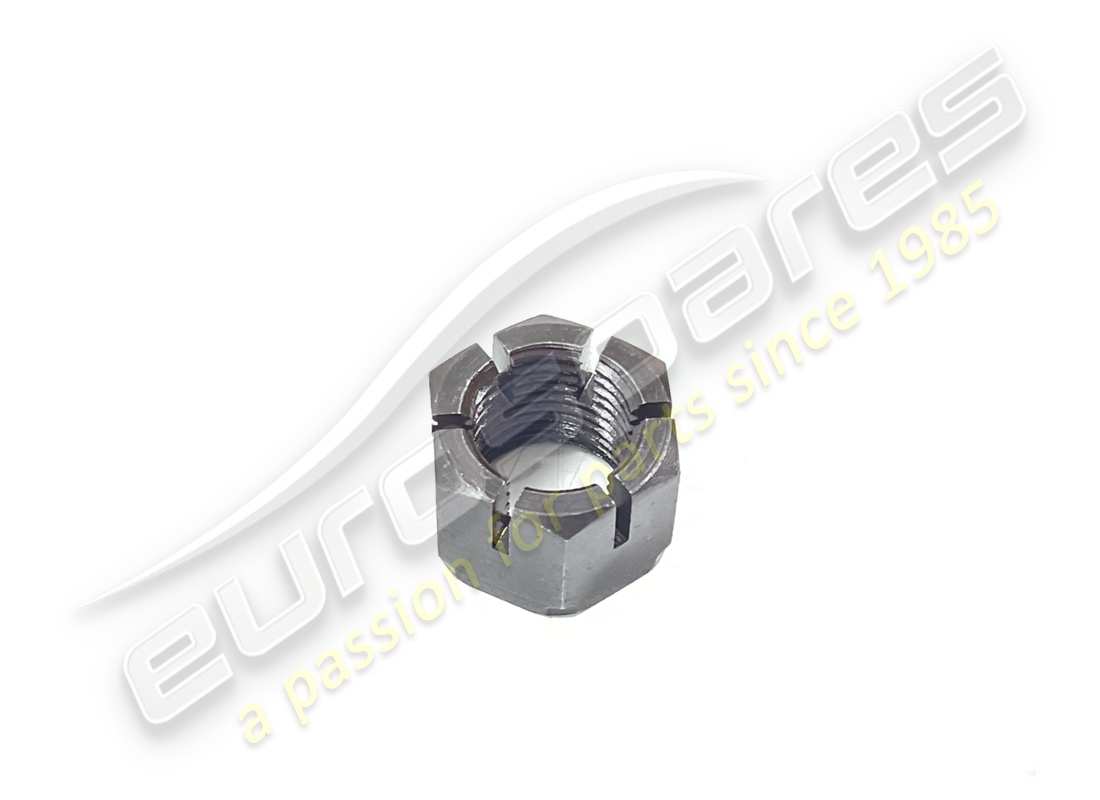

                                                  MPN: 001405756
                                                  NUT
                                                  from £17.32
                                                  from £17.32
                                                  This part replaces part number 001404419
                                                  # 012
                                                  MPN: 001419898
                                                  BEARING - BIG END
                                                  from £41.01
                                                  from £41.01
                                                  # 013
                                                  MPN: 001403520
                                                  CAPPELLO PER BIELLA
                                                  # 014
                                                  MPN: 001412758
                                                  COMPLESSIVO BIELLA
                                                  from £213.87
                                                  from £213.87
                                                  This part replaces part number 001400802 - and 1 more. Click to view details
                                                  # 015
                                                  MPN: 07M109381
                                                  SEEGER RING
                                                  from £1.16
                                                  from £1.16
                                                  This part replaces part number 008573501 - and 1 more. Click to view details

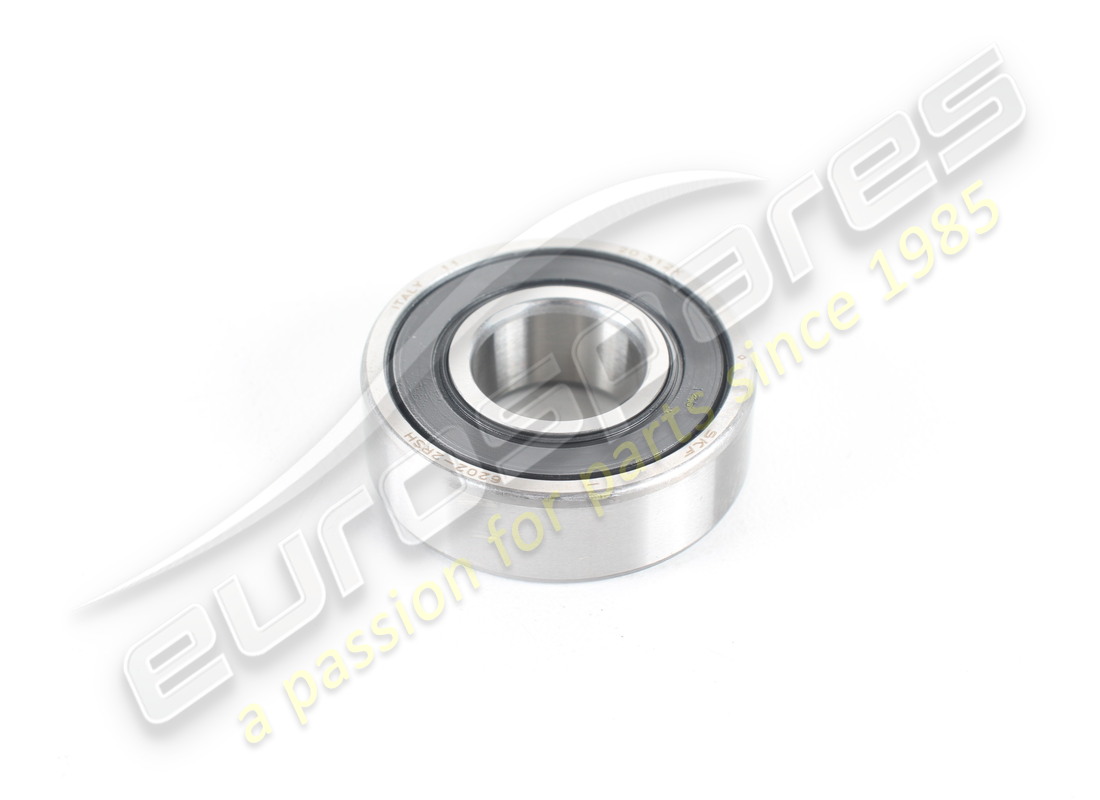

                                                  # 016
                                                  MPN: 410109264
                                                  BEARING
                                                  from £14.84
                                                  from £14.84
                                                  This part replaces part number 008501501 - and 2 more. Click to view details
                                                  # 017
                                                  MPN: 001407338
                                                  crankshaft
                                                  from £18,896.76
                                                  from £18,896.76
                                                  # 018
                                                  MPN: 008860801
                                                  Key
                                                  from £6.43
                                                  from £6.43
                                                  # 020
                                                  MPN: 001407354
                                                  INGRANAGGIO
                                                  from £146.33
                                                  from £146.33
                                                  # 021
                                                  MPN: 07M105532
                                                  TTHRUST WASHER (PRICE EACH)
                                                  use:2x 07M105531A & 2x 07M105532
                                                  from £196.28
                                                  from £196.28
                                                  # 022
                                                  MPN: 001400248
                                                  SEMIGUSCIO INFERIORE POSTERIORE
                                                  from £29.10
                                                  from £29.10
                                                  # 023
                                                  MPN: 001400244
                                                  SEMIGUSCIO SUPERIORE POSTERIORE
                                                  from £29.10
                                                  from £29.10
                                                  # 024
                                                  MPN: 001400249
                                                  SEMIGUSCIO SUPERIORE INTERMEDIO
                                                  not as spare part - use part number: 001400236
                                                  from £122.79
                                                  from £122.79
                                                  # 025
                                                  MPN: 001400236
                                                  SEMIGUSCIO INFERIORE INTERMEDIO
                                                  from £105.30
                                                  from £105.30
                                                  # 026
                                                  MPN: 001400243
                                                  SEMIGUSCIO SUPERIORE ANTERIORE
                                                  from £27.62
                                                  from £27.62
                                                  # 027
                                                  MPN: 001400239
                                                  SEMIGUSCIO INFERIORE ANTERIORE
                                                  from £29.10
                                                  from £29.10
