lamborghini countach 5000 s (1984) fuel system parts diagram

037 - fuel system

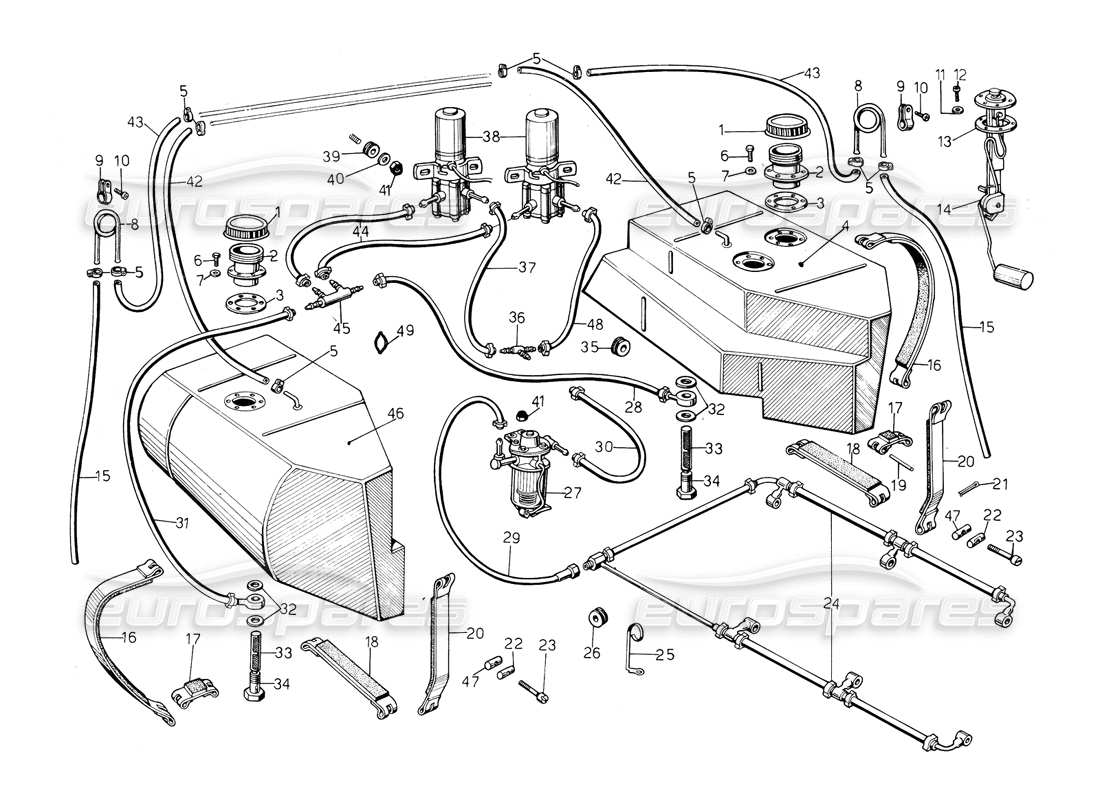

Lamborghini Countach 5000 S (1984) Fuel System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 400201587A
FUEL TANK C
Tappo benz. Fiat 4305673
from £567.22
from £567.22
# 002
MPN: 006211033
HOSE
Bocchett. serb. benz. /C
from £203.63
from £203.63
# 003
MPN: 006205360
GASKET
Guam, reost. gall. 39094601
from £34.44
from £34.44
# 004
MPN: 006219115
FUEL TANK
Serbatoio benzina des.
from £1,264.40
from £1,264.40
# 005
MPN: 008830901
CLAMP RING
Fasc. royal 0000/9
from £4.07
from £4.07
# 006
MPN: 008100402
BOLT
Bull. M4x16 UNI 5739-65A8G
from £0.50
from £0.50
# 007
MPN: 008410402
LOCK WASHER
Rond. A4.3UNI 1751 C72
Supersession
Supersession
# 008
MPN: 006220228
GAS
(Valid from chassis No. 535) Coda di porto scarico gas dai serbatoi
from £22.68
from £22.68
# 009
MPN: 008830111
JUBILEE CLIP
(Valid from chassis No. 535) Fascetta tub. cilindr.
# 010
MPN: 008700315
SCREW
(Valid from chassis No. 535) Vite TSC 3,5x9,5 DIN 7983
from £1.67
from £1.67
# 011
MPN: 008410404
LOCK WASHER
ROND. EL. 4 UNI 3704
from £0.52
from £0.52
# 012
MPN: 008100402
BOLT
Bull. M4x16 UNI 5739-65A8G
from £0.52
from £0.52
# 013
MPN: 006205360
GASKET
Guam, reost. gall. 39094601
from £34.44
from £34.44
# 014
MPN: 006205411
LEVER FUEL
Misuratore livello benzina
from £96.84
from £96.84
This part replaces part number 006203181
# 015
MPN: 006220748
TUBE
Tubo sfiato coda di porco a terra
from £16.63
from £16.63
# 016
MPN: 006210599
CLIP
Fasc. sup. fiss. serb. /C
from £69.23
from £69.23
# 017
MPN: 006210598
CLIP
Fasc. inf. fiss. serb. 1C
from £36.90
from £36.90
# 018
MPN: 006210601
CLIP
Fasc. ant. fiss. serb. /C
from £109.86
from £109.86
# 019
MPN: 006203081
TANK PIN
Perno fasc. serb. benzina
from £14.30
from £14.30
# 020
MPN: 006210600
CLIP
Fasc. post. fiss. serb. 1C
from £69.26
from £69.26
# 021
MPN: 008820201
SPLINT PIN
Coppigl. 2x1 5 UNI 1336
from £4.11
from £4.11
# 022
MPN: 006203079
TANK PIN
Perno pass. fasc. serb.
from £29.71
from £29.71
# 023
MPN: 006220556
TIE ROD
Tirante fiss. serb. benzina
from £36.90
from £36.90
# 024
MPN: 001320688
PIPE ASEMBL
Compl. tubaz. benz. carb. /C
from £125.42
from £125.42
# 024
MPN: 001320688
TUBE
(Valid from chassis No. 535) Ins. tubazione benz. (Coll. carbur.)
from £125.42
from £125.42
# 025
MPN: 001304891
SUPPORT
Gancio supp. tubo alim.
from £9.47
from £9.47
# 026
MPN: 008611401
SEAL RING
Gommino passatubo (83.311.000)
from £3.65
from £3.65
# 027
MPN: 006220010
FUEL FILTER ASSEMBLY
Filtro regolatore benzina
from £131.25
from £131.25
# 028
MPN: 006220729
TUBE
(Valid from chassis No. 535) Tubo coll. serb. dex al quattro vie
from £147.18
from £147.18
# 029
MPN: 006210692
PIPE
Tubo filtro /carburatori 1C
from £102.03
from £102.03
# 029
MPN: 006220731
TUBE
(Valid from chassis No. 535) Tubo dai filtro benz. alia tubaz. carbur.
from £18.58
from £18.58
# 030
MPN: 006220734
TUBE
(Valid from chassis No. 535) Tubo filtro benzina al tre vie
from £27.51
from £27.51
# 031
MPN: 006220727
TUBE
(Valid from chassis No. 535) Tubo dai serb. sin. al quattro vie
from £133.08
from £133.08
# 032
MPN: 008401804
WASHER
ROND. RAME 18,2x30x1
from £2.53
from £2.53
# 033
MPN: 001303074

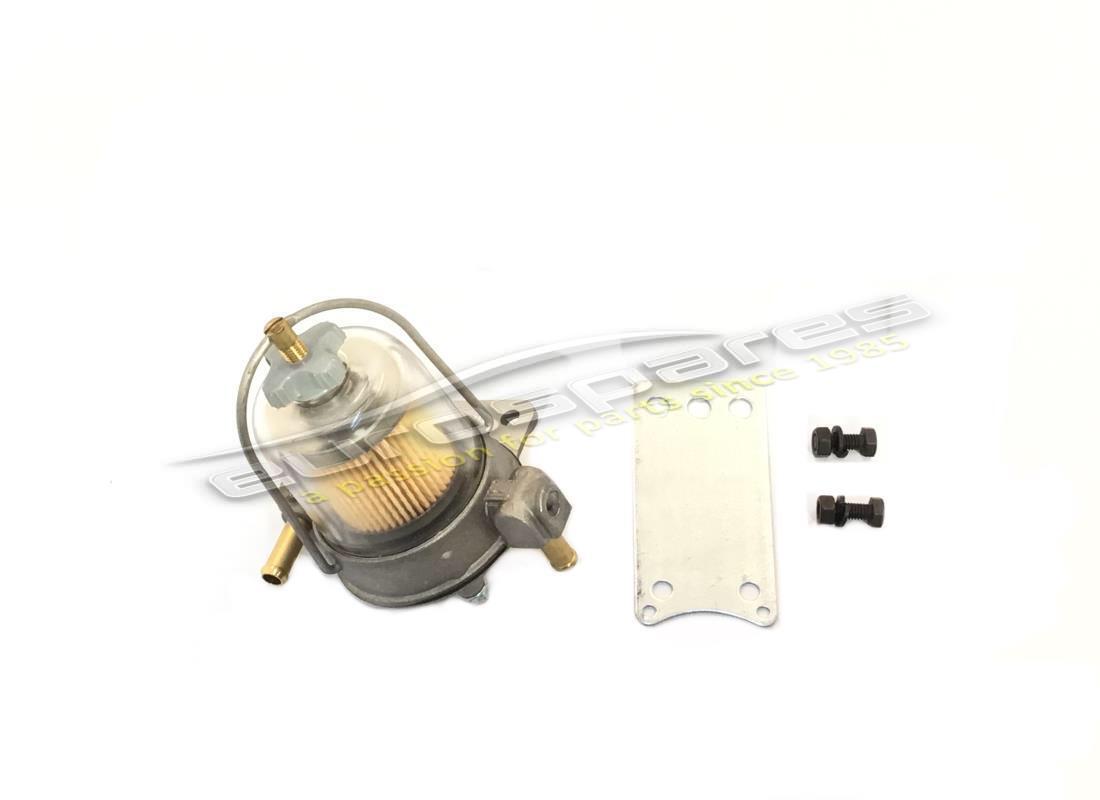

PUMP FILTER
Filtro race, aspir.
from £395.00
from £395.00
# 034
MPN: 006209551
TUBE
Race. asp. benz. /U
from £135.57
from £135.57
# 035
MPN: 008611002
SEAL RING
Gommino dur S 458 ^
from £13.87
from £13.87
# 036
MPN: 006220752
3 WAYS UNIO
(Valid from chassis No. 535) Race, a 3 vie in plast. x coll. pompa benz.
from £3.70
from £3.70
# 037
MPN: 006220732
TUBE
(Valid from chassis No. 535) Tubo pompa benz. al tre vie
from £7.84
from £7.84
# 038
MPN: 001320370
PUMP
(Valid from chassis No. 535) Pompa alimentaz. elettrica vs. DCD 8200
from £403.78
from £403.78
# 039
MPN: 008610601
SEAL RING
Gommino passatubo
from £3.16
from £3.16
# 040
MPN: WHT002961
WASHER
Bond. 6,5x18x1,5
from £0.53
from £0.53
This part replaces part number 008400607
# 041
MPN: 008200606
NUT
DadoN/70/106M
Supersession
Supersession
# 042
MPN: 006210701
PIPE
Tubo sfiato Serb. benz. 1C
# 042
MPN: 006220747
TUBE
(Valid from chassis No. 535) Tubi sfiato benz. dai serb. ai tubini , sotto tettuccio
from £15.85
from £15.85
# 043
MPN: 006220357
TUBE
Tubo sfiato coda porco al tubo sotto tett.
from £2.20
from £2.20
# 044
MPN: 006220725
TUBE
(Valid from chassis No. 535) Tubo coll. dai 4 vie alle pompe benzina
from £4.61
from £4.61
# 045
MPN: 006220753
PIPE
(Valid from chassis No. 535) Race, a 4 vie x coll. serb. a pompe benzina
from £34.90
from £34.90
# 046
MPN: 006209819
FUEL TANK
Serbatoio benz. sin. /C
# 047
MPN: 006203080
TANK PIN
Perno fil. fasc. serb.
from £14.30
from £14.30
# 048
MPN: 006220733
TUBE
(Valid from chassis No. 535) Tubo dalla pompa benzina al tre vie
from £9.21
from £9.21
# 049
MPN: 008830903
PIPE RING
(Valid from chassis No. 535) Fascetta ad anello x fiss. Tubi benzina
from £7.55
from £7.55
