lamborghini countach 5000 s (1984) exhaust pipes parts diagram

028 - Exhaust pipes

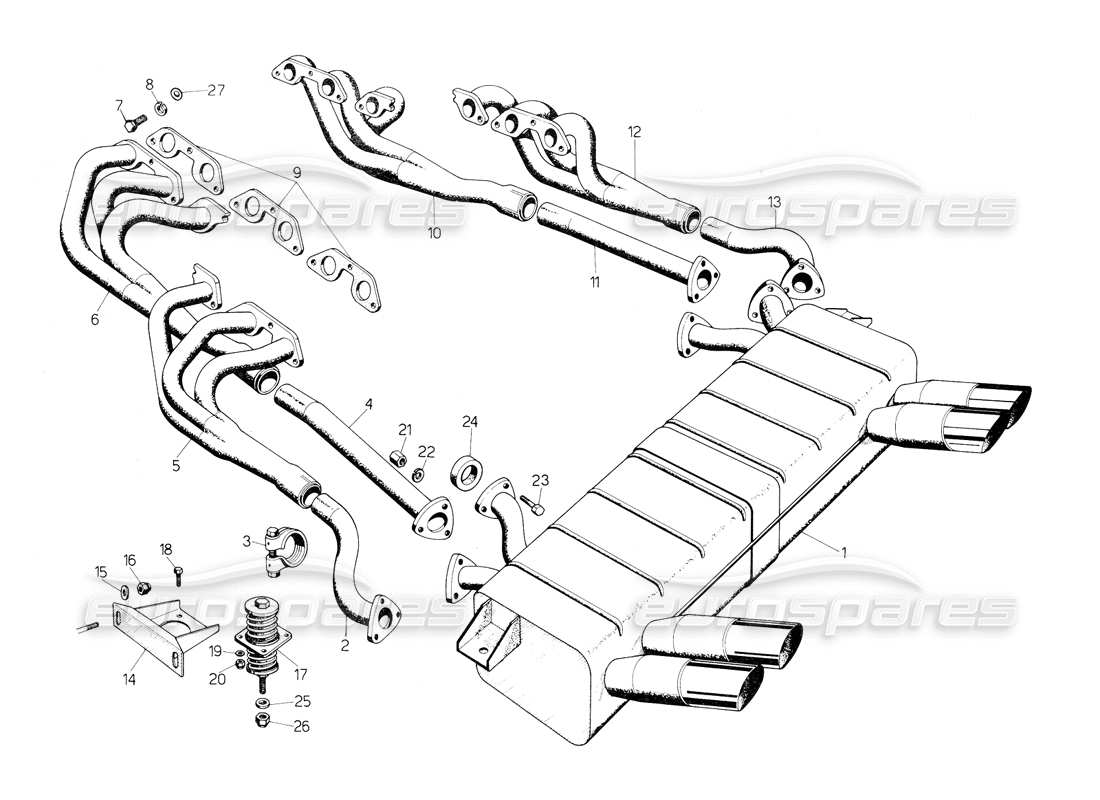

Lamborghini Countach 5000 S (1984) Exhaust Pipes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 004420093
      SILENTC
      Silenziatore completo metallico
      from £6,735.56
      from £6,735.56
      MUFFLER & FLANGE Genuine Lamborghini - New (to order)
      # 001
      MPN: 004421953/A
      ANSA SPORTS EXHAUST
      Complete Exhaust back box - valid for LP400, LP4000S, 25th Ann.
      ANSA SPORTS EXHAUST Genuine Lamborghini - New (to order)

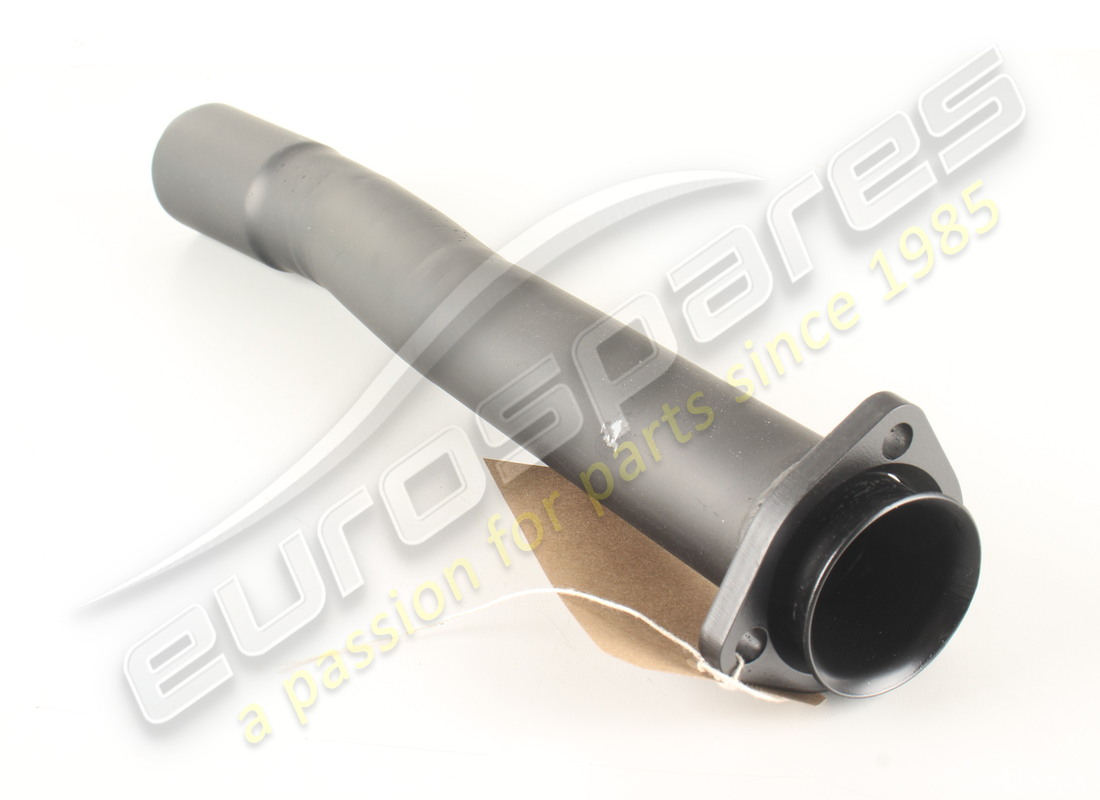

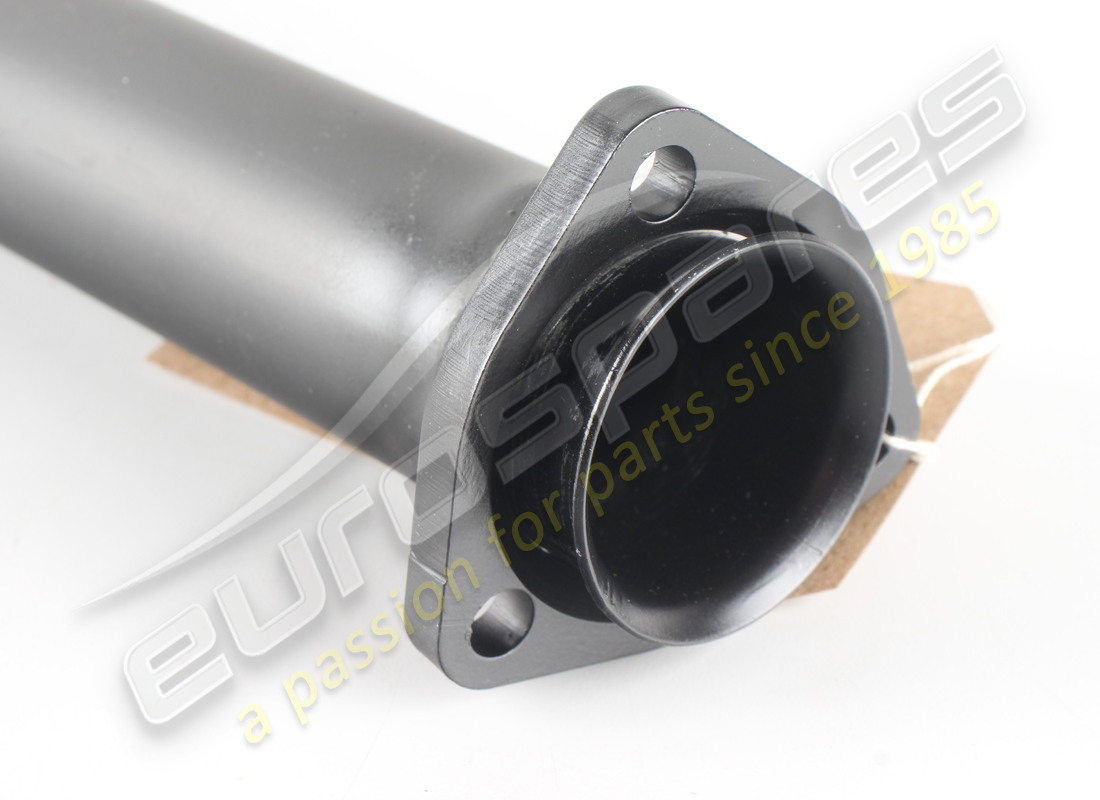

      # 002
      MPN: 004412715
      PIPE
      Tubo post. sin. /silenz./C
      from £187.28
      from £187.28
      LH REAR PIPE/MUFFLER (004412715) Eurospares Approved Part - New (to order)
      LH REAR PIPE/MUFFLER Genuine Lamborghini - New (to order)
      # 003
      MPN: 008835002
      CIAMP
      Fasc. f iss. tubo scar. /U
      from £28.62
      from £28.62
      EXHAUST PIPE CLAMP Genuine Lamborghini - New In stock

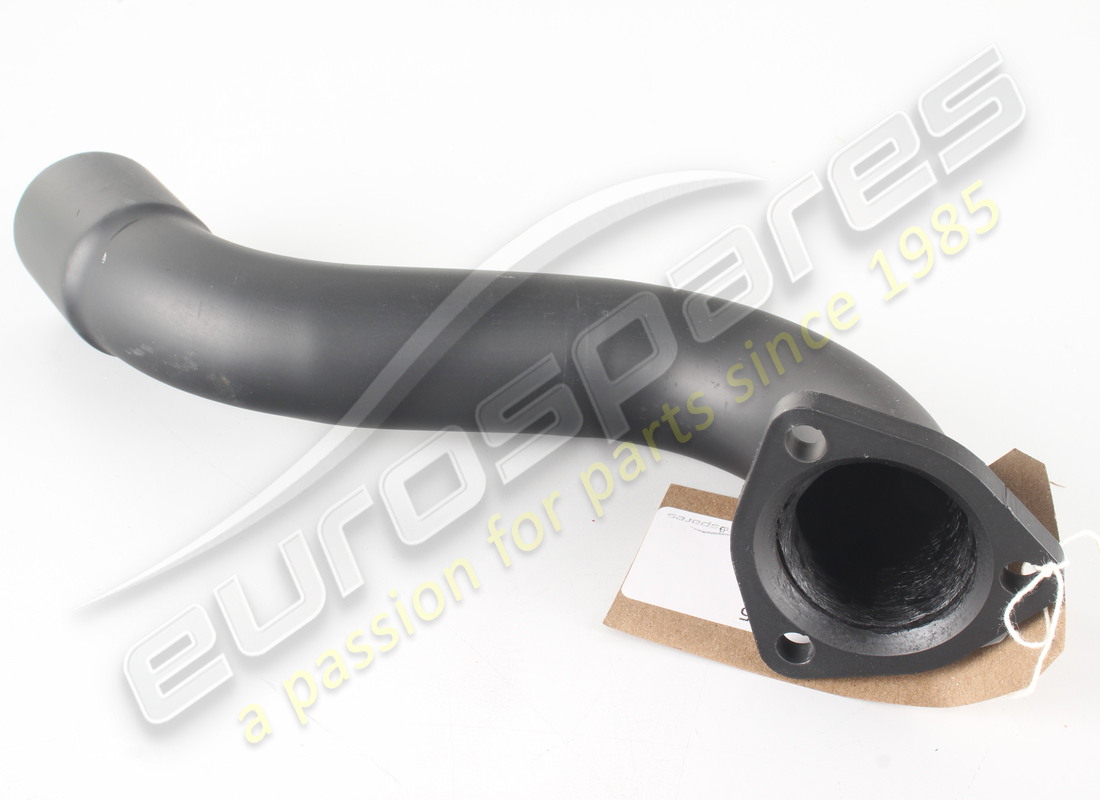

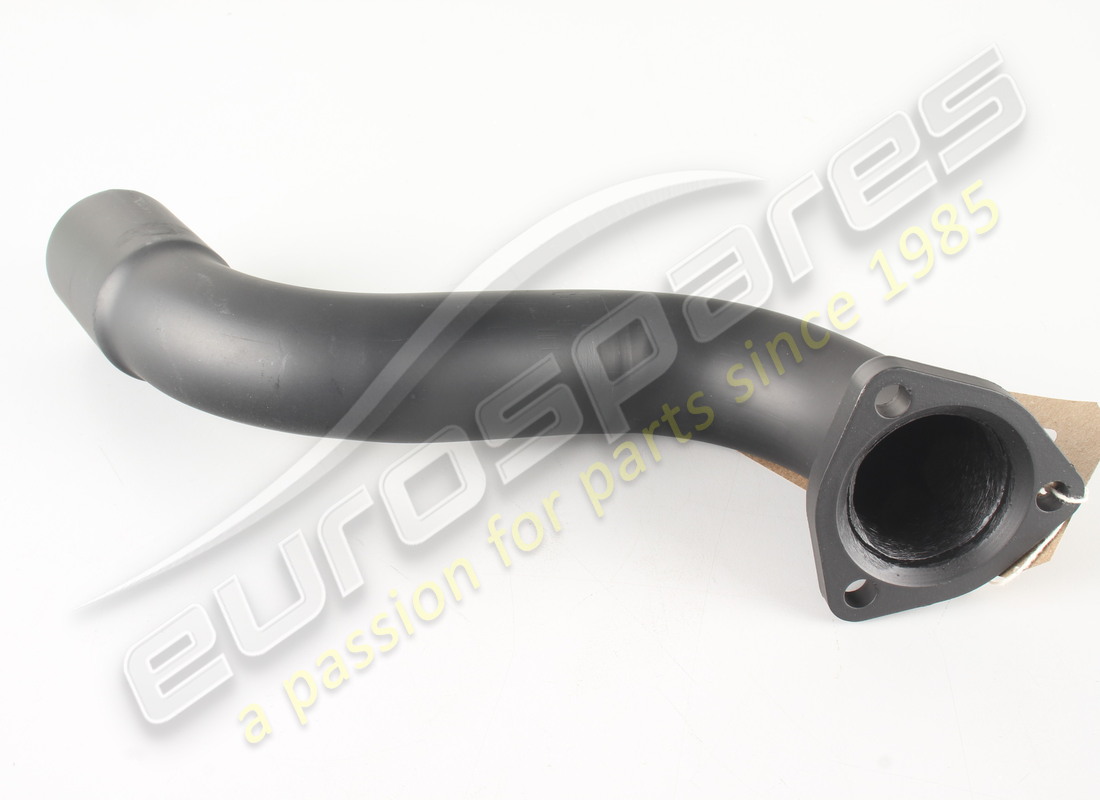

      # 004
      MPN: 004412714
      PIPE
      Tubo ant. sin. /silenz./C
      from £187.28
      from £187.28
      LH FRONT PIPE/MUFFLER (004412714) Eurospares Approved Part - New (to order)
      LH FRONT PIPE/MUFFLER Genuine Lamborghini - New (to order)
      # 005
      MPN: 004410683
      EX MANIFOLD
      Collett. scarico post. sin./C
      from £1,084.74
      from £1,084.74
      REAR LH EXHAUST MANIFOLD Genuine Lamborghini - New (to order)
      REAR LH EXHAUST MANIFOLD (004410683) Original Equipment - New (to order)
      # 006
      MPN: 004410682
      EX MANIFOLD
      Collett. scarico ant. sin./C
      from £1,084.74
      from £1,084.74
      FRONT LH EXHAUST MANIFOLD Genuine Lamborghini - New (to order)
      FRONT LH EXHAUST MANIFOLD (004410682) Original Equipment - New (to order)
      # 007
      MPN: 008100809
      BOLT
      Bull. M8x22 UNI 5739/8G
      from £0.48
      from £0.48
      SCREW M8X22 UNI 5739/8G/ZD Genuine Lamborghini - New (to order)
      # 008
      MPN: 008410806
      LOCK WASHER
      Rond. EL. A8,4 UNI 1751
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 009
      MPN: 001101178
      DOUBLE EXHAUST GASKET
      from £22.00
      from £22.00
      This part replaces part number MT-01178
      EXHAUST PIPE SEAL Genuine Lamborghini - New In stock
      EXHAUST PIPE SEAL (001101178) Original Equipment - New In stock
      # 010
      MPN: 004410684
      EX MANIFOLD
      Collett. scarico ant. des./C
      from £1,084.74
      from £1,084.74
      FRONT RH EXHAUST MANIFOLD Genuine Lamborghini - New In stock
      FRONT RH EXHAUST MANIFOLD (004410684) Original Equipment - New (to order)
      # 011
      MPN: 004412716
      PIPE
      Tubo ant. des. /silenz./C
      from £187.28
      from £187.28
      RH REAR PIPE/MUFFLER (004412716) Eurospares Approved Part - New (to order)
      RH REAR PIPE/MUFFLER Genuine Lamborghini - New (to order)
      # 012
      MPN: 004410685
      EX MANIFOLD
      Collett. scarico post. des./C
      from £1,084.74
      from £1,084.74
      REAR EXHAUST MANIFOLD Genuine Lamborghini - New (to order)
      Rear Exhaust Manifold (004410685) Original Equipment - New (to order)
      # 013
      MPN: 004412717
      PIPE
      Tubo post. des./silenz./C
      from £187.28
      from £187.28
      RH REAR PIPE/MUFFLER (004412717) Eurospares Approved Part - New (to order)
      RH REAR PIPE/MUFFLER Genuine Lamborghini - New (to order)
      # 014
      MPN: 004405055
      SUPPORT
      Supp. vibrachoc centr.
      from £185.72
      from £185.72
      CENTRAL VIBRACHOC MOUNT Genuine Lamborghini - New In stock
      # 015
      MPN: N90179103
      WASHER
      Rond. 8,4 UNI 17348G
      from £0.98
      from £0.98
      This part replaces part number 008400801
      WASHER Genuine Lamborghini - New In stock
      # 016
      MPN: 008200809
      NUT
      DADO B/70/208M
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 017
      MPN: 400251393A
      EXHAUST SUPPORT MOUNT
      from £151.23
      from £151.23
      This part replaces part number 004432031 - and 5 more. Click to view details
      SUPPORT Genuine Lamborghini - New In stock
      SUPPORT Genuine Lamborghini - Used In stock
      # 018
      MPN: 008100502
      BOLT
      Bull. M5x16 UNI 5739/8G
      from £0.51
      from £0.51
      SCREW 5X16 UNI 5739/8G/Z Genuine Lamborghini - New In stock
      # 019
      MPN: WHT001187
      WASHER
      Rond. 5,3 UNI 17345S
      from £0.50
      from £0.50
      This part replaces part number 008400502
      WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
      # 020
      MPN: N0211963
      NUT
      DADO N/70/105M
      from £0.48
      from £0.48
      HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
      hex. nut - M5 (N 0211963) Genuine Porsche Part - New (to order)
      # 021
      MPN: 008200807
      NUT
      Dado ottone 8 MA
      from £14.38
      from £14.38
      M8 OT.58 UNI 2012SELF-LOCKI NGNUT Genuine Lamborghini - New In stock
      # 022
      MPN: 008410806
      LOCK WASHER
      Rond. EL A8,4 UNI 1751
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 023
      MPN: 008100842
      BOLT
      Bull. M8x45 UNI 5737/8G
      from £0.99
      from £0.99
      SCREW M8X45 UNI 5737/8G Genuine Lamborghini - New In stock
      # 024
      MPN: 004410168
      GASKET
      Guarn.collett/marmitte
      from £52.41
      from £52.41
      MANIFOLD/MUFFLER SEAL Genuine Lamborghini - New In stock
      # 025
      MPN: 008401006
      WASHER
      Rond. A10.5 UNI 1734
      from £0.51
      from £0.51
      WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
      # 026
      MPN: 008201008
      NUT
      DADO B/70/210M
      from £0.56
      from £0.56
      NUT Genuine Lamborghini - New In stock
      # 027
      MPN: N90179103
      WASHER
      Rond. 8,4 UNI 17348G
      from £1.04
      from £1.04
      This part replaces part number 008400801
      WASHER Genuine Lamborghini - New In stock
