lamborghini countach 5000 qvi (1989) front suspension parts diagram

033 - Front Suspension

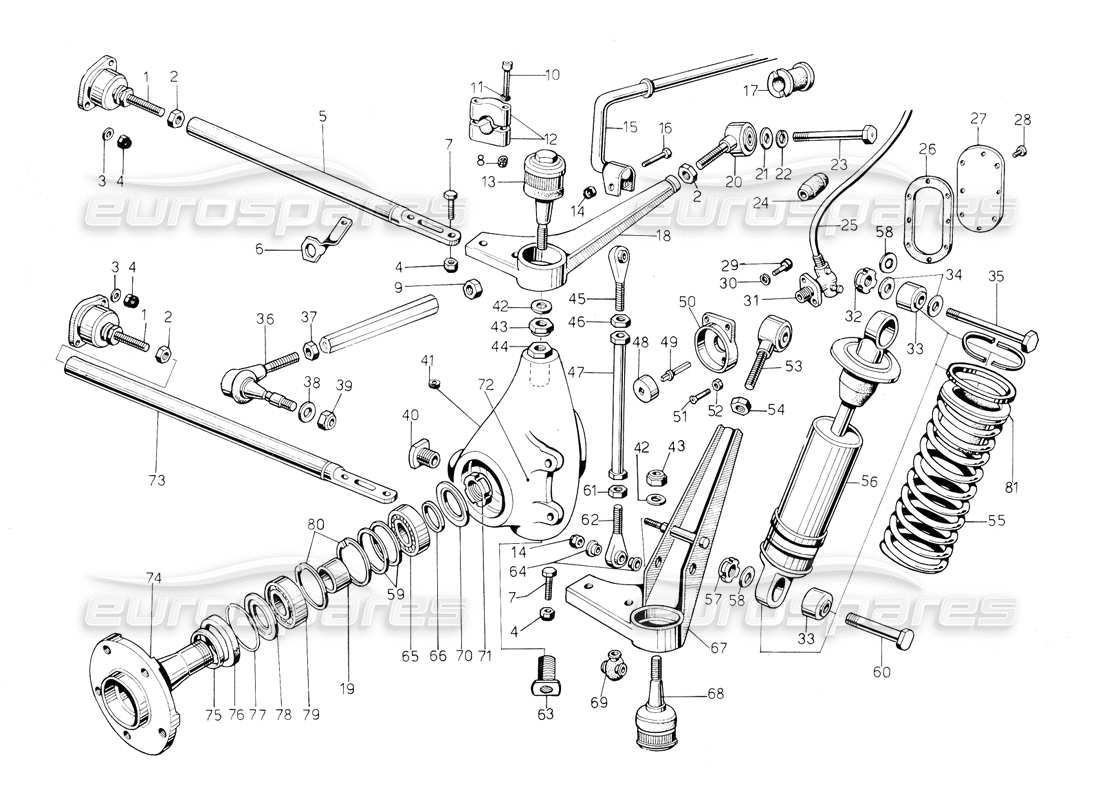

Lamborghini Countach 5000 QVi (1989) Front Suspension Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Price
          # 001
          MPN: 005109558
          BALL JOINT
          Snodo 0270145033512 1C
          from £116.39
          from £116.39
          # 002
          MPN: 008201411
          NUT
          DADO M14 UNI 5589 8G
          from £10.57
          from £10.57
          # 003
          MPN: N90179103
          WASHER
          Bond. 8,4 UNI 1734 8G
          from £0.98
          from £0.98
          This part replaces part number 008400801
          # 004
          MPN: N0111849
          NUT
          DADO N/70/108M
          from £1.39
          from £1.39
          This part replaces part number 008200809
          # 005
          MPN: 005109519
          UP ARM STRU
          Punt, bracci sup. /C
          from £85.28
          from £85.28
          # 006
          MPN: 005112900
          SUPPORT
          Supp. cavo contakm. 1C
          from £68.90
          from £68.90
          # 007
          MPN: 008100821
          Bull
          RULLONE
          Supersession
          Supersession
          # 008
          MPN: 008200606
          NUT
          Supersession
          Supersession
          # 009
          MPN: 008201412
          NUT
          DADO
          from £11.53
          from £11.53
          # 010
          MPN: 008700609
          SCREW
          VITE 8,6x1x45 UNI 2383
          Supersession
          Supersession
          # 011
          MPN: 008410602
          LOCK WASHER
          Ros. el. 6,4x12x0,5
          from £28.28
          from £28.28
          # 012
          MPN: 005113584
          SUPPORT
          Supporto barra tors. ant. 1C
          from £63.02
          from £63.02
          # 013
          MPN: 005109534
          BALL JOINT
          Snodo 02701 4501 251 2 sup.
          from £206.90
          from £206.90
          # 014
          MPN: 008200809
          NUT
          DADO B/70/208M
          Supersession
          Supersession
          # 015
          MPN: 005112930
          ROLL BAR
          Barra torsione ant/C
          # 016
          MPN: 008100807
          BOLT
          Bull. M8x40 UNI I 5737 8G
          from £0.53
          from £0.53
          # 017
          MPN: 005112931
          BUSH
          Boccola barra tors. ant. /C
          from £62.00
          from £62.00
          # 018
          MPN: 005109515
          UPPER ARM
          Braccio ant. sup. des. 1C
          from £161.26
          from £161.26
          # 018
          MPN: 005109516
          UPPER ARM
          Braccio ant. sup. sin. 1C
          from £161.26
          from £161.26
          # 019
          MPN: 005112863
          SPACER
          Distanz. f ra CSN ant. /C
          from £312.59
          from £312.59
          # 020
          MPN: 005109521
          BALL JOINT
          Snodo 3250148013512 sosp.
          from £187.63
          from £187.63
          # 021
          MPN: 008401421
          WASHER
          Rond. ras. bracci sosp. 1C
          from £0.51
          from £0.51
          # 022
          MPN: 008411502
          LOCK WASHER
          ROND. EL. A15 UNI 1751
          from £1.58
          from £1.58
          # 023
          MPN: 008101423
          BOLT
          Bull. 14x1,5x70 10K
          # 024
          MPN: 005110524
          RUBBER
          Gommino cavo contakm. 1C
          from £16.73
          from £16.73
          # 025
          MPN: 005119040
          CABLE
          Cavo rinvio contakm.
          from £365.75
          from £365.75
          # 025
          MPN: 005119041
          CABLE
          (Valid for GB - January 1984) Cavo rinvio contakm.
          from £179.93
          from £179.93
          # 026
          MPN: 005113312
          GASKET
          Guarniz. cop. portamozzo 1C
          from £0.57
          from £0.57
          # 027
          MPN: 005113311
          TYRE
          Coperchio chius. portam. 1C
          from £18.56
          from £18.56
          # 028
          MPN: 008700309
          SCREW
          VITE M3x8 UNI 242 5S
          from £0.51
          from £0.51
          # 029
          MPN: 008700614
          SCREW
          Vite6MAx158G
          Supersession
          Supersession
          # 030
          MPN: 008410602
          LOCK WASHER
          Ros. el. 6,4x12x0,5
          from £28.66
          from £28.66
          # 031
          MPN: 005121977
          ANGLE DRIVE
          from £1,163.81
          from £1,163.81
          # 032
          MPN: 008251702
          RING NUT
          Ghiera GUK 17 MC8G
          from £2.41
          from £2.41
          This part replaces part number 008251701
          # 033
          MPN: 008921704
          COLUN JOINT
          SNODO
          from £78.36
          from £78.36
          # 034
          MPN: 008401710
          WASHER
          Rond. ras. bracci— ammort. 1C
          from £26.12
          from £26.12
          # 035
          MPN: 008101701
          BOLT
          Bull. 17x1x135 10K
          from £42.70
          from £42.70
          # 036
          MPN: 005113897
          LEVER
          SN. x leva sterzo sul portamozzo
          from £103.44
          from £103.44
          # 037
          MPN: 008201412
          NUT
          Dado M14 UNI 5589 sin. 8G
          from £11.53
          from £11.53
          # 038
          MPN: 008401226
          WASHER
          Rondella fiss. snodo per leva sterzo
          from £17.70
          from £17.70
          # 039
          MPN: 008201219
          NUT
          Dado M12x1,75 8G
          from £2.41
          from £2.41
          # 040
          MPN: 005113899
          BUSH
          Buss, x snodo leva sterzo
          from £162.93
          from £162.93
          # 041
          MPN: 008930901
          PLUG
          Tappo 1 /8 gas conico
          from £6.43
          from £6.43
          # 042
          MPN: 008401420
          WASHER
          Rond. 14,5x36x4 38NCD4
          from £12.90
          from £12.90
          # 043
          MPN: 008201406
          NUT
          Dado 6/10/214x1,5 M
          from £0.58
          from £0.58
          # 044
          MPN: 005112861
          BOLT
          Buss, snodo sup. portamozzo 1C
          from £411.24
          from £411.24
          # 045
          MPN: 005206963
          BALL JOINT
          SEE 005227296/005227298
          Supersession
          Supersession
          # 046
          MPN: 008201014
          NUT
          Dado M10x1x65S
          from £3.86
          from £3.86
          # 047
          MPN: 005109781
          TIE ROD
          Tirante barra tors. ant. 1C
          from £104.20
          from £104.20
          # 048
          MPN: 005109749
          PIN
          Presa moto fles. contakm. 1C
          from £102.89
          from £102.89
          # 049
          MPN: 005109748
          SHAFT
          Alber. rinvio contakm. 1C
          from £73.75
          from £73.75
          # 050
          MPN: 005109747
          FLANGE
          Flangia rinvio contakm./C
          # 051
          MPN: 008700622
          SCREW
          Vite6x18 UNI 262 5S
          from £3.70
          from £3.70
          # 052
          MPN: 008200606
          NUT
          Supersession
          Supersession
          # 053
          MPN: 0051004566
          BALL JOINT
          Bussola snodo inf. 1C
          from £287.07
          from £287.07
          # 054
          MPN: 008201811
          NUT
          Dado M1 8 UNI 5589 8G
          from £4.73
          from £4.73
          # 055
          MPN: 005119297
          SPRING
          Molla sosp. anteriore 1C
          from £268.59
          from £268.59
          # 056
          MPN: 005119515
          SHOCK ABS
          AMMORTIZZATORE ANTERIORE
          from £1,952.56
          from £1,952.56
          # 057
          MPN: 008251702
          RING NUT
          Ghiera guk 17 MC 8G
          from £2.41
          from £2.41
          This part replaces part number 008251701
          # 058
          MPN: 008401708
          WASHER
          Bond. 17,5x26x3
          from £1.67
          from £1.67
          # 059
          MPN: 005113583
          SPACER
          Spessoraz. CSN portamozzo 1C
          from £8.50
          from £8.50
          # 060
          MPN: 008101704
          BOLT
          Bull. 17x1x56 10K
          from £7.60
          from £7.60
          # 061
          MPN: 008201016
          NUT
          DADO M10 UNI 5589 5S
          from £14.30
          from £14.30
          This part replaces part number 008201034
          # 062
          MPN: 005206964
          BALL JOINT
          SEE 005227295/005227298
          from £72.47
          from £72.47
          BALL JOINT (005227295) Eurospares Approved Part - New (to order)
          Adapter Bushing (005227298) is also required
          BALL JOINT (005227295) Genuine Lamborghini - New In stock
          Adapter Bushing (005227298) is also required
          # 063
          MPN: 005112862
          BOLT
          Buss, snodo inf. portamozzo 1C
          from £170.38
          from £170.38
          # 064
          MPN: 005109713
          BUSH
          Boccola snodo unibal BD8
          from £5.15
          from £5.15
          # 066
          MPN: 005112865
          WASHER
          Rond. ghiera mozzo ant. /C
          from £151.32
          from £151.32
          # 067
          MPN: 005112889
          ARM
          Braccio inf. des. 1C
          from £626.01
          from £626.01
          # 067
          MPN: 005112890
          ARM
          Braccio inf. sin. 1C
          from £626.01
          from £626.01
          # 068
          MPN: 005109520
          LO BALL JOINT
          Snodo 0320145032512 inf.
          from £168.12
          from £168.12
          # 069
          MPN: 005109714
          SPACE COL.
          Protezione x snodo sferico
          from £16.55
          from £16.55
          # 070
          MPN: 008874301
          SEAL RING
          Nilos ringe3207 JV
          from £28.86
          from £28.86
          # 071
          MPN: 008253501
          RING NUT
          Ghiera autobl. GT 35x1,5x13
          from £37.11
          from £37.11
          # 072
          MPN: 005112846
          HUB CARRIR
          Portamozzo ant. sin. /C
          from £787.50
          from £787.50
          # 072
          MPN: 005112847
          HUB CARRIR
          Portamozzo ant. des. 1C
          from £1,044.75
          from £1,044.75
          # 073
          MPN: 005109527
          ARM TRACK
          Compl. tirante braccio inf.
          from £504.09
          from £504.09
          # 074
          MPN: 005138090
          REAR HUB
          Mozzo ant. D/S 1C
          from £1,167.27
          from £1,167.27
          # 075
          MPN: 005119292
          SPACER
          Distanziale x mozzo
          from £129.81
          from £129.81
          # 076
          MPN: 008615201
          SEAL RING
          Paraolio 72x52x10 RP
          from £17.52
          from £17.52
          # 077
          MPN: 008577202
          RING
          Anello spallam. BR 72 INA
          # 078
          MPN: 008873502
          SEAL RING
          Nilos ringe MUP 22074V
          from £16.77
          from £16.77
          # 079
          MPN: 008523505
          BEARING
          Cusc. riv NU2207 ex 4DAAVP
          from £134.71
          from £134.71
          # 080
          MPN: 008577601
          LOCK RING
          SEEGER AA 72 I
          from £2.14
          from £2.14
          # 081
          MPN: 410512385
          RUBBER RING
          from £32.34
          from £32.34
