031 - HEATER

Lamborghini Countach 5000 QVi (1989) Heater Parts Diagram

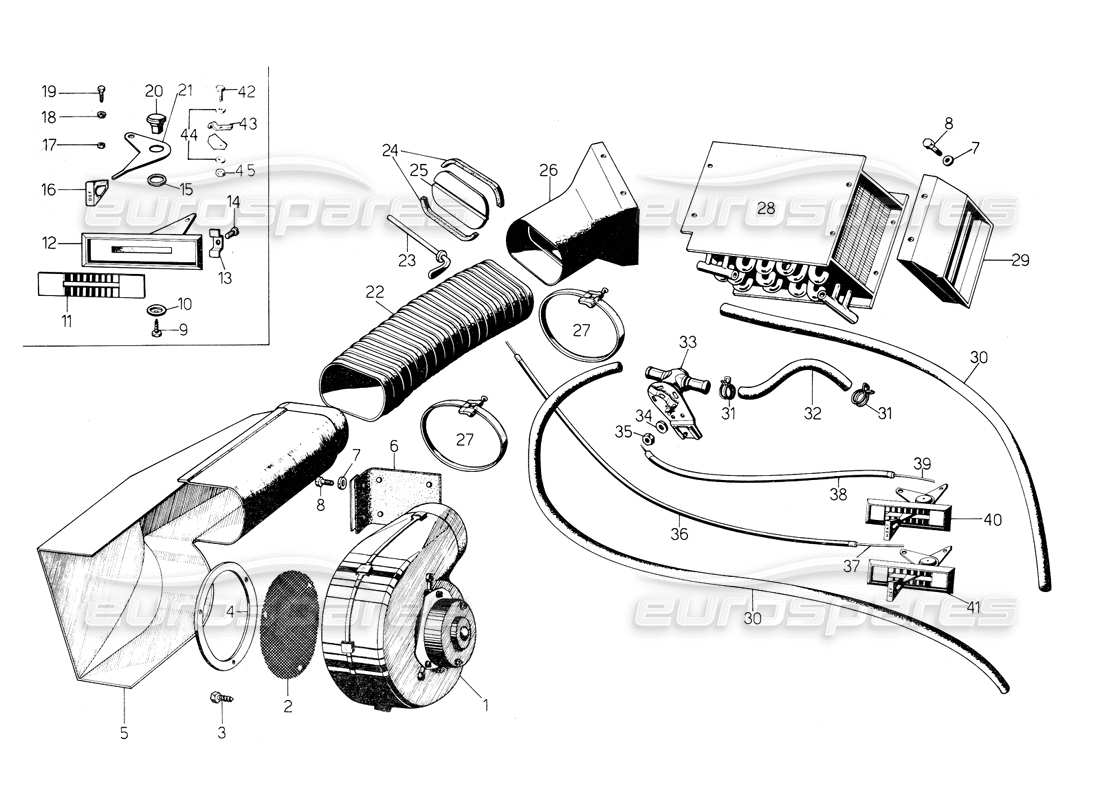

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004713143
FAN
Elettrov. sin. sigillato 1C
from £320.04
from £320.04
# 002
MPN: 004513146
MESH
Rete x chiocciola 1C
from £61.03
from £61.03
# 003
MPN: 008700405
SCREW
Viteautofil. 10Px3/8
from £0.53
from £0.53
# 004
MPN: 004513145
RING
Anello fermo rete chiocc. 1C
from £38.98
from £38.98
# 005
MPN: 007053007
AIR DUCT
Convogl iatore aria
from £237.78
from £237.78
# 006
MPN: 004712773
PANEL
Sport, convogl. aria 1C
from £87.00
from £87.00
# 007
MPN: 008410502
LOCK WASHER
Rond. A5,3 UNI 1751 C72
Supersession
Supersession
# 008
MPN: N01020717
BOLT
Bull. M5x12 UNI 5739/5S
from £0.50
from £0.50
This part replaces part number 008100504
# 009
MPN: 008700304
SCREW
Vite knipping DIN 7981
from £0.53
from £0.53
# 010
MPN: 004713294
WASHER
RONDELLA
# 011
MPN: 004713289
PLATE
MOSTRINA
# 012
MPN: 004713290
SUPPORT
SUPPORTO
# 013
MPN: 006107233
PLATE
Piastr. fermo com. rise. JAR
from £3.45
from £3.45
# 014
MPN: 008700503
SCREW
Vite testa cil. 5x8 UNI 240
from £0.53
from £0.53
# 015
MPN: 004713293
SPACER
Spessore fra leva e corpo com. rise.
# 016
MPN: 004713273
LEVER
Pomello com. leva defroster
# 016
MPN: 004713274
LEVER
Pomello com. leva rise.
# 017
MPN: 008200404
NUT
Dado 4MA com. riscald.
# 018
MPN: 008800401
BUSH
Boccola leve com. rise.
from £3.70
from £3.70
# 019
MPN: 008700402
SCREW
Vite forata fiss. cavo ris.
from £6.43
from £6.43
# 020
MPN: 004713292
PIN
Perno fiss. leva com. riscald.
# 021
MPN: 004713291
LEVER
Leva com. ap. rub. e port, per riscald.
# 022
MPN: 004711446
CONDIT PIPE
Tubo chiocc. /riscald. 1C
from £30.40
from £30.40
# 023
MPN: 004711443
PIN
Perno com. port, riscald. 1C
from £44.11
from £44.11
# 024
MPN: 004711442
GASKET
Guam, gruppo riscald. sulla portella
from £23.88
from £23.88
# 025
MPN: 004719967
AIR INLET
Portella x gruppo riscaldatore
from £56.21
from £56.21
# 026
MPN: 004709710
AIR DUCT
Convogl. chiocc. /rad. 1C
# 027
MPN: 008830402
CLAMP ROD
Fascetta a nastro 1 0453
from £2.04
from £2.04
# 028
MPN: 004708847
HEATIN RADI
Radiatore riscald. U/C
from £1,642.83
from £1,642.83
# 029
MPN: 004711077
AIR DUCT
Convogl. rad/cruscotto 1C
# 030
MPN: 001711390
COOLAN PIPE
Tubo riscald. /giunto 1C
from £64.68
from £64.68
# 031
MPN: 008832401
CLAMP RING
Fasc. royal AO/ 12 24/36
from £4.73
from £4.73
# 032
MPN: 004711391
PIPE
Tubo/rubin/riscald. 1C
from £11.51
from £11.51
# 033
MPN: 004710786
HEATIN TAP
Rubin. rise, rtco 2282
from £89.04
from £89.04
# 034
MPN: 008410503
LOCK WASHER
Rond. Brugola RC5 C72
Supersession
Supersession
# 035
MPN: 008200501
NUT
DADO M5 UNI 5588-65/8G
Supersession
Supersession
# 036
MPN: 004711415
CABLE PIPE
Tubo x cavo portello 1C
from £17.08
from £17.08
# 037
MPN: 004711416
DOOR CABLE
Cavo com. portella 1C
from £6.36
from £6.36
# 038
MPN: 004711058
AIR PIPE
Tubo x cavo com. riscald. 1C
from £32.82
from £32.82
# 039
MPN: 004719622
CABLE
Cavo com. rubinetto riscaldatore
from £8.43
from £8.43
# 040
MPN: 004713283
LEVER
Leva com. rise, compl. /U
# 041
MPN: 004713265
LEVER
Leva com. defr. compl. /U
from £350.18
from £350.18
# 042
MPN: 008100402
BOLT
Bull. M4x16 UNI 5739-65A8G
from £0.53
from £0.53
# 043
MPN: 006753080
SHEATH CLAM
Fasc. fiss. guaina 4166256
from £1.55
from £1.55
# 044
MPN: 008400401
WASHER
Rond. 4,3x9x0,8 UNI 1734
Supersession
Supersession
# 045
MPN: N01100412
NUT
Dado M4UNI 5587-65/5S
from £0.86
from £0.86
