lamborghini countach 5000 qvi (1989) air polution system parts diagram

030 - Air Polution System

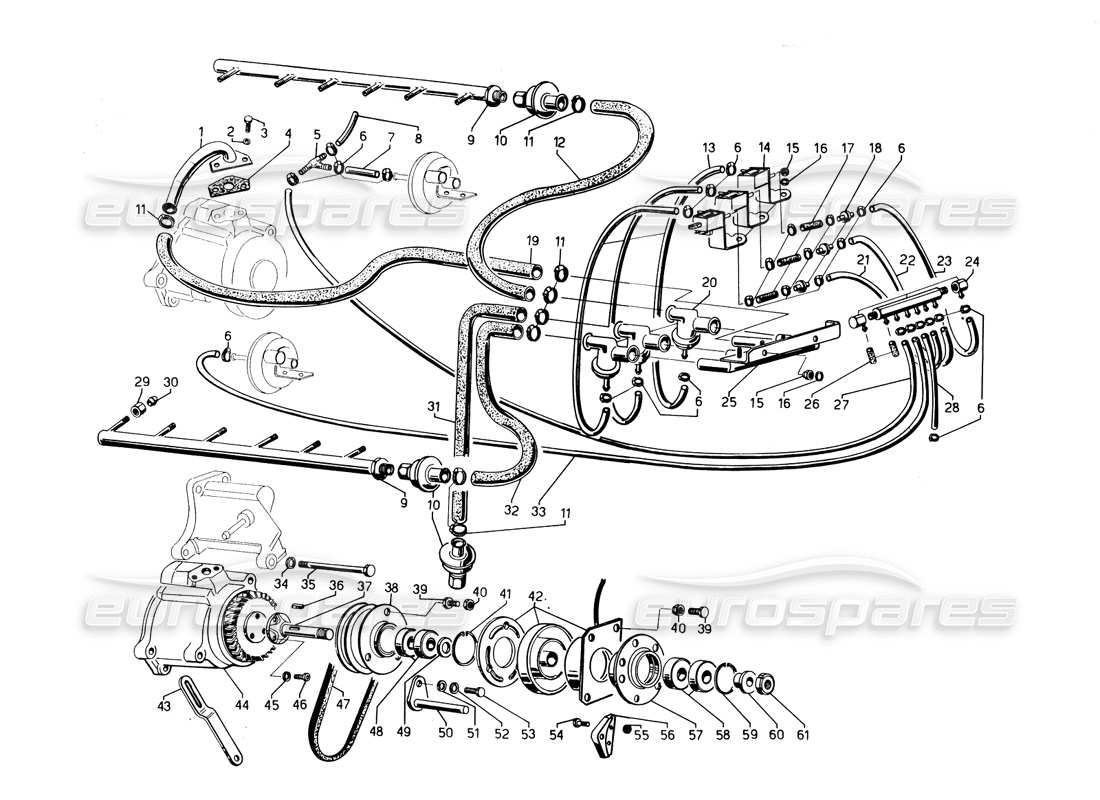

Lamborghini Countach 5000 QVi (1989) Air Polution System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 004621260
    PIPE
    Tubo coll. pompa aria al collet, x div. val
    from £156.30
    from £156.30
    AIR PUMP/MANIFOLD UNION PIPE Genuine Lamborghini - New (to order)
    # 002
    MPN: 008410806
    LOCK WASHER
    Rond. EL. A8,4 UNI 1751
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 003
    MPN: 008700819
    SCREW
    ViteTCCE 8x1, 25x16
    from £0.53
    from £0.53
    SCREW M8X16 UNI 5931/8G/Z Genuine Lamborghini - New (to order)
    # 004
    MPN: 004607438
    GASKET
    Guarniz. flangia diverter
    from £4.28
    from £4.28
    DIVERTER FLANGE SEAL Genuine Lamborghini - New (to order)
    # 005
    MPN: 001613782
    SCREW
    Tre vie fra collett. asp. ds. TS6
    from £2.16
    from £2.16
    THREE-WAY UNION Genuine Lamborghini - New In stock
    # 006
    MPN: 008830128
    CLAMP RING
    BAND FA 10
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 007
    MPN: 004623057
    TUBE
    Tubo collegamento dal 3 vie alia valv. lim.
    from £34.12
    from £34.12
    THREE-WAY/CHECK VALVE PIPE Genuine Lamborghini - New (to order)
    # 008
    MPN: 004623052
    TUBE
    Tubo collegamento solenoide alia valv. non rit.
    from £34.12
    from £34.12
    SOLENOID CONNECTION PIPE Genuine Lamborghini - New (to order)
    # 009
    MPN: 004620278
    EX MANIFOLD
    Collettore aria x teste des. sin.
    from £281.08
    from £281.08
    RH HEAD AIR MANIFOLD Genuine Lamborghini - New (to order)
    # 010
    MPN: 004607187
    VALVE CER
    CEK VALVE VS. 1/5354987
    from £140.55
    from £140.55
    CHECK VALVE Genuine Lamborghini - New (to order)
    # 011
    MPN: 008830206
    CLAMP RING
    FASC. ROYAL 00/12 18/30
    from £12.56
    from £12.56
    CLAMP Genuine Lamborghini - New In stock
    # 012
    MPN: 004623043
    TUBE
    Tubo colleg. gruppo div. val. non rit. testa sin.
    Lamborghini PART 004623043 Genuine Lamborghini - New (to order)
    # 013
    MPN: 004623051
    TUBE
    Tubo colleg. diverter valve ai solenoid!
    from £13.06
    from £13.06
    DIVERTER VALVE PIPE Genuine Lamborghini - New (to order)
    # 014
    MPN: 004624010
    SOLENOID
    SOLENOIDE
    from £140.55
    from £140.55
    SOLENOID VALVE Genuine Lamborghini - New (to order)
    # 015
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 016
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 017
    MPN: 004623052
    TUBE
    Tubo colleg. solenoide alia valv. non rit.
    from £34.12
    from £34.12
    SOLENOID CONNECTION PIPE Genuine Lamborghini - New (to order)
    # 018
    MPN: 004621574
    VALVE
    VALVOLA NON RITORNO
    from £12.27
    from £12.27
    VALVE A822 EPG 2108 Genuine Lamborghini - New (to order)
    # 019
    MPN: 004624312
    TUBE
    Tubo colleg. Tubi in met. al gruppo diverter
    from £34.12
    from £34.12
    METAL PIPE/DIVERTER PIPE Genuine Lamborghini - New (to order)
    # 020
    MPN: 004621338
    DIV VALVE
    DIVERTER VALVE
    from £116.08
    from £116.08
    DIVERTER VALVE Genuine Lamborghini - New (to order)
    # 021
    MPN: 004623055
    TUBE
    Tubo colleg. valv. non ritorno all'8 vie
    from £13.06
    from £13.06
    CHECK VALVE PIPE Genuine Lamborghini - New (to order)
    # 022
    MPN: 004623054
    TUBE
    Tubo colleg. valv. non ritorno all'8 vie
    from £13.06
    from £13.06
    CHECK VALVE PIPE Genuine Lamborghini - New (to order)
    # 023
    MPN: 004623053
    TUBE
    Tubo colleg. valv. non ritorno all'8 vie
    from £13.06
    from £13.06
    CHECK VALVE PIPE Genuine Lamborghini - New (to order)
    # 024
    MPN: 004621565
    EXAUST PIPE
    6 way vacuum manifold vs. 4202 4702
    from £50.58
    from £50.58
    6-WAY VACUUM MANIFOLD Genuine Lamborghini - New (to order)
    # 025
    MPN: 004623060
    SUPPORT
    Supp. diverter valve e solenoid!
    from £140.55
    from £140.55
    DIVERTER & SOLENOID VALVE BRAC KET Genuine Lamborghini - New (to order)
    # 026
    MPN: 004411039
    RUBBER
    Cappucclo in gomma
    RUBBER Genuine Lamborghini - New (to order)
    # 027
    MPN: 004623056
    TUBE
    Tubo colleg. 8 vie al 3 vie
    from £19.55
    from £19.55
    8-WAY/THREE-WAY PIPE Genuine Lamborghini - New (to order)
    # 028
    MPN: 006221560
    TUBE
    Pipe from 3 way to manifold. to 8 exits
    TUBE Genuine Lamborghini - New (to order)
    # 029
    MPN: 004607189
    NUT
    Dado race. 2971 GT
    from £9.33
    from £9.33
    UNION NUT Genuine Lamborghini - New (to order)
    # 030
    MPN: 004607188
    EICON
    Biconi 2956 GT
    from £9.33
    from £9.33
    DOUBLE TAPERS Genuine Lamborghini - New (to order)
    # 031
    MPN: 004624313
    TUBE
    Tubo colleg. gruppo diverter alia valv. non rit.
    from £34.12
    from £34.12
    DIVERTER/VALVE PIPE Genuine Lamborghini - New (to order)
    # 032
    MPN: 004623044
    TUBE
    Tubo colleg. gruppo diverter alia valv. non rit.
    from £45.27
    from £45.27
    DIVERTER/CHECK VALVEPIPE Genuine Lamborghini - New (to order)
    # 033
    MPN: 004623059
    TUBE
    Tubo x presa depr. da collet, asp. testa sin.
    Lamborghini PART 004623059 Genuine Lamborghini - New (to order)
    # 034
    MPN: 008411005
    WASHER
    RONDEL. A10.5 UNI 1751
    from £0.54
    from £0.54
    WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
    # 035
    MPN: 008101034
    BOLT
    Bull. M10X130 UNI 5737 10K
    from £43.41
    from £43.41
    SCREW M10X130 UNI 5737 10K Genuine Lamborghini - New (to order)
    # 036
    MPN: 008860502
    WOODRUFF KEY
    Linguetta 5x5x18
    from £0.79
    from £0.79
    TAB 5X5X18 Genuine Lamborghini - New In stock
    # 037
    MPN: 004622624
    SPINDLE
    Alberino x applicaz. friz.
    from £310.93
    from £310.93
    COUPLING SPINDLE Genuine Lamborghini - New (to order)
    # 038
    MPN: 004622622
    PULLEY
    Puleggia su friz, elettrom.
    from £250.76
    from £250.76
    ELECTROMAGNETIC COUPLING PULLE Y Genuine Lamborghini - New (to order)
    # 039
    MPN: N01020717
    BOLT
    Bull. M5x12 UNI 5739/5S
    from £0.52
    from £0.52
    This part replaces part number 008100504
    HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
    screw, hex. hd. - M5 X 12 - D - MJ 1973>> Genuine Porsche Part - New (to order)
    # 040
    MPN: N0211963
    NUT
    DADO N/70/105M
    from £0.49
    from £0.49
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    HEX. NUT - M5 Genuine Porsche Part - New (to order)
    # 041
    MPN: 07M109381
    LOCK RING
    Seeger 35 I
    from £1.16
    from £1.16
    This part replaces part number 008573501 - and 1 more. Click to view details
    SEEGER Ring I 35 UNI 3654 Genuine Lamborghini - New In stock
    # 042
    MPN: 004622621
    clutch
    Frizione elettrom. tipo EKM 3 DC
    from £644.23
    from £644.23
    ELECTROMAGNETIC COUPLING Genuine Lamborghini - New (to order)
    # 043
    MPN: 004622079
    SUPPORT
    Staffa x registro pompa aria
    SUPPORT Genuine Lamborghini - New (to order)
    # 044
    MPN: 004607184
    AIR PUMP
    Pompa aria vs. rif. 7835398
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 045
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 046
    MPN: 008700644
    BOLT
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 047
    MPN: 004622064
    COG BELT
    CINGHIA COMANDO POMPA ARIA
    from £58.95
    from £58.95
    AIR PUMP BELT Genuine Lamborghini - New (to order)
    # 048
    MPN: 008501703
    BALL BEARIN
    Cusc. riv 6003-2RS
    from £117.60
    from £117.60
    Lamborghini PART 008501703 Genuine Lamborghini - New In stock
    # 049
    MPN: 004622626
    SPACER
    Distanz. fra CSN e frizione
    from £15.47
    from £15.47
    SPACER Genuine Lamborghini - New (to order)
    # 050
    MPN: 004622630
    SHAFT
    Fermo x giunto elettromagn.
    from £60.02
    from £60.02
    ELECTROMAGNETIC COUPLING RETAI NER Genuine Lamborghini - New (to order)
    # 051
    MPN: 008401006
    WASHER
    Rond. A10.5 UNI 1734
    from £0.54
    from £0.54
    WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New In stock
    # 052
    MPN: 008411005
    WASHER
    RONDEL. A10.5 UNI 1751
    from £0.54
    from £0.54
    WASHER D.10.5 UNI 1751/F Genuine Lamborghini - New In stock
    # 053
    MPN: 008101014
    BOLT
    Bull. M10x20 UNI 5739/8G
    from £7.61
    from £7.61
    SCREW M10X20 UNI 5739/8G Genuine Lamborghini - New (to order)
    # 054
    MPN: 008100514
    BOLT
    VITE FISSAGGIO ARRESTO
    from £1.67
    from £1.67
    SCREW M5X0.8X18 UNI 5739/5 Genuine Lamborghini - New (to order)
    # 055
    MPN: N0211963
    NUT
    DADO N/70/105M
    from £0.53
    from £0.53
    HEX.HEAD CLAMPING Genuine Lamborghini - New In stock
    HEX. NUT - M5 Genuine Porsche Part - New (to order)
    # 056
    MPN: 004623328
    STOP JOINT
    Arresto x gruppo magnetico frizione
    from £266.97
    from £266.97
    MAGNETIC COUPLING RETAINER Genuine Lamborghini - New (to order)
    # 057
    MPN: 004622623
    SUPPORT
    Anello supp. e centr. frizione
    from £444.41
    from £444.41
    CENTRAL COUPLING RING Genuine Lamborghini - New (to order)

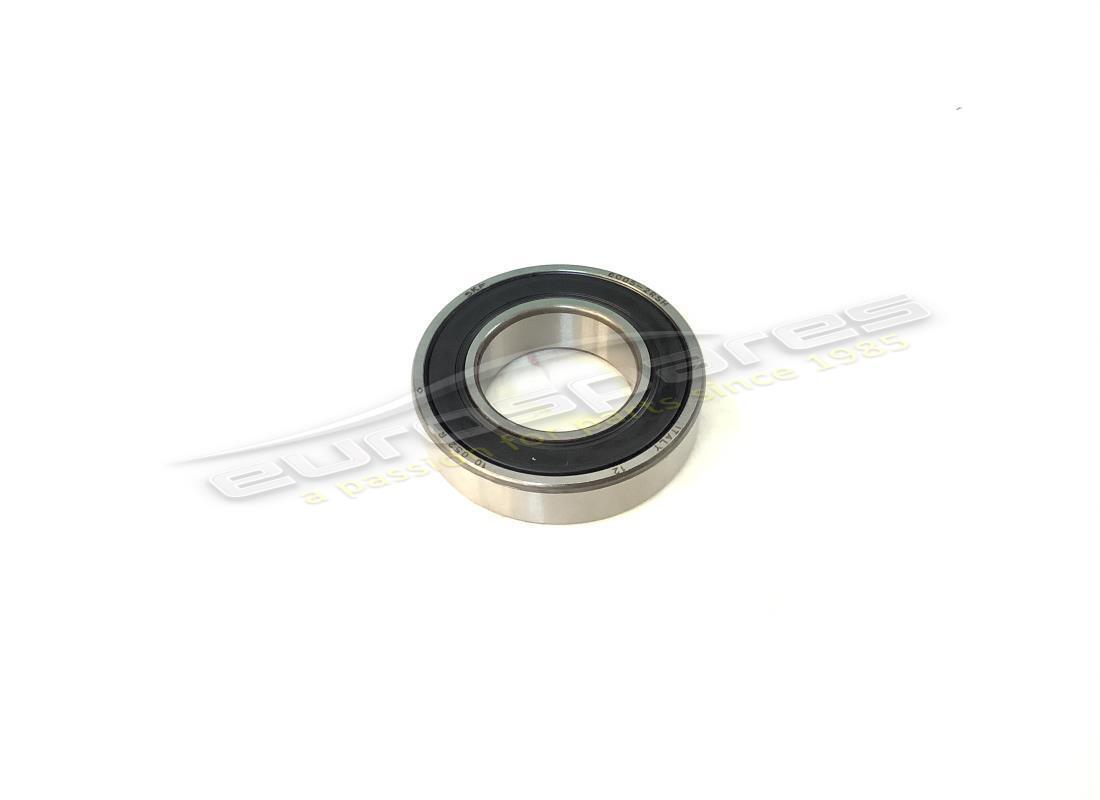

    # 058
    MPN: 008502503
    BALL BEARIN
    Cusc. 6005-2RS Ex10L25
    from £76.48
    from £76.48
    BEARING Genuine Lamborghini - New In stock
    BEARING Genuine Lamborghini - New (to order)
    BEARING Eurospares Approved Part - New In stock
    # 059
    MPN: 008575001
    LOCK RING
    Seeger AA 47 1
    from £0.57
    from £0.57
    O-RING I 47 UNI 3654 Genuine Lamborghini - New In stock
    # 060
    MPN: 004622625
    BUSH
    Boccola sull'alb. ten. e CSN
    from £18.04
    from £18.04
    BUSHING Genuine Lamborghini - New (to order)

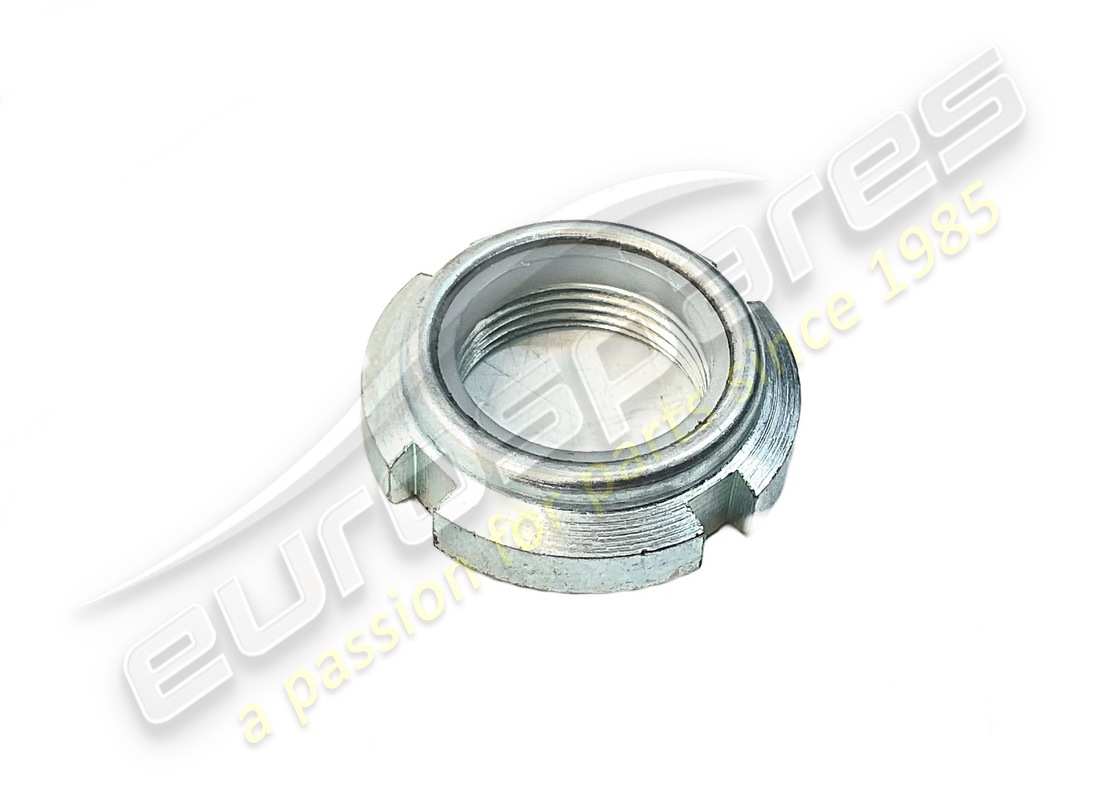

    # 061
    MPN: 008251702
    RING NUT
    Ghiera guk 17 MC 8G
    from £2.41
    from £2.41
    This part replaces part number 008251701
    M17X1X28 SELF-LOCKING RING NUT Genuine Lamborghini - New In stock
