lamborghini countach 5000 qvi (1989) handbrake parts diagram

023 - Handbrake

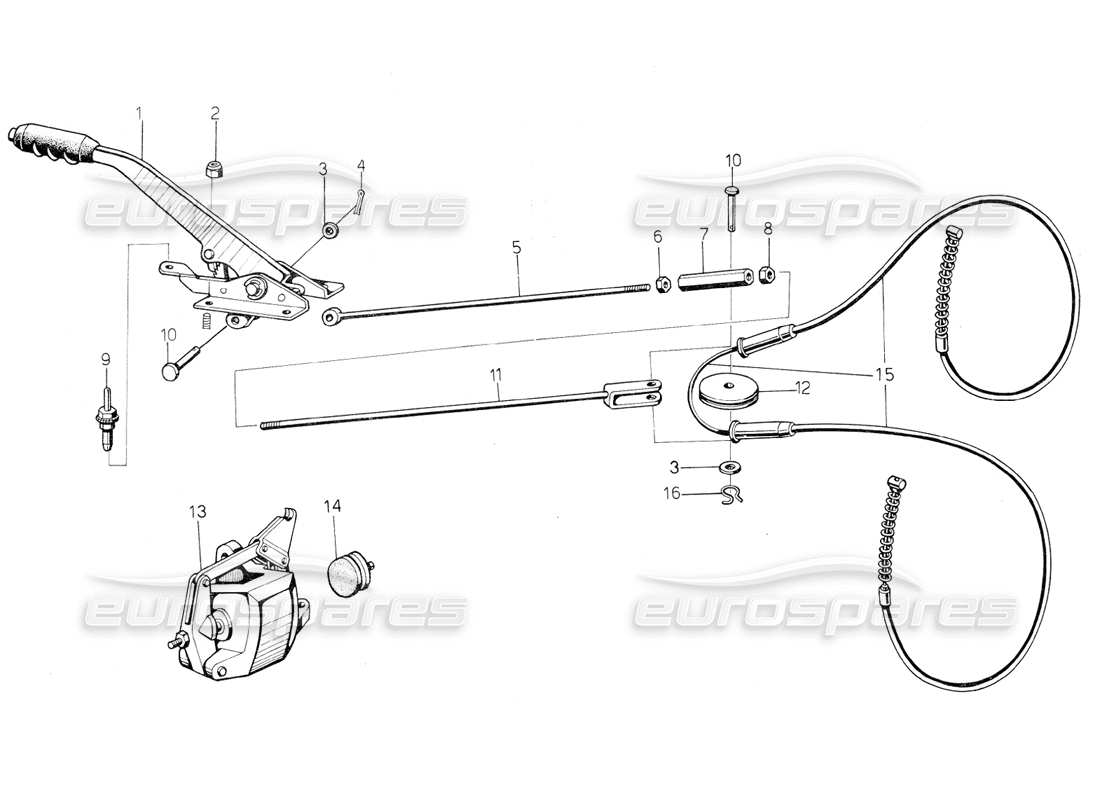

Lamborghini Countach 5000 QVi (1989) Handbrake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 003319349
LEVER
Leva freno a mano
from £772.59
from £772.59
Lamborghini PART 003319349 Genuine Lamborghini - New (to order)
Lamborghini PART 003319349 Genuine Lamborghini - Used In stock
# 002
MPN: N01100845
NUT
Dado M8 UIMI 5587-65/8G
from £1.21
from £1.21
This part replaces part number 008200801 - and 2 more. Click to view details
HEX.NUT Genuine Lamborghini - New In stock
HEXAGON NUT Genuine Porsche Part - New (to order)
# 003
MPN: 008400816
CABLE
Rosetta x fiss. cavo
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 004
MPN: 008820201
SPLINT PIN
Coppigl. 2x15UNI 1336
from £4.11
from £4.11
SPLIT PIN 1.8X15 UNI 1336A Genuine Lamborghini - New (to order)
# 005
MPN: 003319722
TIE ROD
Tirante ant. colleg. FM a registro
from £138.78
from £138.78
HANDBRAKE FRONT TIEROD Genuine Lamborghini - New (to order)
# 006
MPN: 008200810
NUT
Dado M8x1 UNI 5588-65/8G
from £0.54
from £0.54
M8X1 UNI5588 65/8GZD NUT Genuine Lamborghini - New (to order)
# 007
MPN: 003319723
SPACER
Reg. tra tirante anteriore posteriore
from £90.38
from £90.38
ADJUSTMENT BETWEEN FRONT & REA R TIEROD Genuine Lamborghini - New (to order)
# 008
MPN: 008200817
NUT
DADO
from £11.08
from £11.08
MB 8X1 LH SPECIAL NUT Genuine Lamborghini - New (to order)
# 009
MPN: 003319356
button
Pulsante x leva F.M. vs. 823481 71
from £22.26
from £22.26
LEVER BUTTON Genuine Lamborghini - New (to order)
# 010
MPN: 003319720
SMALL RUBBE
Perno fissaggio tirante a leva FM
from £12.11
from £12.11
LEVER ROD FIXING PIN Genuine Lamborghini - New (to order)
# 011
MPN: 003319724
SPACER
Forcella x coll. registro e bilanciere
from £168.72
from £168.72
RH CONNECTING FORK ASSEMBLY Genuine Lamborghini - New (to order)
# 012
MPN: 003313888
PULLEY
Puleggia x bilancere FM
from £89.13
from £89.13
HANDBRAKE EQUALISER PULLEY Genuine Lamborghini - New (to order)
# 013
MPN: 003313950
CALIP
Pinza freno des. 24336410
from £939.75
from £939.75
RH HANDBRAKE CALIPER Genuine Lamborghini - New (to order)
RH HANDBRAKE CALIPER Genuine Lamborghini - Used In stock
EXCHANGE
# 013
MPN: 003319951
BRAKE
Pinza freno sin. 24336411
BRAKE Genuine Lamborghini - New (to order)
# 014
MPN: 003318969
HANDBRAKE PADS
SET OF 4, EXCHANGE BASIS ONLY
from £621.18
from £621.18
This part replaces part number 003309363
Lamborghini PART 003318969 Genuine Lamborghini - New (to order)
# 015
MPN: 003319727
CABLE
Cavo con guaina x FM da pinze a bilanc.
from £217.02
from £217.02
HANDBRAKE SHEATH WIRE FROM SHO E Genuine Lamborghini - New (to order)
# 016
MPN: 004207085
LEVER
Fermo perno pompa freno/friz.
from £48.26
from £48.26
BRAKE CYLINDER PIN STOPPER Genuine Lamborghini - New In stock
