Lamborghini Countach 5000 QVi (1989) clutch Parts Diagram

014 - clutch

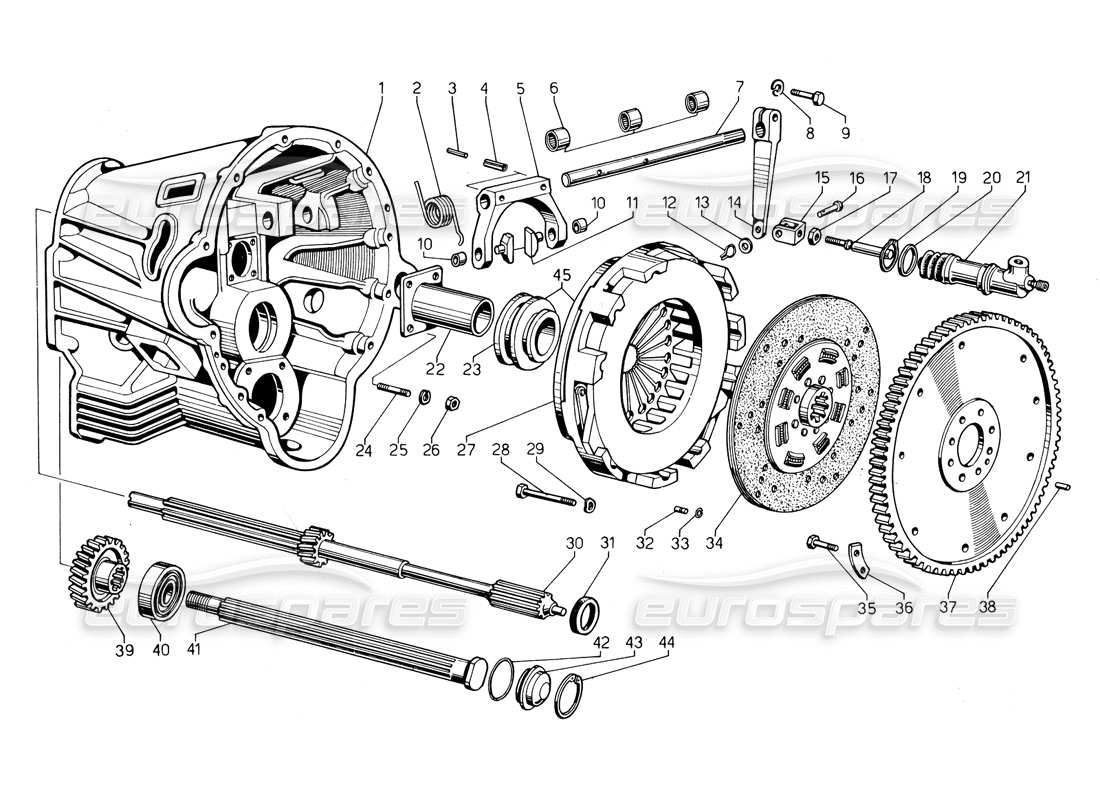

Lamborghini Countach 5000 QVi (1989) Clutch Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 002421339
      CLUTCH HSG
      CAMPANA FRIZIONE
      from £1,517.27
      from £1,517.27
      # 002
      MPN: 002112708
      SPRING
      Molla x leva frizione
      from £170.35
      from £170.35
      # 003
      MPN: 008900503
      PIN
      Spina elastica S. 1x36
      from £0.72
      from £0.72
      # 004
      MPN: 008900802
      PIN
      Spina elastica S. 1 ,5x36
      from £4.73
      from £4.73
      # 005
      MPN: 002121341
      FORK
      FORCELLA COMANDO FRIZIONE
      from £1,268.55
      from £1,268.55
      # 006
      MPN: 008802004
      BUSH
      Boccola MB 20x30 DU
      from £20.88
      from £20.88
      This part replaces part number 008802002
      # 007
      MPN: 002121342
      SHAFT
      ALBERO COMANDO FRIZIONE
      from £43.70
      from £43.70
      # 008
      MPN: 008410806
      LOCK WASHER
      Rond. el. a 8,4 UNI 1751
      Supersession
      Supersession
      # 009
      MPN: 008100831
      BOLT
      Bull. M8x30 UNI 5737/8G
      from £0.54
      from £0.54
      # 010
      MPN: 008801206
      BUSH
      Boccola MB 1210 DU
      from £3.03
      from £3.03
      # 011
      MPN: 002121344
      FORK INSERT
      Tassello x Forcella comando frizione
      from £41.09
      from £41.09
      # 012
      MPN: 004207085
      LEVER
      Fermo perno pompa freno/friz.
      from £48.26
      from £48.26
      # 013
      MPN: 008400816
      WASHER
      RONDELLA D.8
      Supersession
      Supersession
      # 014
      MPN: 002121054
      CLUTCH CONTROL LEVEL
      Leva comando frizione sul cilindretto
      from £357.35
      from £357.35
      # 015
      MPN: 002121672
      CAP FORK
      Forcellino x puntalino
      from £63.27
      from £63.27
      # 016
      MPN: 004210745
      PIN
      Perno fore, pedale friz./C
      from £22.97
      from £22.97
      # 017
      MPN: 008200811
      NUT
      DADO M8 UNI 5589-65/8G
      from £3.65
      from £3.65
      # 018
      MPN: 002121345
      CYLINDER CAP
      Puntalino x cilindretto
      from £195.68
      from £195.68
      # 019
      MPN: 008583701
      SEEGER RING
      SEEGER
      from £0.54
      from £0.54
      # 020
      MPN: 002420917
      SPACER
      Dist. int. scat, cambio x supp. pompa friz.
      from £21.02
      from £21.02
      # 021
      MPN: 002136948
      PUMP CYLINDER
      Cilindretto com. frizione
      from £38.04
      from £38.04
      # 022
      MPN: 002421349
      SLEEVE
      Manicotto supp. reggispinta
      from £589.69
      from £589.69
      # 023
      MPN: 002121675
      SLEEVE
      Manicotto reggispinta
      from £4,659.59
      from £4,659.59
      # 024
      MPN: 008300624
      BOLT
      Prig. M6x12 UNI 5917 8G
      from £9.73
      from £9.73
      # 025
      MPN: 008410603
      LOCK WASHER
      Rond. A 6,4 UNI 1751 C72
      Supersession
      Supersession
      # 026
      MPN: 008200604
      NUT
      DADO M6 UNI 5588-65/8G
      Supersession
      Supersession
      # 027
      MPN: 002121677
      PRESSION PLATE
      use 002121294 available with the bearing
      # 028
      MPN: 008100835
      BOLT
      Bull. M8x65 UNI 5737/8G
      from £1.90
      from £1.90
      # 029
      MPN: 008410810
      LOCK WASHER
      RONDELLA DI FERMO DIN 137/4
      Supersession
      Supersession
      # 030
      MPN: 002421346
      Main Shaft
      ALBERO PRIMARIO
      from £354.86
      from £354.86
      # 031
      MPN: 008613502
      RING
      Anello di tenuta x albero primario
      from £6.19
      from £6.19
      # 032
      MPN: 008850609
      DOWEL
      PERNO D.6x16 BONIF./U
      from £16.26
      from £16.26
      # 033
      MPN: 008580501
      CIRCLIP
      Anello arresto grano rif.
      from £0.55
      from £0.55
      # 034
      MPN: 002121295
      CLUTCH PLATE
      DISCO FRIZIONE
      from £750.00
      from £750.00
      # 035
      MPN: 008100838
      BOLT
      Bull. 8x1,25x25 10K
      from £15.00
      from £15.00
      This part replaces part number BN-00368
      # 036
      MPN: 410141179
      LOCKPLATE
      from £38.40
      from £38.40
      This part replaces part number 008410811 - and 1 more. Click to view details
      # 037
      MPN: 002121340
      FLIGHT CLUTCH
      VOLANO FRIZIONE
      from £535.22
      from £535.22
      # 038
      MPN: 008850806
      DOWEL
      GRANO 8x16 C40
      Supersession
      Supersession
      # 039
      MPN: 002421692
      GEAR
      Ingranaggio Z 29 sul secondario
      # 040
      MPN: 008523008
      BEARING
      Cuscinetto a rulli cilindrici sul sec.
      from £75.12
      from £75.12
      # 041
      MPN: 002421347
      MINOR SHAFT
      ALBERO SECONDARIO
      from £1,616.89
      from £1,616.89
      # 042
      MPN: 008605601
      SEAL RING
      ANELLO OR 3225
      from £31.31
      from £31.31
      # 043
      MPN: 002421352
      CAP
      Coperchietto sul secondario
      from £168.72
      from £168.72
      # 044
      MPN: 008576601
      LOCK RING
      SEEGER AA 62 I
      from £0.54
      from £0.54
      # 045
      MPN: 002121294
      CLUTCH MECHANISM & BEARING
      from £5,933.61
      from £5,933.61
