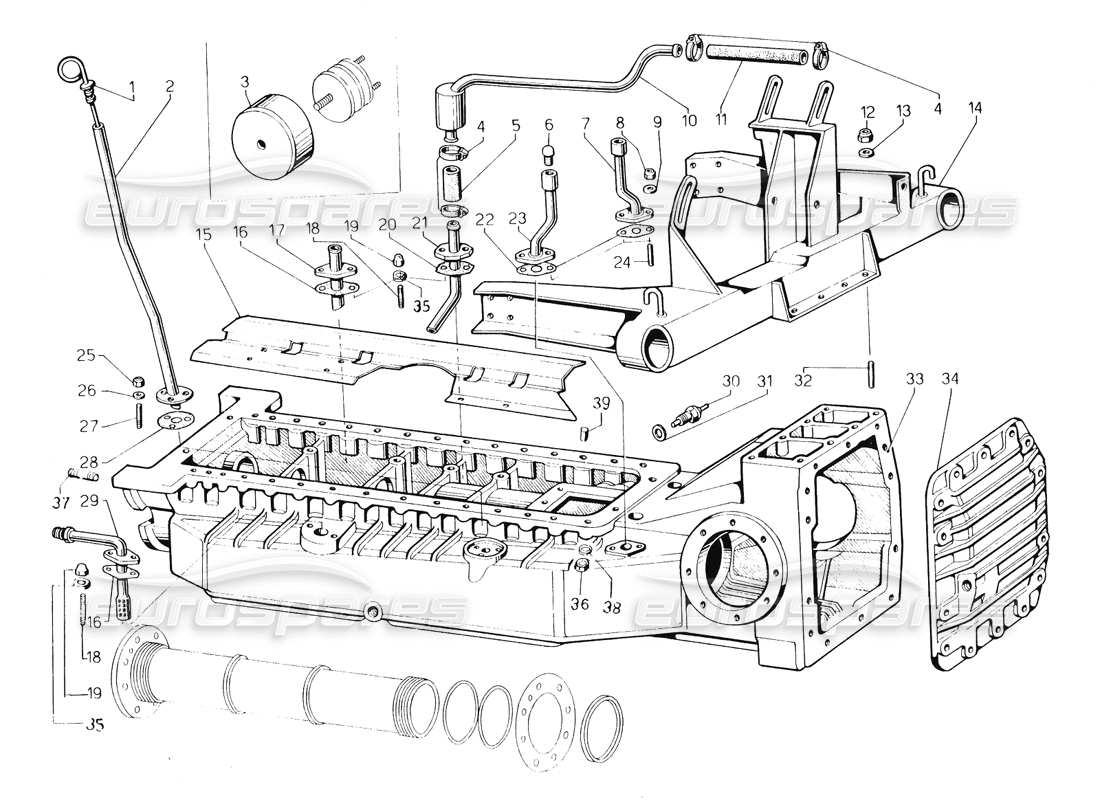

Lamborghini Countach 5000 QVi (1989) Sump Parts Diagram

013 - Sump

Lamborghini Countach 5000 QVi (1989) Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 001811229
        LEVEL DIPST
        Asta livello olio compl./C
        from £360.67
        from £360.67
        # 002
        MPN: 001822168
        TUBE
        Assieme tubo x aste livello olio
        from £60.70
        from £60.70
        # 003
        MPN: 001821049
        PROTECTION
        Protezione x supp. motore des. sin.
        from £28.32
        from £28.32
        # 004
        MPN: 008830206
        CLAMP RING
        FASC. ROYAL 00/12 18/30
        from £12.56
        from £12.56
        # 005
        MPN: 001519453
        TUBE
        Manic, da sfiato olio al tubo sc. olio
        from £48.43
        from £48.43
        # 006
        MPN: 002302182
        PIPE
        Sfiato olio differenziale rif. 600.40.613
        from £143.54
        from £143.54
        # 007
        MPN: 001811041
        BREATH PIPE
        Tubo sfiato olio diff. d./C
        from £22.23
        from £22.23
        # 008
        MPN: 008200604
        NUT
        DADO M6 UNI 5588-65/8G
        Supersession
        Supersession
        # 009
        MPN: 008410606
        WASHER
        Rondella fis/sfiato olio differ, des./sin.
        from £1.58
        from £1.58
        # 010
        MPN: 001519607
        UNION
        Compl. tubo coll. sfiato olio alia coppa
        from £109.04
        from £109.04
        # 011
        MPN: 001519639
        TUBE UNION
        Manic, da tubo scar, olio al tubo int.
        from £26.94
        from £26.94
        # 012
        MPN: N0111849
        NUT
        DADO N/70/108M
        from £1.39
        from £1.39
        This part replaces part number 008200809
        # 013
        MPN: N90179103
        WASHER
        Rond. 8,4 UNI 1734 8G
        from £0.98
        from £0.98
        This part replaces part number 008400801
        # 014
        MPN: 001821069
        Frame
        Supporto motore al telaio lato post.
        # 015
        MPN: 001822834
        SHIELD
        PARATIA x COPPA OLIO
        from £47.04
        from £47.04
        # 016
        MPN: 001820626
        GASKET
        Guar. tra sotto basam. e pesc. mand. e rit.o
        from £8.42
        from £8.42
        # 017
        MPN: 001820624
        OIL PIPE
        Compl. tubo rit. olio dal radial, a coppa
        from £16.01
        from £16.01
        # 018
        MPN: 008300623
        BOLT
        Prig. M6x16 UNI 5917 8G
        from £10.53
        from £10.53
        # 019
        MPN: 008200606
        NUT
        Supersession
        Supersession

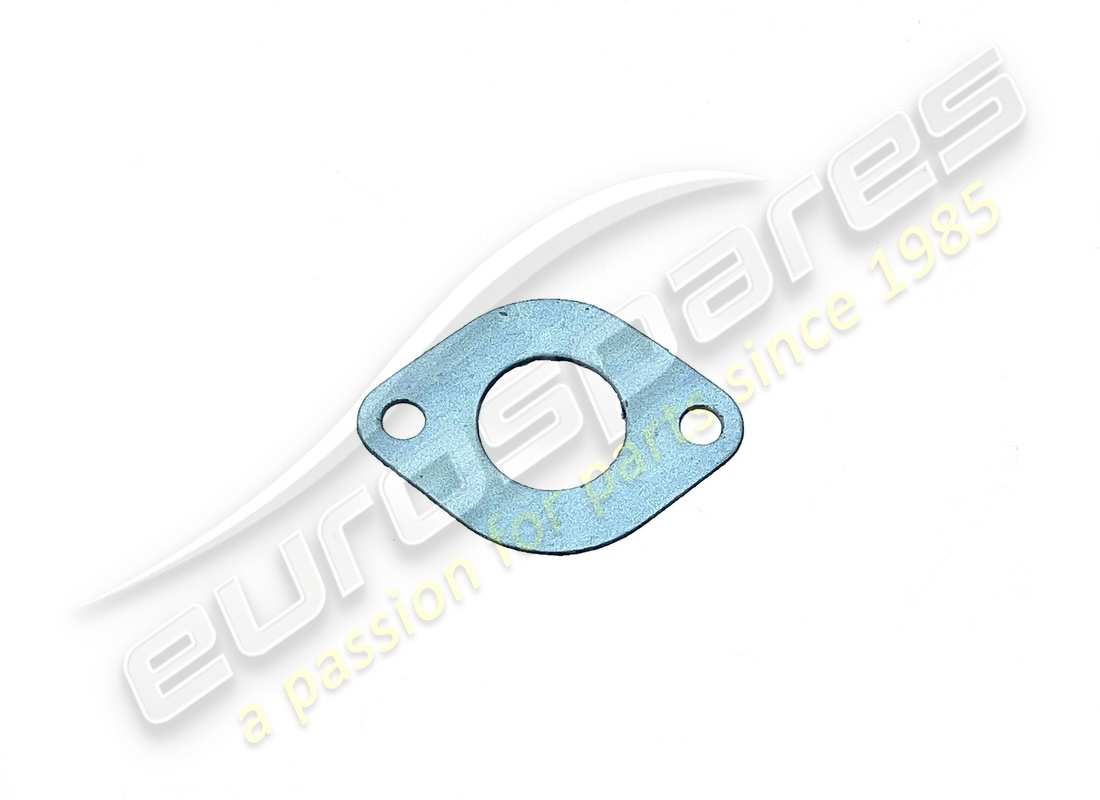

        # 020
        MPN: 001513945
        GASKET
        Guarnizione x tubo olio
        from £5.97
        from £5.97
        # 021
        MPN: 001513929
        PIPE
        Tubo scarico olio in coppa
        from £46.60
        from £46.60
        # 022
        MPN: 001810045
        DIFFER GASK
        Guam. soff. differenz./C
        from £1.09
        from £1.09
        # 023
        MPN: 001811040
        BREATH PIPE
        Tubo sfiato olio diff. s./C
        from £22.23
        from £22.23
        # 024
        MPN: 008300610
        BOLT
        PRIG. 6x1x16 8G
        from £15.47
        from £15.47
        # 025
        MPN: 008200606
        NUT
        Supersession
        Supersession
        # 026
        MPN: 008400606
        WASHER
        Rond. 6,4 UNI 1734
        Supersession
        Supersession
        # 027
        MPN: 008300610
        BOLT
        PRIG. 6x1x16 8G
        from £15.47
        from £15.47
        # 028
        MPN: 001803094
        PIPE GASKET
        Guam, tubo livello olio
        from £2.29
        from £2.29
        # 029
        MPN: 001822503
        Sump pickup
        Assieme pescante sulla coppa x circ. olio
        # 030
        MPN: 001801333
        TERMOS SEND
        Termocop. temp, olio e acqua 082405.02
        from £84.66
        from £84.66
        # 031
        MPN: 008401610
        WASHER
        RONDELLA
        from £6.32
        from £6.32
        # 032
        MPN: 008300844
        BOLT
        Prig. M8x15 8G
        from £1.25
        from £1.25
        # 033
        MPN: 001822833
        PAN
        COPPA OLIO
        from £5,608.92
        from £5,608.92
        # 034
        MPN: 002308058
        COVER
        Coperchio scatola diff./C
        from £323.35
        from £323.35
        # 035
        MPN: 008400620
        WASHER
        Rondella fiss. rise, serrat. cofano motore
        from £0.95
        from £0.95
        # 036
        MPN: 008200806
        NUT
        DADO M8 UNI 5588-65/8G
        Supersession
        Supersession
        # 037
        MPN: 008300815
        STUD
        from £10.53
        from £10.53
        # 038
        MPN: WHT001514
        LOCK WASHER
        Ros. el. 8,4x17x0,8
        from £15.09
        from £15.09
        This part replaces part number 008410805
        # 039
        MPN: 008850809
        DOWEL
        Grano D. 8x17
        from £11.53
        from £11.53
