lamborghini countach 5000 qvi (1989) radiator and coolant system parts diagram

009 - radiator and coolant system

Lamborghini Countach 5000 QVi (1989) Radiator and Coolant System Parts Diagram

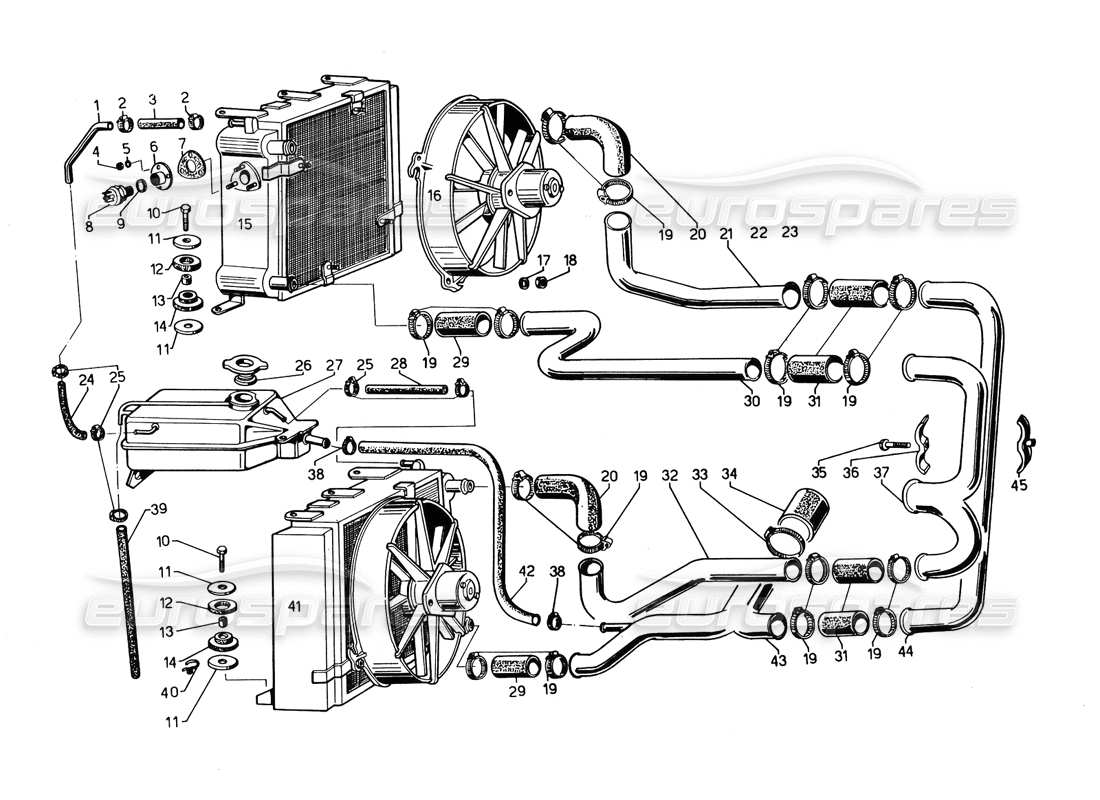

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 001710067
      COOLAN PIPE
      Tubo rad. des/serb/suppl./C
      from £85.86
      from £85.86
      # 002
      MPN: 008830204
      CLAMP RING
      Fasc. royal 0000 A/5 7/11
      from £5.43
      from £5.43
      # 003
      MPN: 001711395
      TUBE
      Tubo rad. des/tubo scocca
      from £19.28
      from £19.28
      # 004
      MPN: 008200402
      NUT
      Dado 4MA ottone
      from £1.62
      from £1.62
      # 005
      MPN: 008410402
      LOCK WASHER
      Rond. A 4,3 UNI 1751 C72
      Supersession
      Supersession
      # 006
      MPN: 001723395
      FLANGE
      FLANGIA
      from £31.15
      from £31.15
      # 007
      MPN: 001705504
      GASKET
      Guam, lermoconl. mot.
      from £16.41
      from £16.41
      # 008
      MPN: 001724565/A

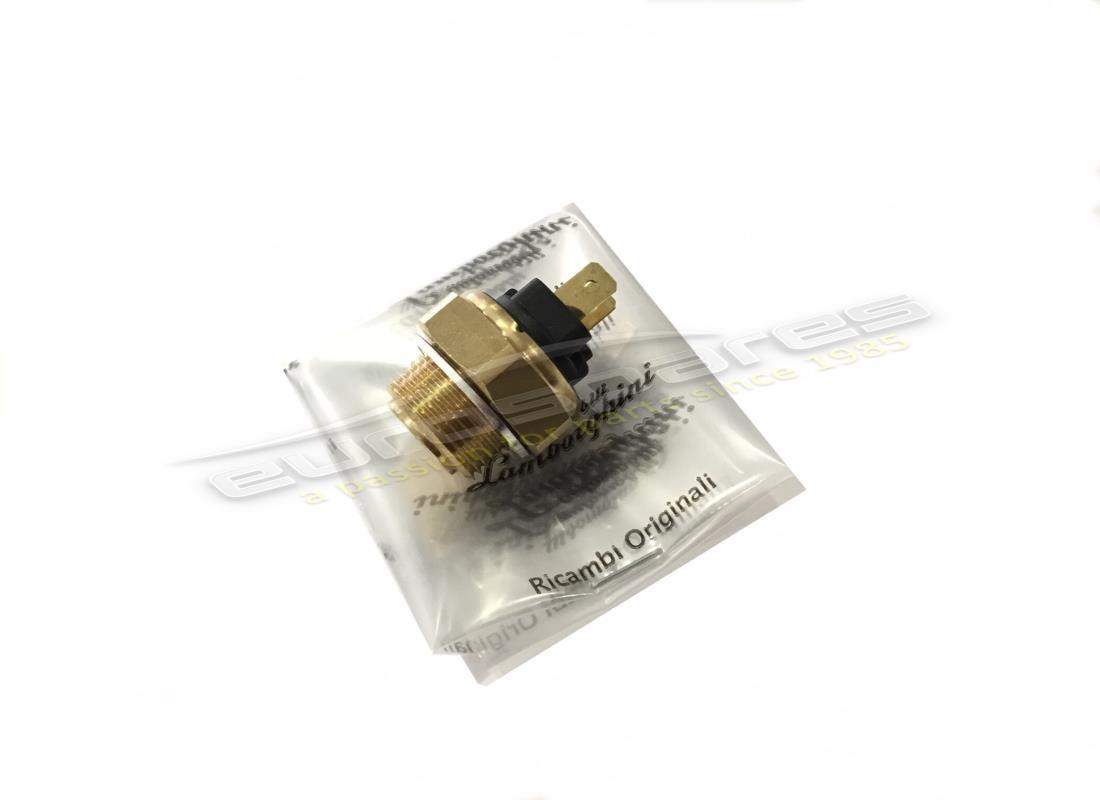

      THERMOCONTACT
      (two terminals)
      # 009
      MPN: 008401408
      WASHER
      RONDELLA
      from £1.29
      from £1.29
      # 010
      MPN: 008100831
      BOLT
      Bull. M8x30 UNI 5737/8G
      from £0.51
      from £0.51
      # 011
      MPN: WHT001942
      WASHER
      Rond. D. 8,5x32x2,5
      from £2.02
      from £2.02
      # 012
      MPN: WHT001189
      RUBBER RING
      from £2.38
      from £2.38
      This part replaces part number 001707163
      # 013
      MPN: 001701592
      SPACER
      Distan. gomm. radiatore
      from £11.72
      from £11.72
      # 014
      MPN: 001701495
      RAD. SUPPORT
      Anello x supp. serb. suppl. e radiatore
      from £32.99
      from £32.99
      # 015
      MPN: 001728844
      COOL RAD.
      Radiatore destro
      from £2,347.50
      from £2,347.50
      # 016
      MPN: 001720302
      FAN MOTOR
      Compl. supp. venl. compl. di mol. vent, e gomm.
      # 017
      MPN: WHT003040
      WASHER
      RONDELLA PORE/S
      from £4.55
      from £4.55
      # 018
      MPN: N0211963
      NUT
      DADO N/70/105M
      from £0.48
      from £0.48
      # 019
      MPN: 008835004
      CLAMP RING
      FASC. ROYAL 1/12 32/52
      from £6.14
      from £6.14
      This part replaces part number 008830201
      # 020
      MPN: 001711337
      COOLAN PIPE
      Tubo rad. des/termost./C
      from £339.10
      from £339.10

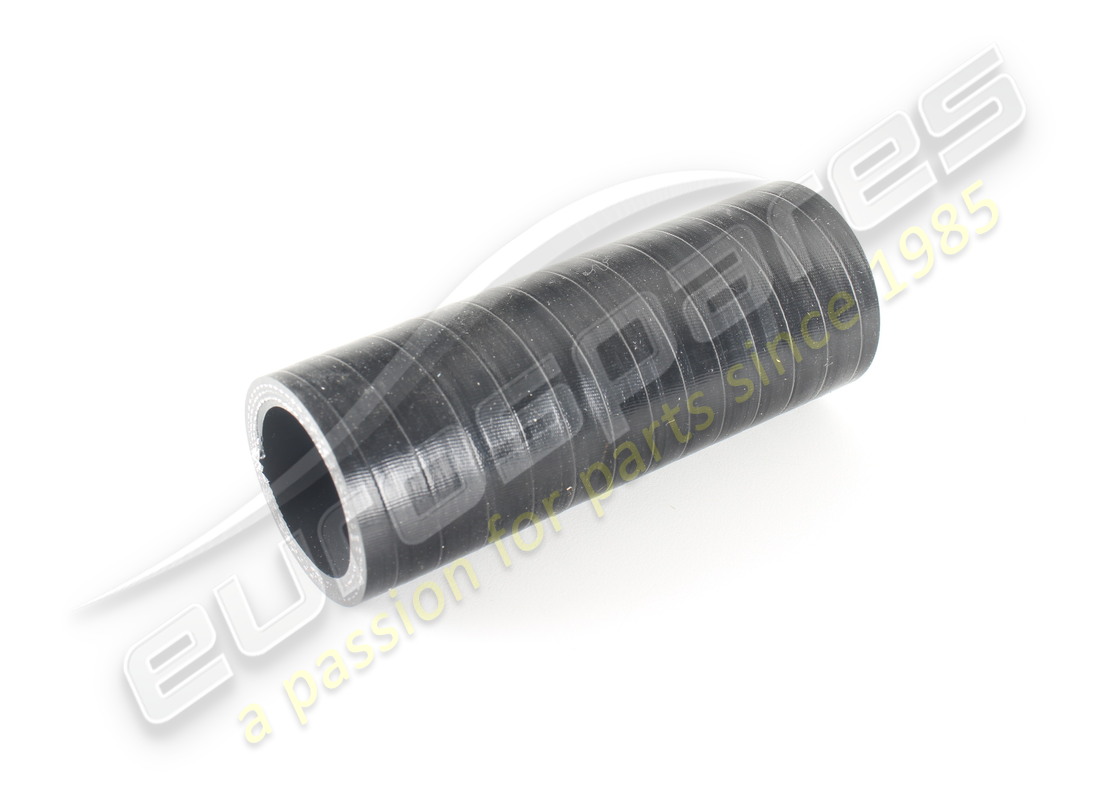

      # 021
      MPN: 001723069
      TUBE
      Tubo
      from £32.04
      from £32.04
      # 022
      MPN: 001711157
      RELAY
      Relais 0332014150 ventole
      from £25.08
      from £25.08
      # 023
      MPN: 006311153
      CONECT
      Connetl. 3334485007/C
      from £8.50
      from £8.50
      # 024
      MPN: 001710068
      PIPE
      Tubo serb. suppl/rad. sin./C
      from £14.06
      from £14.06
      # 025
      MPN: 008830204
      CLAMP RING
      Fasc. royal 0000 A/5 7/11
      from £5.43
      from £5.43
      # 026
      MPN: 001704296
      TANK CAP 1,0 BAR
      from £87.32
      from £87.32
      # 027
      MPN: 001710971
      COOLAN RESE
      Nourice Countach
      from £299.18
      from £299.18
      # 028
      MPN: 001710068
      PIPE
      Tubo serb. suppl/rad. sin./C
      from £14.06
      from £14.06
      # 029
      MPN: 001724298
      TUBE
      Manic, colleg. radial, alle lubaz. H20
      from £28.46
      from £28.46
      # 030
      MPN: 001723071
      TUBE
      Tubo
      from £25.54
      from £25.54
      # 031
      MPN: 001711338
      PIPE GUARD
      Manic, protez. Tubi/C
      from £33.34
      from £33.34
      # 032
      MPN: 001723070
      TUBE
      Tubo
      from £23.64
      from £23.64
      # 033
      MPN: 008835004
      CLAMP RING
      FASC. ROYAL 1/12 32/52
      from £6.14
      from £6.14
      This part replaces part number 008830201
      # 034
      MPN: 001724299
      TUBE
      Manic, colleg. 3 vie alia pompa H20
      from £23.21
      from £23.21
      # 035
      MPN: 008100615
      BOLT
      Bull. M6x50 UNI 5737/8G
      from £3.65
      from £3.65
      # 036
      MPN: 008833801
      CLAMP RING
      Fasc. Tubi acqua rad. ant.
      from £18.62
      from £18.62
      # 037
      MPN: 001723068
      TUBE
      Tubo
      from £66.76
      from £66.76
      # 038
      MPN: 008830206
      CLAMP RING
      FASC. ROYAL 00/12 18/30
      from £12.56
      from £12.56
      # 039
      MPN: 001710069
      PIPE
      Tubo scar. serb. suppl./C
      from £43.06
      from £43.06
      # 040
      MPN: 001705796
      FAN WASHER
      Rond. x massa eletlrov.
      # 041
      MPN: 001728845
      W RADIAL L
      Left water radiator
      from £1,291.13
      from £1,291.13
      # 042
      MPN: 001724300
      TUBE
      Tubo dal tre vie al serb. supplement.
      from £29.06
      from £29.06
      # 043
      MPN: 001723073
      TUBE
      Tubo
      from £103.65
      from £103.65
      # 044
      MPN: 001723072
      TUBE
      Tubo
      from £33.47
      from £33.47
      # 045
      MPN: 001722950
      CLAMP
      Assieme x fiss. Tubi acqua al telaio
      from £205.78
      from £205.78
