lamborghini countach 5000 qvi (1989) cylinder heads parts diagram

001 - Cylinder Heads

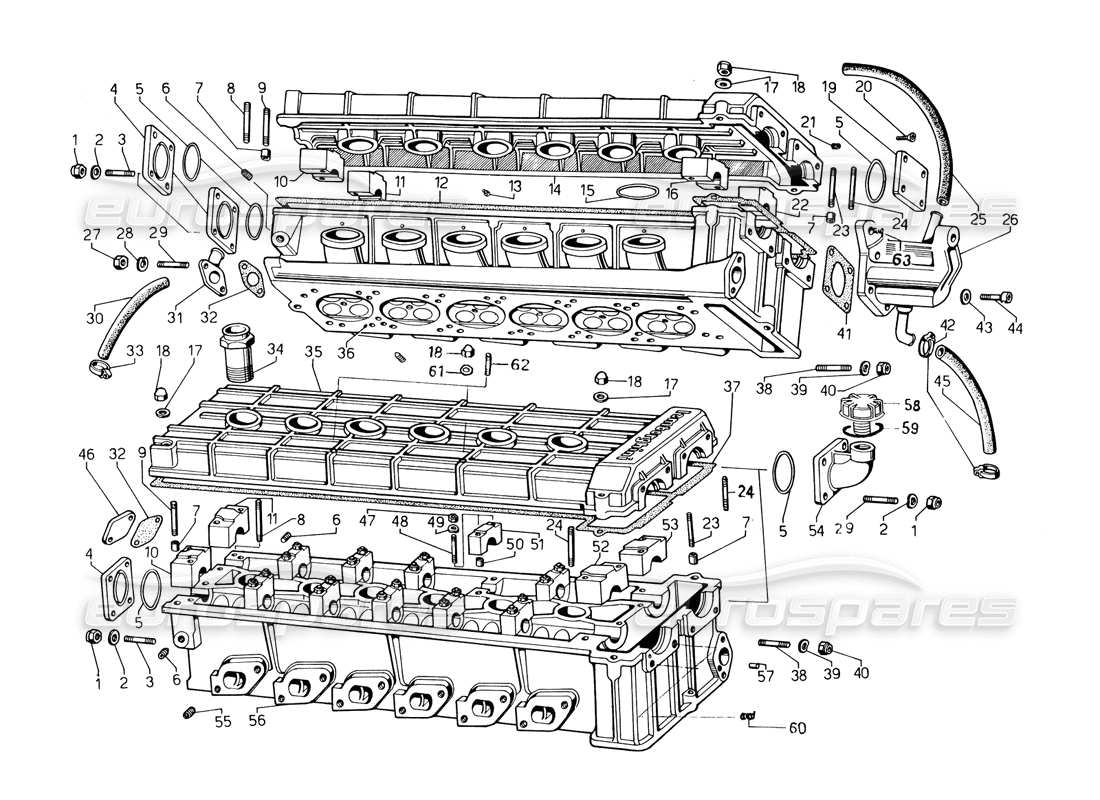

Lamborghini Countach 5000 QVi (1989) Cylinder Heads Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 000
              MPN: LCCG002
              CAM COVER GASKET SET
              from £77.96
              from £77.96
              # 001
              MPN: 008200605
              NUT
              from £1.74
              from £1.74
              # 002
              MPN: 008410602
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/B
              from £26.01
              from £26.01
              # 003
              MPN: 008300641
              STUD BOLT
              PRIGIONIERO
              from £0.58
              from £0.58
              # 004
              MPN: 001114502
              CAP
              Coperch. post, e ant. testa des. e sin.
              from £118.98
              from £118.98
              # 005
              MPN: 008606205
              SEAL RING
              ANELLO OR 3243
              from £4.04
              from £4.04
              This part replaces part number 008606201
              # 006
              MPN: 008700606
              SCREW
              Vite El M6x1x10 12K
              from £0.50
              from £0.50
              SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
              (Valid for June 1992 version) GRAND (dalla 12678)
              # 007
              MPN: 008800604
              DOWEL
              BOCCOLA
              Supersession
              Supersession
              # 008
              MPN: 008300649
              STUD BOLT
              PRIGIONIERO
              from £5.94
              from £5.94
              # 009
              MPN: 008300650
              STUD BOLT
              PRIGIONIERO
              from £7.55
              from £7.55
              # 010
              MPN: 001120855
              SHAFT SUPP.
              Supp. post, x testa des. scar, e sin. aspir.
              # 011
              MPN: 001120856
              SHAFT SUPP.
              Supp. post, x testa des. aspir. e sin. scar.
              # 012
              MPN: 001120813
              GASKET
              Guam, tra cop. sup. e testa cil. sinistra
              from £78.35
              from £78.35
              # 013
              MPN: 001122089
              DOWEL
              Grano di centraggio collett. di aspir.
              from £10.57
              from £10.57
              # 014
              MPN: 001120812
              CAP
              Left head upper cover
              from £4,085.45
              from £4,085.45
              # 015
              MPN: 008604703
              OR RING
              ANELLO OR
              from £5.15
              from £5.15
              This part replaces part number 008604701
              # 016
              MPN: 001120852
              SHAFT SUPP.
              Supp. anter. per testa sinistra lato aspir.
              # 017
              MPN: 008410602
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/B
              from £26.01
              from £26.01
              # 018
              MPN: 008200605
              NUT
              Dado orig. Urama vs. rif. NCM70 106M
              from £1.74
              from £1.74
              # 019
              MPN: 001122080
              CAP
              Coperch. x testa sin. lato asp. parte ant.
              from £176.19
              from £176.19
              # 020
              MPN: 008700613
              SCREW
              VITE VSP 6x1x15A
              from £0.53
              from £0.53
              # 021
              MPN: 008840802
              SCREW
              Heli-Coil 8x1, 25 Inox
              from £2.06
              from £2.06
              # 022
              MPN: 001120853
              SHAFT SUPP.
              Supp. anter. per testa sinistra lato scar.
              # 023
              MPN: 008300637
              STUD BOLT
              PRIGIONIERO
              from £9.00
              from £9.00
              # 024
              MPN: 008300647
              STUD BOLT
              PRIGIONIERO
              from £6.62
              from £6.62
              # 025
              MPN: 001523075
              TUBE
              Pipe from oil breather body to 3 ways
              # 026
              MPN: 001123361
              AIR PUMP S.
              Compl. sfiato olio sulla testa
              # 027
              MPN: 008200605
              NUT
              Dado orig. Urama vs. rif. NCM70 106M
              from £1.74
              from £1.74
              # 028
              MPN: 008410603
              LOCK WASHER
              ROND. A6, 4 UNI 1751 C72
              Supersession
              Supersession
              # 029
              MPN: 008300610
              BOLT
              PRIG. 6x1x16 8G
              from £15.47
              from £15.47
              # 030
              MPN: 001722787
              TUBE
              Tubo dall'ass. sulla testa sin. alia giunz.
              from £24.21
              from £24.21
              # 031
              MPN: 001722783
              FLANGE
              ASSIEME FLANGIA USCITA ACQUA
              # 032
              MPN: 001121254
              GASKET
              GUARNIZIONE x FLANGIA
              from £5.23
              from £5.23
              # 033
              MPN: 008830206
              CLAMP RING
              FASC. ROYAL 00/12 18/30
              from £12.56
              from £12.56
              # 034
              MPN: 001120857
              PIPE GASKET
              Bocchettone per fiss. coperchi testa D/S
              from £96.19
              from £96.19
              # 035
              MPN: 001120810
              CAP
              Right head upper cover
              from £2,723.63
              from £2,723.63
              # 036
              MPN: 460005452
              LH cylinder head
              from £9,414.54
              from £9,414.54
              # 037
              MPN: 001120811
              CAM COVER GASKET
              from £113.59
              from £113.59
              # 038
              MPN: 008300806
              BOLT
              Prig. M8x70 UNI 5911-66A 8G
              from £3.48
              from £3.48
              # 039
              MPN: WHT001514
              LOCK WASHER
              Ros. el. 8,4x17x0,8
              from £15.09
              from £15.09
              This part replaces part number 008410805
              # 040
              MPN: 008200816
              NUT
              DADO NCM 70 108M 8G
              from £2.90
              from £2.90
              # 041
              MPN: 001121012
              GASKET
              Guam, between oil breather and -head
              from £2.99
              from £2.99
              # 042
              MPN: 008830206
              CLAMP RING
              FASC. ROYAL 00/12 18/30
              from £12.56
              from £12.56
              # 043
              MPN: 008410810
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/4
              Supersession
              Supersession
              # 044
              MPN: 008700811
              SCREW
              Viti 8x1, 25 Uni 5931
              from £0.53
              from £0.53
              # 045
              MPN: 001519639
              TUBE UNION
              Manic, da tubo scar, olio al tubo int.
              from £83.96
              from £83.96
              # 046
              MPN: 001121252
              FLANGE
              Flangia chius. for! uscita acq. da testa P
              from £16.65
              from £16.65
              # 047
              MPN: 008200604
              NUT
              DADO M6 UNI 5588-65/8G
              Supersession
              Supersession
              # 048
              MPN: 008300640
              STUD BOLT
              PRIGIONIERO
              from £10.66
              from £10.66
              # 049
              MPN: 008410602
              LOCK WASHER
              RONDELLA DI FERMO DIN 137/B
              from £25.50
              from £25.50
              # 050
              MPN: 008800604
              DOWEL
              BOCCOLA
              Supersession
              Supersession
              # 051
              MPN: 001120854
              SHAFT SUPP.
              Supp. interm. centr. x testa des. e sin.
              Supersession
              Supersession
              # 052
              MPN: 001120851
              SHAFT SUPP.
              Supp. anter. per testa destra lato scarico
              # 053
              MPN: 07M103286
              SHAFT SUPP.
              Supp. anter. per testa destra lato aspir.
              from £131.00
              from £131.00
              # 054
              MPN: 001120277
              OIL IN PIPE
              Bocchet. x introd. olio nella testa destra
              from £262.83
              from £262.83
              # 055
              MPN: 008840802
              SCREW
              HELI-COIL 8x1,25 INOX
              from £2.01
              from £2.01
              # 056
              MPN: 460005402
              RH cylinder head
              from £9,414.54
              from £9,414.54
              # 057
              MPN: 008850615
              DOWEL BOLT
              GRANO
              from £11.53
              from £11.53
              # 058
              MPN: 001102613
              OIL PLUG
              Tappo introd. olio
              # 059
              MPN: 001101401
              OIL GASKET
              Guarniz. x tappo introduz. olio
              from £2.25
              from £2.25
              # 060
              MPN: 008840601
              SCREW
              Heli-coil x teste e coperchi
              from £1.62
              from £1.62
              # 061
              MPN: 008200606
              NUT
              Supersession
              Supersession
              # 062
              MPN: 008300613
              BOLT
              PRIG. 6x1x14 8G
              from £3.07
              from £3.07
              # 063
              MPN: 008841001
              SCREW
              Heli-coil 10x1,5 M INOX
