027A - Steering (Valid for QV Variation - January 1987)

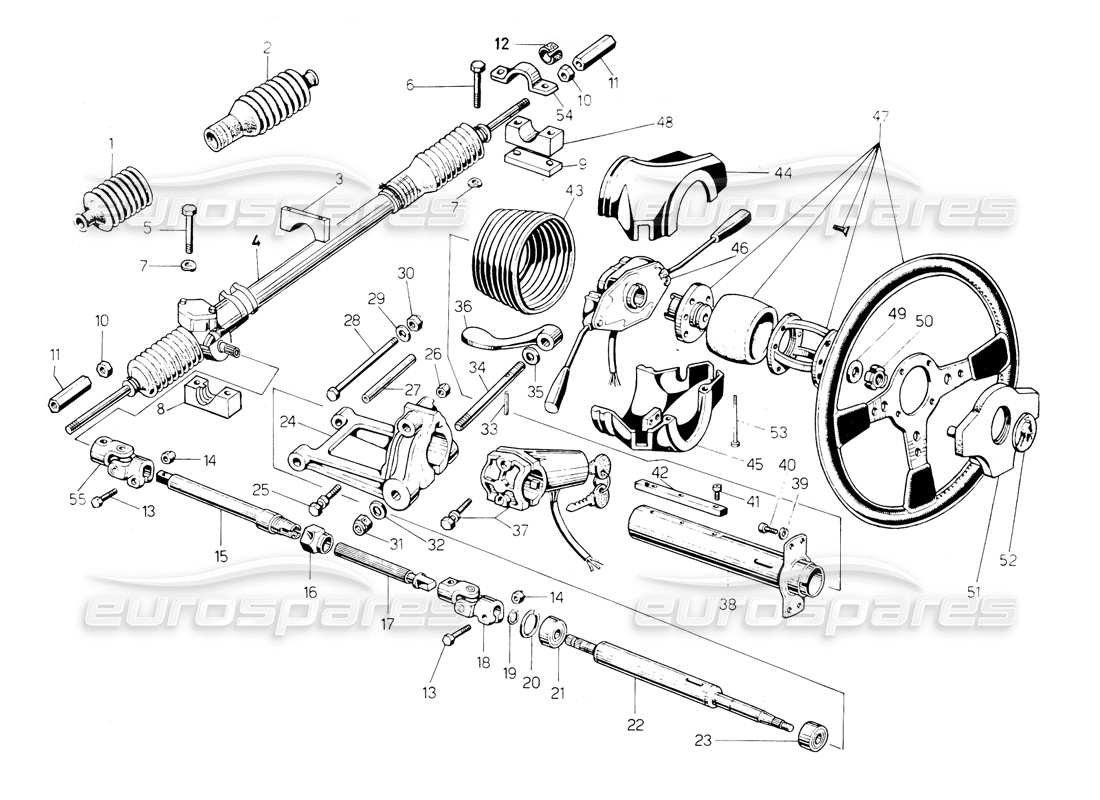

Lamborghini Countach 5000 QV (1985) Steering (Valid for QV Variation - January 1987) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004320203
BOOT
(Valid for QV Variation - January 1987) Cuffia x crimagliera parte sin.
from £72.37
from £72.37
# 002
MPN: 004320204
BOOT
(Valid for QV Variation - January 1987) Cuffia x crimagliera parte des.
from £72.37
from £72.37
# 003
MPN: 004324742
SUPPORT
(Valid for QV Variation - January 1987) Cavallotto fiss. scatola guida lato pignone
from £128.10
from £128.10
# 004
MPN: 004324664
LHD STEERING RACK
from £2,541.22
from £2,541.22
# 005
MPN: 008101045
BOLT
(Valid for QV Variation - January 1987) Bull. M10x85 UNI 5737 8G
from £0.63
from £0.63
# 006
MPN: 008101018
BOLT
(Valid for QV Variation - January 1987) Bull. M10x60 UNI 5737 8G
from £0.53
from £0.53
# 007
MPN: 008401006
WASHER
(Valid for QV Variation - January 1987) Rond. A10,5 UNI 1734
from £0.53
from £0.53
# 008
MPN: 004324741
SUPPORT
(Valid for QV Variation - January 1987) Supp. inf. scatola guida lato pignone
from £38.09
from £38.09
# 009
MPN: 004313893
SPACER
(Valid for QV Variation - January 1987) Distanz. x cremagl./C
from £39.06
from £39.06
# 010
MPN: 008201412
NUT
(Valid for QV Variation - January 1987) Dado M14 UNI 5589 sin. 8G
from £11.53
from £11.53
# 011
MPN: 004324744
TUBE
(Valid for QV Variation - January 1987) Tubo x registro tirante scatola guida
from £10.61
from £10.61
# 012
MPN: 004324743
SUPPORT
(Valid for QV Variation - January 1987) Supporto in gomma x scatola guida
from £7.52
from £7.52
# 013
MPN: N01033520
BOLT
(Valid for QV Variation - January 1987) Bull. M8x35 UNI 5739/8G
from £0.98
from £0.98
# 014
MPN: 008200809
NUT
(Valid for QV Variation - January 1987) Dado B/70/208M
Supersession
Supersession
# 015
MPN: 004309797
SHAFT
(Valid for QV Variation - January 1987) Piantone sterzo inf./C
from £300.97
from £300.97
# 016
MPN: 004309799
NUT
(Valid for QV Variation - January 1987) Dado piantone sterzo/C
from £109.22
from £109.22
# 017
MPN: 004309798
SHAFT
(Valid for QV Variation - January 1987) Piantone sterzo sup./C
from £301.42
from £301.42
# 018
MPN: 004309886
JOINT
(Valid for QV Variation - January 1987) Giunto 325209 Piantone/C
from £48.59
from £48.59
# 019
MPN: 008581501
LOCK RING
(Valid for QV Variation - January 1987) Seeger 17 E
from £0.54
from £0.54
# 020
MPN: 07M109381
LOCK RING
(Valid for QV Variation - January 1987) Seeger 35
from £1.16
from £1.16
This part replaces part number 008573501 - and 1 more. Click to view details
# 021
MPN: 008501703
BALL BEARIN
(Valid for QV Variation - January 1987) Cusc. riv. 6003-2RS
from £117.60
from £117.60
# 022
MPN: 004319324
Steering
(Valid for QV Variation - January 1987) Piantone sterzo
from £412.08
from £412.08
# 023
MPN: 008522002
BEARING
(Valid for QV Variation - January 1987) CSN comp. cusc. an. HK2520
from £6.64
from £6.64
# 024
MPN: 004309809
SUPPORT
(Valid for QV Variation - January 1987) Supp. piantone sterzo/C
from £817.51
from £817.51
# 025
MPN: 008100852
BOLT
(Valid for QV Variation - January 1987) Bull. 8x1,25x3780
from £16.17
from £16.17
# 026
MPN: 008200809
NUT
(Valid for QV Variation - January 1987) Dado B/70/208M
Supersession
Supersession
# 027
MPN: 004309824
PIN
(Valid for QV Variation - January 1987) Perno supp. volante/C
from £46.60
from £46.60
# 028
MPN: 008100815
BOLT
(Valid for QV Variation - January 1987) Bull. M8x105 UNI 5737/8G
from £6.02
from £6.02
# 029
MPN: N90179103
WASHER
(Valid for QV Variation - January 1987) Rond. 8,4 UNI 1734 8G
from £1.06
from £1.06
This part replaces part number 008400801
# 030
MPN: 008200809
NUT
(Valid for QV Variation - January 1987) Dado B/70/208M
Supersession
Supersession
# 031
MPN: 008201212
NUT
(Valid for QV Variation - January 1987) Dado B/70/212 MB
from £1.27
from £1.27
# 032
MPN: 008401306
WASHER
(Valid for QV Variation - January 1987) Rondella d. 13x24x3 8G
from £1.62
from £1.62
# 033
MPN: 008900401
PIN
(Valid for QV Variation - January 1987) Spina el. 4x20 Din 1481
from £0.54
from £0.54
# 034
MPN: 008301220
BOLT
(Valid for QV Variation - January 1987) Prig. 12x1, 5 8G
from £9.08
from £9.08
# 035
MPN: 008401306
WASHER
(Valid for QV Variation - January 1987) Rondella d. 13x24x3 8G
from £1.62
from £1.62
# 036
MPN: 004309825
LEVER
(Valid for QV Variation - January 1987) Leva supp. piantone sterzo/C
from £75.93
from £75.93
# 037
MPN: 004309810
BLOST SWIT
(Valid for QV Variation - January 1987) Commut. aff. A0600 Antif./C
from £241.23
from £241.23
# 038
MPN: 004309802
SUPPORT
(Valid for QV Variation - January 1987) Compl. canotto est. piant./C
from £226.35
from £226.35
# 039
MPN: 008410603
LOCK WASHER
(Valid for QV Variation - January 1987) Rond. A6,4 UNI 1751 C72
Supersession
Supersession
# 040
MPN: 008700611
SCREW
(Valid for QV Variation - January 1987) Vite brugola 6x1x15
from £0.53
from £0.53
# 041
MPN: 008700512
SCREW
(Valid for QV Variation - January 1987) Vite brugola 5x0,8x10 8G
Supersession
Supersession
# 042
MPN: 004310698
STEERG GUID
(Valid for QV Variation - January 1987) Guida piant. sterzo/C
from £303.46
from £303.46
# 043
MPN: 004309812
BOOT
(Valid for QV Variation - January 1987) Soffietto piantone sterzo/C
from £141.37
from £141.37
# 044
MPN: 004309808
COVER
(Valid for QV Variation - January 1987) Copert. sup. piant. sterzo/C
from £848.22
from £848.22
# 045
MPN: 004309807
COVER
(Valid for QV Variation - January 1987) Copert. inf. piant. sterzo/C
from £848.22
from £848.22
# 046
MPN: 004320773
SWITCH
(Valid for QV Variation - January 1987) Devio luci vs. 54034022
from £886.26
from £886.26
# 047
MPN: 004319090
STEER WHEEL
(Valid for QV Variation - January 1987) Volante countach completo di flangia
from £995.00
from £995.00
# 048
MPN: 004313891
SUPPORT
(Valid for QV Variation - January 1987) Supp. inf. scatola guida
# 049
MPN: 008401417
WASHER
(Valid for QV Variation - January 1987) Rond. 15x25x2
from £2.05
from £2.05
# 050
MPN: 008251501
RING NUT
(Valid for QV Variation - January 1987) Ghiera GHK/70/15 MG
Supersession
Supersession
# 051
MPN: 004319262
COVER
(Valid for QV Variation - January 1987) Cuscino copri razze x volante
# 052
MPN: 004301790
STEERING WHEEL BADGE
Badge (Valid for QV Variation - January 1987) Stemma tappo volante
from £186.76
from £186.76
# 053
MPN: 008700412
SCREW
(Valid for QV Variation - January 1987) Vite VICE 4x40 A 8G
from £3.77
from £3.77
# 054
MPN: 004313892
SUPPORT
(Valid for QV Variation - January 1987) Cavall. x supp. scat, guida
from £69.82
from £69.82
# 055
MPN: 004324978
JOINT
(Valid for QV Variation - January 1987) Giunto cardanico
from £59.04
from £59.04
