lamborghini countach 5000 qv (1985) steering parts diagram

027 - Steering

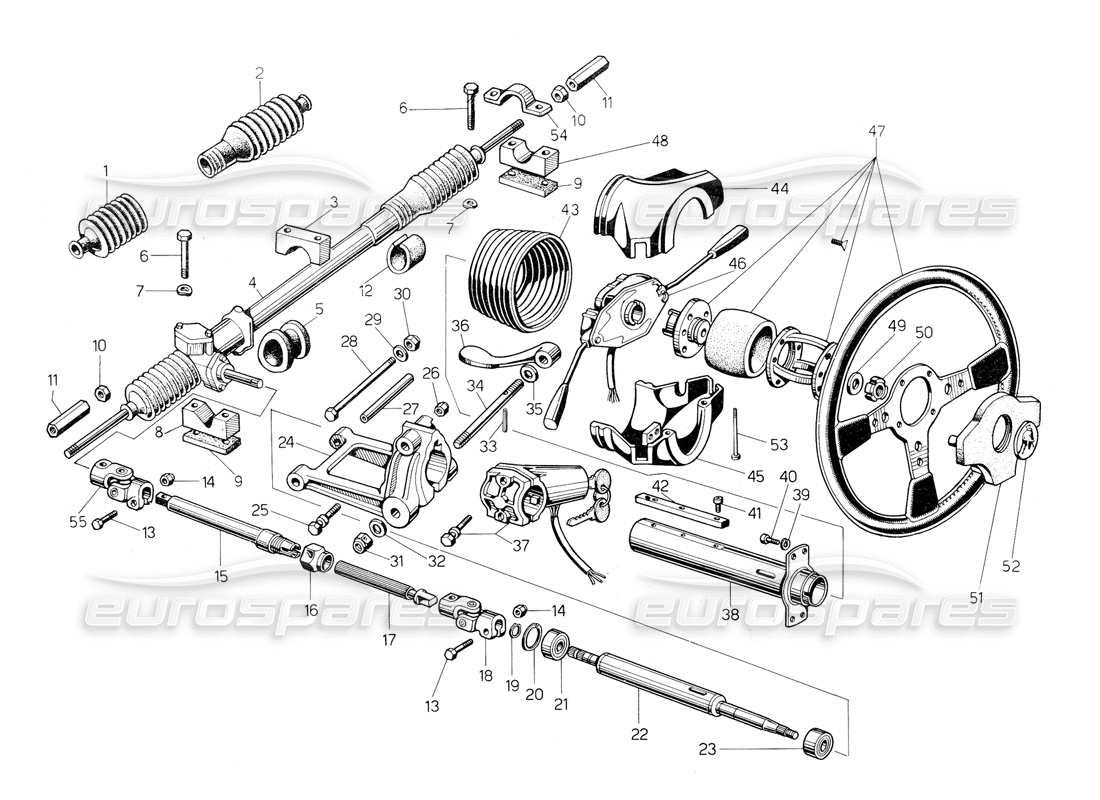

Lamborghini Countach 5000 QV (1985) Steering Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 004320203
BOOT
Cuffia cremagliera/C 3602001 1
from £72.37
from £72.37
# 002
MPN: 004320204
BOOT
Cuffia cremagliera/C 36020012
from £72.37
from £72.37
# 003
MPN: 004313890
SUPPORT
Supp. inf. scat, guida lato pign.
from £42.62
from £42.62
# 004
MPN: 004313894

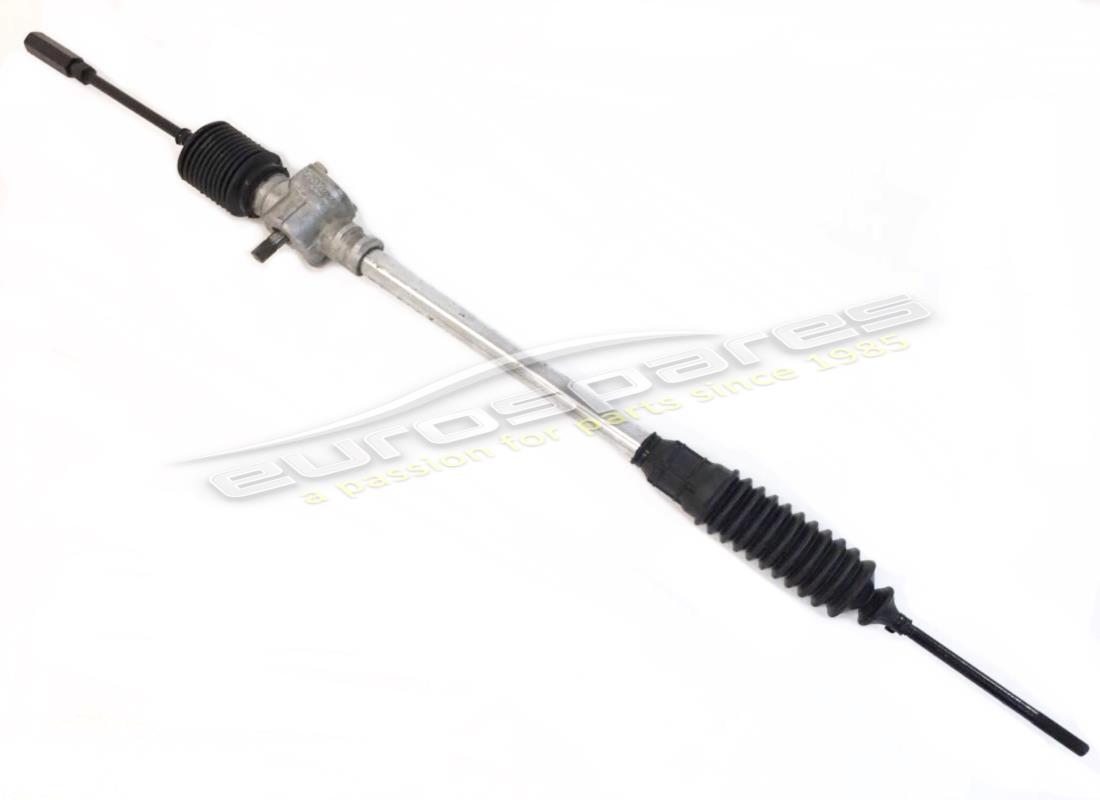

RACK STEERG
Cnemagl. compl. N. 15000132
from £2,180.56
from £2,180.56
# 004
MPN: 004319026
RHD STEERING RACK
from £2,541.22
from £2,541.22
# 004
MPN: 004324729
RHD STEERING RACK
from £2,541.22
from £2,541.22
# 005
MPN: 004309926
RING
Anello gomma cremagl. U/GD
from £126.86
from £126.86
# 006
MPN: 008101018
BOLT
Bull. M10x60 UNI 5737/8G
from £0.53
from £0.53
# 007
MPN: 008401006
WASHER
Rond. A10,5 UNI 1734
from £0.53
from £0.53
# 008
MPN: 004313889
SUPPORT
Supp. kif. scatola guida
from £41.25
from £41.25
# 009
MPN: 004313893
SPACER
Distanz. x cremagl. 1C
from £39.06
from £39.06
# 010
MPN: 008201412
NUT
Dado M1 4 UNI 5589 sin. 8G
from £11.53
from £11.53
# 011
MPN: 004319589
TUBE
Tubo per reg. tirante scatola guida
from £170.78
from £170.78
# 012
MPN: 004313901
SUPPORT
Supp. in gomma x scatola guida
# 013
MPN: N01033520
BOLT
Bull. M8x35 UNI 5739/8G
from £0.98
from £0.98
# 014
MPN: 008200809
NUT
DADO B/70/208WI
Supersession
Supersession
# 015
MPN: 004309797
SHAFT
Piantone sterzo inf. 1C
from £300.97
from £300.97
# 016
MPN: 004309799
NUT
Dado piantone sterzo 1C
from £109.22
from £109.22
# 017
MPN: 004309798
SHAFT
Piantone sterzo sup. 1C
from £301.42
from £301.42
# 018
MPN: 004309886
JOINT
Giunto 325209 piantone 1C
from £48.59
from £48.59
# 019
MPN: 008581501
LOCK RING
Seeger 17 E
from £0.54
from £0.54
# 020
MPN: 07M109381
LOCK RING
Seeger 35 I
from £1.16
from £1.16
This part replaces part number 008573501 - and 1 more. Click to view details
# 021
MPN: 008501703
BALL BEARING
Cusc. riv 6003— 2RS
from £117.60
from £117.60
# 022
MPN: 004319324
Steering
PIANTONE STERZO
from £412.08
from £412.08
# 023
MPN: 008522002
BEARING
CSN comp. cusc. an. HK2520
from £6.64
from £6.64
# 024
MPN: 004309809
SUPPORT
Supp. piantone sterzo 1C
from £817.51
from £817.51
# 025
MPN: 008100852
BOLT
Bull. 8x1,25x3780
from £16.17
from £16.17
# 026
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
# 027
MPN: 004309824
PIN
Perno supp. volante 1C
from £46.60
from £46.60
# 028
MPN: 008100815
BOLT
Bull. M8x105 UNI 5737/8G
from £6.02
from £6.02
# 029
MPN: N90179103
WASHER
Rond. 8,4 UNI 1734 8G
from £1.06
from £1.06
This part replaces part number 008400801
# 030
MPN: 008200809
NUT
DADO B/70/208M
Supersession
Supersession
# 031
MPN: 008201212
NUT
DADO B/70/212MB
from £1.27
from £1.27
# 032
MPN: 008401306
WASHER
Rondella D.1 3x24x3 8G
from £1.62
from £1.62
# 033
MPN: 008900401
PIN
Spina EL. 4x20 DIN 1481
from £0.54
from £0.54
# 034
MPN: 008301220
BOLT
Prig. 12x1, 5 8G
from £9.08
from £9.08
# 035
MPN: 008401306
WASHER
Rondella D.1 3x24x3 8G
from £1.62
from £1.62
# 036
MPN: 004309825
LEVER
Leva supp. piantone sterzo/C
from £75.93
from £75.93
# 037
MPN: 004309810
BLOST SWIT
Commut. aff. AO600 antif. 1C
from £241.23
from £241.23
# 038
MPN: 004309802
SUPPORT
Compl. canotto est. piant. 1C
from £226.35
from £226.35
# 038
MPN: 004311190
COLUMN PIPE
(Valid for GB - January 1984) Compl. canotto piant; C/GAD
from £226.35
from £226.35
# 039
MPN: 008410603
LOCK WASHER
Rond. A6,4 UNI 1751 C72
Supersession
Supersession
# 040
MPN: 008700611
SCREW
Vite brugola 6x1x15
from £0.53
from £0.53
# 041
MPN: 008700512
SCREW
Vite brugola 5x0,8x10 8G
Supersession
Supersession
# 042
MPN: 004310698
STEERG GUID
Guida piant. sterzo /C
from £303.46
from £303.46
# 043
MPN: 004309812
BOOT
Soffietto piantone sterzo 1C
from £141.37
from £141.37
# 044
MPN: 004309808
COVER
Copert. sup. piant. sterzo 1C
from £848.22
from £848.22
# 045
MPN: 004309807
COVER
Copert. inf. piant. sterzo 1C
from £848.22
from £848.22
# 046
MPN: 004320773
SWITCH
Devio
from £1,329.39
from £1,329.39
# 048
MPN: 004313891
SUPPORT
Supp. inf. scatola guida
# 049
MPN: 008401417
WASHER
Rond. 15x25x2
from £2.05
from £2.05
# 050
MPN: 008251501
RING NUT
Ghiera GHK/70/15 WIG
Supersession
Supersession
# 051
MPN: 004319262
COVER
Cuscino copri razze

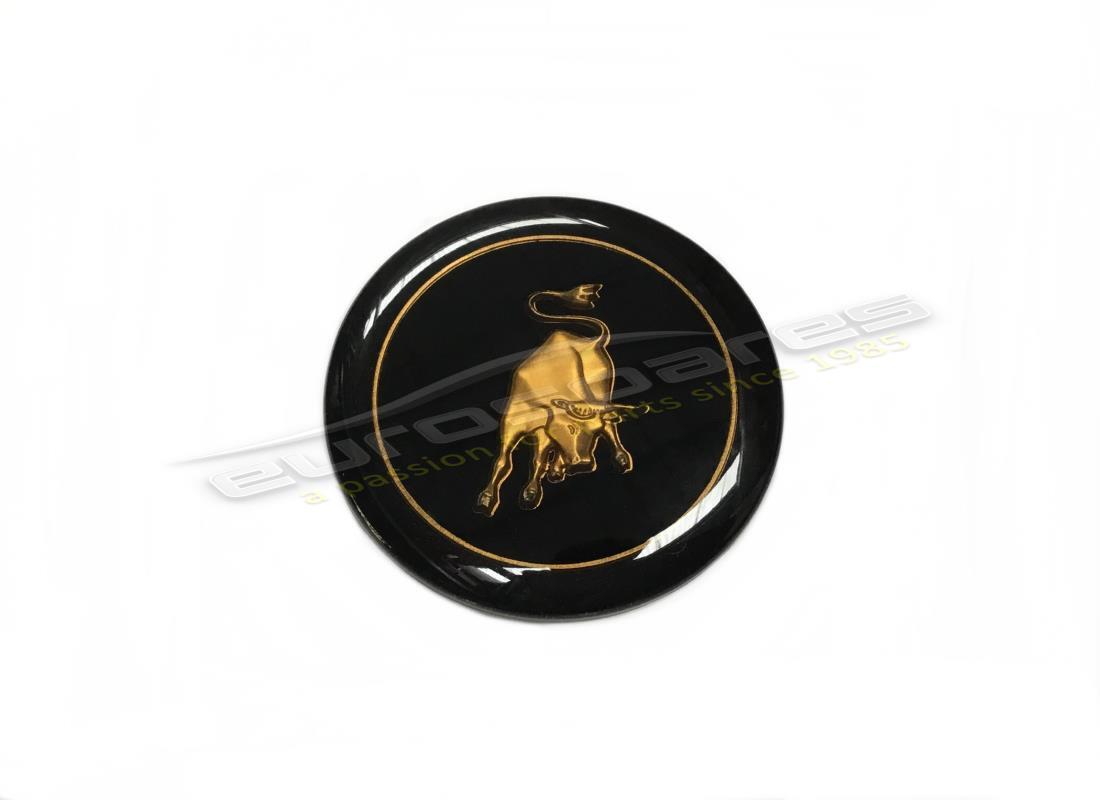

# 052
MPN: 004301790
STEERING WHEEL BADGE
Badge
from £186.76
from £186.76
# 053
MPN: 008700412
SCREW
Vite VTCE 4x40 A 8G
from £3.77
from £3.77
# 054
MPN: 004313892
SUPPORT
Cavall. x supp. scat, guida
from £69.82
from £69.82
# 055
MPN: 004313898
JOINT
Giunto cardan, x piantone sterzo
