lamborghini countach 5000 qv (1985) radiator and coolant system (valid for switzerland - january 1984) parts diagram

010 - radiator and coolant system (valid for switzerland - january 1984)

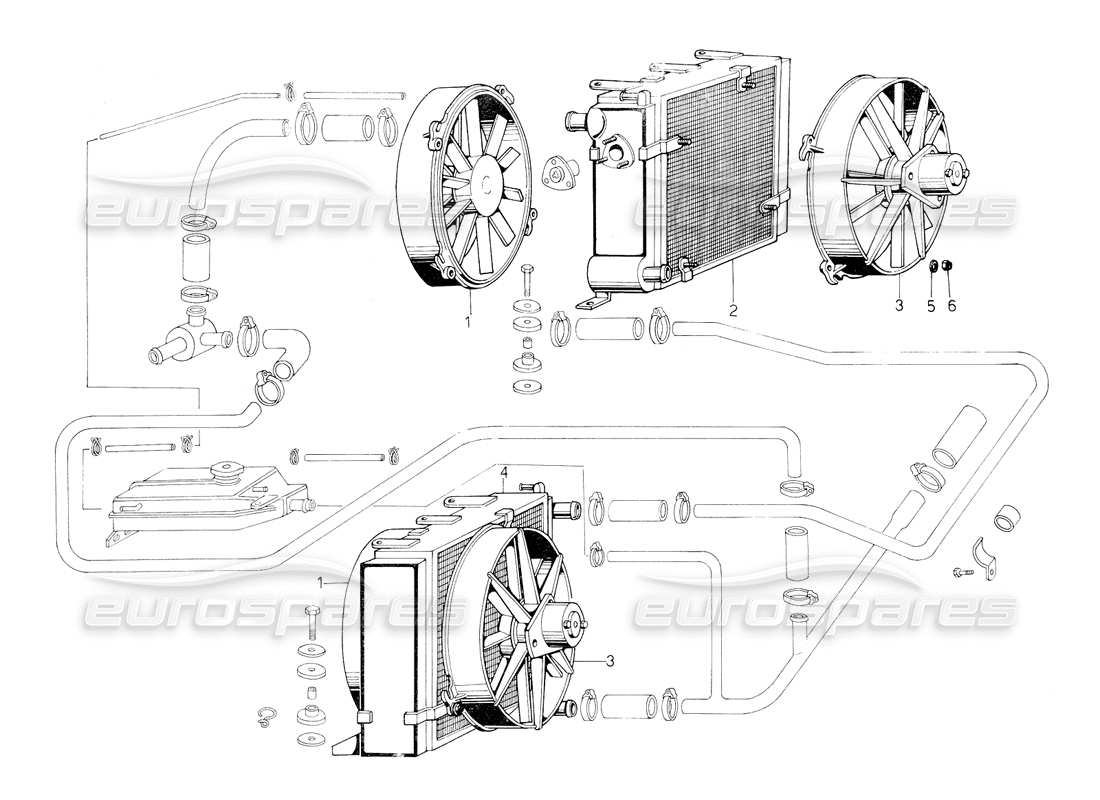

Lamborghini Countach 5000 QV (1985) Radiator and Coolant System (Valid for Switzerland - January 1984) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001720766
SUPPORT
(Valid for SWITZERLAND - January 1984) Compl. supp. motorino vent, e mot.
from £275.27
from £275.27
# 002
MPN: 001720300
COOL RAD.
(Valid for SWITZERLAND - January 1984) Radiatore acqua dex.
from £740.14
from £740.14
# 003
MPN: 001720302
SUPPORT MOT.
(Valid for SWITZERLAND - January 1984) Compl. supp. motorino vent, e mot.
# 004
MPN: 001728845
COOL RAD.
(Valid for SWITZERLAND - January 1984) Radiatore acqua sin.
from £1,291.13
from £1,291.13
# 005
MPN: WHT003040
WASHER
(Valid for SWITZERLAND - January 1984) Rondella pore/S
from £4.55
from £4.55
# 006
MPN: N0211963
NUT
(Valid for SWITZERLAND - January 1984) Dado IM/70/105M
from £0.48
from £0.48
