lamborghini countach 5000 qv (1985) oil pump and system parts diagram

005 - oil pump and system

Lamborghini Countach 5000 QV (1985) Oil Pump and System Parts Diagram

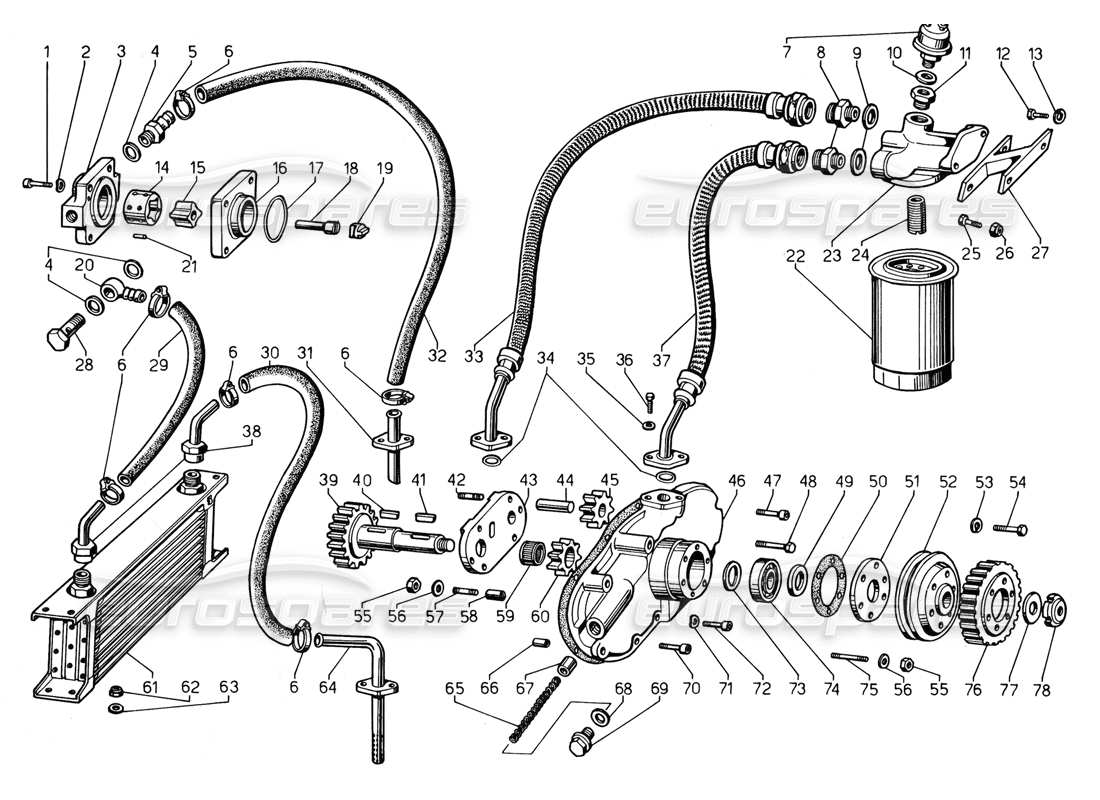

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 008700625
    SCREW
    Vite VTCE 6x35 UNI 5931 8G
    from £0.53
    from £0.53
    # 002
    MPN: 008410602
    LOCK WASHER
    RONDELLA DI FERMO DIN 137/B
    from £28.28
    from £28.28
    # 003
    MPN: 001521894
    oil pump
    Corpo pompa olio bassa pressione
    from £2,753.89
    from £2,753.89
    # 004
    MPN: 008402007
    WASHER
    Rond. D. 20,2x27x1,5 rame
    from £0.53
    from £0.53
    # 005
    MPN: 001522506
    UNION
    Portagomma x bassa pressione
    # 006
    MPN: 008830206
    CLAMP RING
    Fasc. royal 00/1 2 18/30
    from £12.56
    from £12.56
    # 007
    MPN: 001508565
    PRESSU SEND
    Trasm. press, olio 311.225.01
    from £1,163.79
    from £1,163.79
    This part replaces part number 001501494
    # 008
    MPN: 001510474
    TERMOS FITT
    Race, termost. olio/C
    from £78.17
    from £78.17
    # 009
    MPN: 008402604
    WASHER
    ROND. 26,25x35x1,5 RAME
    from £2.32
    from £2.32
    # 010
    MPN: 008401408
    WASHER
    ROND. 14,5x21x1,5 RAME
    from £1.29
    from £1.29
    # 011
    MPN: 001806009
    PRESS FITTI
    Riduz. trasm. press. olio/U
    from £16.80
    from £16.80
    # 012
    MPN: N01029315
    BOLT
    Bull. M8x16 UNI 5739/8G
    from £0.84
    from £0.84
    # 013
    MPN: 008410806
    LOCK WASHER
    Rond. A8,4 UNI 1751
    Supersession
    Supersession
    # 014
    MPN: 001520320
    BREAKER
    ROTORE ESTERNO POMPA OLIO
    from £250.40
    from £250.40
    # 015
    MPN: 001520325
    ROTOR NIS
    Rotore interne pompa olio
    from £250.40
    from £250.40
    # 016
    MPN: 001521893
    PUMP SUPP.
    Supp. pompa olio bassa p. dx
    from £245.42
    from £245.42
    # 017
    MPN: 008605301
    RING
    Anello di tenuta tipo o.r.
    from £0.54
    from £0.54
    # 018
    MPN: 001522086
    SHAFT
    Albero x rotore interne
    from £71.14
    from £71.14
    # 019
    MPN: 001520335
    CROSS COMPI
    GIUNTO A CROCE
    from £17.91
    from £17.91
    # 020
    MPN: 001522504
    UNION
    Occhio x portagomma
    from £12.15
    from £12.15
    # 021
    MPN: 008850615
    DOWEL
    GRANO
    from £11.53
    from £11.53
    # 023
    MPN: 001522118
    FILTER SUPP.
    Supporto filtro
    from £387.20
    from £387.20
    # 024
    MPN: 001505918
    FILTER BUSH
    Bussola fermo filtro olio
    from £26.66
    from £26.66
    # 025
    MPN: 008100841
    BOLT
    Bull. M8x30 UNI 5737/1 OK
    Supersession
    Supersession
    # 026
    MPN: N01100845
    NUT
    DADO M8 UNI 5587-65/8G
    from £0.47
    from £0.47
    This part replaces part number 008200801 - and 2 more. Click to view details
    # 027
    MPN: 001522830
    BRACKET
    Staffa x supp. filtro olio
    from £31.47
    from £31.47
    # 028
    MPN: 001522505
    SCREW
    Vite forata
    from £11.03
    from £11.03
    # 029
    MPN: 001522120
    PIPE
    Tubo
    from £10.16
    from £10.16
    # 030
    MPN: 001522119
    PIPE
    Tubo
    from £75.05
    from £75.05
    # 031
    MPN: 001820624
    OIL PIPE
    Compl. tubo rit. olio dal radial, a coppa
    from £16.01
    from £16.01
    # 032
    MPN: 001522121
    PIPE
    Tubo
    from £42.54
    from £42.54
    # 033
    MPN: 001522144
    PIPE
    Tubo circ. olio da filtro a basamento
    from £920.84
    from £920.84

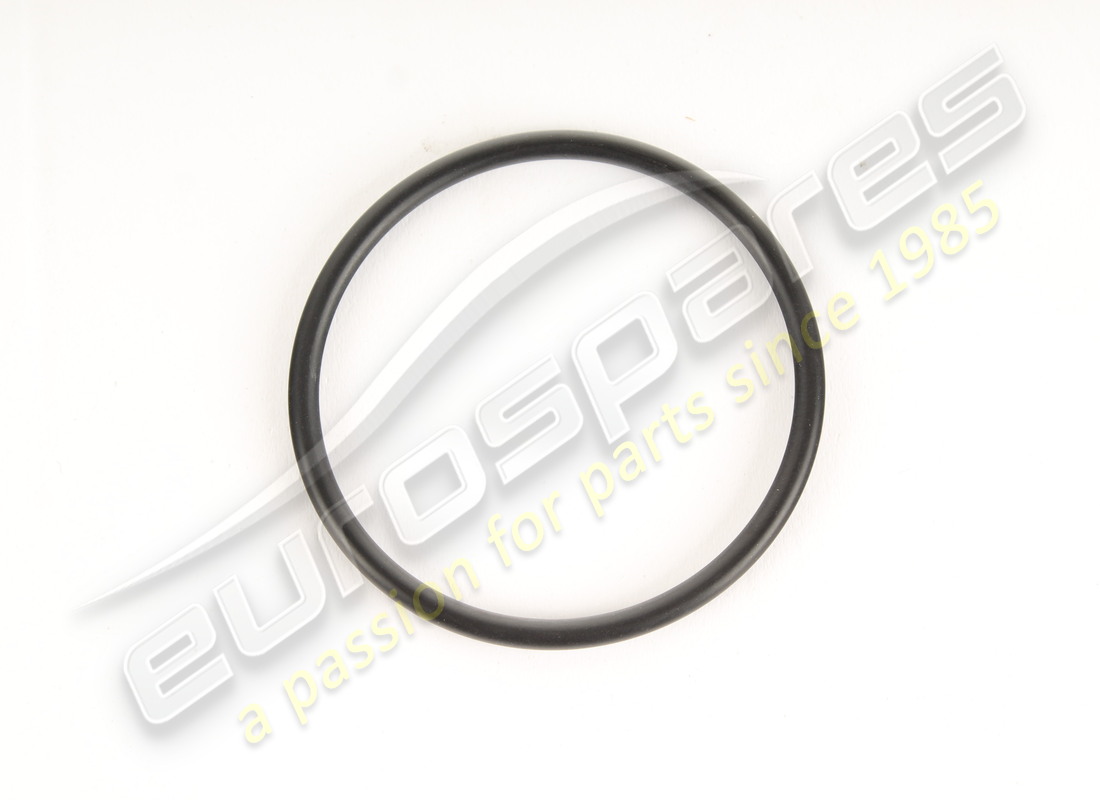

    # 034
    MPN: 008602304
    O RING
    ANELLO OR 4093
    from £5.71
    from £5.71
    This part replaces part number 008602302
    # 035
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    # 036
    MPN: 008100601
    BOLT
    Bull. M6x18 UNI 5739 8G
    Supersession
    Supersession
    # 037
    MPN: 001522143
    PIPE
    Tubo circ. olio da pompa a filtro
    from £1,076.49
    from £1,076.49
    # 038
    MPN: 001520634
    C CON RAD
    Complessivi raccordo per radiatore
    from £308.69
    from £308.69
    # 039
    MPN: 001519442
    SHAFT
    Alberino uscita moto dal motore
    from £719.39
    from £719.39
    # 040
    MPN: 008860506
    Key
    Linguetta x alberino use. moto dal motore
    # 041
    MPN: 008860602
    Key
    LINGUETTA 6x6x30 UNIM 92
    from £26.55
    from £26.55
    This part replaces part number 008860604
    # 042
    MPN: 008300623
    BOLT
    Prig. M6x16 UNI 5917 8G
    from £10.53
    from £10.53
    # 043
    MPN: 001509933
    PUMP COVER
    COPERCHIO POMPA OLIO/C
    from £251.22
    from £251.22
    # 044
    MPN: 001509938
    GEAR PIN
    Perno ingr. condotto/C
    from £27.57
    from £27.57
    # 045
    MPN: 001519445
    GEAR
    Ingr. condotto pompa olio
    from £258.69
    from £258.69
    # 046
    MPN: 001519443
    oil pump
    Corpo pompa olio
    from £1,552.05
    from £1,552.05
    # 047
    MPN: 008700608
    SCREW
    VITE 8,6x1x40 UNI 2383
    from £0.54
    from £0.54
    # 048
    MPN: 008100615
    BOLT
    Bull. M6x50 UNI 5737/8G
    from £3.65
    from £3.65
    # 049
    MPN: 008613002
    SEAL RING
    ANELLO SM 30407
    from £2.20
    from £2.20
    # 050
    MPN: 001509939
    GASKET
    Guam, conten. paraolio/C
    from £5.60
    from £5.60
    # 051
    MPN: 001509490
    SEAL HOUSIN
    Conten. paraolio/C
    from £69.74
    from £69.74
    # 052
    MPN: 001513746
    PULLEY
    PULEGGIA TRAINO COMPRESSORE
    from £421.95
    from £421.95
    # 053
    MPN: 008410603
    LOCK WASHER
    Rond. A6,4 UNI 1751 C72
    Supersession
    Supersession
    # 054
    MPN: 008100625
    BOLT
    Bull. M6x16 UNI 5739/8G
    from £83.46
    from £83.46
    # 055
    MPN: 008200604
    NUT
    DADO M6 UNI 5588-65/8G
    Supersession
    Supersession
    # 056
    MPN: 008410606
    WASHER
    Rondella fis/sfiato olio differ, dx/sx
    from £1.53
    from £1.53
    # 057
    MPN: 008300625
    BOLT
    Prig. M6x20UNI 5917 8G
    from £10.53
    from £10.53
    # 058
    MPN: 008850605
    DOWEL
    Bocc. c. 6,25x8x10 C40
    # 059
    MPN: 008522401
    BEARING
    Cusc. rullini NK 24/20
    from £24.26
    from £24.26
    # 060
    MPN: 001519444
    GEAR
    Ingr. conduttore pompa olio
    from £202.32
    from £202.32

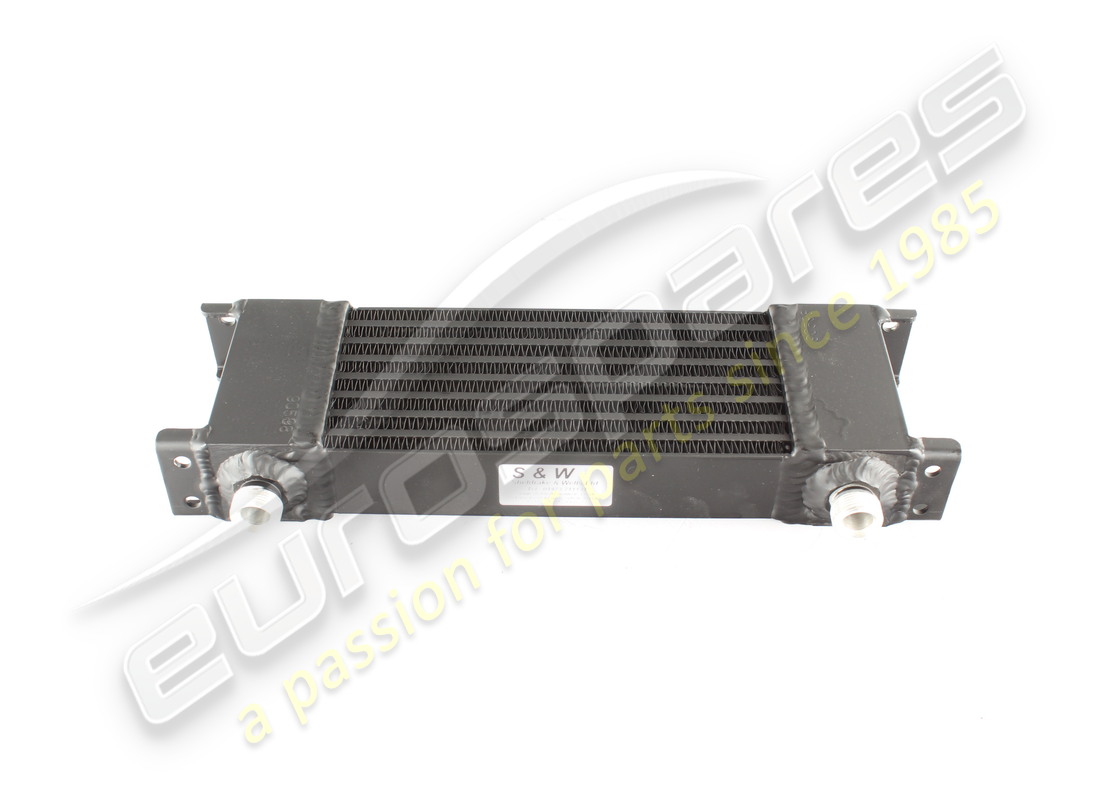

    # 061
    MPN: 001520345
    RADIATOR
    Radiatore olio RH 25-08 50274508
    from £1,120.59
    from £1,120.59
    # 062
    MPN: 008200606
    NUT
    Supersession
    Supersession
    # 063
    MPN: 008400606
    WASHER
    Rond. 6,4 UNI 1734
    Supersession
    Supersession
    # 064
    MPN: 001822503
    OIL SUCTION
    Assieme pescante olio x bassa pressione
    # 065
    MPN: 001500927
    SPRING
    Molla valv. press, olio
    from £8.50
    from £8.50
    # 066
    MPN: 008850605
    DOVEL
    Bocc.c. 6,25x8x10 C40
    # 067
    MPN: 001519446
    SMALL PISTON
    PISTONCINO DI PRESSIONE
    from £45.11
    from £45.11
    # 068
    MPN: 008401804
    WASHER
    ROND. RAME 18,2x30x1
    from £2.53
    from £2.53
    # 069
    MPN: 001509934
    VALVE PLUG
    TAPPO VALV. PRESS. OLIO/C
    from £194.85
    from £194.85
    # 070
    MPN: 008700612
    SCREW
    VITE 6x1 UNI 5931
    Supersession
    Supersession
    # 071
    MPN: 008410602
    LOCK WASHER
    RONDELLA DI FERMO DIN 137/B
    from £27.90
    from £27.90
    # 072
    MPN: 008700624
    SCREW
    VITE M6x20 UNI 5031 8G
    from £0.54
    from £0.54
    # 073
    MPN: 008402003
    WASHER
    Rond. 38NCD4 ras. CSN
    from £8.42
    from £8.42
    # 074
    MPN: 008502001
    BEARING
    Cusc. riv 3204 EX1AANON20
    from £23.43
    from £23.43
    # 075
    MPN: 008300627
    BOLT
    Prig. M6x16 UNI 5917 8G
    from £8.17
    from £8.17
    # 076
    MPN: 001519300
    PULLEY
    Puleggia traino alternatore
    from £247.08
    from £247.08
    # 077
    MPN: 008401801
    WASHER
    Rond. piana 18x30x2
    from £14.38
    from £14.38
    # 078
    MPN: 008251801
    GHIERA
    ChieraGUA 18MB
    from £22.68
    from £22.68
