111 - Door - Locking Device

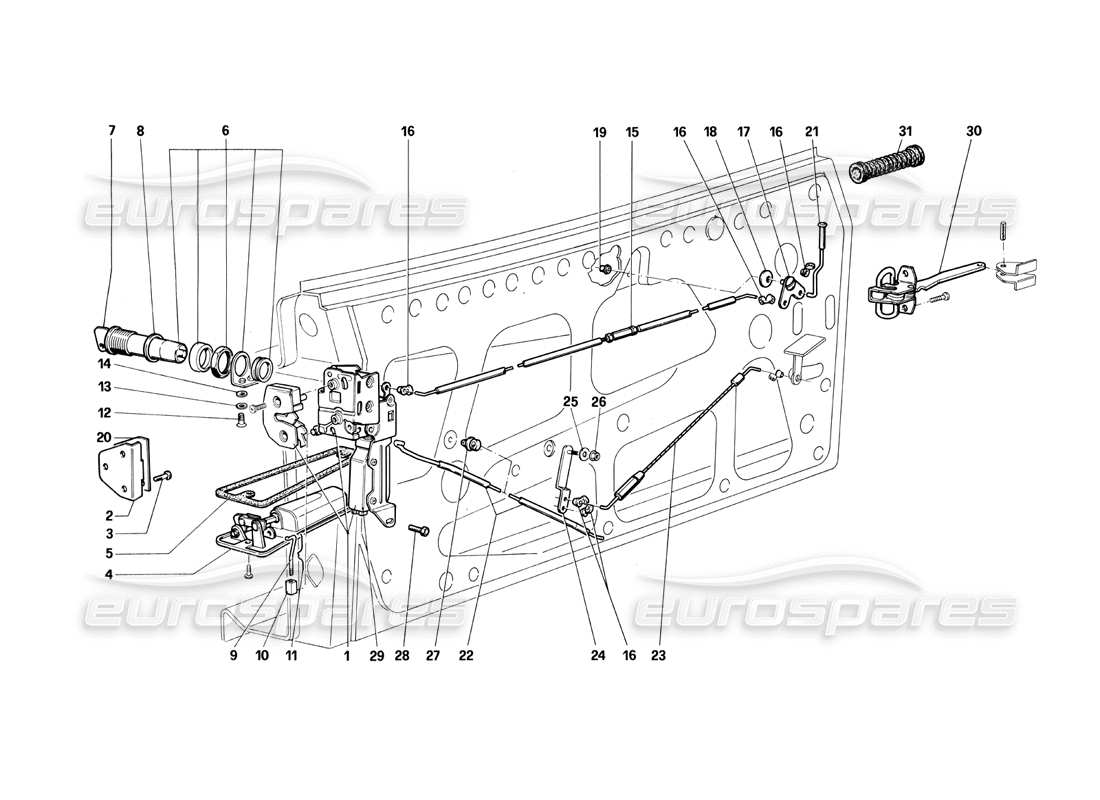

Ferrari Testarossa (1990) Door - Locking Device Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 61506100

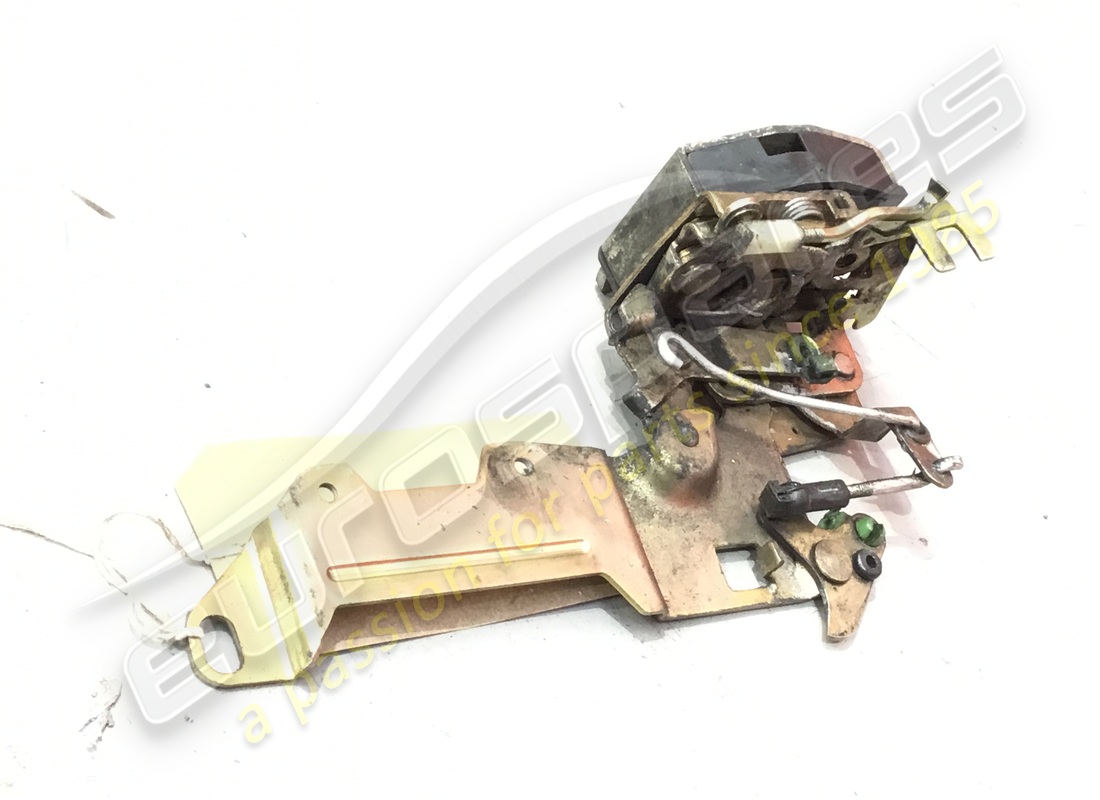

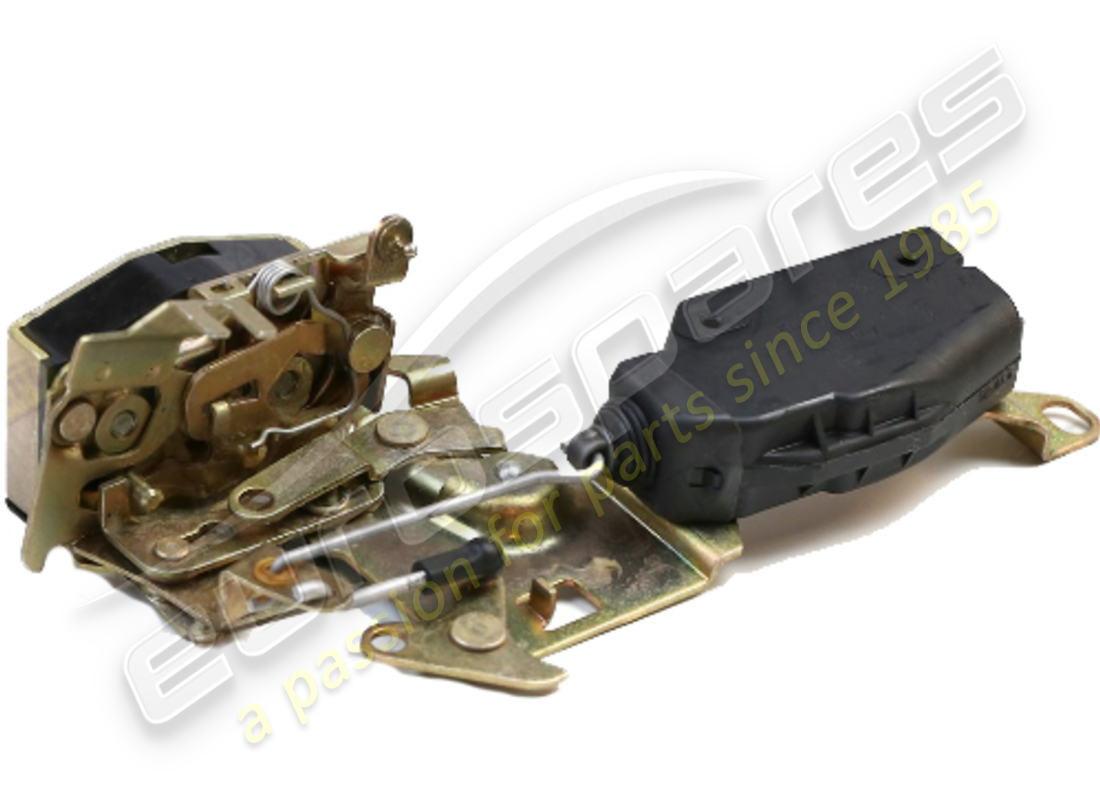

LOCK FOR RIGHT DOOR LHD (COMPLETE)
from £418.34
from £418.34
# 001
MPN: 61506200
LOCK FOR LEFT DOOR LHD (COMPLETE)
from £136.50
from £136.50
# 001
MPN: 61506300
LOCK FOR RIGHT DOOR RHD (COMPLETE)
from £439.26
from £439.26
# 001
MPN: 61506400
LOCK FOR LEFT DOOR RHD (COMPLETE)
from £418.34
from £418.34
This part replaces part number 61533200 - and 2 more. Click to view details
# 002
MPN: 61506500
LOCK STRIKER
from £27.11
from £27.11
# 003
MPN: 13303511
SEREW
# 004
MPN: 61506600
OUTER HANDLE FOR RIGHT DOOR
from £229.85
from £229.85
# 004
MPN: 61506700
OUTER HANDLE FOR LEFT DOOR
from £343.98
from £343.98
# 005
MPN: 61506800
GASKET FOR RIGHT HANDLE
from £2.42
from £2.42
# 005
MPN: 61506900
GASKET FOR LEFT HANDLE
from £2.42
from £2.42
# 006
MPN: 164283
LOCKS SET WITH KEY
For US - SA - J - After exhaustion use PN 61545400
from £640.34
from £640.34
This part replaces part number 164282 - and 3 more. Click to view details
# 006
MPN: 61507000
LOCK WITH KEY
With set of lock
Supersession
Supersession
# 006
MPN: 61545300
LOCKS SET WITH KEY
Not for US - SA -J - After exhaustion use PN 61545300
from £1,295.00
from £1,295.00
This part replaces part number 129116 - and 3 more. Click to view details
# 007
MPN: 95401152
Key
from £15.43
from £15.43
This part replaces part number 61507100
# 008
MPN: 61507200
LOCK GASKET
from £0.54
from £0.54
# 009
MPN: 61507300
ROD
from £2.44
from £2.44
# 010
MPN: 61507400
SLEEVE
from £0.51
from £0.51
# 011
MPN: 61507500
CLIP
from £1.19
from £1.19
# 012
MPN: 13271811
SCREW
from £1.08
from £1.08
# 013
MPN: 10519201
WASHER
from £0.85
from £0.85
This part replaces part number 10519281
# 014
MPN: 10615271
WASHER
Supersession
Supersession
# 015
MPN: 61507600
ROD
from £9.39
from £9.39
# 016
MPN: 30016109
CLIP
Supersession
Supersession
This part replaces part number 30016107
# 017
MPN: 61507700
LEVER
from £0.39
from £0.39
# 018
MPN: 12541870
WASHER
# 019
MPN: 15627611
BUSH
from £0.53
from £0.53
# 020
MPN: 61507800
STRIKER PROTECTION
from £5.83
from £5.83
# 021
MPN: 61537300
SECURITY ROD FOR DOOR
from £87.86
from £87.86
# 022
MPN: 61507900
ROD
from £2.39
from £2.39
# 023
MPN: 61508000
ROD
from £6.79
from £6.79
# 024
MPN: 61508100
WASHER
from £3.34
from £3.34
# 025
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
# 026
MPN: 14084211
NUT
from £0.71
from £0.71
# 027
MPN: 14569580
CLIP
from £0.53
from £0.53
# 028
MPN: 10977821
SCREW
Supersession
Supersession
# 029
MPN: 61508200
LOCKING DEVICE FOR PASSENGER SIDE
from £336.47
from £336.47
# 029
MPN: 61508300
LOCKING DEVICE FOR DRIVER SIDE
from £419.88
from £419.88
# 030
MPN: 61508500
STOP TIE-ROD FOR DOOR
from £100.73
from £100.73
# 031
MPN: 61508400

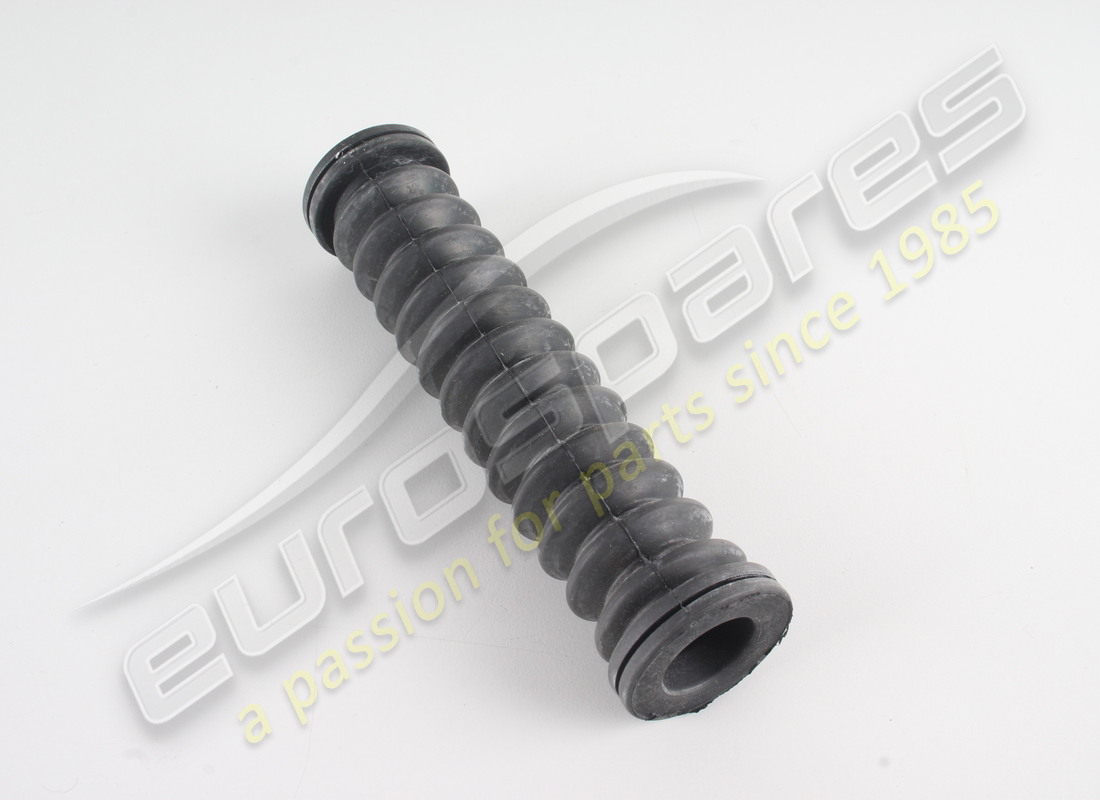

BELOWS FOR ELECTRIC CABLES
from £53.60
from £53.60
