ferrari testarossa (1990) tool kit parts diagram

058 - TOOL KIT

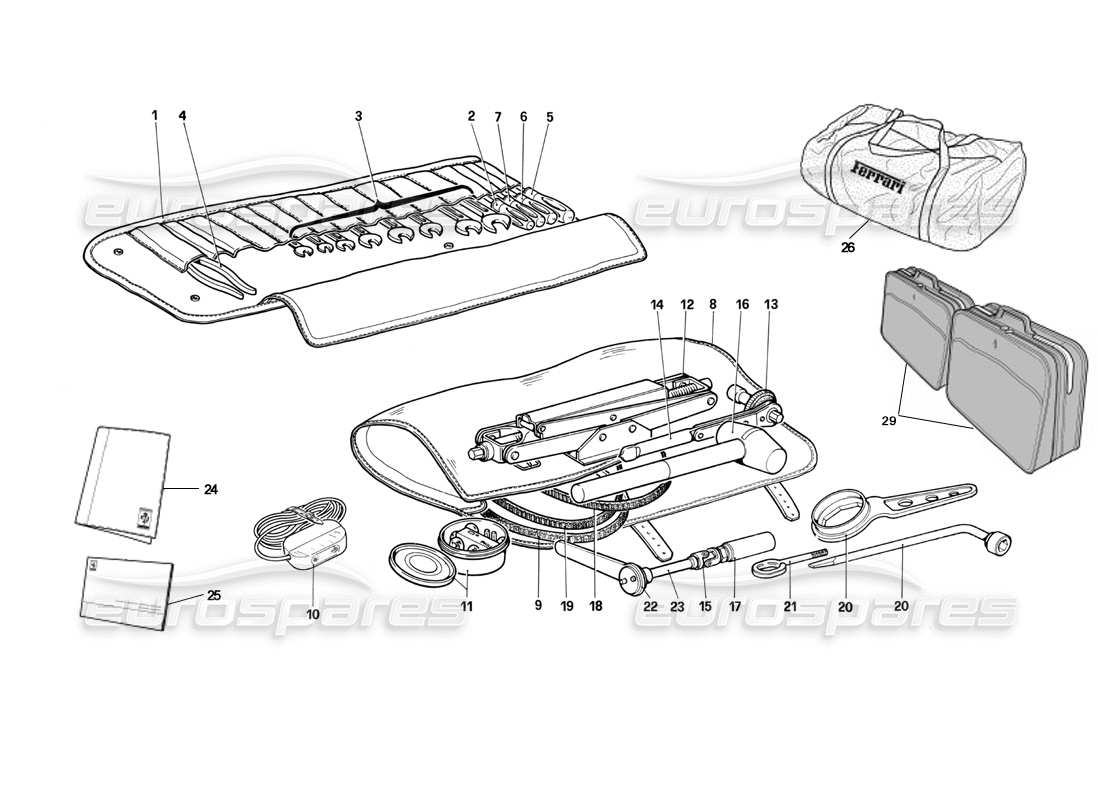

Ferrari Testarossa (1990) Tool Kit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                #
                                Part number
                                Description
                                Price
                                # 000
                                MPN: FHAN206
                                DEALER NETWORK BOOK
                                from £288.75
                                from £288.75
                                # 001
                                MPN: 123254
                                TOOL KIT BOX COMPLETE
                                from £355.00
                                from £355.00
                                This part replaces part number 106876 - and 3 more. Click to view details
                                # 002
                                MPN: 101514
                                SET FOR SPANNERS FROM 8 TO 22 MM.
                                Are supplied as spare parts only with unit no. 123254
                                # 002
                                MPN: 101519
                                PHILIPS SCREWDRIVER FOR SCREW WITH 5 O 9 MM.Ø
                                Are supplied as spare parts only with unit no. 123254
                                # 004
                                MPN: 101515
                                180 MM. CUTTING PLIERS
                                Are supplied as spare parts only with unit no. 123254
                                from £42.90
                                from £42.90
                                # 005
                                MPN: 101516
                                120 MM. SCREWDRIVER
                                Are supplied as spare parts only with unit no. 123254
                                # 006
                                MPN: 101517
                                150 MM. SCREWDRIVER
                                Are supplied as spare parts only with unit no. 123254
                                # 007
                                MPN: 101518
                                PHILIPS SCREWDRIVER FOR SCREWS UP TO 4 MM. Ø
                                Are supplied as spare parts only with unit no. 123254
                                # 008
                                MPN: 126282
                                BLACK IMITATION LEATHER BAG CONTAINING FOLLOWING EMERGENCY TOOLS
                                Until car no. 75996 - For US use no. 128594
                                from £813.09
                                from £813.09
                                # 008
                                MPN: 128592
                                JACK KIT COMPLETE
                                from £149.79
                                from £149.79
                                # 008
                                MPN: 135977
                                BLACK IMITATION LEATHER BAG CONTAINING FOLLOWING EMERGENCY TOOLS
                                Starting from car no. 75997 - For US use no. 135979
                                from £2,464.79
                                from £2,464.79
                                # 009
                                MPN: 125772
                                AIR PUMP BELT
                                For US
                                from £29.79
                                from £29.79
                                # 010
                                MPN: 40179202
                                EMERGENCY LIGHT
                                from £309.75
                                from £309.75
                                # 011
                                MPN: 118545
                                BULB AND FUSE BOX
                                from £26.10
                                from £26.10
                                # 012
                                MPN: 171489
                                JACK TYPE 232 F
                                from £643.50
                                from £643.50
                                # 013
                                MPN: 106531
                                SOCKET SPANNER FOR HAND CRANKING OF JACK
                                from £25.88
                                from £25.88
                                # 014
                                MPN: 106532
                                RATCHET SPANNER
                                from £206.03
                                from £206.03
                                # 015
                                MPN: 126780
                                SPARK PLUG SPANNER JOINT
                                from £71.48
                                from £71.48
                                This part replaces part number 126776
                                # 016
                                MPN: 105975
                                2.300 KG. LEAD HAMMER
                                Until car no. 75996
                                from £49.43
                                from £49.43
                                # 017
                                MPN: 126779
                                SPARK PLUG SPANNER
                                from £42.68
                                from £42.68
                                This part replaces part number 126775
                                # 018
                                MPN: 124395
                                ALTERNATOR DRIVE BELT
                                For US - Until car no. 71450
                                Supersession
                                Supersession
                                # 018
                                MPN: 127132
                                ALTERNATOR DRIVE BELT
                                Not for US - Until car no. 71450
                                from £21.15
                                from £21.15
                                This part replaces part number 124395 - and 1 more. Click to view details
                                # 018

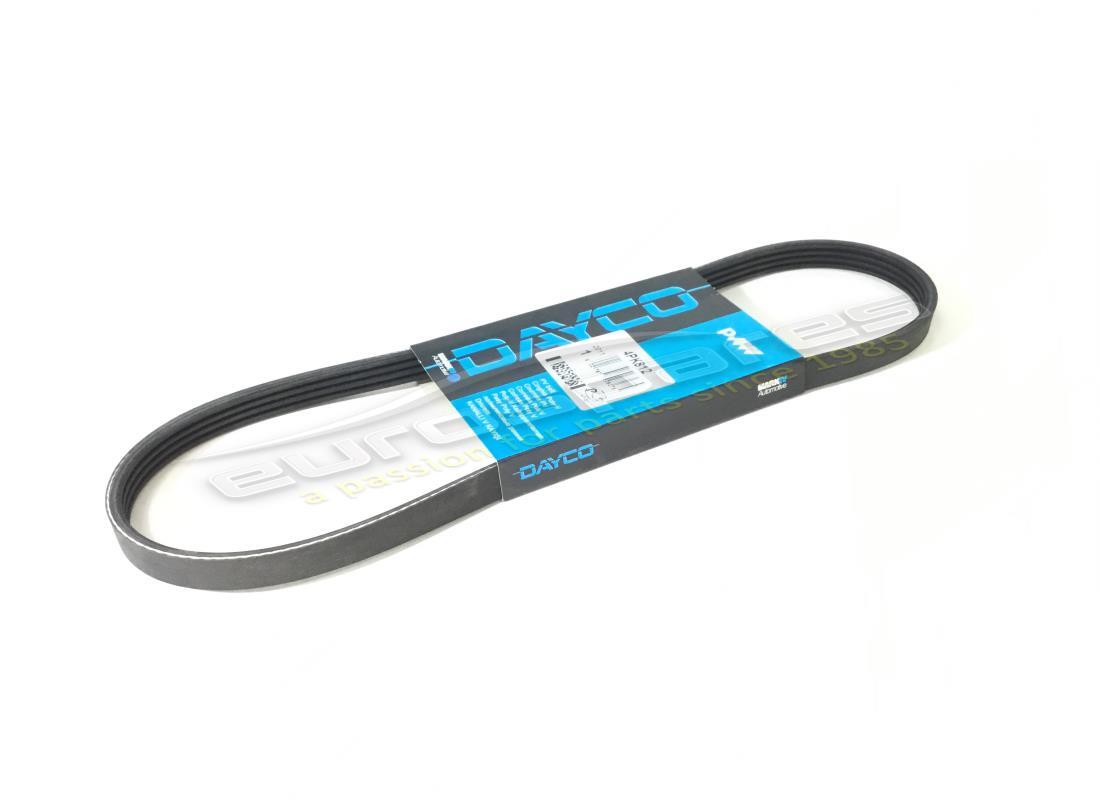

                                MPN: 199820
                                ALTERNATOR BELT
                                (replaces: 133262)
                                from £12.54
                                from £12.54
                                # 019

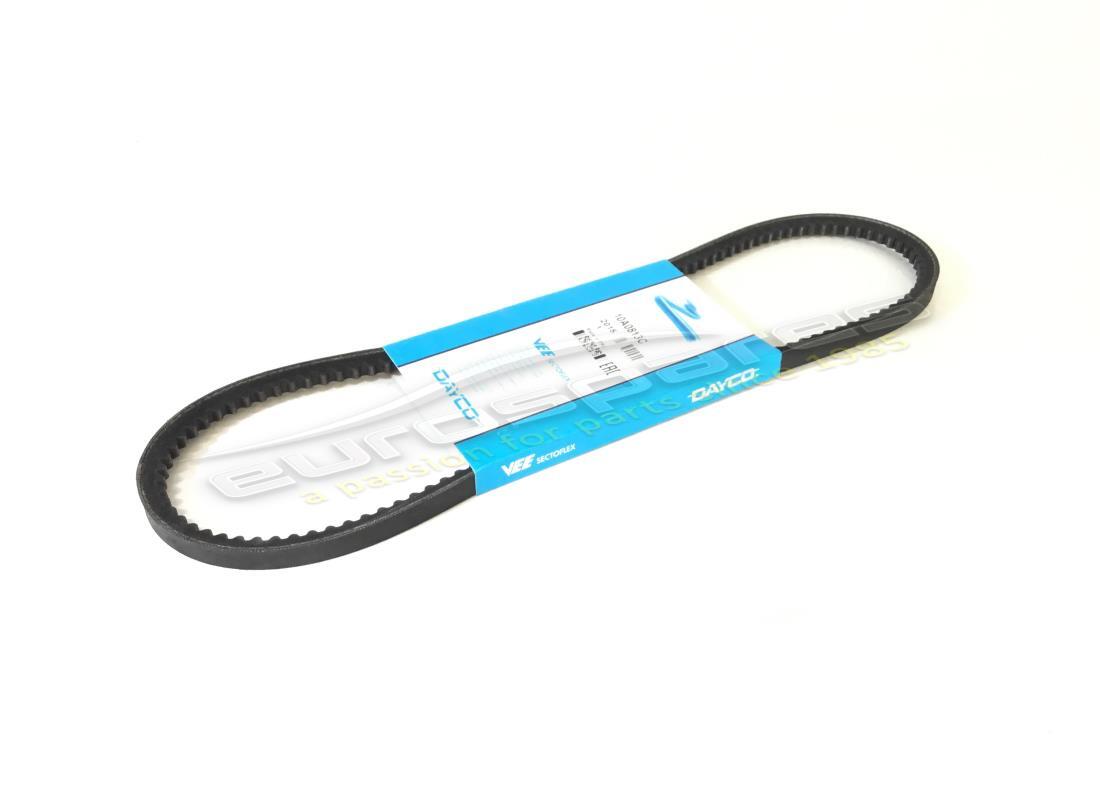

                                MPN: 122973
                                COMPRESSOR BELT
                                from £68.72
                                from £68.72
                                This part replaces part number 122417
                                # 020
                                MPN: 125758
                                OCTAGON NUT SPANNER
                                Until car no. 75996
                                from £1,588.85
                                from £1,588.85
                                # 020
                                MPN: 70000903
                                SPANNER FOR WHEEL
                                Starting from car no. 75997
                                from £107.01
                                from £107.01
                                This part replaces part number 106877
                                # 021
                                MPN: 125522
                                Towing hook Ø 12 mm.
                                from £144.72
                                from £144.72
                                This part replaces part number 119047
                                # 021
                                MPN: 130993
                                Towing hook Ø 16 mm.
                                from £94.46
                                from £94.46
                                # 022
                                MPN: 126782
                                RATCHET FOR SPARK PLUG SPANNER
                                from £181.55
                                from £181.55
                                This part replaces part number 126778
                                # 023
                                MPN: 126781
                                SPARK PLUG SPANNER EXTENSION
                                from £26.07
                                from £26.07
                                This part replaces part number 126777
                                # 024
                                MPN: 173507
                                DOCUMENT ENVELOPE
                                # 024

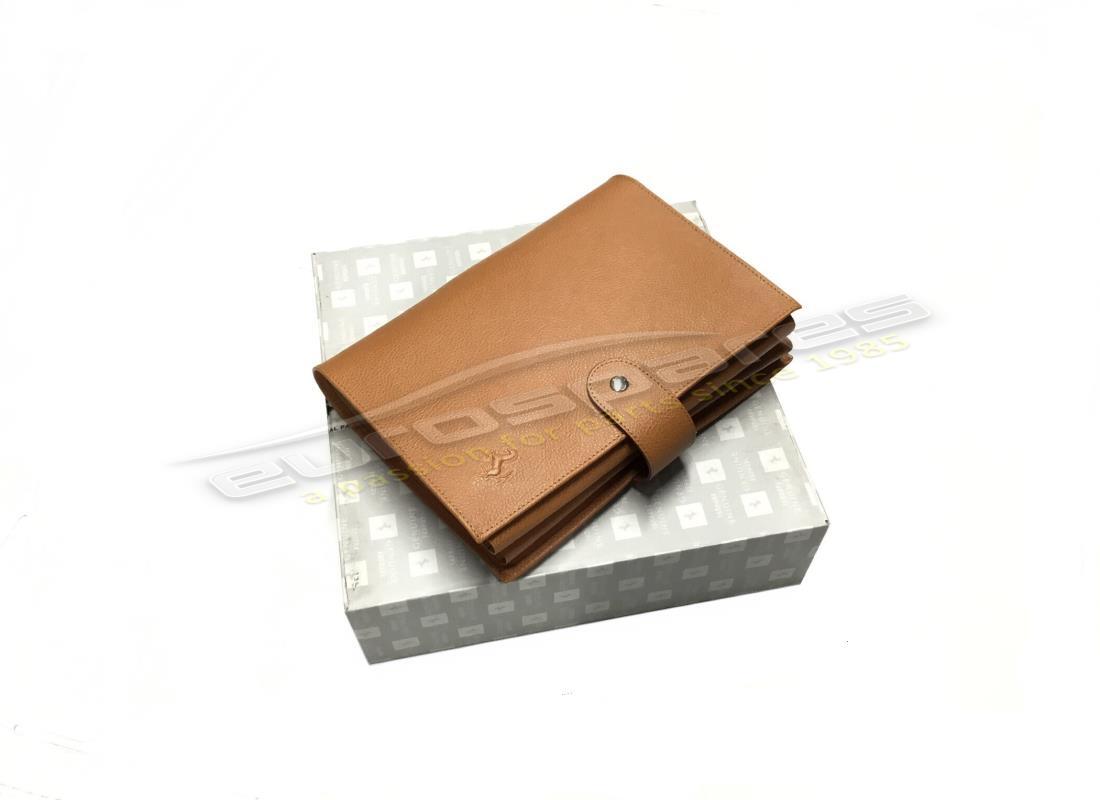

                                MPN: 195298
                                DOCUMENT ENVELOPE
                                from £230.82
                                from £230.82
                                This part replaces part number 180719 - and 1 more. Click to view details
                                # 025
                                MPN: 95990114
                                HANDBOOK (COPY)
                                1990 model
                                from £93.08
                                from £93.08
                                # 025
                                MPN: 95990139
                                ELECTRICAL COMPONENTS MANUAL
                                from £103.59
                                from £103.59
                                # 026
                                MPN: 95991904

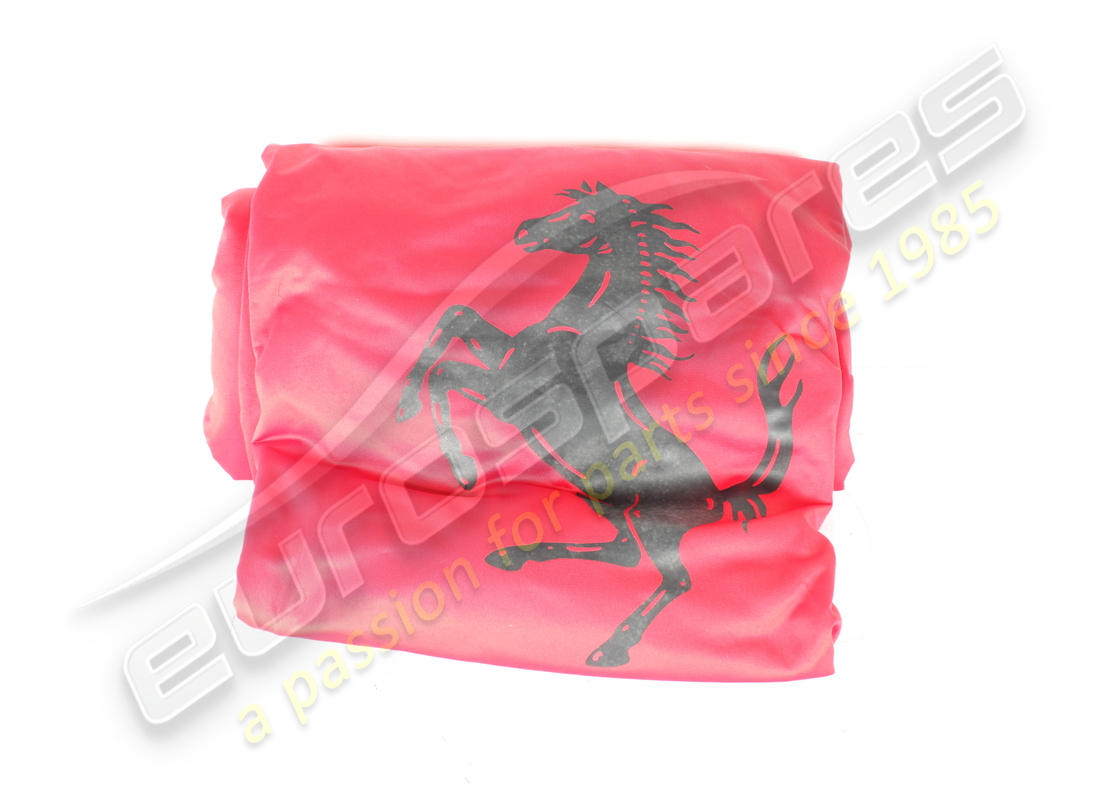

                                INDOOR CAR COVER
                                (twin mirror type)
                                from £341.25
                                from £341.25
                                # 029
                                MPN: 95999020
                                TESTAROSSA SCHEDONI LUGGAGE SET
