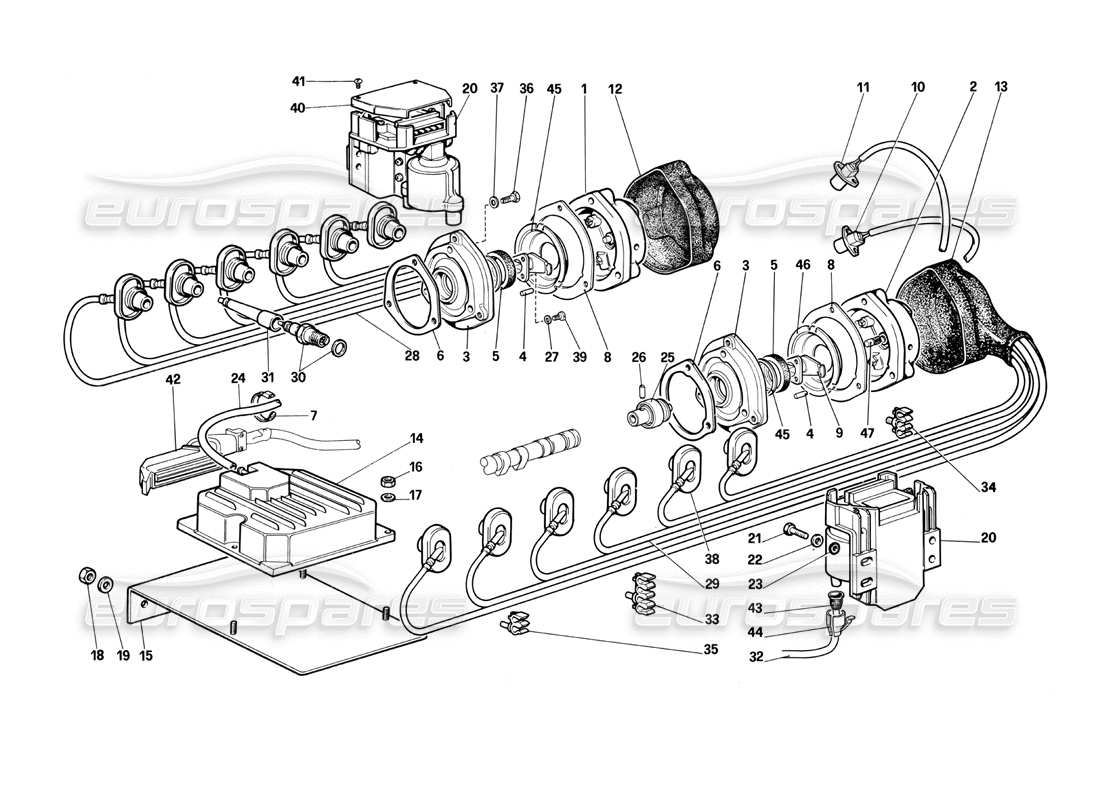

Ferrari Testarossa (1990) Engine Ignition Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 000
                                                                          MPN: FHT008
                                                                          COMPLETE HT LEADS SET
                                                                          from £498.75
                                                                          from £498.75
                                                                          # 001
                                                                          MPN: 144637
                                                                          DISTRIBUTOR CAP
                                                                          from £84.95
                                                                          from £84.95
                                                                          This part replaces part number 121552 - and 4 more. Click to view details
                                                                          # 002
                                                                          MPN: 144638
                                                                          LH DISTRIBUTOR CAP
                                                                          Use on Exhaustion of 124575
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 124575
                                                                          # 002
                                                                          MPN: 144638
                                                                          LH DISTRIBUTOR CAP
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 124575
                                                                          # 003
                                                                          MPN: 126115
                                                                          DISTRIBUTOR CAP SUPPORT
                                                                          Until exhaustion
                                                                          Supersession
                                                                          Supersession
                                                                          # 003
                                                                          MPN: 133346
                                                                          RH DISTRIBUTOR CAP SUPPORT
                                                                          After exhaustion no. 126115
                                                                          from £43.13
                                                                          from £43.13
                                                                          # 003
                                                                          MPN: 133347
                                                                          LH DISTRIBUTOR CAP SUPPORT
                                                                          After exhaustion no. 126115
                                                                          from £43.13
                                                                          from £43.13
                                                                          # 004
                                                                          MPN: 10331111
                                                                          DOWEL
                                                                          from £22.58
                                                                          from £22.58
                                                                          # 005
                                                                          MPN: 132452

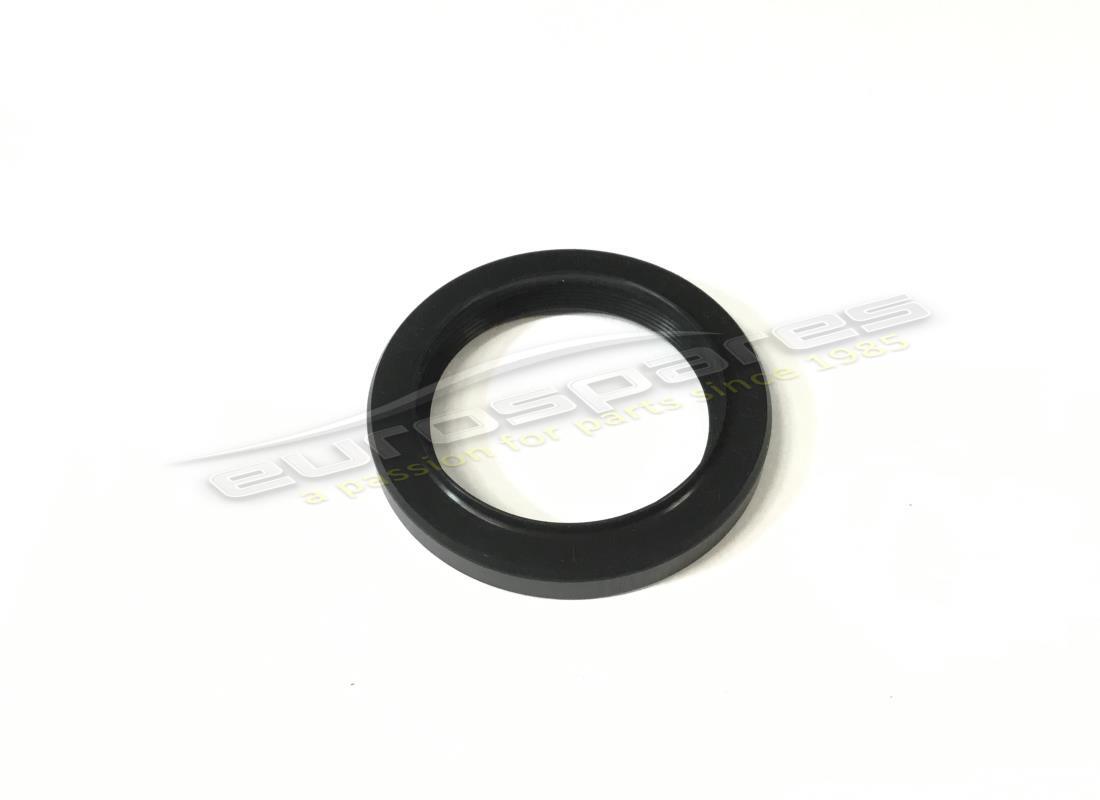

                                                                          OIL SEAL RING
                                                                          from £21.53
                                                                          from £21.53
                                                                          # 006
                                                                          MPN: 150198
                                                                          GASKET
                                                                          from £12.51
                                                                          from £12.51
                                                                          This part replaces part number 117261 - and 3 more. Click to view details
                                                                          # 006
                                                                          MPN: 150198
                                                                          GASKET
                                                                          Without Amianthus
                                                                          from £12.51
                                                                          from £12.51
                                                                          This part replaces part number 117261 - and 3 more. Click to view details
                                                                          # 007
                                                                          MPN: 110381
                                                                          CLAMP
                                                                          from £0.54
                                                                          from £0.54
                                                                          This part replaces part number MC4325/4
                                                                          # 008
                                                                          MPN: 119409
                                                                          GASKET
                                                                          from £3.06
                                                                          from £3.06
                                                                          # 009
                                                                          MPN: 126139

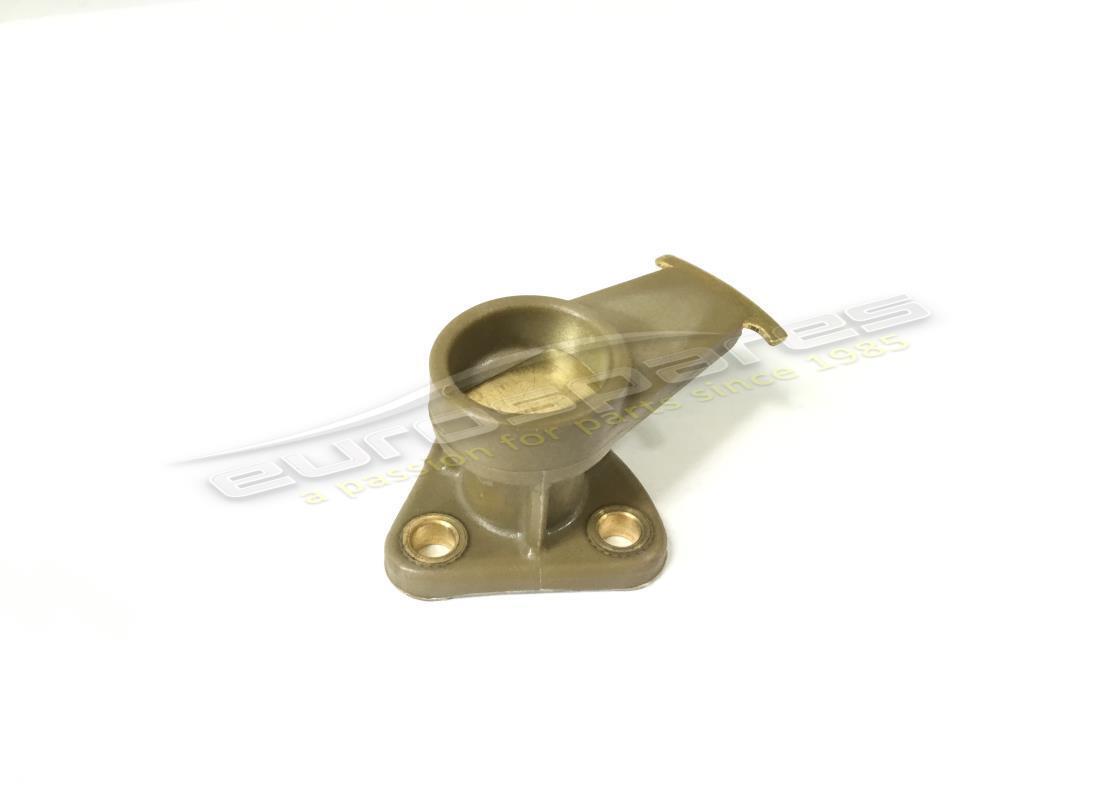

                                                                          ROTOR ARM
                                                                          from £85.00
                                                                          from £85.00
                                                                          # 010
                                                                          MPN: 119052
                                                                          ANGULAR SPEED SENSOR
                                                                          from £95.12
                                                                          from £95.12
                                                                          This part replaces part number 115019 - and 1 more. Click to view details
                                                                          # 011
                                                                          MPN: 124241

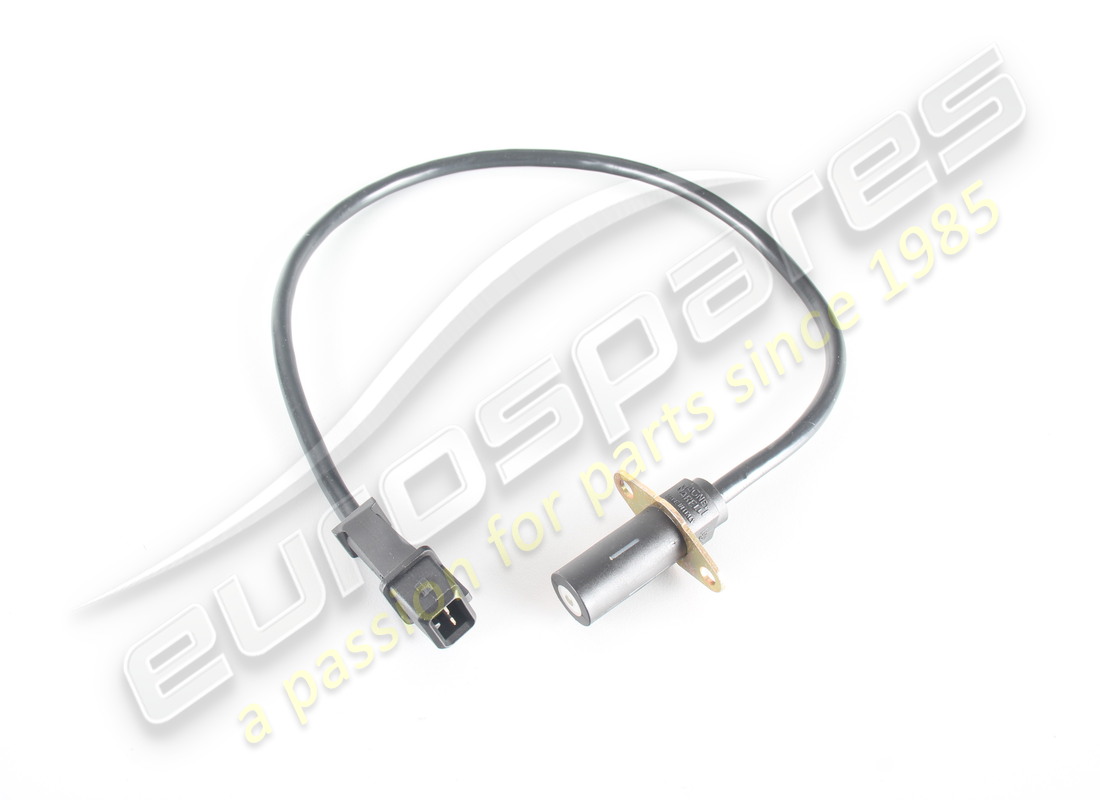

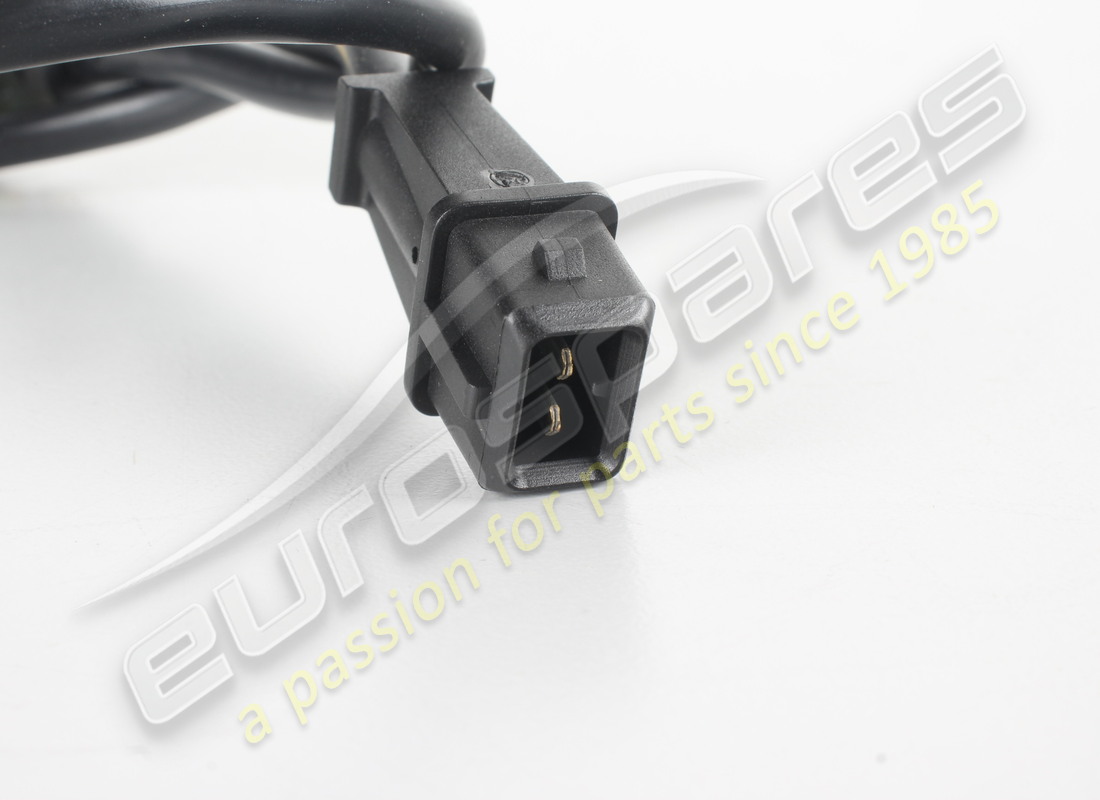

                                                                          TDC SENSOR
                                                                          (SEN8D)
                                                                          from £45.60
                                                                          from £45.60
                                                                          # 012
                                                                          MPN: 139540

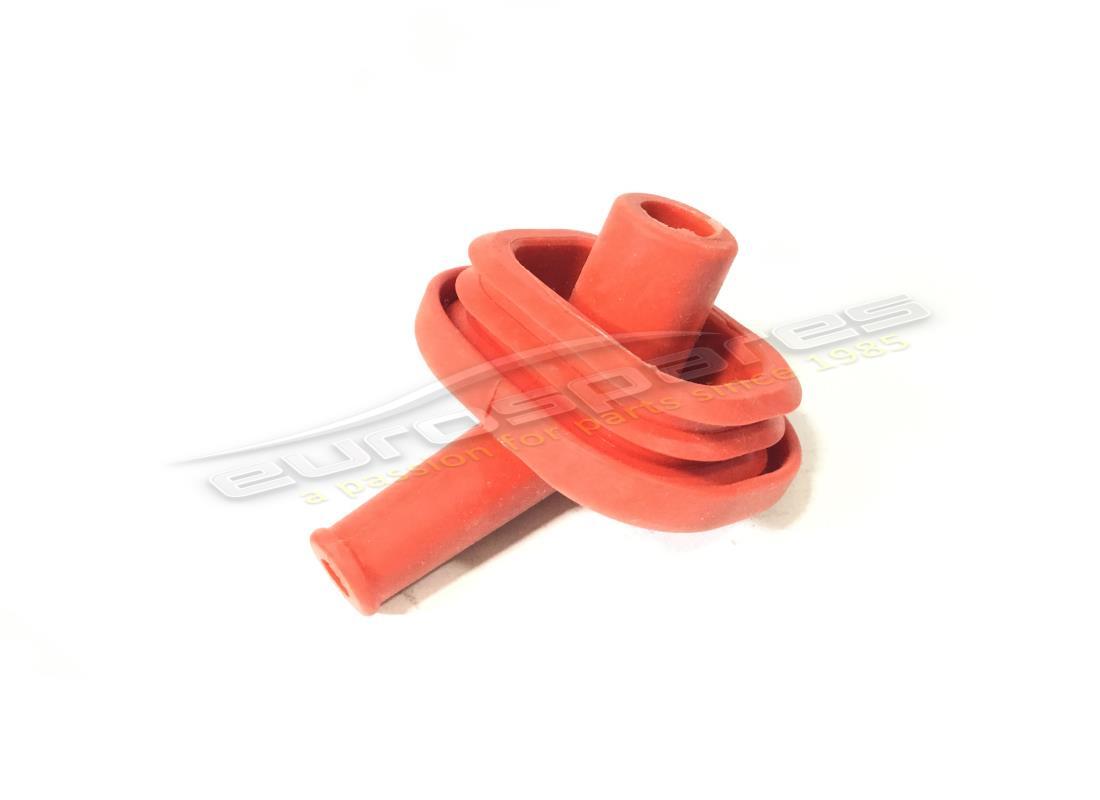

                                                                          RH DISTRIBUTOR CAP BOOT
                                                                          After exhaustion and for CAT. use no. 139540
                                                                          from £162.81
                                                                          from £162.81
                                                                          This part replaces part number 124581
                                                                          # 013
                                                                          MPN: 139541
                                                                          LH DISTRIBUTOR CAP BOOT
                                                                          from £155.07
                                                                          from £155.07
                                                                          This part replaces part number 124582
                                                                          # 014
                                                                          MPN: 125828

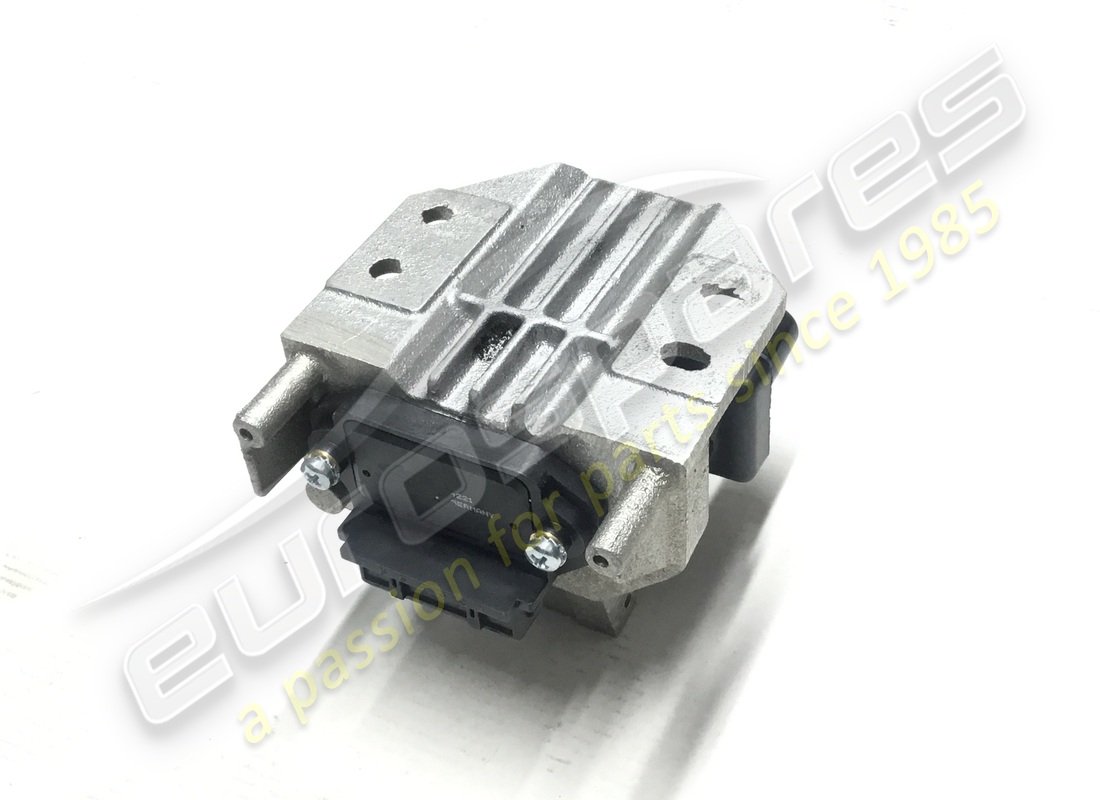

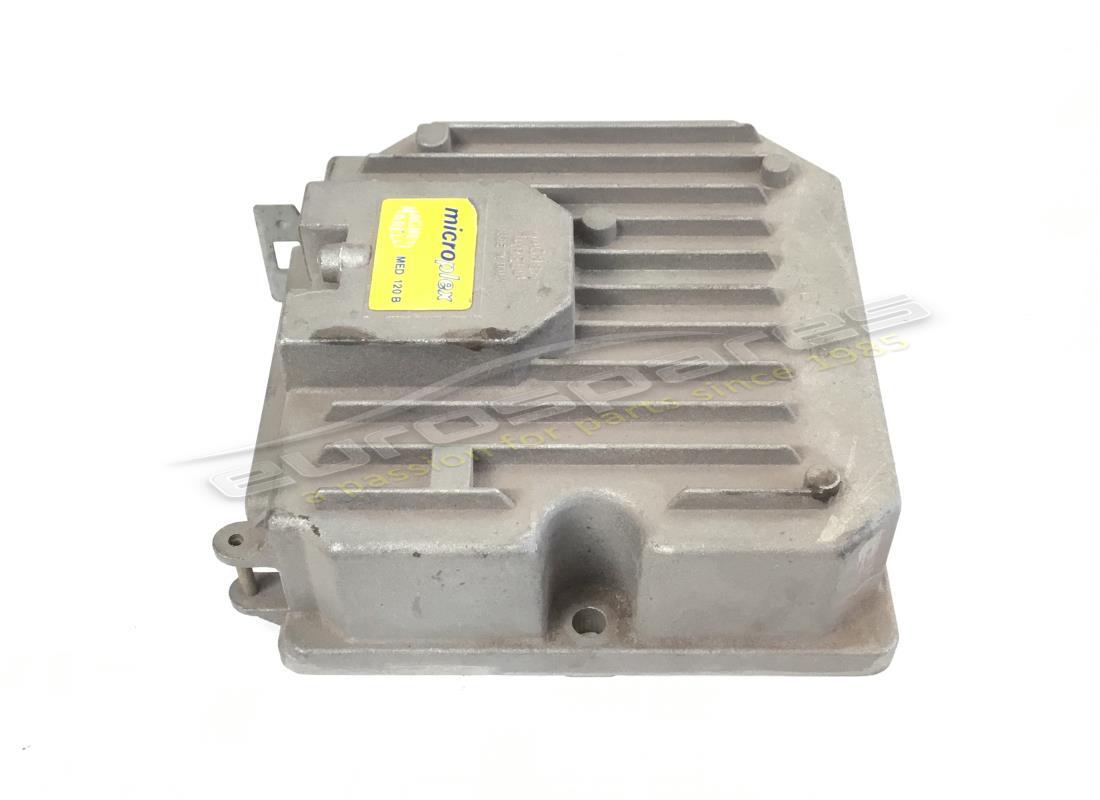

                                                                          IGNITION MODULE
                                                                          For C7 - After exhaustion and for CAT. use no. 144242
                                                                          from £2,159.24
                                                                          from £2,159.24
                                                                          This part replaces part number 124272 - and 2 more. Click to view details
                                                                          # 015
                                                                          MPN: 124391
                                                                          IGNITION MODULE SECURING PLATE
                                                                          from £8.94
                                                                          from £8.94
                                                                          # 016
                                                                          MPN: 12574211
                                                                          NUT
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 017
                                                                          MPN: 12639701
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 12639704
                                                                          # 018
                                                                          MPN: 12574211
                                                                          NUT
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 019
                                                                          MPN: 12639701
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 12639704
                                                                          # 020
                                                                          MPN: 124273

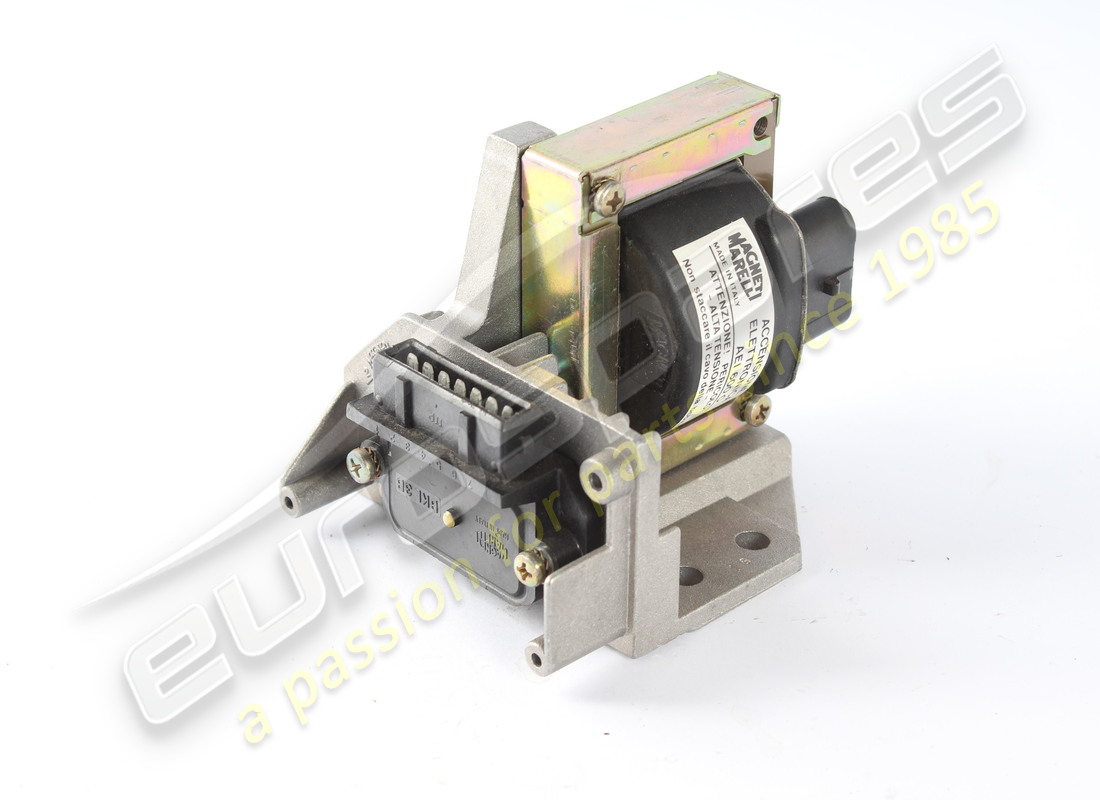

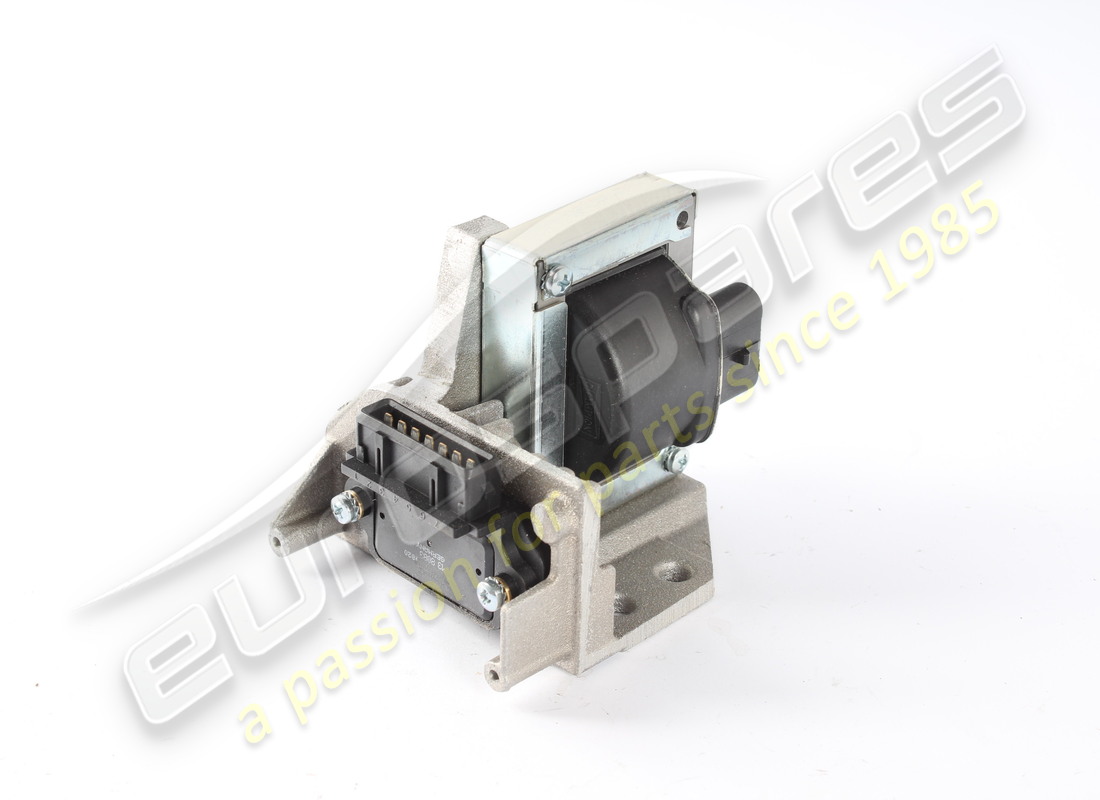

                                                                          IGNITION COIL ASSY (NON KAT MODEL)
                                                                          (AEI600A)
                                                                          from £195.00
                                                                          from £195.00
                                                                          This part replaces part number 122010 which we have in stock - and 11 more. Click to view details
                                                                          # 020
                                                                          MPN: 143413
                                                                          IGNITION COIL ASSY (KAT MODEL)
                                                                          For CAT. 001631625-001630792
                                                                          from £398.30
                                                                          from £398.30
                                                                          # 020
                                                                          MPN: 143415

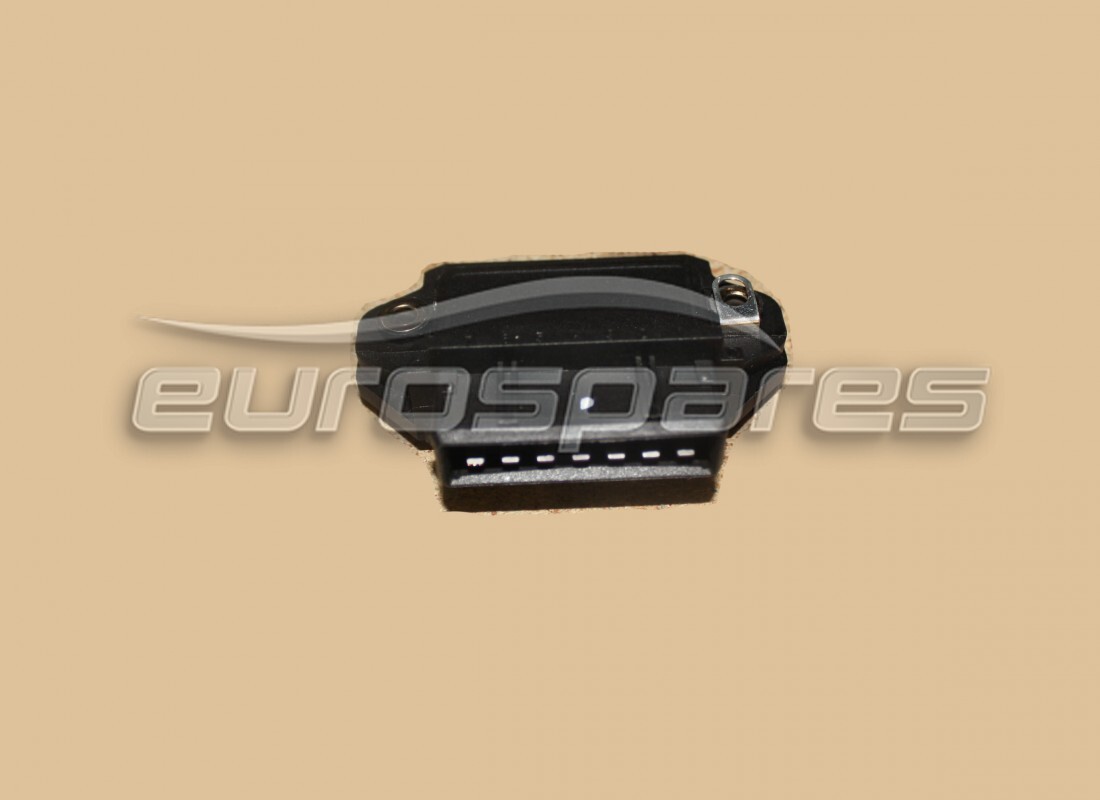

                                                                          BLACK MODULE ONLY
                                                                          # 021
                                                                          MPN: 10902327

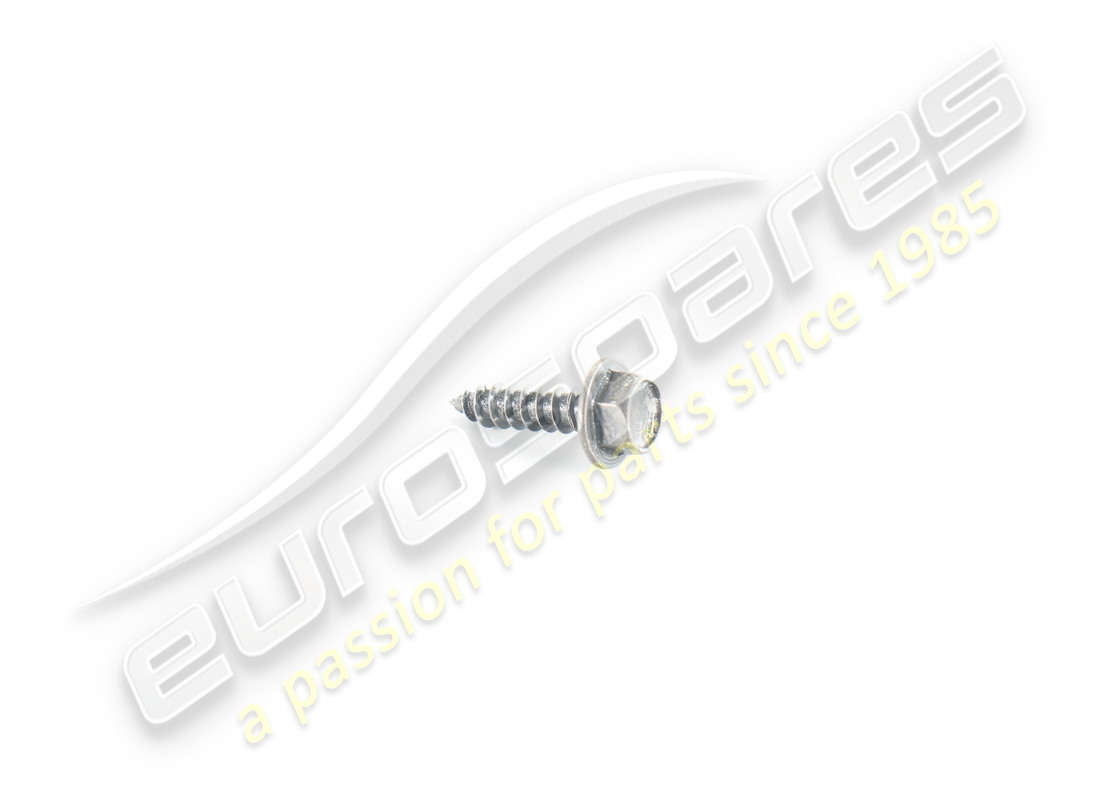

                                                                          SCREW
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 022
                                                                          MPN: 12643701
                                                                          WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 12643704 - and 1 more. Click to view details
                                                                          # 023
                                                                          MPN: 10615471
                                                                          TAB WASHER
                                                                          Supersession
                                                                          Supersession
                                                                          # 024
                                                                          MPN: 122762
                                                                          IGNITION MODULE DEPRESSION HOSE
                                                                          from £9.44
                                                                          from £9.44
                                                                          # 025
                                                                          MPN: 133063
                                                                          COUPLING ON CAMSHAFT
                                                                          from £687.79
                                                                          from £687.79
                                                                          This part replaces part number 126166 - and 1 more. Click to view details
                                                                          # 026
                                                                          MPN: 129120
                                                                          SPRING PIN
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 132355
                                                                          # 027
                                                                          MPN: 12544071
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12605170
                                                                          # 028
                                                                          MPN: 124171
                                                                          SET OF RH IGNITION CABLES
                                                                          Supersession
                                                                          Supersession
                                                                          # 029
                                                                          MPN: 124172
                                                                          SET OF LH IGNITION CABLES
                                                                          from £317.18
                                                                          from £317.18
                                                                          # 030
                                                                          MPN: 150180
                                                                          SPARK PLUG
                                                                          CHAMPION A6GC
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 131922 - and 1 more. Click to view details
                                                                          # 030
                                                                          MPN: 150180/a
                                                                          SPARK PLUG
                                                                          (NGK Iridium)
                                                                          from £14.95
                                                                          from £14.95
                                                                          This part replaces part number 150180
                                                                          # 031
                                                                          MPN: 124792

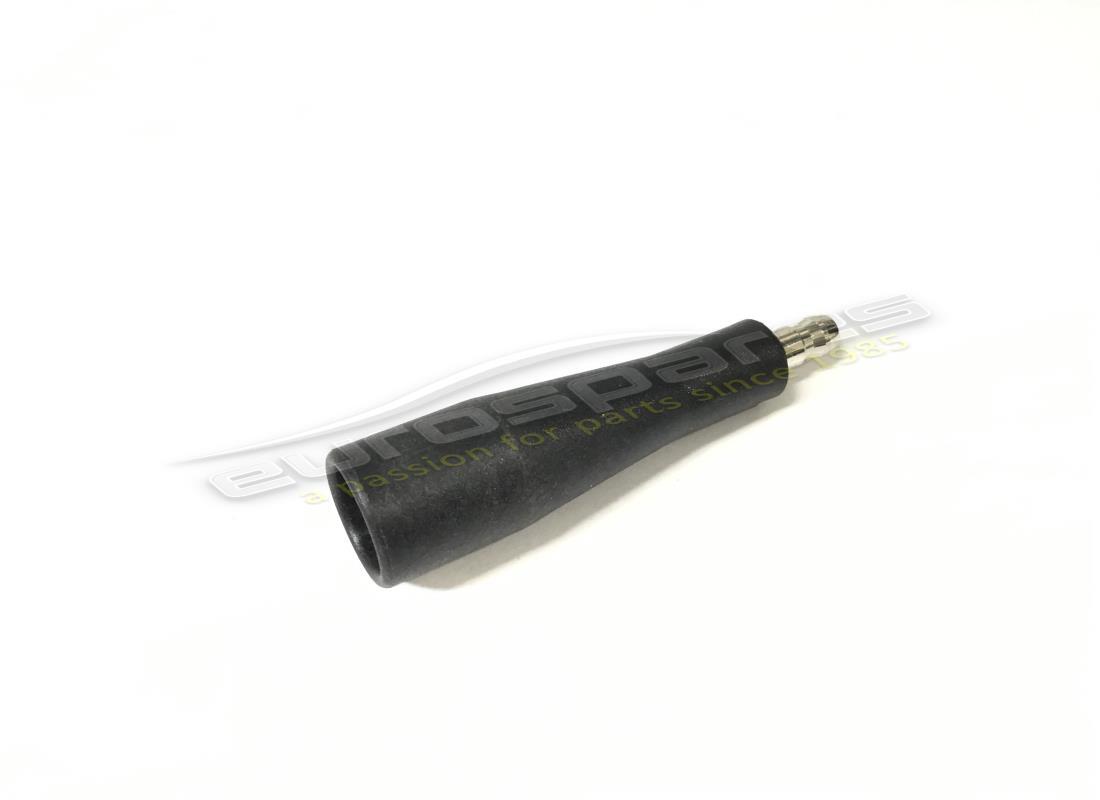

                                                                          EXTENSION FOR SPARK PLUGS CABLES
                                                                          from £8.48
                                                                          from £8.48
                                                                          # 032
                                                                          MPN: 124179
                                                                          CABLE FROM COIL TO DISTRIBUTOR CAP
                                                                          Supersession
                                                                          Supersession
                                                                          # 033
                                                                          MPN: 121788
                                                                          X4 - CABLE SUPPORT CLIP
                                                                          from £1.75
                                                                          from £1.75
                                                                          # 033
                                                                          MPN: 129666
                                                                          HT LEADS CLIPS SET
                                                                          2x 121790, 2x 121788, 10x 121789, 14x pins
                                                                          # 034
                                                                          MPN: 121789
                                                                          X3 - CABLE SUPPORT CLIP
                                                                          from £5.76
                                                                          from £5.76
                                                                          # 035
                                                                          MPN: 121790
                                                                          2 - CABLES UPPORT CLIP
                                                                          from £2.64
                                                                          from £2.64
                                                                          This part replaces part number 124205
                                                                          # 036
                                                                          MPN: 10902321
                                                                          SCREW
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 037
                                                                          MPN: 11197774
                                                                          WASHER
                                                                          from £0.54
                                                                          from £0.54
                                                                          This part replaces part number 11197770 - and 3 more. Click to view details

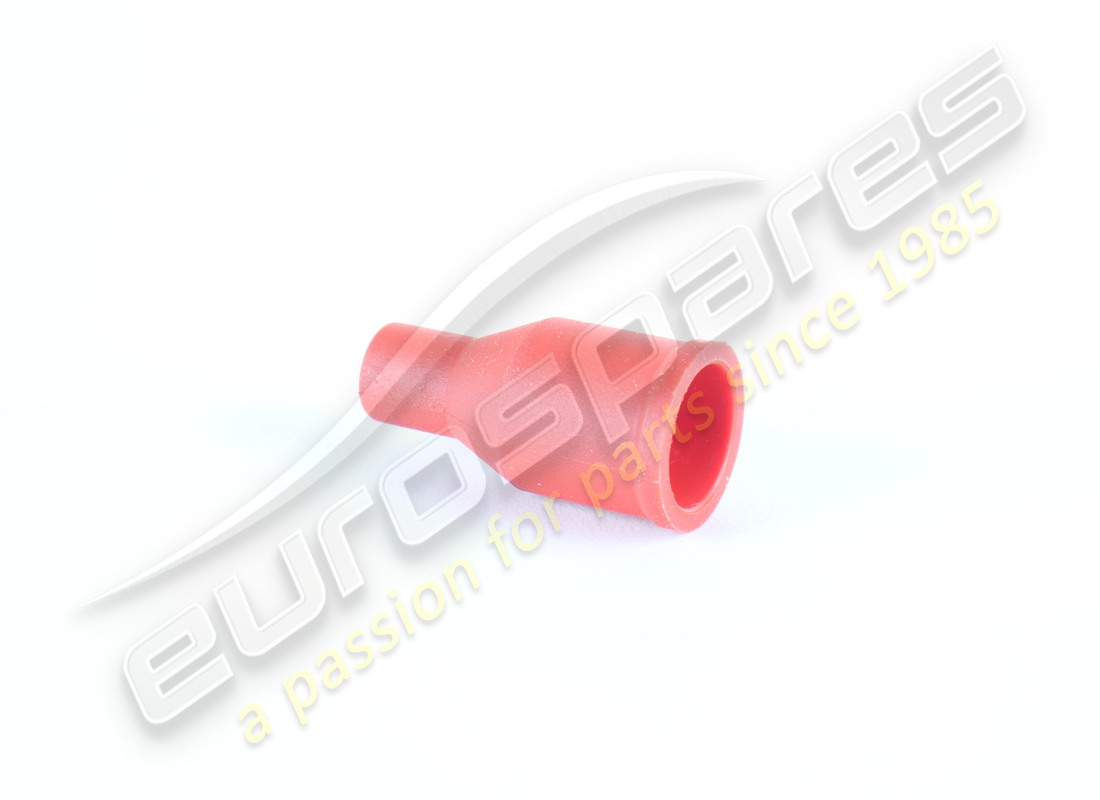

                                                                          # 038
                                                                          MPN: 121527
                                                                          SPARK PLUG CAP
                                                                          from £12.81
                                                                          from £12.81
                                                                          # 039
                                                                          MPN: 10444521
                                                                          SCREW
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 040
                                                                          MPN: 128169
                                                                          PROTECTION FOR POWER MODULE
                                                                          from £55.07
                                                                          from £55.07
                                                                          # 041
                                                                          MPN: 15921807
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          # 042
                                                                          MPN: 61916900
                                                                          25 WAY CONNECTOR
                                                                          from £26.48
                                                                          from £26.48
                                                                          # 043
                                                                          MPN: 122970
                                                                          CAP
                                                                          from £20.65
                                                                          from £20.65
                                                                          # 044
                                                                          MPN: 129620
                                                                          PROTECTION
                                                                          from £16.47
                                                                          from £16.47
                                                                          # 045
                                                                          MPN: 133066
                                                                          SPACER
                                                                          For distributor cap support no. 126115
                                                                          from £21.43
                                                                          from £21.43
                                                                          # 046
                                                                          MPN: 132907
                                                                          COVER
                                                                          Startirig from engine no. 15098 - 15269 US
                                                                          from £421.50
                                                                          from £421.50
                                                                          # 047
                                                                          MPN: 140567

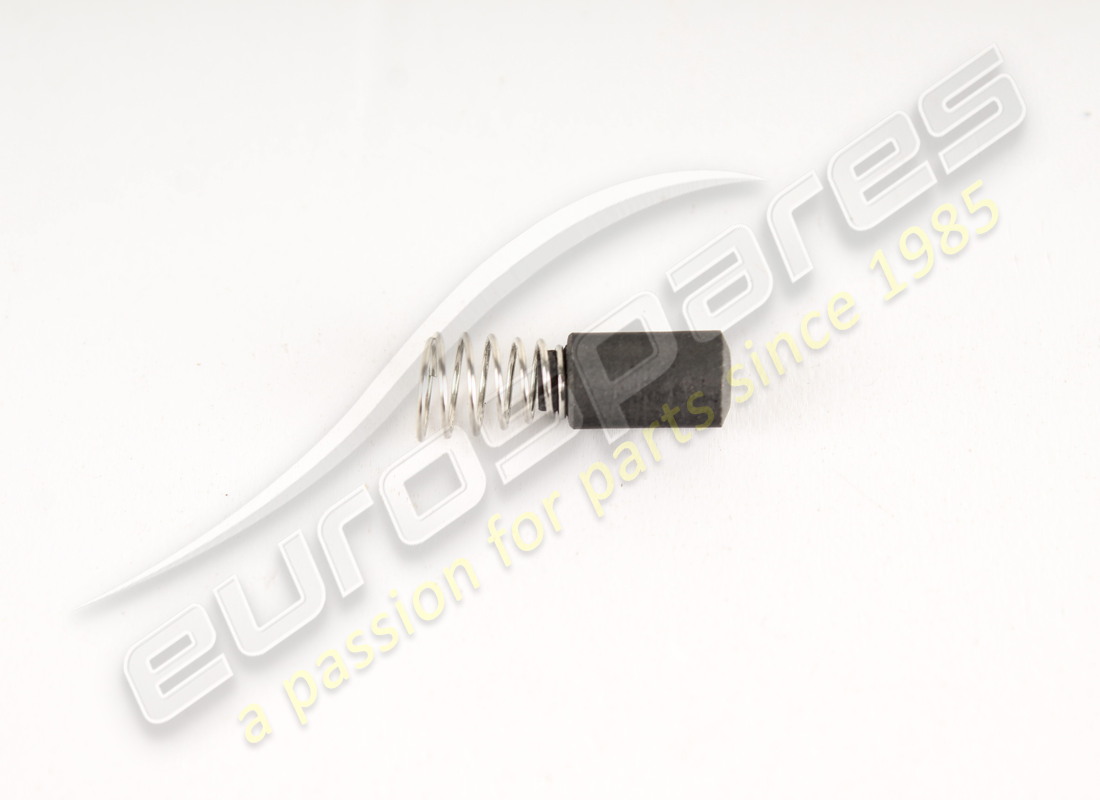

                                                                          SOLID CARBON WITH SPRING
                                                                          For distributor cap no. 121552 and 124575
                                                                          from £14.85
                                                                          from £14.85
                                                                          This part replaces part number 144740
                                                                          # 047
                                                                          MPN: 140567
                                                                          SOLID CARBON WITH SPRING
                                                                          from £14.85
                                                                          from £14.85
                                                                          This part replaces part number 144740
