ferrari testarossa (1990) rear suspension - wishbones and shock absorbers (starting from car no. 75997) parts diagram

052 - Rear SUSpension - Wishbones and Shock Absorbers (Starting From Car No. 75997)

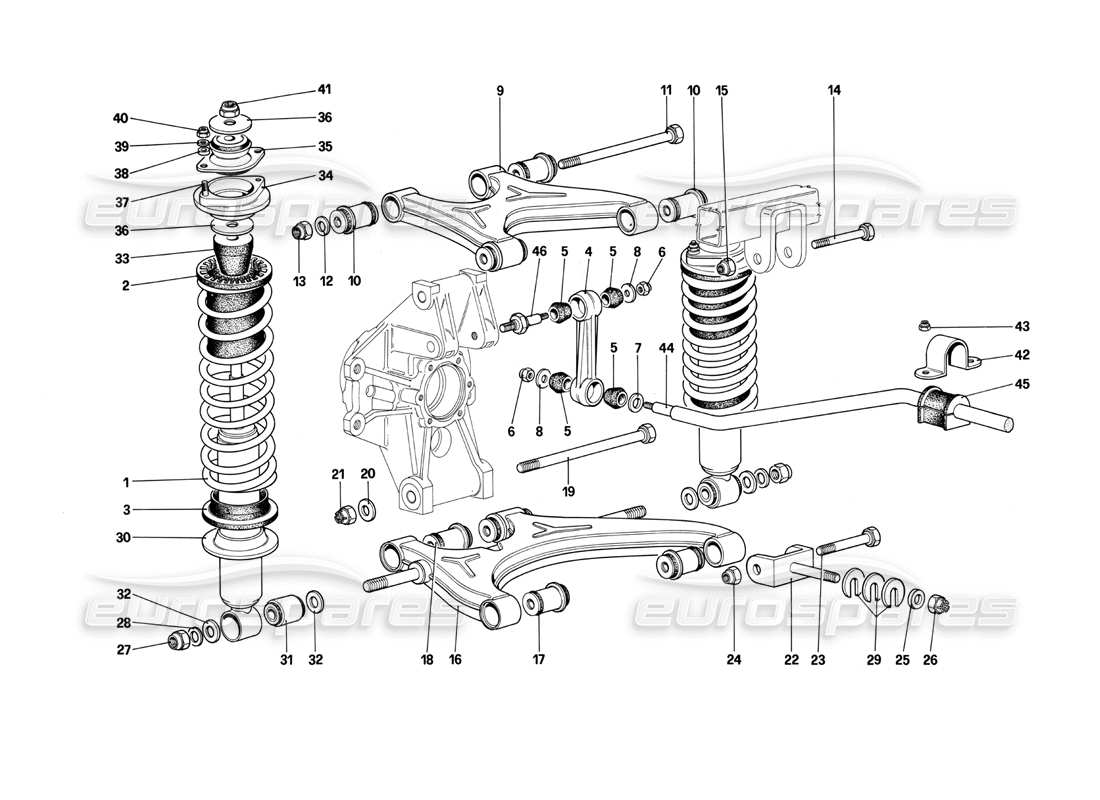

Ferrari Testarossa (1990) Rear SUSpension - Wishbones and Shock Absorbers (Starting From Car No. 75997) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 124982
                                                                                            SUSPENSION SPRING
                                                                                            from £130.66
                                                                                            from £130.66
                                                                                            This part replaces part number 168394 - and 3 more. Click to view details
                                                                                            # 003
                                                                                            MPN: 103264
                                                                                            LOWER SPACER
                                                                                            from £15.72
                                                                                            from £15.72
                                                                                            This part replaces part number 640423 - and 3 more. Click to view details
                                                                                            # 004
                                                                                            MPN: 134862
                                                                                            ROD LINK
                                                                                            from £7.80
                                                                                            from £7.80
                                                                                            # 005
                                                                                            MPN: 125061
                                                                                            GROMMET
                                                                                            from £27.47
                                                                                            from £27.47
                                                                                            # 006
                                                                                            MPN: 101139
                                                                                            SELF LOCKING NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 16104425
                                                                                            # 007
                                                                                            MPN: 10520021
                                                                                            WASHER
                                                                                            from £0.59
                                                                                            from £0.59
                                                                                            This part replaces part number 10520001
                                                                                            # 008
                                                                                            MPN: 124338
                                                                                            WASHER
                                                                                            from £4.03
                                                                                            from £4.03
                                                                                            This part replaces part number 219344
                                                                                            # 009
                                                                                            MPN: 134814
                                                                                            UPPER LEVER
                                                                                            from £442.73
                                                                                            from £442.73
                                                                                            # 010
                                                                                            MPN: 154536
                                                                                            FLAMBLOCK
                                                                                            from £73.44
                                                                                            from £73.44
                                                                                            This part replaces part number 103170 - and 1 more. Click to view details
                                                                                            # 011
                                                                                            MPN: 134897
                                                                                            SCREW
                                                                                            from £38.29
                                                                                            from £38.29
                                                                                            # 013
                                                                                            MPN: 148020
                                                                                            SELF LOCKING NUT
                                                                                            from £2.53
                                                                                            from £2.53
                                                                                            This part replaces part number 102825 - and 3 more. Click to view details
                                                                                            # 014
                                                                                            MPN: 106419
                                                                                            SCREW
                                                                                            from £10.95
                                                                                            from £10.95
                                                                                            This part replaces part number 100808 - and 9 more. Click to view details
                                                                                            # 015
                                                                                            MPN: 148020
                                                                                            SELF LOCKING NUT
                                                                                            from £2.46
                                                                                            from £2.46
                                                                                            This part replaces part number 102825 - and 3 more. Click to view details
                                                                                            # 016
                                                                                            MPN: 150090
                                                                                            LOWER SUSPENSION LEVER
                                                                                            from £634.01
                                                                                            from £634.01
                                                                                            This part replaces part number 134835 - and 1 more. Click to view details
                                                                                            # 017
                                                                                            MPN: 134883
                                                                                            FLAMBLOCK
                                                                                            from £39.95
                                                                                            from £39.95
                                                                                            This part replaces part number 101091 - and 1 more. Click to view details
                                                                                            # 018
                                                                                            MPN: 120813
                                                                                            FLAMBLOCK
                                                                                            from £34.14
                                                                                            from £34.14
                                                                                            # 019
                                                                                            MPN: 120815
                                                                                            SCREW
                                                                                            from £32.66
                                                                                            from £32.66
                                                                                            # 020
                                                                                            MPN: 105434
                                                                                            WASHER
                                                                                            from £20.37
                                                                                            from £20.37
                                                                                            # 021
                                                                                            MPN: 101040
                                                                                            SELFCKING NUT
                                                                                            from £12.35
                                                                                            from £12.35
                                                                                            # 022
                                                                                            MPN: 125889
                                                                                            LOWER FORK
                                                                                            Not for B1
                                                                                            from £44.82
                                                                                            from £44.82
                                                                                            # 022
                                                                                            MPN: 177707
                                                                                            LOWER FORK
                                                                                            for B1
                                                                                            from £267.31
                                                                                            from £267.31
                                                                                            This part replaces part number 116690 which we have in stock - and 3 more. Click to view details
                                                                                            # 022
                                                                                            MPN: 177707
                                                                                            LOWER FORK
                                                                                            Not for B1
                                                                                            from £267.31
                                                                                            from £267.31
                                                                                            This part replaces part number 116690 which we have in stock - and 3 more. Click to view details
                                                                                            # 023
                                                                                            MPN: 106422
                                                                                            SCREW
                                                                                            from £8.37
                                                                                            from £8.37
                                                                                            # 024
                                                                                            MPN: 150238
                                                                                            SELF LOCKING NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12575821 - and 2 more. Click to view details
                                                                                            # 025
                                                                                            MPN: 101040
                                                                                            NUT
                                                                                            from £12.35
                                                                                            from £12.35
                                                                                            # 026
                                                                                            MPN: 101041
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10730821
                                                                                            # 027
                                                                                            MPN: 150238
                                                                                            SELF LOCKING NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12575821 - and 2 more. Click to view details
                                                                                            # 028
                                                                                            MPN: 106856
                                                                                            WASHER
                                                                                            # 029
                                                                                            MPN: 101039
                                                                                            SHIM 1 MM. THICK
                                                                                            from £1.78
                                                                                            from £1.78
                                                                                            This part replaces part number 107025 - and 1 more. Click to view details
                                                                                            # 029
                                                                                            MPN: 107338
                                                                                            SHIM 1,5 MM. THICK
                                                                                            from £13.11
                                                                                            from £13.11
                                                                                            This part replaces part number 107418
                                                                                            # 029
                                                                                            MPN: 107339
                                                                                            SHIM 2 MM. THICK
                                                                                            from £1.18
                                                                                            from £1.18
                                                                                            This part replaces part number 107419
                                                                                            # 029
                                                                                            MPN: 107340
                                                                                            SHIM 2,5 MM. THICK
                                                                                            from £1.11
                                                                                            from £1.11
                                                                                            This part replaces part number 107420
                                                                                            # 029
                                                                                            MPN: 107341
                                                                                            SHIM 3 MM. THICKNESS
                                                                                            from £2.84
                                                                                            from £2.84
                                                                                            This part replaces part number 107421
                                                                                            # 029
                                                                                            MPN: 107342
                                                                                            SHIM 3,25 MM. THICKNESS
                                                                                            from £0.48
                                                                                            from £0.48
                                                                                            This part replaces part number 107422
                                                                                            # 030
                                                                                            MPN: 128430
                                                                                            SHOCK ABSORBER
                                                                                            from £607.32
                                                                                            from £607.32
                                                                                            This part replaces part number 116865 - and 2 more. Click to view details
                                                                                            # 031
                                                                                            MPN: 125926
                                                                                            ESTENDBLOCK
                                                                                            from £55.87
                                                                                            from £55.87
                                                                                            # 032
                                                                                            MPN: 128509
                                                                                            WASHER
                                                                                            from £10.15
                                                                                            from £10.15
                                                                                            # 033
                                                                                            MPN: 116358
                                                                                            PAD
                                                                                            from £29.32
                                                                                            from £29.32
                                                                                            # 034
                                                                                            MPN: 116861
                                                                                            SECURING CUP
                                                                                            from £150.80
                                                                                            from £150.80
                                                                                            # 035
                                                                                            MPN: 116864
                                                                                            HYPERBLOCK
                                                                                            from £129.06
                                                                                            from £129.06
                                                                                            # 036
                                                                                            MPN: 116862
                                                                                            WASHER
                                                                                            from £2.59
                                                                                            from £2.59
                                                                                            # 037
                                                                                            MPN: 13543521
                                                                                            STUD
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 038
                                                                                            MPN: 113113
                                                                                            SPACER
                                                                                            from £4.35
                                                                                            from £4.35
                                                                                            # 039
                                                                                            MPN: 12646721
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 040
                                                                                            MPN: 104030
                                                                                            SELF LOCKING NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 16104125
                                                                                            # 041
                                                                                            MPN: 148020
                                                                                            SELF LOCKING NUT
                                                                                            from £2.46
                                                                                            from £2.46
                                                                                            This part replaces part number 102825 - and 3 more. Click to view details
                                                                                            # 042
                                                                                            MPN: 104417
                                                                                            ROD RETAINING U BOLT
                                                                                            from £20.83
                                                                                            from £20.83
                                                                                            This part replaces part number 64429 - and 4 more. Click to view details
                                                                                            # 043
                                                                                            MPN: 12575621
                                                                                            SELF LOCKING NUT
                                                                                            from £1.35
                                                                                            from £1.35
                                                                                            # 044
                                                                                            MPN: 136965
                                                                                            ROD LINK
                                                                                            from £475.39
                                                                                            from £475.39
                                                                                            # 045
                                                                                            MPN: 118276
                                                                                            ROD RETAINING PAD
                                                                                            from £50.00
                                                                                            from £50.00
                                                                                            # 046
                                                                                            MPN: 136437
                                                                                            PIN
                                                                                            from £23.10
                                                                                            from £23.10
