ferrari testarossa (1990) front suspension - wishbones (starting from car no. 75997) parts diagram

048 - Front Suspension - Wishbones (Starting From Car No. 75997)

Ferrari Testarossa (1990) Front SUSpension - Wishbones (Starting From Car No. 75997) Parts Diagram

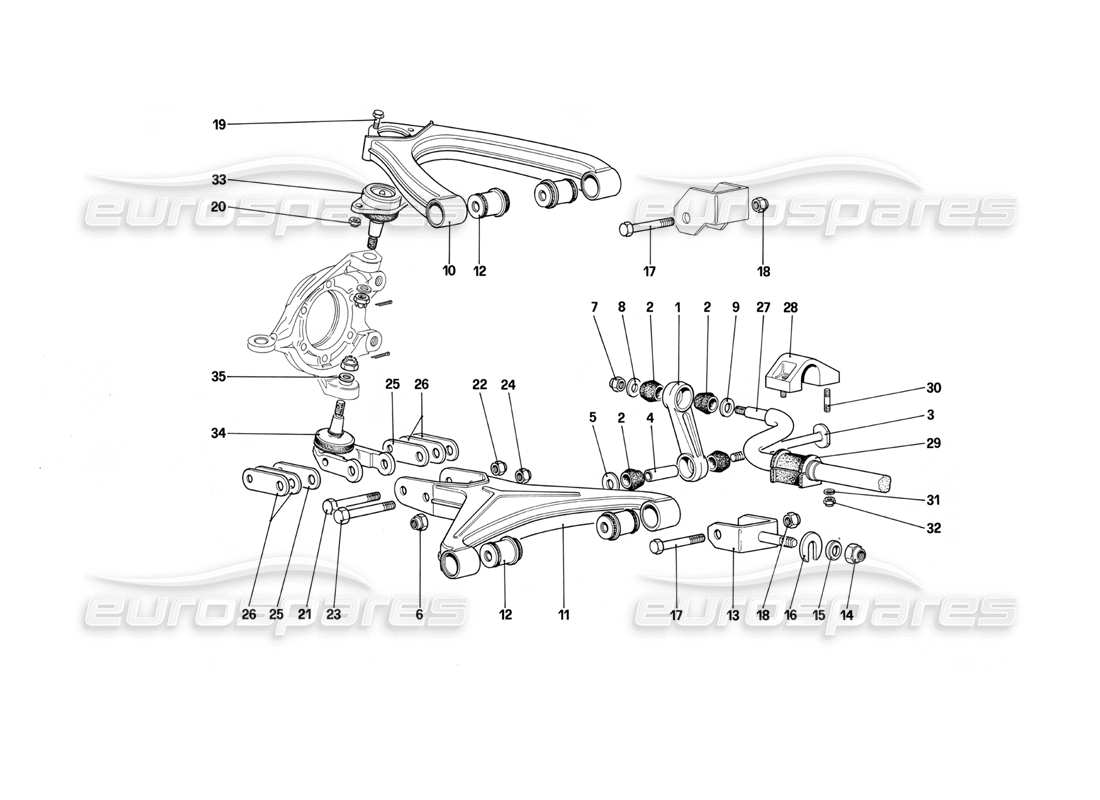

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                    #
                                                    Part number
                                                    Description
                                                    Price
                                                    # 001
                                                    MPN: 114691
                                                    ROD LINK
                                                    from £322.83
                                                    from £322.83
                                                    # 002
                                                    MPN: 100984
                                                    GROMMET
                                                    from £6.56
                                                    from £6.56
                                                    This part replaces part number 126097 - and 1 more. Click to view details
                                                    # 003
                                                    MPN: 132665
                                                    PIN
                                                    from £22.94
                                                    from £22.94
                                                    # 004
                                                    MPN: 100985
                                                    SPACER
                                                    from £21.06
                                                    from £21.06
                                                    This part replaces part number 64431
                                                    # 005
                                                    MPN: 105334
                                                    WASHER
                                                    Supersession
                                                    Supersession
                                                    # 006
                                                    MPN: 148020
                                                    SELF LOCKING NUT
                                                    from £2.53
                                                    from £2.53
                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                    # 007
                                                    MPN: 12575621
                                                    SELF LOCKING NUT
                                                    from £1.43
                                                    from £1.43
                                                    # 008
                                                    MPN: 112874
                                                    WASHER
                                                    from £10.91
                                                    from £10.91
                                                    # 009
                                                    MPN: 10520221
                                                    WASHER
                                                    from £0.92
                                                    from £0.92
                                                    # 010
                                                    MPN: 133094
                                                    UPPER LEVER
                                                    from £856.54
                                                    from £856.54
                                                    # 011
                                                    MPN: 143005
                                                    LOWER LEVER
                                                    from £450.74
                                                    from £450.74
                                                    This part replaces part number 132666 - and 1 more. Click to view details
                                                    # 012
                                                    MPN: 154537
                                                    FLAMBLOCK
                                                    USE : 163038/154536
                                                    from £26.93
                                                    from £26.93
                                                    This part replaces part number 104398 - and 1 more. Click to view details
                                                    # 013
                                                    MPN: 112807
                                                    LOWER FORK
                                                    Starting car no. 77183 and until exhaustion
                                                    from £83.44
                                                    from £83.44
                                                    # 013
                                                    MPN: 127639
                                                    LOWER FORK
                                                    Until car no. 77182
                                                    from £71.57
                                                    from £71.57
                                                    This part replaces part number 121651 - and 1 more. Click to view details
                                                    # 013
                                                    MPN: 146860
                                                    LOWER FORK
                                                    After exhaustion no. 112807
                                                    from £151.63
                                                    from £151.63
                                                    # 014
                                                    MPN: 150238
                                                    SELF LOCKING NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 12575821 - and 2 more. Click to view details
                                                    # 015
                                                    MPN: 101041
                                                    WASHER
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 10730821
                                                    # 016
                                                    MPN: 101039
                                                    SHIM FOR LOWER FORK, THICKNESS 1MM.
                                                    If required
                                                    from £1.78
                                                    from £1.78
                                                    This part replaces part number 107025 - and 1 more. Click to view details
                                                    # 016
                                                    MPN: 107338
                                                    SHIM FOR LOWER FORK, THICKNESS 1,5 MM.
                                                    If required
                                                    from £12.97
                                                    from £12.97
                                                    This part replaces part number 107418
                                                    # 016
                                                    MPN: 107339
                                                    SHIM FOR LOWER FORK, THICKNESS 2 MM.
                                                    If required
                                                    from £1.17
                                                    from £1.17
                                                    This part replaces part number 107419
                                                    # 016
                                                    MPN: 107340
                                                    SHIM FOR LOWER FORK, THICKNESS 2,5 MM.
                                                    If required
                                                    from £1.11
                                                    from £1.11
                                                    This part replaces part number 107420
                                                    # 016
                                                    MPN: 107341
                                                    SHIM FOR LOWER FORK, THICKNESS 3 MM.
                                                    If required
                                                    from £2.84
                                                    from £2.84
                                                    This part replaces part number 107421
                                                    # 016
                                                    MPN: 107342
                                                    SHIM FOR LOWER FORK, THICKNESS 3,25 MM.
                                                    If required
                                                    from £0.48
                                                    from £0.48
                                                    This part replaces part number 107422
                                                    # 017
                                                    MPN: 106419
                                                    SCREW
                                                    For fork no. 112807 and no.146860
                                                    from £10.95
                                                    from £10.95
                                                    This part replaces part number 100808 - and 9 more. Click to view details
                                                    # 017
                                                    MPN: 121693
                                                    SCREW
                                                    For fork no. 127639
                                                    from £43.58
                                                    from £43.58
                                                    This part replaces part number 127849 - and 1 more. Click to view details
                                                    # 018
                                                    MPN: 148020
                                                    SELF LOCKING NUT
                                                    from £2.33
                                                    from £2.33
                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                    # 019
                                                    MPN: 16043721
                                                    SCREW
                                                    from £1.11
                                                    from £1.11
                                                    # 020
                                                    MPN: 104030
                                                    SELF LOCKING NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 16104125
                                                    # 021
                                                    MPN: 15971621
                                                    SCREW
                                                    from £7.94
                                                    from £7.94
                                                    This part replaces part number 104519
                                                    # 022
                                                    MPN: 12574521
                                                    SELF LOCKING NUT
                                                    For lever no. 132666
                                                    from £0.57
                                                    from £0.57
                                                    This part replaces part number 104114 - and 1 more. Click to view details
                                                    # 022
                                                    MPN: 12575621
                                                    SELF LOCKING NUT
                                                    For lever no. 143005
                                                    from £1.43
                                                    from £1.43
                                                    # 023
                                                    MPN: 132667
                                                    SCREW
                                                    For lever no. 143005
                                                    from £20.99
                                                    from £20.99
                                                    # 023
                                                    MPN: 15541531
                                                    SCREW
                                                    For lever no. 132666
                                                    from £4.46
                                                    from £4.46
                                                    # 024
                                                    MPN: 148020
                                                    SELF LOCKING NUT
                                                    from £2.53
                                                    from £2.53
                                                    This part replaces part number 102825 - and 3 more. Click to view details
                                                    # 025
                                                    MPN: 115073
                                                    ADJUSTING PLATE FOR CASTER ANGLE
                                                    If required
                                                    from £0.79
                                                    from £0.79
                                                    This part replaces part number 153964
                                                    # 026
                                                    MPN: 101022
                                                    CLEARANCE ADJUSTING PLATE, LOWER
                                                    With lever no. 143005 Q.=12
                                                    from £1.22
                                                    from £1.22
                                                    This part replaces part number 153963
                                                    # 027
                                                    MPN: 134967
                                                    STABILIZER ROD Ø 22
                                                    from £109.51
                                                    from £109.51
                                                    # 028
                                                    MPN: 133227
                                                    SUPPORT FOR STABILIZER ROD
                                                    Until car no. 79483
                                                    Supersession
                                                    Supersession
                                                    This part replaces part number 114702 which we have in stock - and 2 more. Click to view details
                                                    # 028
                                                    MPN: 138389
                                                    SUPPORT FOR STABILIZER ROD
                                                    Starting car no. 79484
                                                    from £68.86
                                                    from £68.86
                                                    This part replaces part number 133227
                                                    # 029
                                                    MPN: 130606
                                                    ROD RETAINING PAD
                                                    from £47.05
                                                    from £47.05
                                                    # 030
                                                    MPN: 16100814
                                                    STUD
                                                    from £0.71
                                                    from £0.71
                                                    This part replaces part number 16100811 - and 1 more. Click to view details
                                                    # 031
                                                    MPN: 102683
                                                    WASHER
                                                    from £10.44
                                                    from £10.44
                                                    This part replaces part number 95301
                                                    # 032
                                                    MPN: 104030
                                                    SELF LOCKING NUT
                                                    from £0.47
                                                    from £0.47
                                                    This part replaces part number 16104125
                                                    # 032
                                                    MPN: 16104411
                                                    SELF LOCKING NUT
                                                    Until car no. 79483
                                                    from £0.47
                                                    from £0.47
                                                    # 033
                                                    MPN: 132776
                                                    UPPER BALL JOINT
                                                    from £51.47
                                                    from £51.47
                                                    # 034
                                                    MPN: 133944
                                                    LOWER BALL JOINT
                                                    from £50.00
                                                    from £50.00
                                                    This part replaces part number 114462 - and 13 more. Click to view details
                                                    # 035
                                                    MPN: 101445
                                                    WASHER
                                                    from £0.59
                                                    from £0.59
