ferrari testarossa (1990) brake hydraulic system parts diagram

037 - Brake Hydraulic System

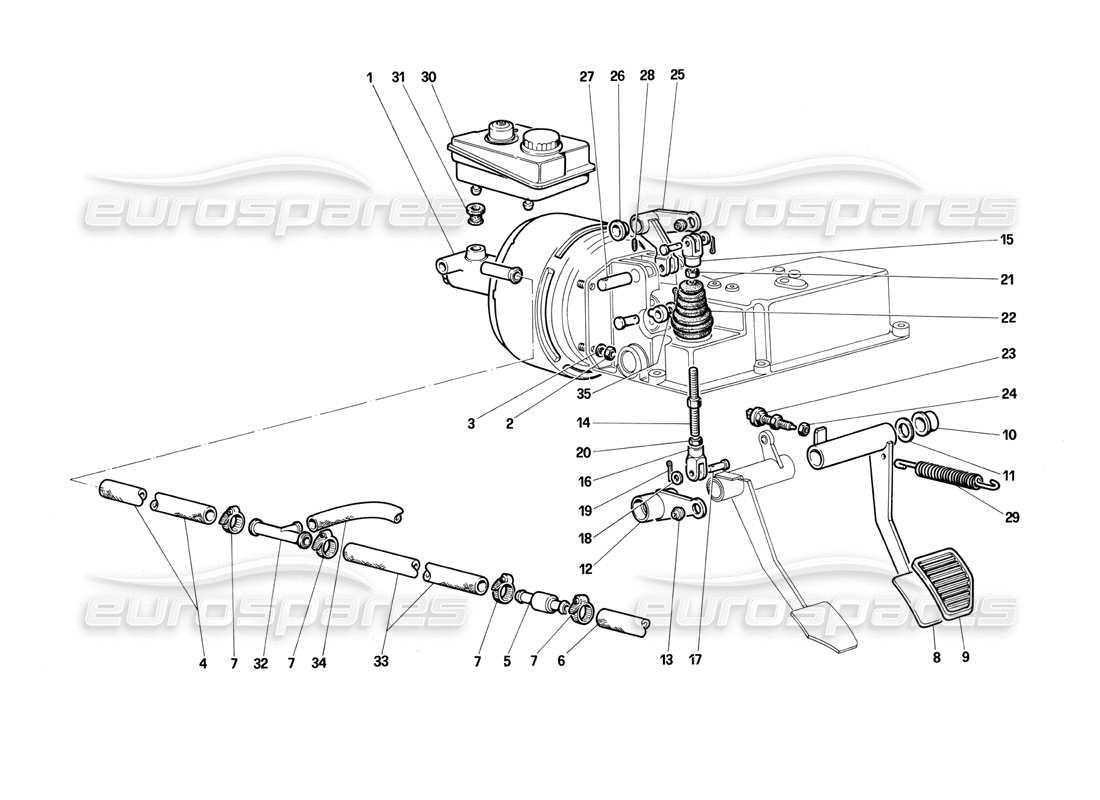

Ferrari Testarossa (1990) Brake Hydraulic System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                              #
                                                              Part number
                                                              Description
                                                              Price
                                                              # 001
                                                              MPN: 111338/A

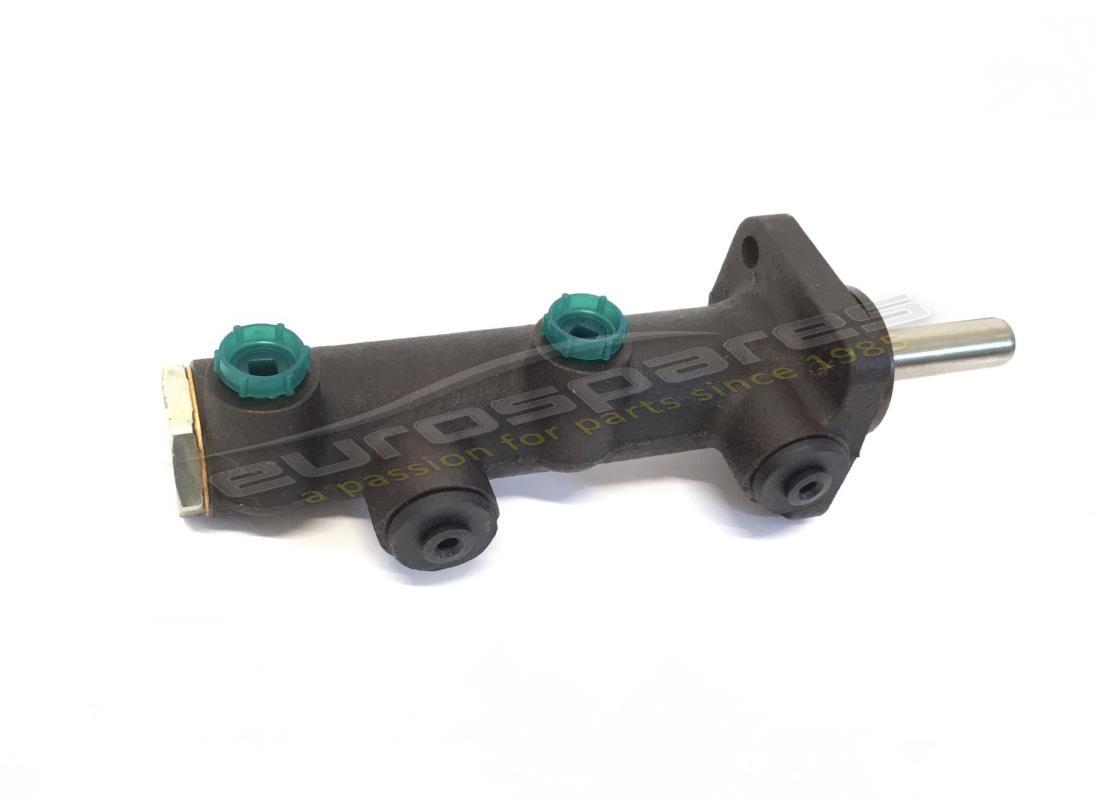

                                                              LHD BRAKE PUMP
                                                              (left hand drive only)
                                                              from £252.00
                                                              from £252.00
                                                              This part replaces part number 95691010/A
                                                              # 001
                                                              MPN: 111338/C
                                                              RHD BRAKE PUMP
                                                              from £275.72
                                                              from £275.72
                                                              # 001
                                                              MPN: 151471
                                                              LHD BRAKE SERVO & PUMP
                                                              from £1,200.00
                                                              from £1,200.00
                                                              This part replaces part number 133568 - and 7 more. Click to view details
                                                              # 001
                                                              MPN: 681075
                                                              RHD Brake Servo & Pump
                                                              Supersession
                                                              Supersession
                                                              # 002
                                                              MPN: 16104411

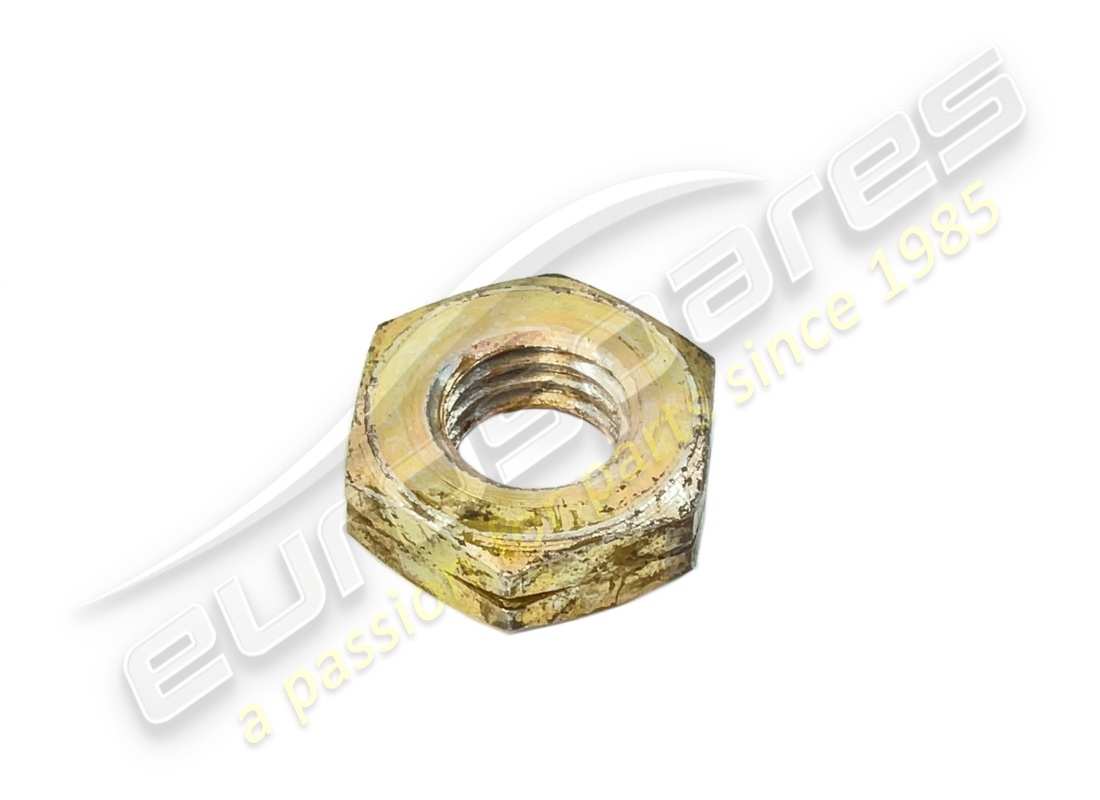

                                                              NUT
                                                              from £0.53
                                                              from £0.53
                                                              # 003
                                                              MPN: 12601371
                                                              WASHER
                                                              Supersession
                                                              Supersession
                                                              # 004
                                                              MPN: 119361
                                                              HOSE FROM BRAKE BOOSTER TO 3 WAY UNION
                                                              from £75.92
                                                              from £75.92
                                                              # 005
                                                              MPN: 128435
                                                              NO RETURN VALVE
                                                              After exhaustion use no. 128435
                                                              from £148.52
                                                              from £148.52
                                                              This part replaces part number 101538 - and 3 more. Click to view details
                                                              # 006
                                                              MPN: 127213
                                                              HOSE FROM VALVE TO ENGINE
                                                              from £9.71
                                                              from £9.71
                                                              # 007
                                                              MPN: 13000390
                                                              CLAMP
                                                              from £0.48
                                                              from £0.48
                                                              This part replaces part number 12179590 - and 1 more. Click to view details
                                                              # 008
                                                              MPN: 121232
                                                              BRAKE PEDAL
                                                              from £37.09
                                                              from £37.09
                                                              # 009
                                                              MPN: 106950
                                                              PEDAL COVER
                                                              from £11.68
                                                              from £11.68
                                                              # 010
                                                              MPN: 124686
                                                              BUSH
                                                              from £4.76
                                                              from £4.76
                                                              # 011
                                                              MPN: 112127
                                                              SHIM 0,9 MM.
                                                              If required
                                                              from £0.53
                                                              from £0.53
                                                              # 011
                                                              MPN: 112128
                                                              SHIM 1,0 MM.
                                                              If required
                                                              from £24.13
                                                              from £24.13
                                                              # 011
                                                              MPN: 112129
                                                              SHIM 1,1 MM.
                                                              If required
                                                              from £0.53
                                                              from £0.53
                                                              # 011
                                                              MPN: 112130
                                                              SHIM 1,2 MM.
                                                              If required
                                                              from £0.57
                                                              from £0.57
                                                              # 011
                                                              MPN: 112131
                                                              SHIM 1,3 MM.
                                                              If required
                                                              from £0.53
                                                              from £0.53
                                                              # 012
                                                              MPN: 121317
                                                              BRAKE RELAY LEVER
                                                              # 013
                                                              MPN: 100424
                                                              BALL JOINT
                                                              from £41.51
                                                              from £41.51
                                                              # 014
                                                              MPN: 119164
                                                              TIE ROD
                                                              from £51.56
                                                              from £51.56
                                                              # 015
                                                              MPN: 104910
                                                              FORK RH THREAD
                                                              from £4.22
                                                              from £4.22
                                                              # 016
                                                              MPN: 104911
                                                              FORK LH THREAD
                                                              from £10.33
                                                              from £10.33
                                                              # 017
                                                              MPN: 10033411
                                                              PIN
                                                              from £42.00
                                                              from £42.00
                                                              This part replaces part number 10033441 - and 3 more. Click to view details
                                                              # 018
                                                              MPN: 103167
                                                              WASHER
                                                              from £1.97
                                                              from £1.97
                                                              # 019
                                                              MPN: 10796440
                                                              SPLIT PIN
                                                              Supersession
                                                              Supersession
                                                              This part replaces part number 264555
                                                              # 020
                                                              MPN: 103157
                                                              NUT, LH THREAD
                                                              After exhaustion use no. 10788711
                                                              from £1.05
                                                              from £1.05
                                                              # 021
                                                              MPN: 103160
                                                              NUT, RH THREAD
                                                              After exhaustion use no. 11690911
                                                              from £1.16
                                                              from £1.16
                                                              # 022
                                                              MPN: 112157
                                                              BELLOWS
                                                              from £0.49
                                                              from £0.49
                                                              # 023
                                                              MPN: 101663
                                                              STOP LIGHT SWITCH (2 TERMINALS)
                                                              from £23.05
                                                              from £23.05
                                                              This part replaces part number 4177124 - and 13 more. Click to view details
                                                              # 024
                                                              MPN: 101662
                                                              SHOCK ABSORBING NUT
                                                              from £2.53
                                                              from £2.53
                                                              This part replaces part number 660523
                                                              # 025
                                                              MPN: 121219
                                                              BRAKE BOOSTER LEVER
                                                              from £25.14
                                                              from £25.14
                                                              # 026
                                                              MPN: 124586
                                                              BUSH
                                                              from £3.72
                                                              from £3.72
                                                              # 027
                                                              MPN: 124714
                                                              RELAY LEVER SUPPORTING PIN
                                                              from £52.24
                                                              from £52.24
                                                              # 028
                                                              MPN: 13736911
                                                              SCREW
                                                              from £0.47
                                                              from £0.47
                                                              # 029
                                                              MPN: 141531
                                                              PEDAL RETURN SPRING
                                                              from £14.23
                                                              from £14.23
                                                              # 030
                                                              MPN: 108802/A
                                                              BRAKE RESERVOIR
                                                              from £74.58
                                                              from £74.58
                                                              This part replaces part number 119566 which we have in stock - and 1 more. Click to view details
                                                              # 031
                                                              MPN: 175189
                                                              SEAL RING
                                                              from £13.70
                                                              from £13.70
                                                              This part replaces part number 106625
                                                              # 032
                                                              MPN: 100881
                                                              3 WAY UNION
                                                              from £1.72
                                                              from £1.72
                                                              This part replaces part number 680025 - and 1 more. Click to view details
                                                              # 033
                                                              MPN: 120232
                                                              PIPE FROM 3 WAY UNION TO VALVE
                                                              from £7.52
                                                              from £7.52
                                                              # 034
                                                              MPN: 125031
                                                              PIPE FROM 3 WAY UNION TO VACUUM PUMP
                                                              from £11.81
                                                              from £11.81
                                                              # 035
                                                              MPN: 10730521
                                                              WASHER
                                                              from £2.78
                                                              from £2.78
                                                              This part replaces part number 10730501 which we have in stock
