ferrari testarossa (1990) differential & axle shafts parts diagram

036 - Differential & Axle Shafts

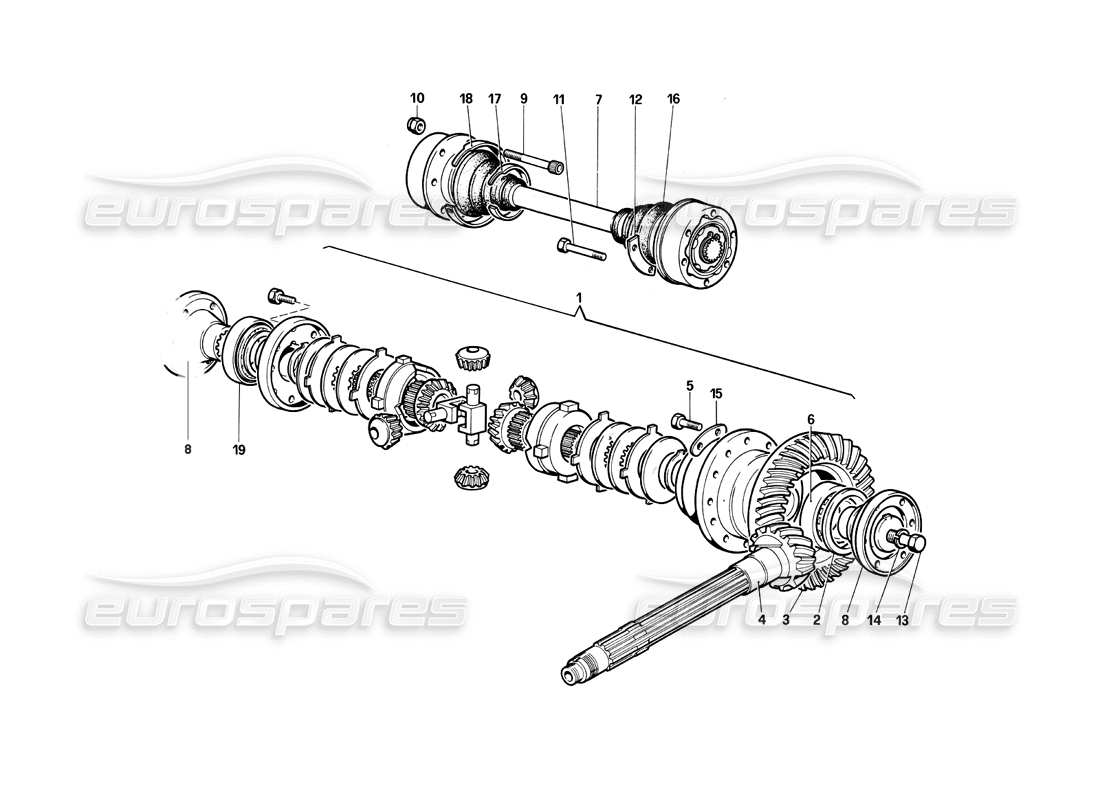

Ferrari Testarossa (1990) Differential & Axle Shafts Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Key
                              Price
                              # 001
                              MPN: 155099

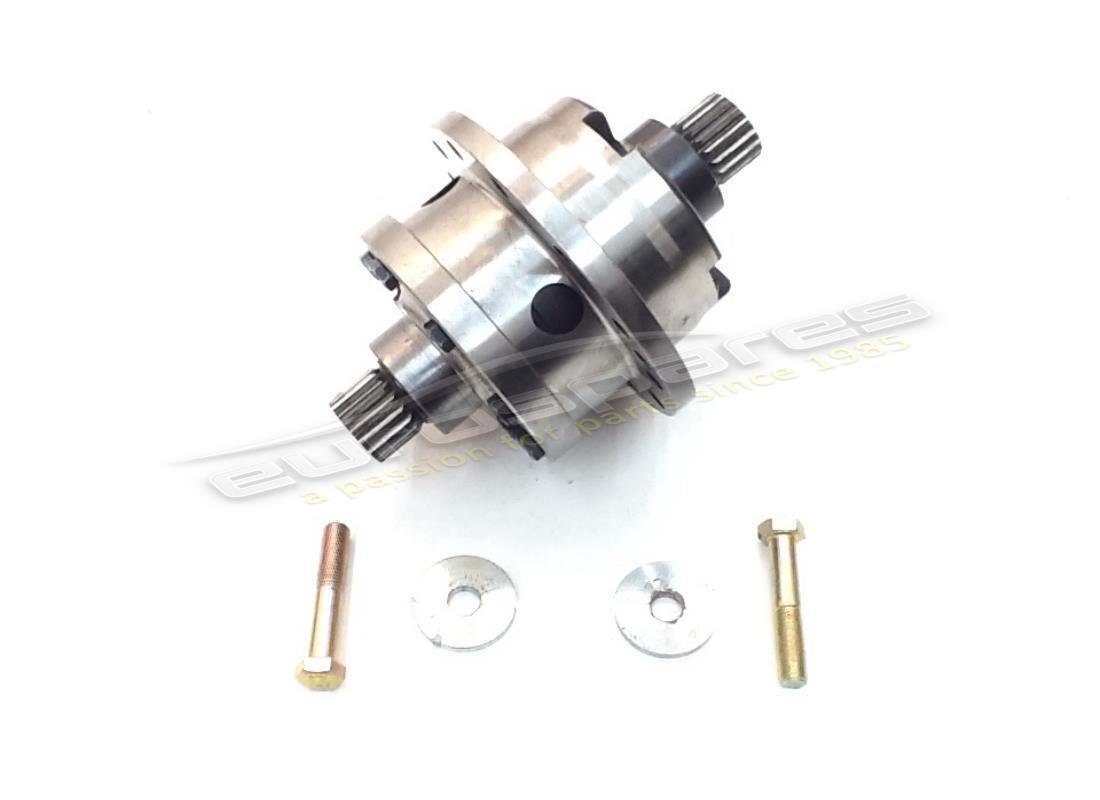

                              DIFFERENTIAL, COMPLETE
                              from £3,879.30
                              from £3,879.30
                              This part replaces part number 103262 - and 2 more. Click to view details
                              DIFFERENTIAL (EAP1392801) Eurospares Approved Part - New In stock
                              DIFFERENTIAL UNIT Genuine Ferrari Part - New In stock
                              # 002
                              MPN: 103422
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING, THICKNESS MM. 2,40
                              from £52.02
                              from £52.02
                              SPACER 2.40MM Genuine Ferrari Part - New In stock
                              # 002
                              MPN: 103423
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING, THICKNESS MM. 2,60
                              from £90.41
                              from £90.41
                              SPACER 2.60MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 103424
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING, THICKNESS MM, 2,862
                              from £103.92
                              from £103.92
                              This part replaces part number 103231
                              SPACER 2.80MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 103424
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING, THICKNESS MM. 2,80
                              from £103.92
                              from £103.92
                              This part replaces part number 103231
                              SPACER 2.80MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 103425
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING, THICKNESS MM. 3,00
                              from £52.02
                              from £52.02
                              SPACER 3.00MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 103426
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING, THICKNESS MM. 3,20
                              from £110.82
                              from £110.82
                              SPACER 3.20MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 110016
                              CROWN WHEEL & PINION (RATIO 14/45)
                              from £10,198.77
                              from £10,198.77
                              This part replaces part number 110013 - and 2 more. Click to view details
                              CROWN WHEEL AND PINION SET R14/45 Genuine Ferrari Part - New In stock
                              # 002
                              MPN: 132923
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2 45
                              from £52.02
                              from £52.02
                              SPACER 2.45MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 132924
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2 50
                              from £50.40
                              from £50.40
                              SPACER 2.50MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 132925
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2,55
                              from £52.02
                              from £52.02
                              SPACER 2.55MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 132926
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2,65
                              from £52.92
                              from £52.92
                              SPACER 2.65MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 132927
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2,70
                              from £54.69
                              from £54.69
                              SPACER 2.70MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 132928
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2,75
                              from £74.31
                              from £74.31
                              SPACER 2.75MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 132929
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2 85
                              from £89.21
                              from £89.21
                              SPACER 2.85MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 132930
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2 90
                              from £134.34
                              from £134.34
                              SPACER 2.90MM Genuine Ferrari Part - New (to order)
                              # 002
                              MPN: 132931
                              SPACE FOR LEFT DIFFERENTIAL SUPPORT BEARING THICKNESS MM. 2,95
                              from £48.00
                              from £48.00
                              SPACER 2.95MM Genuine Ferrari Part - New (to order)
                              # 003
                              MPN: 110014
                              CROWN WHEEL (RATIO 14/45)
                              use : 110016
                              Supersession
                              Supersession
                              Genuine Ferrari Part (no longer available to order)
                              # 004
                              MPN: 110013
                              PINION SHAFT (RATIO 14/45)
                              use : 110016
                              Supersession
                              Supersession
                              Genuine Ferrari Part (no longer available to order)
                              # 005
                              MPN: 171275
                              SCREW
                              from £21.51
                              from £21.51
                              This part replaces part number 153710
                              CROWN WHEEL BOLT(1MM PITCH) Genuine Ferrari Part - New (to order)
                              CROWN WHEEL BOLT(1MM PITCH) (LOCK WIRE TYPE) (171275/A) Genuine Ferrari Part - New (to order)
                              # 006
                              MPN: 101634
                              BEARING FOR DIFFERENTIAL SUPPORT
                              For left cover
                              from £91.79
                              from £91.79
                              This part replaces part number 580881
                              BEARING FOR DIFFERENTIAL SUPPORT Genuine Ferrari Part - New In stock
                              # 007
                              MPN: 116016
                              AXLE SHAFT ASSY
                              from £1,592.04
                              from £1,592.04
                              DRIVE SHAFT Genuine Ferrari Part - New (to order)
                              DRIVE SHAFT Genuine Ferrari Part - Used In stock
                              # 008
                              MPN: 10-32-07
                              AXLE SHAFT SECURING FLANGE
                              from £479.82
                              from £479.82
                              LH FOOTWELL SIDE CARPET Genuine Ferrari Part - New (to order)
                              # 009
                              MPN: 101632
                              DRIVESHAFT BOLT
                              from £15.05
                              from £15.05
                              This part replaces part number 103432 - and 5 more. Click to view details
                              BOLT (101632) Eurospares Approved Part - New In stock
                              BOLT Genuine Ferrari Part - New In stock
                              BOLT Genuine Ferrari Part - Used In stock
                              BOLT (101632) Original Equipment - New In stock
                              # 010
                              MPN: 101633
                              DRIVESHAFT NUT
                              (original)
                              from £4.29
                              from £4.29
                              DRIVE SHAFT LOCKNUT Genuine Ferrari Part - New In stock
                              DRIVE SHAFT LOCKNUT Genuine Ferrari Part - Used In stock
                              # 011
                              MPN: 104183
                              SCREW SECURING AXLE SHAFT TO DIFFERENTIAL
                              from £21.29
                              from £21.29
                              DRIVESHAFT BOLT Genuine Ferrari Part - New (to order)
                              # 012
                              MPN: 104184
                              SAFETY PLATE
                              from £4.01
                              from £4.01
                              This part replaces part number 580553 - and 1 more. Click to view details
                              LOCK TAB Genuine Ferrari Part - New In stock
                              LOCK TAB Genuine Ferrari Part - Used In stock
                              # 013
                              MPN: 11399121
                              FLANGIA SECURING SCREW
                              from £2.81
                              from £2.81
                              BOLT Genuine Ferrari Part - New In stock
                              # 014
                              MPN: 10517070
                              WASHER
                              from £2.95
                              from £2.95
                              WASHER Genuine Ferrari Part - New In stock
                              # 015
                              MPN: 10-32-34
                              SAFETY PLATE
                              from £9.04
                              from £9.04
                              LOCK TAB Genuine Ferrari Part - New (to order)
                              # 016
                              MPN: 95860404
                              DRIVE SHAFT GAITER
                              from £9.95
                              from £9.95
                              This part replaces part number 95860404/A
                              DRIVE SHAFT GAITER / BOOT (95860404) Eurospares Approved Part - New In stock
                              DRIVE SHAFT GAITER / BOOT Genuine Ferrari Part - New (to order)
                              # 016
                              MPN: 95860404/A
                              CV BOOT KIT
                              Supersession
                              Supersession
                              Genuine Ferrari Part (no longer available to order)
                              # 017
                              MPN: 117956
                              CLAMP
                              from £2.77
                              from £2.77
                              DRIVE SHAFT BOOT CLIP (117956) Eurospares Approved Part - New In stock
                              DRIVE SHAFT BOOT CLIP Genuine Ferrari Part - New In stock
                              # 018
                              MPN: 117957
                              CLAMP
                              from £3.56
                              from £3.56
                              DRIVE SHAFT BOOT CLIP (117957) Eurospares Approved Part - New In stock
                              DRIVE SHAFT BOOT CLIP Genuine Ferrari Part - New (to order)
                              # 019
                              MPN: 125390
                              BEARING FOR DIFFERENTIAL SUPPORT
                              For RH cover
                              from £96.46
                              from £96.46
                              RH BEARING FOR DIFFERENTIAL SUPPORT Genuine Ferrari Part - New (to order)
