ferrari testarossa (1990) gearbox - mounting and covers parts diagram

031 - Gearbox - Mounting and Covers

Ferrari Testarossa (1990) Gearbox - Mounting and Covers Parts Diagram

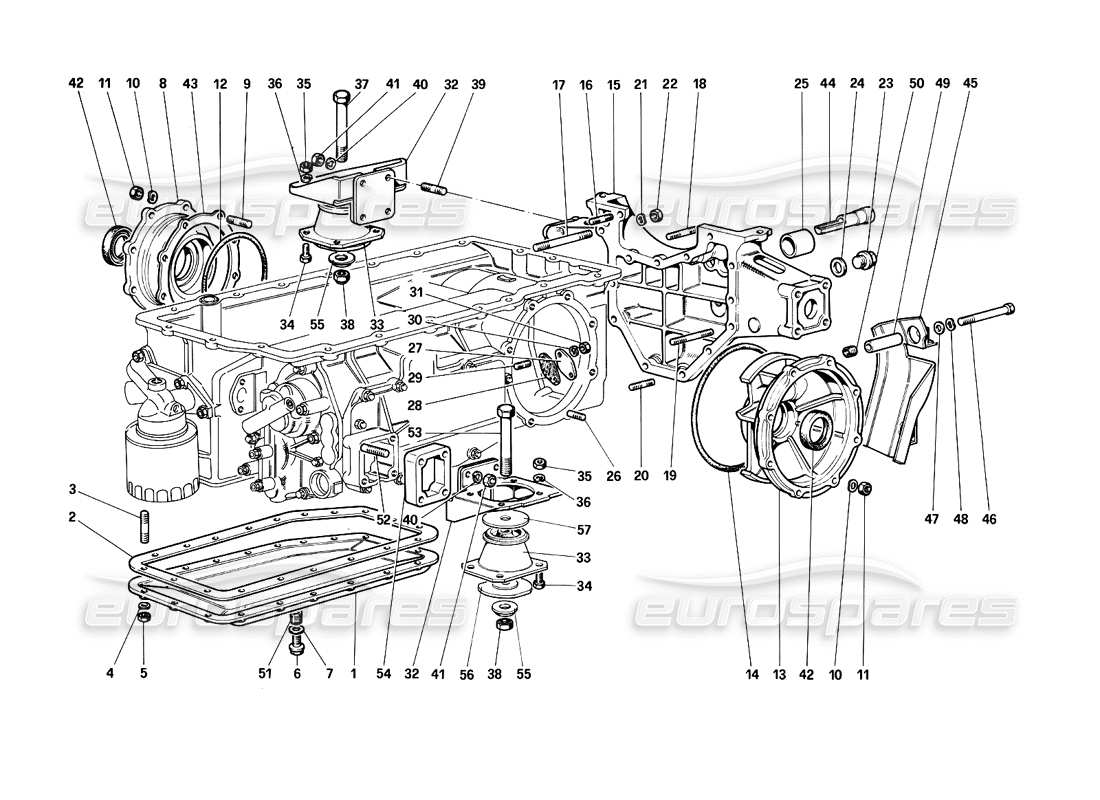

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 001
                                                                                                            MPN: 109436
                                                                                                            OIL SUMP COVER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 002
                                                                                                            MPN: 146189
                                                                                                            GASKET
                                                                                                            from £15.20
                                                                                                            from £15.20
                                                                                                            This part replaces part number 104674
                                                                                                            # 002
                                                                                                            MPN: 146189
                                                                                                            GASKET
                                                                                                            Without Amianthus
                                                                                                            from £15.20
                                                                                                            from £15.20
                                                                                                            This part replaces part number 104674
                                                                                                            # 003
                                                                                                            MPN: 13541124
                                                                                                            STUD
                                                                                                            from £11.55
                                                                                                            from £11.55
                                                                                                            This part replaces part number 13541121
                                                                                                            # 004
                                                                                                            MPN: 11197774
                                                                                                            WASHER
                                                                                                            from £0.52
                                                                                                            from £0.52
                                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                            # 005
                                                                                                            MPN: 15896221
                                                                                                            NUT
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            This part replaces part number 15896225
                                                                                                            # 006
                                                                                                            MPN: 103974
                                                                                                            ENGINE OIL DRAIN PLUG
                                                                                                            from £25.70
                                                                                                            from £25.70
                                                                                                            This part replaces part number 101477 - and 1 more. Click to view details
                                                                                                            # 007
                                                                                                            MPN: 10257060
                                                                                                            GASKET
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                            # 008
                                                                                                            MPN: 125459
                                                                                                            DIFFERENTIAL RH SIDE COVER
                                                                                                            from £950.76
                                                                                                            from £950.76
                                                                                                            # 009
                                                                                                            MPN: 13546521
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 010
                                                                                                            MPN: 12601471
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 011
                                                                                                            MPN: 12164721
                                                                                                            NUT
                                                                                                            from £0.61
                                                                                                            from £0.61
                                                                                                            # 012
                                                                                                            MPN: 103017
                                                                                                            SEAL RING
                                                                                                            from £13.23
                                                                                                            from £13.23
                                                                                                            # 013
                                                                                                            MPN: 156352
                                                                                                            DIFFERENTIAL LH SIDE COVER
                                                                                                            from £995.00
                                                                                                            from £995.00
                                                                                                            This part replaces part number 109629 - and 1 more. Click to view details
                                                                                                            # 014
                                                                                                            MPN: 109640
                                                                                                            SEAL RING
                                                                                                            from £8.23
                                                                                                            from £8.23
                                                                                                            # 015
                                                                                                            MPN: 109603
                                                                                                            INTERMEDIATE COVER
                                                                                                            from £190.50
                                                                                                            from £190.50
                                                                                                            # 016
                                                                                                            MPN: 13543324
                                                                                                            STUD
                                                                                                            from £0.83
                                                                                                            from £0.83
                                                                                                            This part replaces part number 13543321
                                                                                                            # 017
                                                                                                            MPN: 13970821
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 018
                                                                                                            MPN: 13544141
                                                                                                            STUD
                                                                                                            # 019
                                                                                                            MPN: 13544421
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 020
                                                                                                            MPN: 13543421
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 021
                                                                                                            MPN: 12601371
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 022
                                                                                                            MPN: 16100821
                                                                                                            NUT
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            This part replaces part number 16100825 which we have in stock
                                                                                                            # 023
                                                                                                            MPN: 10275011
                                                                                                            OIL LEVEL INSPECTION PLUG
                                                                                                            from £1.05
                                                                                                            from £1.05
                                                                                                            This part replaces part number 10275001 - and 3 more. Click to view details
                                                                                                            # 024
                                                                                                            MPN: 10263460
                                                                                                            GASKET
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 95119
                                                                                                            # 025
                                                                                                            MPN: 109335
                                                                                                            BUSHING BETWEEN INTERM. BODY AND CLUTCH HOUSING
                                                                                                            from £15.04
                                                                                                            from £15.04
                                                                                                            # 026
                                                                                                            MPN: 13546321
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 13546320
                                                                                                            # 027
                                                                                                            MPN: 104772
                                                                                                            RANGE FOR OIL PORTS
                                                                                                            from £7.78
                                                                                                            from £7.78
                                                                                                            # 028
                                                                                                            MPN: 146190
                                                                                                            GASKET
                                                                                                            from £1.36
                                                                                                            from £1.36
                                                                                                            This part replaces part number 104773
                                                                                                            # 028
                                                                                                            MPN: 146190
                                                                                                            GASKET
                                                                                                            Without Amianthus
                                                                                                            from £1.36
                                                                                                            from £1.36
                                                                                                            This part replaces part number 104773
                                                                                                            # 029
                                                                                                            MPN: 11500121
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 13540820
                                                                                                            # 030
                                                                                                            MPN: 10516471
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 031
                                                                                                            MPN: 15896221
                                                                                                            NUT
                                                                                                            from £0.71
                                                                                                            from £0.71
                                                                                                            This part replaces part number 15896225
                                                                                                            # 032
                                                                                                            MPN: 105642
                                                                                                            ENGINE SUPPORT
                                                                                                            from £15.09
                                                                                                            from £15.09
                                                                                                            # 033
                                                                                                            MPN: 155454
                                                                                                            RUBBER PAD COMPLETE
                                                                                                            from £117.66
                                                                                                            from £117.66
                                                                                                            This part replaces part number 132353 - and 2 more. Click to view details
                                                                                                            # 034
                                                                                                            MPN: 15970621
                                                                                                            BOLT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 035
                                                                                                            MPN: 12164711
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 12164712
                                                                                                            # 036
                                                                                                            MPN: 127497
                                                                                                            WASHER
                                                                                                            from £0.52
                                                                                                            from £0.52
                                                                                                            This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                            # 037
                                                                                                            MPN: 11369634
                                                                                                            REAR PADS SECURITY BOLT
                                                                                                            from £1.92
                                                                                                            from £1.92
                                                                                                            This part replaces part number 11369624 - and 1 more. Click to view details
                                                                                                            # 038
                                                                                                            MPN: 12575911
                                                                                                            NUT
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 039
                                                                                                            MPN: 13546321
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 13546320
                                                                                                            # 040
                                                                                                            MPN: 127497
                                                                                                            WASHER
                                                                                                            from £0.52
                                                                                                            from £0.52
                                                                                                            This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                            # 041
                                                                                                            MPN: 12164721
                                                                                                            NUT
                                                                                                            from £0.61
                                                                                                            from £0.61
                                                                                                            # 042
                                                                                                            MPN: 133628
                                                                                                            OIL SEAL
                                                                                                            from £29.85
                                                                                                            from £29.85
                                                                                                            This part replaces part number 125077 - and 1 more. Click to view details
                                                                                                            # 042
                                                                                                            MPN: 133628
                                                                                                            OIL SEAL
                                                                                                            from £29.85
                                                                                                            from £29.85
                                                                                                            This part replaces part number 125077 - and 1 more. Click to view details
                                                                                                            # 042
                                                                                                            MPN: 141509
                                                                                                            LH SEAL RING ON SIDE COVERS
                                                                                                            After exhaustion no. 125077
                                                                                                            from £69.86
                                                                                                            from £69.86
                                                                                                            This part replaces part number 125077
                                                                                                            # 043
                                                                                                            MPN: 103427
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,2 MM.
                                                                                                            from £189.51
                                                                                                            from £189.51
                                                                                                            # 043
                                                                                                            MPN: 103428
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,4 MM.
                                                                                                            from £130.99
                                                                                                            from £130.99
                                                                                                            # 043
                                                                                                            MPN: 103429
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,638 MM.
                                                                                                            from £168.45
                                                                                                            from £168.45
                                                                                                            This part replaces part number 103232
                                                                                                            # 043
                                                                                                            MPN: 103429
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,6 MM.
                                                                                                            from £168.45
                                                                                                            from £168.45
                                                                                                            This part replaces part number 103232
                                                                                                            # 043
                                                                                                            MPN: 103430
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,8 MM.
                                                                                                            from £170.48
                                                                                                            from £170.48
                                                                                                            # 043
                                                                                                            MPN: 103431
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 2,0 MM.
                                                                                                            from £99.32
                                                                                                            from £99.32
                                                                                                            # 043
                                                                                                            MPN: 130988
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,3 MM.
                                                                                                            from £46.28
                                                                                                            from £46.28
                                                                                                            # 043
                                                                                                            MPN: 130989
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,5 MM.
                                                                                                            from £100.66
                                                                                                            from £100.66
                                                                                                            # 043
                                                                                                            MPN: 130990
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,7 MM.
                                                                                                            from £49.54
                                                                                                            from £49.54
                                                                                                            # 043
                                                                                                            MPN: 130991
                                                                                                            SPACER ON RH SIDE COVER, THICKNESS 1,9 MM.
                                                                                                            from £295.56
                                                                                                            from £295.56

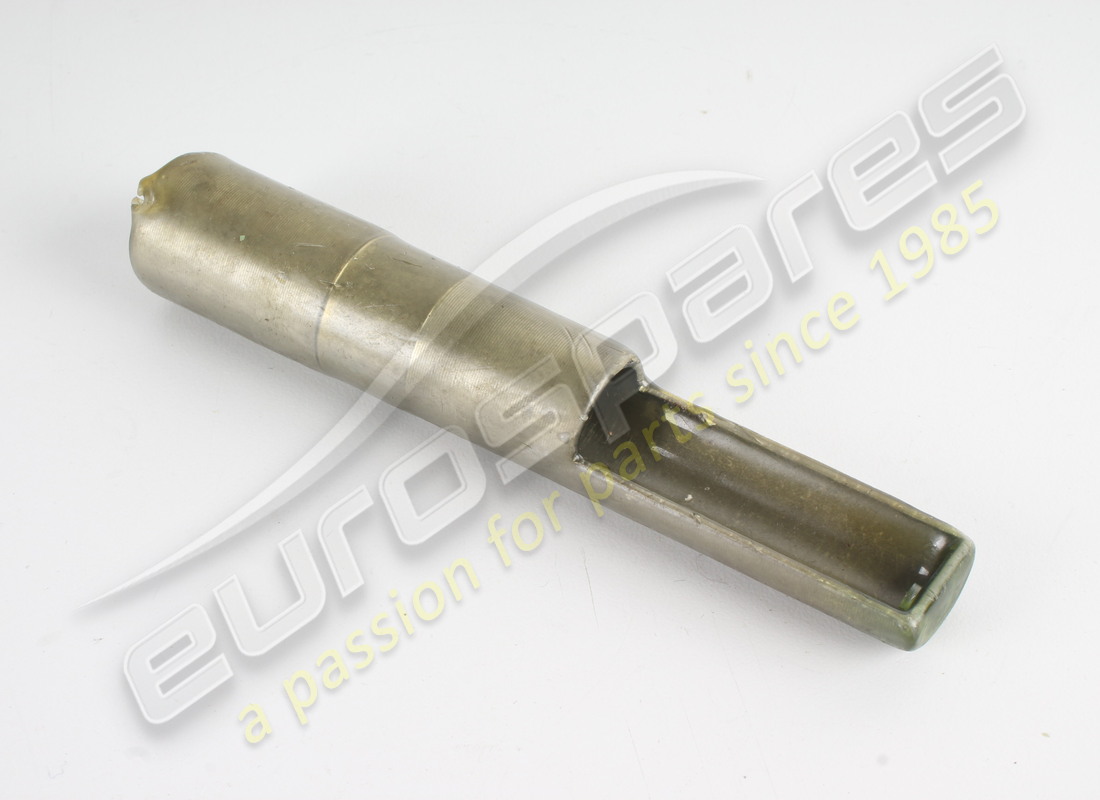

                                                                                                            # 044
                                                                                                            MPN: 109339
                                                                                                            OIL PIPE
                                                                                                            from £21.25
                                                                                                            from £21.25
                                                                                                            # 045
                                                                                                            MPN: 109683
                                                                                                            OIL CONVEYOR
                                                                                                            from £41.40
                                                                                                            from £41.40
                                                                                                            # 046
                                                                                                            MPN: 11032321
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 047
                                                                                                            MPN: 12643724
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                            # 048
                                                                                                            MPN: 106850
                                                                                                            WASHER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                            # 049
                                                                                                            MPN: 109682
                                                                                                            CONVEYOR SUPPORTING STUD
                                                                                                            from £5.19
                                                                                                            from £5.19
                                                                                                            # 050
                                                                                                            MPN: 13524170
                                                                                                            HELI-COIL
                                                                                                            This part replaces part number 109662
                                                                                                            # 051
                                                                                                            MPN: 111352
                                                                                                            HELI-COIL
                                                                                                            use part number: 111352/A
                                                                                                            from £68.07
                                                                                                            from £68.07
                                                                                                            # 052
                                                                                                            MPN: 13546921
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 053
                                                                                                            MPN: 11369634
                                                                                                            FRONT PADS SECURING BOLT
                                                                                                            from £1.92
                                                                                                            from £1.92
                                                                                                            This part replaces part number 11369624 - and 1 more. Click to view details
                                                                                                            # 054
                                                                                                            MPN: 107530
                                                                                                            SPACER FOR PADS SUPPORT
                                                                                                            from £107.68
                                                                                                            from £107.68
                                                                                                            # 055
                                                                                                            MPN: 124731
                                                                                                            WASHER SECURING FRONT RUBBER PADS
                                                                                                            from £3.27
                                                                                                            from £3.27
                                                                                                            # 056
                                                                                                            MPN: 130972
                                                                                                            LOWER PLATE
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 057
                                                                                                            MPN: 130973
                                                                                                            UPPER PLATE
                                                                                                            from £39.23
                                                                                                            from £39.23
                                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
