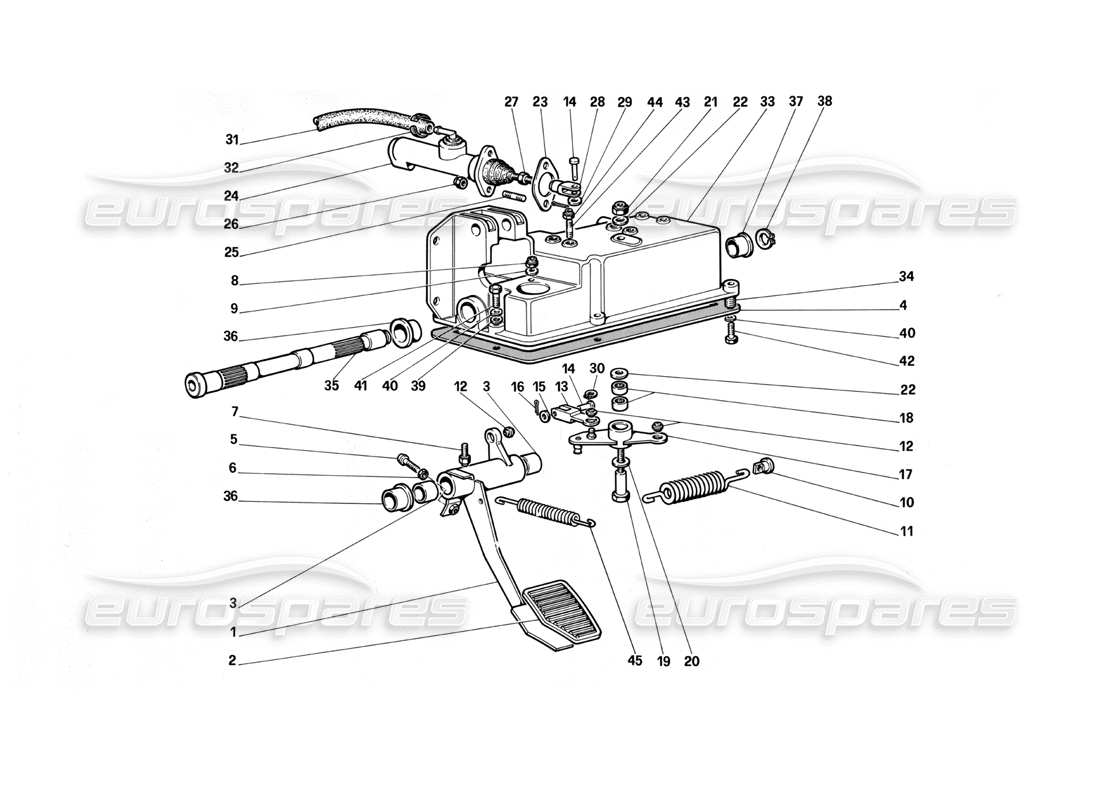

ferrari testarossa (1990) clutch release control parts diagram

029 - clutch release control

Ferrari Testarossa (1990) Clutch Release Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 001
                                                                                            MPN: 121230
                                                                                            CLUTCH PEDAL
                                                                                            from £52.50
                                                                                            from £52.50
                                                                                            # 002
                                                                                            MPN: 106949
                                                                                            PEDAL COVER
                                                                                            from £18.10
                                                                                            from £18.10
                                                                                            # 003
                                                                                            MPN: 103163
                                                                                            BUSH
                                                                                            from £2.85
                                                                                            from £2.85
                                                                                            # 004
                                                                                            MPN: 119331
                                                                                            GASKET
                                                                                            from £8.47
                                                                                            from £8.47
                                                                                            # 005
                                                                                            MPN: 123961
                                                                                            STOP PUSH ROD
                                                                                            from £2.48
                                                                                            from £2.48
                                                                                            # 006
                                                                                            MPN: 16102311
                                                                                            NUT
                                                                                            from £0.43
                                                                                            from £0.43
                                                                                            This part replaces part number 16102315
                                                                                            # 007
                                                                                            MPN: 114825
                                                                                            STOP PUSH ROD
                                                                                            from £38.43
                                                                                            from £38.43
                                                                                            # 008
                                                                                            MPN: 16100821
                                                                                            NUT
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            This part replaces part number 16100825 which we have in stock
                                                                                            # 009
                                                                                            MPN: 12601371
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 010
                                                                                            MPN: 114828
                                                                                            SPRING RETAINING PIN
                                                                                            from £21.88
                                                                                            from £21.88
                                                                                            # 011
                                                                                            MPN: 114826
                                                                                            SERVICE SPRING
                                                                                            from £24.87
                                                                                            from £24.87
                                                                                            # 012
                                                                                            MPN: 109407
                                                                                            BALL JOINT
                                                                                            from £21.95
                                                                                            from £21.95
                                                                                            # 013
                                                                                            MPN: 121209
                                                                                            FORK
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 014
                                                                                            MPN: 10050810
                                                                                            PIN
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 015
                                                                                            MPN: 10519624
                                                                                            WASHER
                                                                                            from £0.54
                                                                                            from £0.54
                                                                                            This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                            # 016
                                                                                            MPN: 10734201
                                                                                            SPLIT PIN
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 017

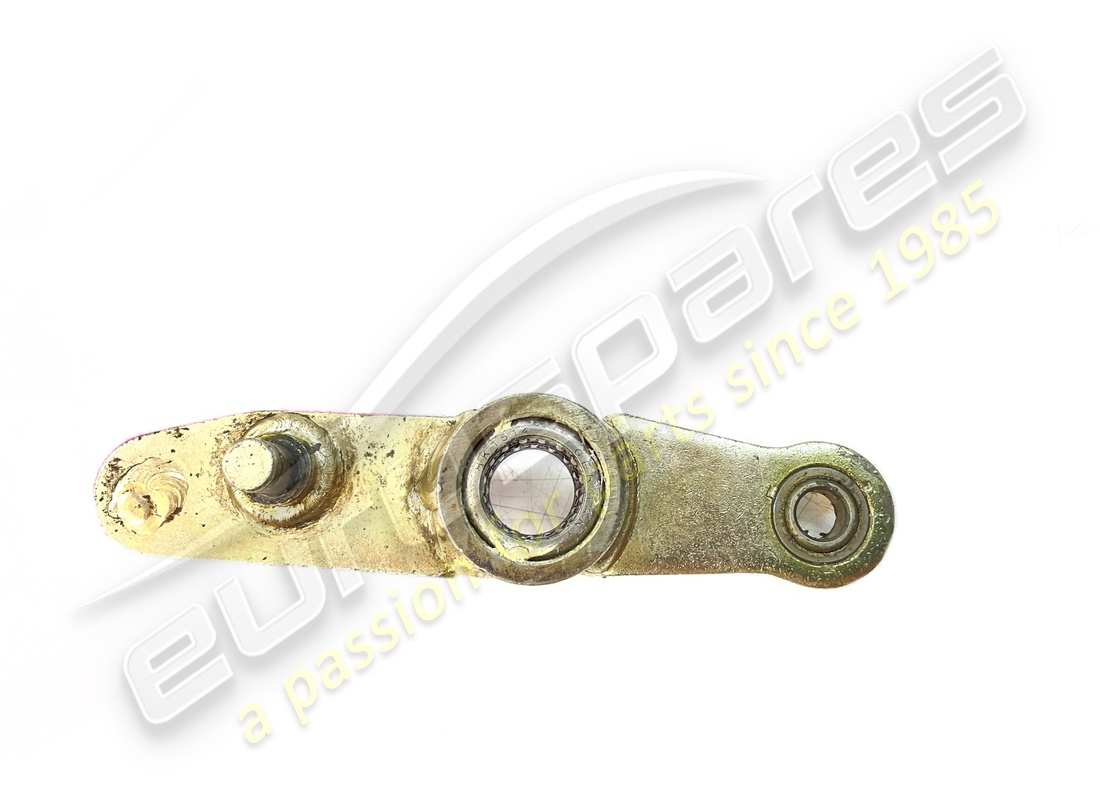

                                                                                            MPN: 121233
                                                                                            RELAY LEVER
                                                                                            from £40.77
                                                                                            from £40.77
                                                                                            # 018
                                                                                            MPN: 115430
                                                                                            ROLLER CAGE
                                                                                            from £12.60
                                                                                            from £12.60
                                                                                            # 019
                                                                                            MPN: 114830
                                                                                            PIN FOR RELAY LEVER
                                                                                            from £6.12
                                                                                            from £6.12
                                                                                            # 020
                                                                                            MPN: 112126
                                                                                            SHIM
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 021
                                                                                            MPN: 148020
                                                                                            SELF LOCKING NUT
                                                                                            from £2.57
                                                                                            from £2.57
                                                                                            This part replaces part number 102825 - and 3 more. Click to view details
                                                                                            # 022
                                                                                            MPN: 113500
                                                                                            WASHER
                                                                                            from £10.25
                                                                                            from £10.25
                                                                                            # 023
                                                                                            MPN: 124469
                                                                                            SPACER
                                                                                            from £3.01
                                                                                            from £3.01
                                                                                            # 024
                                                                                            MPN: 175211
                                                                                            CLUTCH MASTER CYLINDER
                                                                                            from £88.42
                                                                                            from £88.42
                                                                                            This part replaces part number 123416 - and 4 more. Click to view details
                                                                                            # 025
                                                                                            MPN: 12354524
                                                                                            STUD
                                                                                            from £15.48
                                                                                            from £15.48
                                                                                            This part replaces part number 12354521
                                                                                            # 026
                                                                                            MPN: 104030
                                                                                            SELF LOCKING NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 16104125
                                                                                            # 027
                                                                                            MPN: 16102311
                                                                                            LOCKNUT
                                                                                            from £0.43
                                                                                            from £0.43
                                                                                            This part replaces part number 16102315
                                                                                            # 028
                                                                                            MPN: 10007871
                                                                                            FORK
                                                                                            from £5.83
                                                                                            from £5.83
                                                                                            # 029
                                                                                            MPN: 12642701
                                                                                            WASHER
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12642724
                                                                                            # 030
                                                                                            MPN: 11065676
                                                                                            SEEGER RING
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 11065675 - and 1 more. Click to view details
                                                                                            # 031
                                                                                            MPN: 136376
                                                                                            FEED PIPE FOR CLUTCH MASTER CYLINDER
                                                                                            from £15.17
                                                                                            from £15.17
                                                                                            This part replaces part number 132411 - and 1 more. Click to view details
                                                                                            # 032
                                                                                            MPN: 12179190
                                                                                            CLAMP
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 102604
                                                                                            # 033
                                                                                            MPN: 123247
                                                                                            PEDAL SUPPORT
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 034
                                                                                            MPN: 124777
                                                                                            THREADED BUSH
                                                                                            from £14.07
                                                                                            from £14.07
                                                                                            # 035
                                                                                            MPN: 112152
                                                                                            PEDALS SUPPORTING PIN
                                                                                            from £86.26
                                                                                            from £86.26
                                                                                            # 036
                                                                                            MPN: 124687
                                                                                            BUSH
                                                                                            from £5.43
                                                                                            from £5.43
                                                                                            # 037
                                                                                            MPN: 124686
                                                                                            BUSH
                                                                                            from £4.76
                                                                                            from £4.76
                                                                                            # 038
                                                                                            MPN: 11066676
                                                                                            SPRING RING
                                                                                            from £0.51
                                                                                            from £0.51
                                                                                            This part replaces part number 11066675
                                                                                            # 039
                                                                                            MPN: 10519620
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 040
                                                                                            MPN: 106852
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 10516670 - and 2 more. Click to view details
                                                                                            # 041
                                                                                            MPN: 16043821
                                                                                            SCREW
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 042
                                                                                            MPN: 16043421
                                                                                            SCREW
                                                                                            from £2.69
                                                                                            from £2.69
                                                                                            This part replaces part number 95524
                                                                                            # 043
                                                                                            MPN: 11500121
                                                                                            STUD SECURING WINDSHIELD WIPER MOTOR BRACKET
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 13540820
                                                                                            # 044
                                                                                            MPN: 12574221
                                                                                            NUT
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                            # 045
                                                                                            MPN: 141531
                                                                                            PEDAL RETURN SPRING
                                                                                            from £14.23
                                                                                            from £14.23
                                                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
