ferrari testarossa (1990) air injection and lines (for ch87 and cat) parts diagram

015 - Air Injection and Lines (for CH87 and Cat)

Ferrari Testarossa (1990) Air Injection and Lines (for CH87 and Cat) Parts Diagram

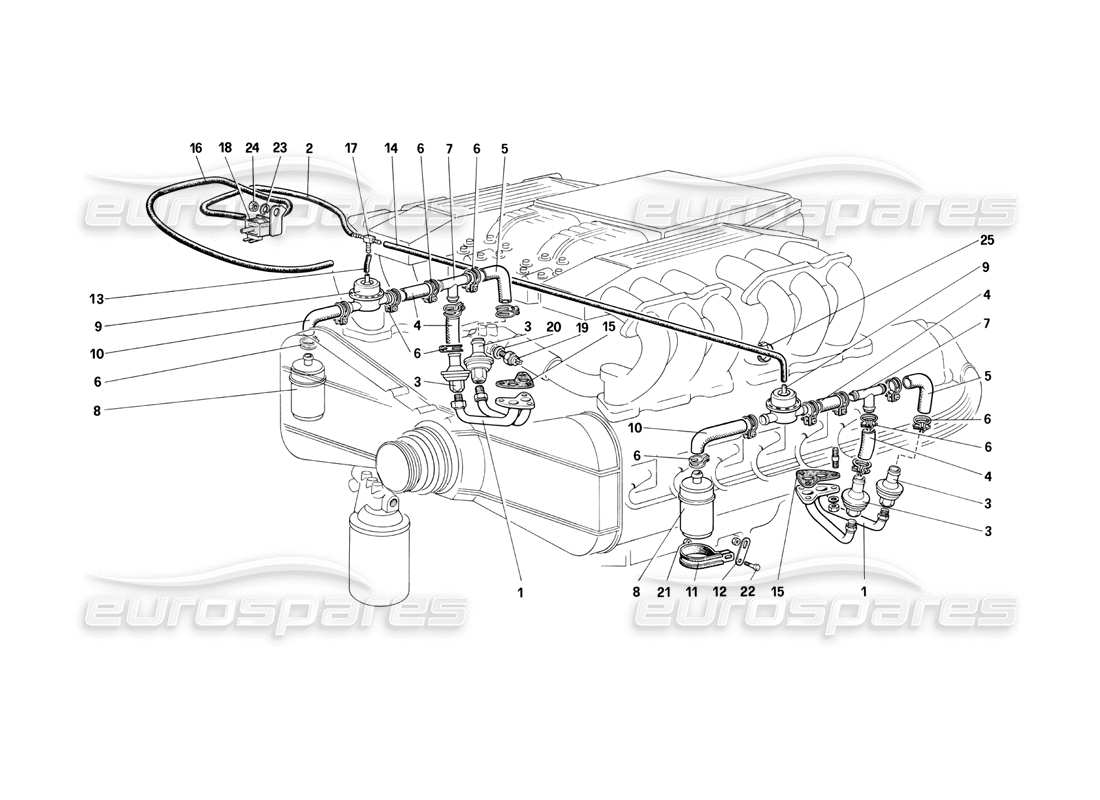

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 126983

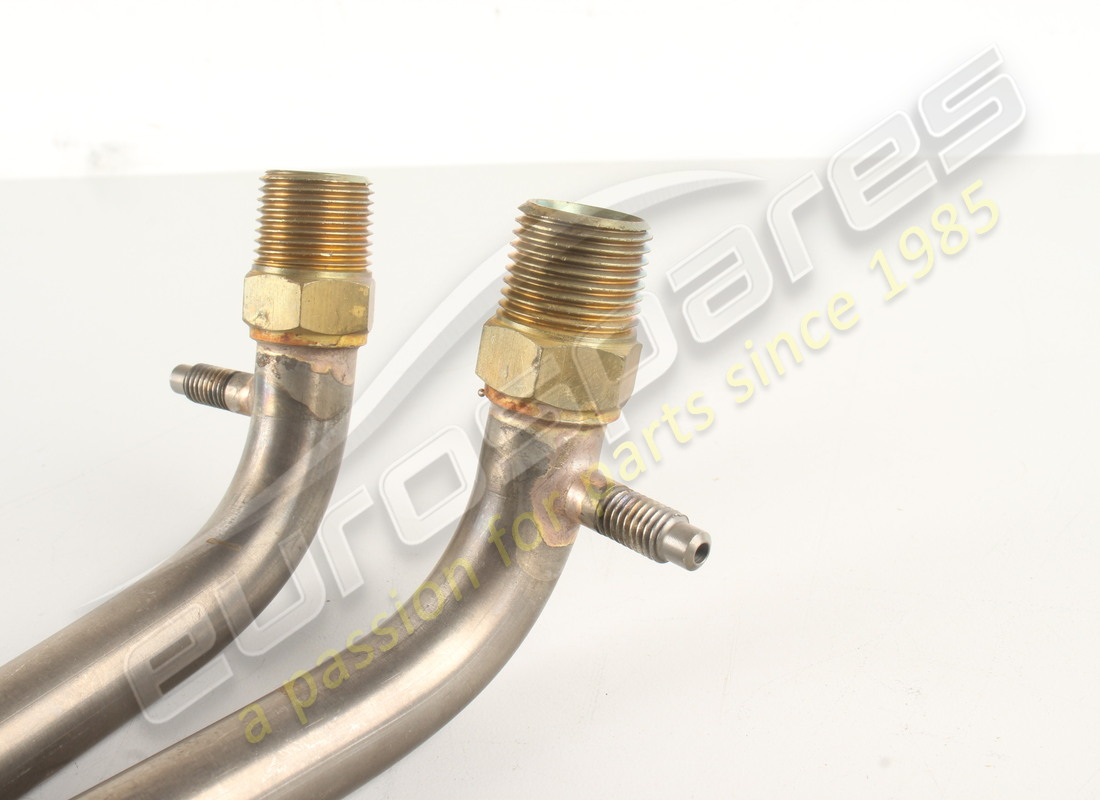

                                                  AIR INJECTION PIPE
                                                  from £195.83
                                                  from £195.83
                                                  # 002
                                                  MPN: 128907
                                                  PIPE
                                                  from £64.15
                                                  from £64.15
                                                  # 003
                                                  MPN: 148494
                                                  CHECK VALVE
                                                  from £402.05
                                                  from £402.05
                                                  This part replaces part number 121769 - and 9 more. Click to view details
                                                  # 004
                                                  MPN: 128714
                                                  PIPE
                                                  from £3.08
                                                  from £3.08
                                                  # 005
                                                  MPN: 128713
                                                  PIPE
                                                  from £13.59
                                                  from £13.59
                                                  # 006
                                                  MPN: 13000490
                                                  CLAMP
                                                  from £0.48
                                                  from £0.48
                                                  This part replaces part number 10169090 - and 3 more. Click to view details
                                                  # 007
                                                  MPN: 109887
                                                  T UNION
                                                  from £332.49
                                                  from £332.49
                                                  # 008
                                                  MPN: 127144
                                                  AIR INJECTION FILTER
                                                  from £163.71
                                                  from £163.71
                                                  # 009
                                                  MPN: 147390
                                                  CUT-OFF VALVE
                                                  from £176.28
                                                  from £176.28
                                                  This part replaces part number 121751 - and 3 more. Click to view details
                                                  # 010
                                                  MPN: 123860
                                                  PIPE
                                                  from £598.90
                                                  from £598.90
                                                  # 012
                                                  MPN: 128827
                                                  BRACKET
                                                  from £2.00
                                                  from £2.00
                                                  # 013
                                                  MPN: 122759
                                                  PIPE
                                                  from £3.15
                                                  from £3.15
                                                  # 014
                                                  MPN: 127893
                                                  PIPE
                                                  from £10.14
                                                  from £10.14
                                                  # 015
                                                  MPN: 146193
                                                  GASKET
                                                  from £2.92
                                                  from £2.92
                                                  This part replaces part number 127143
                                                  # 016
                                                  MPN: 122761
                                                  PIPE
                                                  from £52.48
                                                  from £52.48
                                                  This part replaces part number 275542
                                                  # 017
                                                  MPN: 121793
                                                  3 WAY UNION
                                                  from £0.47
                                                  from £0.47
                                                  # 018
                                                  MPN: 111704
                                                  ELECTROVALVE
                                                  For CAT.
                                                  from £160.61
                                                  from £160.61
                                                  This part replaces part number 129059
                                                  # 018
                                                  MPN: 129059
                                                  ELECTROVALVE
                                                  for C7
                                                  Supersession
                                                  Supersession
                                                  # 019
                                                  MPN: 189964
                                                  BIMETALLIC THERMOSWITCH
                                                  from £86.22
                                                  from £86.22
                                                  This part replaces part number 125878 - and 1 more. Click to view details
                                                  # 020
                                                  MPN: 10260060
                                                  GASKET
                                                  from £0.79
                                                  from £0.79
                                                  # 021
                                                  MPN: 104030
                                                  SELF LOCKING NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 16104125
                                                  # 022
                                                  MPN: 16043321
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 025
                                                  MPN: 103755
                                                  CLAMP
                                                  from £0.71
                                                  from £0.71
                                                  This part replaces part number 680994
