ferrari testarossa (1990) fuel tanks (for us - sa and ch88) parts diagram

009 - fuel tanks (for us - sa and CH88)

Ferrari Testarossa (1990) Fuel Tanks (for US - SA and CH88) Parts Diagram

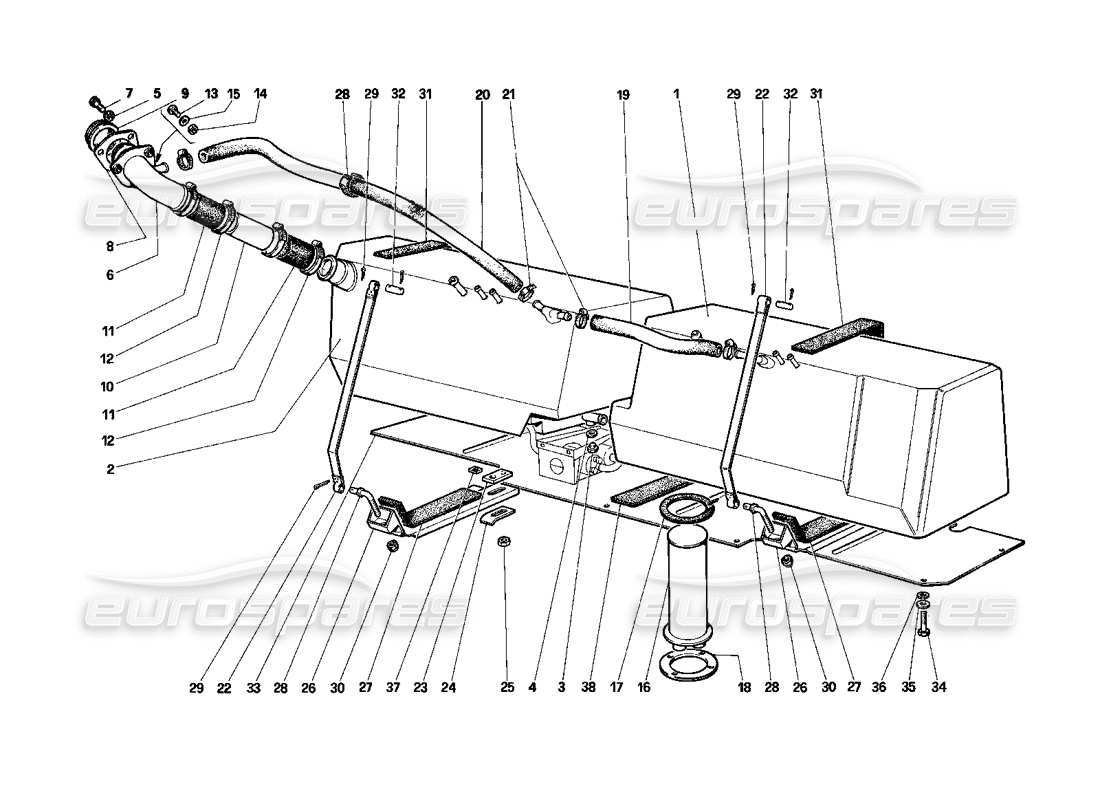

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 125848
                                                                      RIGHT FUEL TANK
                                                                      from £2,178.62
                                                                      from £2,178.62
                                                                      # 002
                                                                      MPN: 123872

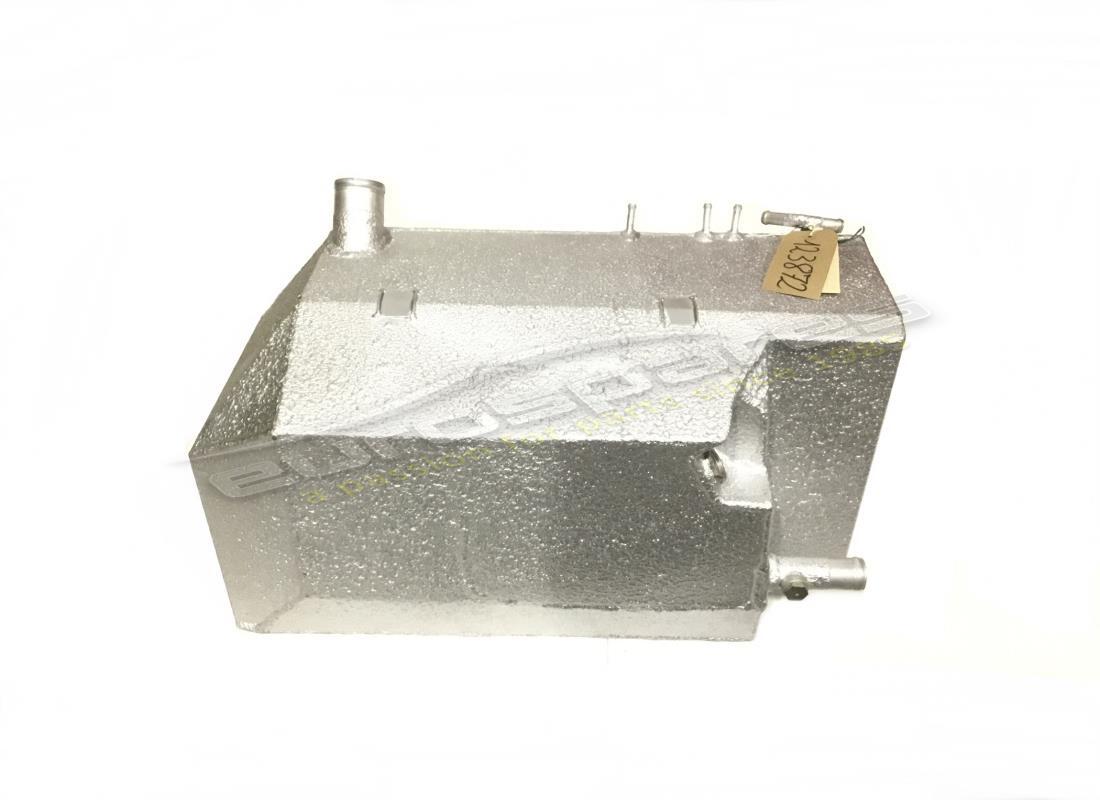

                                                                      LEFT FUEL TANK
                                                                      from £1,516.92
                                                                      from £1,516.92
                                                                      # 003
                                                                      MPN: 10300771
                                                                      FUEL DRAIN PLUG
                                                                      from £0.57
                                                                      from £0.57
                                                                      # 004
                                                                      MPN: 10278650
                                                                      GASKET
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 005
                                                                      MPN: 12601271
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 103372 - and 1 more. Click to view details
                                                                      # 006
                                                                      MPN: 123896
                                                                      FUEL FILLER
                                                                      For SA use no. 127018
                                                                      from £222.28
                                                                      from £222.28
                                                                      # 007
                                                                      MPN: 14064511
                                                                      SCREW
                                                                      from £0.80
                                                                      from £0.80
                                                                      # 008
                                                                      MPN: 123897
                                                                      GASKET
                                                                      Supersession
                                                                      Supersession
                                                                      # 009
                                                                      MPN: 113401
                                                                      FUEL FILLER CAP
                                                                      from £64.17
                                                                      from £64.17
                                                                      This part replaces part number 101453 - and 3 more. Click to view details
                                                                      # 010
                                                                      MPN: 122795
                                                                      PIPE
                                                                      from £13.66
                                                                      from £13.66
                                                                      # 011
                                                                      MPN: 115677
                                                                      SLEEVE
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 101455
                                                                      # 012
                                                                      MPN: 12174790
                                                                      CLAMP
                                                                      from £1.62
                                                                      from £1.62
                                                                      This part replaces part number 50188200
                                                                      # 013
                                                                      MPN: 10902221
                                                                      SCREW
                                                                      from £0.52
                                                                      from £0.52
                                                                      # 014
                                                                      MPN: 12574211
                                                                      NUT
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 015
                                                                      MPN: 12646601
                                                                      WASHER
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 016
                                                                      MPN: 144849
                                                                      CONTROL FOR FUEL LEVEL GAUGE
                                                                      From car no. 67547
                                                                      from £425.00
                                                                      from £425.00
                                                                      This part replaces part number 132134
                                                                      # 017
                                                                      MPN: 154802
                                                                      GASKET
                                                                      With part no. 122621
                                                                      from £17.11
                                                                      from £17.11
                                                                      This part replaces part number 116792 - and 2 more. Click to view details
                                                                      # 017
                                                                      MPN: 154802
                                                                      GASKET
                                                                      With part no. 132134
                                                                      from £17.11
                                                                      from £17.11
                                                                      This part replaces part number 116792 - and 2 more. Click to view details
                                                                      # 018
                                                                      MPN: 121435
                                                                      GAUGE SECURING RING NUT
                                                                      from £44.76
                                                                      from £44.76
                                                                      This part replaces part number 116012 - and 6 more. Click to view details
                                                                      # 019
                                                                      MPN: 125032
                                                                      BREATHER HOSE
                                                                      Supersession
                                                                      Supersession
                                                                      # 020
                                                                      MPN: 120469
                                                                      BREATHER HOSE
                                                                      from £33.69
                                                                      from £33.69
                                                                      This part replaces part number 125033 - and 1 more. Click to view details
                                                                      # 021
                                                                      MPN: 13000390
                                                                      CLAMP
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12179590 - and 1 more. Click to view details
                                                                      # 022
                                                                      MPN: 122797
                                                                      TANK SECURING STRAP
                                                                      from £11.08
                                                                      from £11.08
                                                                      # 023
                                                                      MPN: 123867
                                                                      SPACER
                                                                      from £2.01
                                                                      from £2.01
                                                                      # 024
                                                                      MPN: 115734
                                                                      SMALL PLATE
                                                                      from £2.00
                                                                      from £2.00
                                                                      # 025
                                                                      MPN: 12574211
                                                                      SELF LOCKING NUT
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 026
                                                                      MPN: 123866
                                                                      TANK SUPPORTING BRACKET
                                                                      from £9.79
                                                                      from £9.79
                                                                      # 027
                                                                      MPN: 125035
                                                                      SHIM
                                                                      from £1.37
                                                                      from £1.37
                                                                      This part replaces part number 141261
                                                                      # 028
                                                                      MPN: 127529
                                                                      TIE ROD
                                                                      from £121.96
                                                                      from £121.96
                                                                      This part replaces part number 12311271 - and 15 more. Click to view details
                                                                      # 029
                                                                      MPN: 10796440
                                                                      SPLIT PIN
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 264555
                                                                      # 030
                                                                      MPN: 104030
                                                                      SELF LOCKING NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 16104125
                                                                      # 031
                                                                      MPN: 125036
                                                                      SHIM
                                                                      from £4.10
                                                                      from £4.10
                                                                      # 032
                                                                      MPN: 103447
                                                                      PIN
                                                                      from £12.86
                                                                      from £12.86
                                                                      # 033
                                                                      MPN: 122800
                                                                      TANK PROTECTION PLATE
                                                                      After exhaustion use 138082 / 138083 / 138084
                                                                      Supersession
                                                                      Supersession
                                                                      # 033
                                                                      MPN: 138082
                                                                      CENTRAL PROTECTION PLATE
                                                                      After exhaustion no. 122800
                                                                      from £426.00
                                                                      from £426.00
                                                                      This part replaces part number 122800
                                                                      # 033
                                                                      MPN: 138083
                                                                      LHD PROTECTION PLATE
                                                                      After exhaustion no. 122800
                                                                      from £459.51
                                                                      from £459.51
                                                                      # 033
                                                                      MPN: 138084
                                                                      RHD PROTECTION PLATE
                                                                      After exhaustion no. 122800
                                                                      from £646.42
                                                                      from £646.42
                                                                      # 034
                                                                      MPN: 10902124
                                                                      SCREW
                                                                      from £0.50
                                                                      from £0.50
                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                      # 035
                                                                      MPN: 12643724
                                                                      FLAT WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                      # 036
                                                                      MPN: 127494
                                                                      SPRING WASHER
                                                                      from £0.50
                                                                      from £0.50
                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                      # 037
                                                                      MPN: 60758600
                                                                      GAGED NUT
                                                                      from £0.51
                                                                      from £0.51
                                                                      # 038
                                                                      MPN: 125037
                                                                      SHIM
                                                                      from £2.00
                                                                      from £2.00
