ferrari testarossa (1990) fuel tanks (not for us - sa and ch88) parts diagram

008 - fuel tanks (not for us - sa and CH88)

Ferrari Testarossa (1990) Fuel Tanks (Not for US - SA and CH88) Parts Diagram

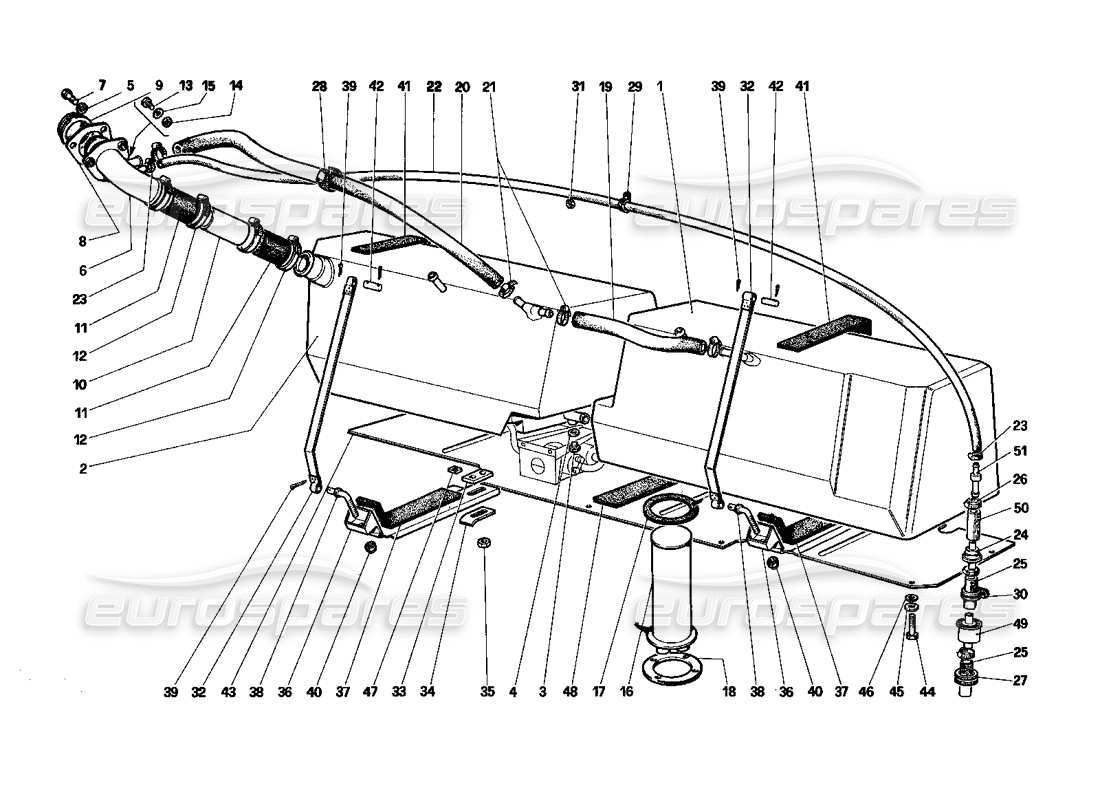

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                              #
                                                                                              Part number
                                                                                              Description
                                                                                              Price

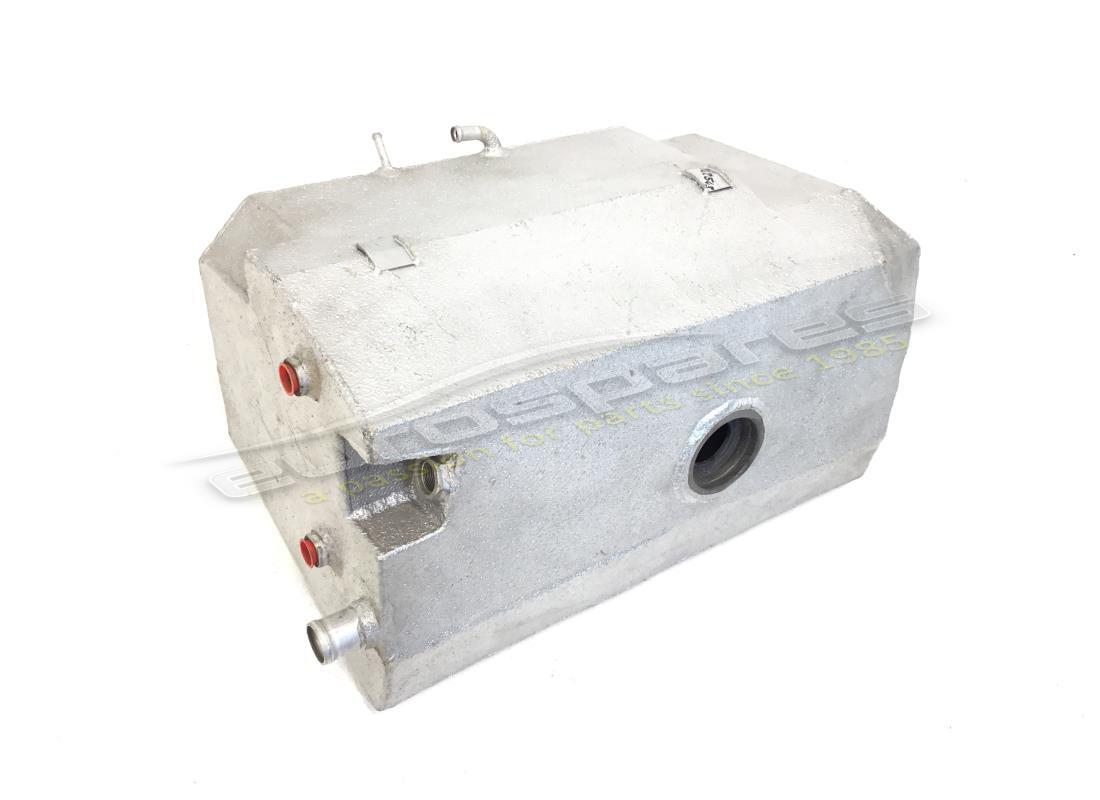

                                                                                              # 001
                                                                                              MPN: 119139
                                                                                              RIGHT FUEL TANK
                                                                                              Not for CAT.
                                                                                              from £865.40
                                                                                              from £865.40
                                                                                              # 001
                                                                                              MPN: 142543
                                                                                              RIGHT FUEL TANK
                                                                                              For CAT.
                                                                                              from £1,910.99
                                                                                              from £1,910.99

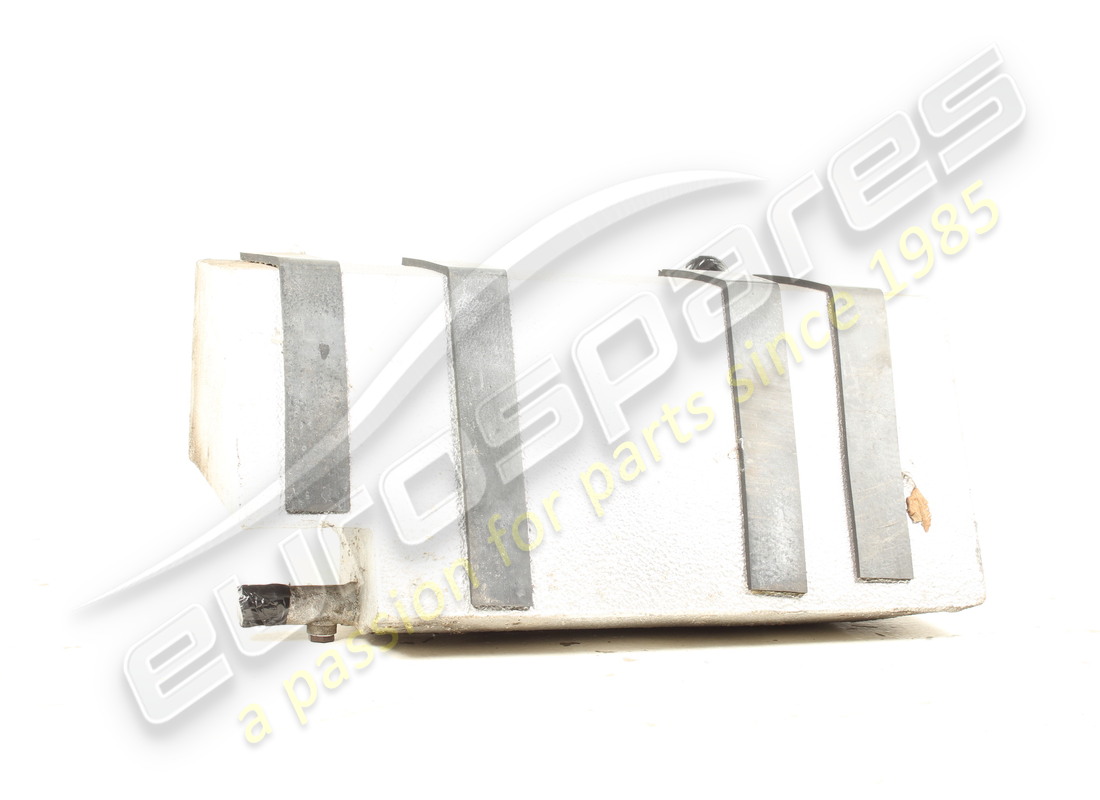

                                                                                              # 002
                                                                                              MPN: 119140
                                                                                              LEFT FUEL TAN
                                                                                              from £778.92
                                                                                              from £778.92

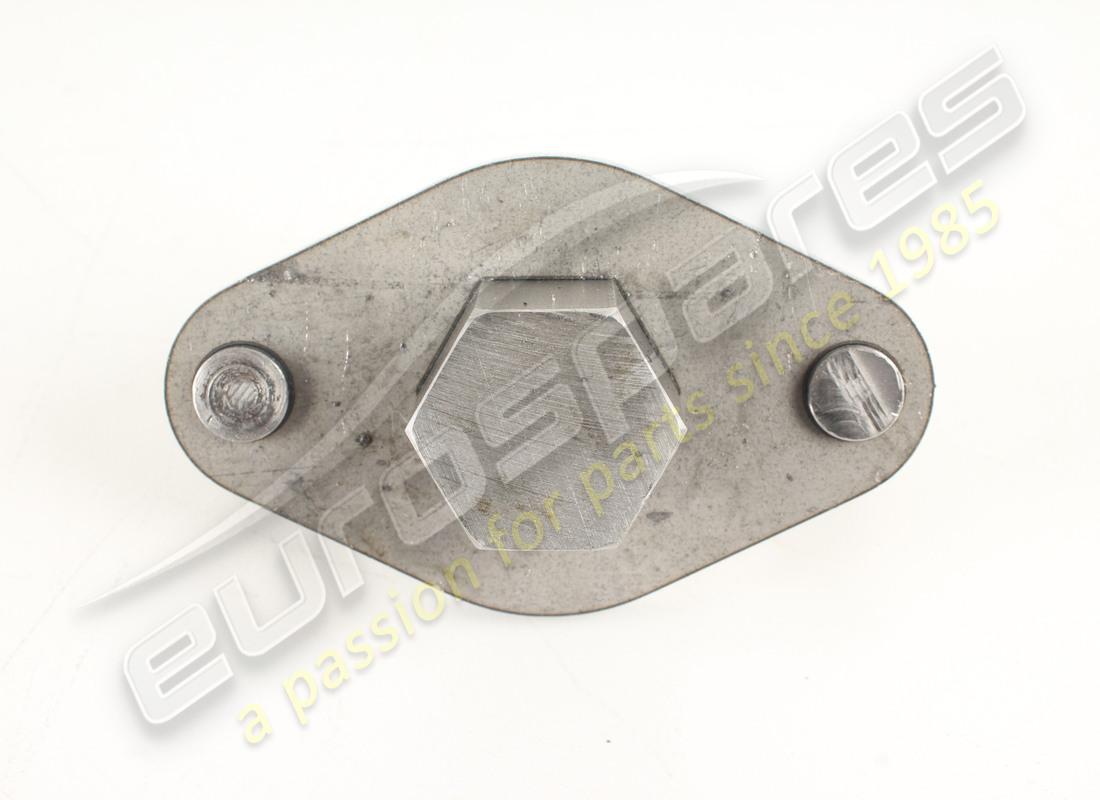

                                                                                              # 003
                                                                                              MPN: 10300771
                                                                                              FUEL DRAIN PLUG
                                                                                              from £0.57
                                                                                              from £0.57
                                                                                              # 004
                                                                                              MPN: 10278650
                                                                                              GASKET
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 005
                                                                                              MPN: 12601271
                                                                                              WASHER
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 103372 - and 1 more. Click to view details
                                                                                              # 006
                                                                                              MPN: 122793
                                                                                              FUEL FILLE
                                                                                              After exhaustion use no. 129527 - Not for C7 and CAT.
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 006
                                                                                              MPN: 132285
                                                                                              FUEL FILLER
                                                                                              for C7
                                                                                              from £129.37
                                                                                              from £129.37
                                                                                              # 006
                                                                                              MPN: 142119
                                                                                              FUEL FILLER
                                                                                              For CAT.
                                                                                              from £246.73
                                                                                              from £246.73
                                                                                              # 007
                                                                                              MPN: 14064511
                                                                                              SCREW
                                                                                              from £0.80
                                                                                              from £0.80
                                                                                              # 008
                                                                                              MPN: 123897
                                                                                              GASKET
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 009
                                                                                              MPN: 113401
                                                                                              FUEL FILLER CAP
                                                                                              from £64.17
                                                                                              from £64.17
                                                                                              This part replaces part number 101453 - and 3 more. Click to view details

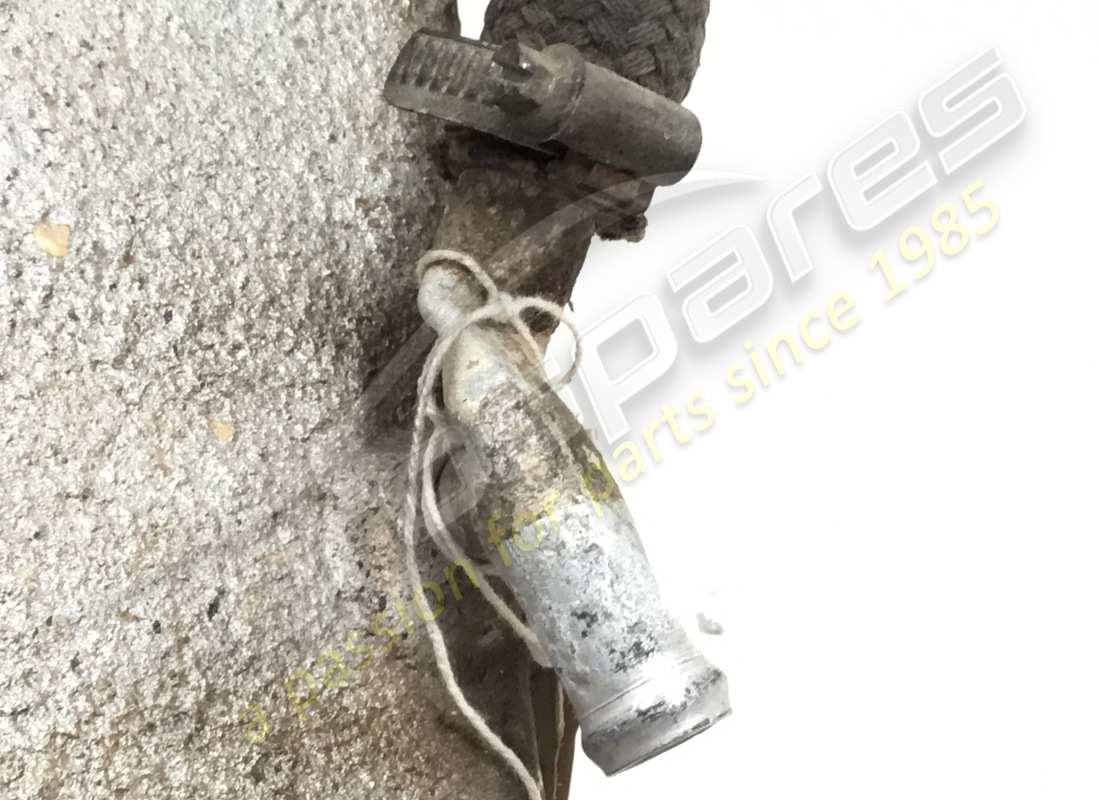

                                                                                              # 010
                                                                                              MPN: 122795
                                                                                              PIPE
                                                                                              from £13.66
                                                                                              from £13.66
                                                                                              # 011
                                                                                              MPN: 115677
                                                                                              SLEEVE
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 101455
                                                                                              # 012
                                                                                              MPN: 12174790
                                                                                              CLAMP
                                                                                              from £1.62
                                                                                              from £1.62
                                                                                              This part replaces part number 50188200
                                                                                              # 013
                                                                                              MPN: 10902221
                                                                                              SCREW
                                                                                              from £0.52
                                                                                              from £0.52
                                                                                              # 014
                                                                                              MPN: 12574211
                                                                                              NUT
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 015
                                                                                              MPN: 12646601
                                                                                              WASHER
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 016
                                                                                              MPN: 144849
                                                                                              CONTROL FOR FUEL LEVEL GAUGE
                                                                                              From car no. 67547
                                                                                              from £425.00
                                                                                              from £425.00
                                                                                              This part replaces part number 132134
                                                                                              # 017
                                                                                              MPN: 154802
                                                                                              GASKET
                                                                                              With part no. 122621
                                                                                              from £17.11
                                                                                              from £17.11
                                                                                              This part replaces part number 116792 - and 2 more. Click to view details
                                                                                              # 017
                                                                                              MPN: 154802
                                                                                              GASKET
                                                                                              With part no. 132134
                                                                                              from £17.11
                                                                                              from £17.11
                                                                                              This part replaces part number 116792 - and 2 more. Click to view details
                                                                                              # 018
                                                                                              MPN: 121435
                                                                                              GAUGE SECURING RING NUT
                                                                                              from £44.76
                                                                                              from £44.76
                                                                                              This part replaces part number 116012 - and 6 more. Click to view details
                                                                                              # 019
                                                                                              MPN: 125032
                                                                                              BREATHER HOSE
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 020
                                                                                              MPN: 120469
                                                                                              BREATHER HOSE
                                                                                              from £33.69
                                                                                              from £33.69
                                                                                              This part replaces part number 125033 - and 1 more. Click to view details
                                                                                              # 021
                                                                                              MPN: 13000390
                                                                                              CLAMP
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                              # 022
                                                                                              MPN: 116851
                                                                                              BREATHER HOSE
                                                                                              from £43.58
                                                                                              from £43.58
                                                                                              This part replaces part number 125034
                                                                                              # 023
                                                                                              MPN: 12179090
                                                                                              CLAMP
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 102721

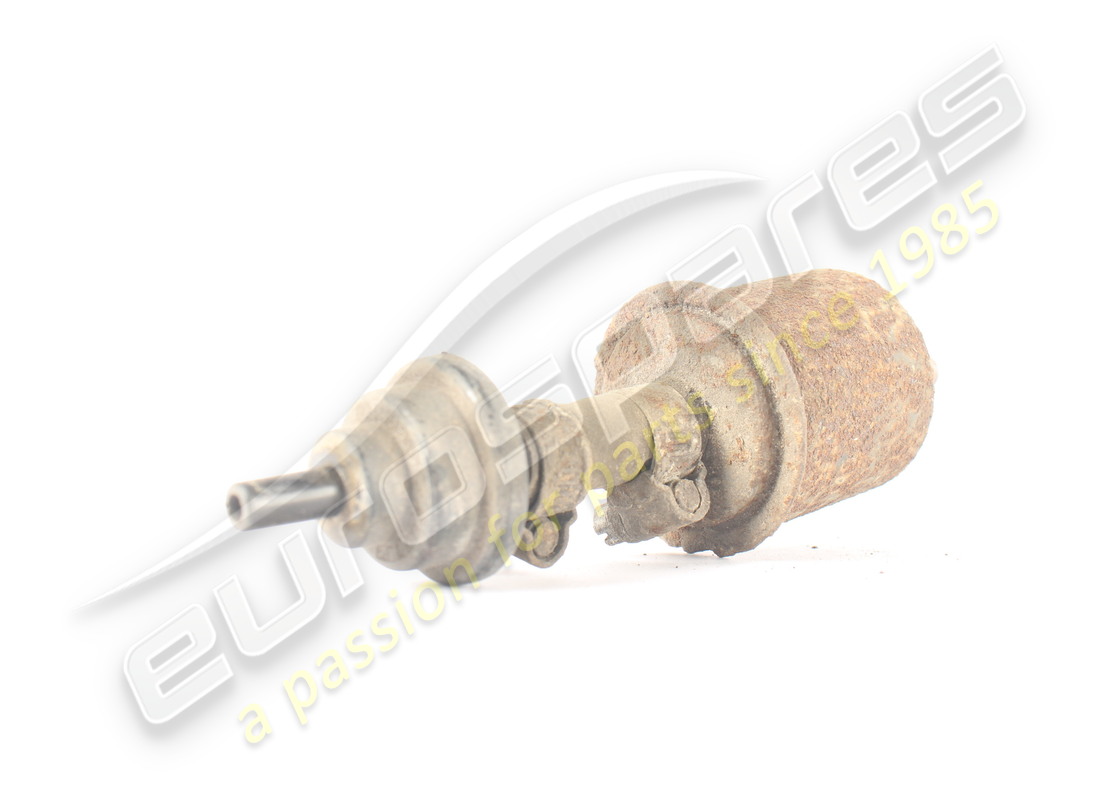

                                                                                              # 024
                                                                                              MPN: 120444
                                                                                              TANK VENTILATION VALVE
                                                                                              from £11.59
                                                                                              from £11.59
                                                                                              # 025
                                                                                              MPN: 116760
                                                                                              BREATHER HOSE
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 105498 - and 1 more. Click to view details
                                                                                              # 026
                                                                                              MPN: 12179190
                                                                                              CLAMP
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 102604
                                                                                              # 027
                                                                                              MPN: 10396580
                                                                                              WIRE GUIDE
                                                                                              from £1.08
                                                                                              from £1.08
                                                                                              This part replaces part number 100286
                                                                                              # 028
                                                                                              MPN: 105550
                                                                                              COLSON TYPE CLAMP
                                                                                              from £1.28
                                                                                              from £1.28
                                                                                              # 029
                                                                                              MPN: 10441290
                                                                                              HOSE RETAINING CLAMP
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 030
                                                                                              MPN: 10441490
                                                                                              HOSE RETAINING CLAMP
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              # 031
                                                                                              MPN: 12574211
                                                                                              NUT
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 032
                                                                                              MPN: 122797
                                                                                              TANK SECURING SLRAP
                                                                                              from £11.08
                                                                                              from £11.08
                                                                                              # 033
                                                                                              MPN: 123867
                                                                                              SPACER
                                                                                              from £2.01
                                                                                              from £2.01

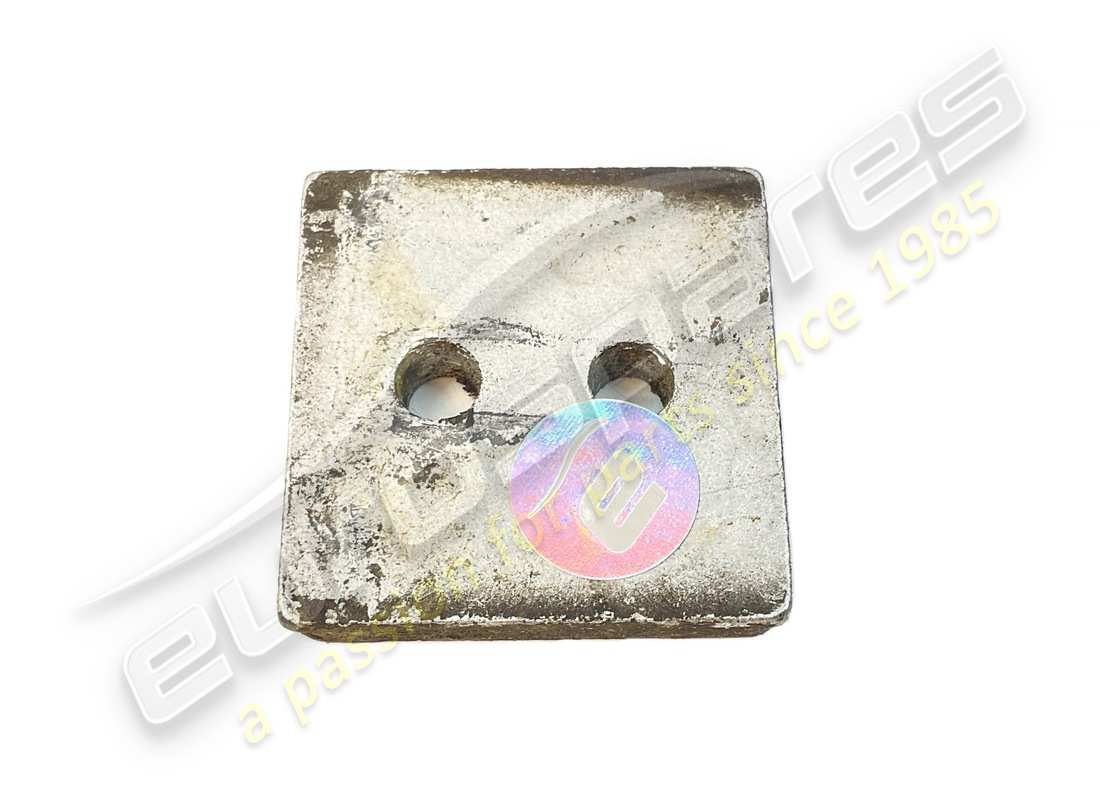

                                                                                              # 034
                                                                                              MPN: 115734
                                                                                              SMALL PLATE
                                                                                              from £2.00
                                                                                              from £2.00
                                                                                              # 035
                                                                                              MPN: 12574211
                                                                                              SELF LOCKING NUT
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              # 036
                                                                                              MPN: 123866
                                                                                              TANK SUPPORTING BRACKET
                                                                                              from £9.79
                                                                                              from £9.79
                                                                                              # 037
                                                                                              MPN: 125035
                                                                                              SHIM
                                                                                              from £1.37
                                                                                              from £1.37
                                                                                              This part replaces part number 141261
                                                                                              # 038
                                                                                              MPN: 127529
                                                                                              TIE ROD
                                                                                              from £121.96
                                                                                              from £121.96
                                                                                              This part replaces part number 12311271 - and 15 more. Click to view details
                                                                                              # 039
                                                                                              MPN: 10796440
                                                                                              SPLIT PIN
                                                                                              Supersession
                                                                                              Supersession
                                                                                              This part replaces part number 264555
                                                                                              # 040
                                                                                              MPN: 104030
                                                                                              SELF LOCKING NUT
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 16104125
                                                                                              # 041
                                                                                              MPN: 125036
                                                                                              SHIM
                                                                                              from £4.10
                                                                                              from £4.10
                                                                                              # 042
                                                                                              MPN: 103447
                                                                                              PIN
                                                                                              from £12.86
                                                                                              from £12.86
                                                                                              # 043
                                                                                              MPN: 122800
                                                                                              TANK PROTECTION PLATE - FOR LHD
                                                                                              After exhaustion use 138082 / 138083 / 138084
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 043
                                                                                              MPN: 124067
                                                                                              TANK PROTECTION PLATE - FOR RHD
                                                                                              Until exhaustion
                                                                                              from £353.39
                                                                                              from £353.39
                                                                                              # 043
                                                                                              MPN: 138082
                                                                                              CENTRAL PROTECTION PLATE
                                                                                              After exhaustion no. 122800
                                                                                              from £426.00
                                                                                              from £426.00
                                                                                              This part replaces part number 122800
                                                                                              # 043
                                                                                              MPN: 138082
                                                                                              CENTRAL PROTECTION PLATE
                                                                                              After exhaustion no. 124067
                                                                                              from £426.00
                                                                                              from £426.00
                                                                                              This part replaces part number 122800
                                                                                              # 043
                                                                                              MPN: 138083
                                                                                              LH PROTECTION PLATE
                                                                                              After exhaustion no. 122800
                                                                                              from £459.51
                                                                                              from £459.51
                                                                                              # 043
                                                                                              MPN: 138084
                                                                                              RH PROTECTION PLATE
                                                                                              After exhaustion no. 122800
                                                                                              from £646.42
                                                                                              from £646.42
                                                                                              # 043
                                                                                              MPN: 138085
                                                                                              LH PROTECTION PLATE
                                                                                              After exhaustion no. 124067
                                                                                              from £28.33
                                                                                              from £28.33
                                                                                              # 043
                                                                                              MPN: 138086
                                                                                              RH PROTECTION PLATE
                                                                                              After exhaustion no. 124067
                                                                                              from £41.44
                                                                                              from £41.44
                                                                                              # 044
                                                                                              MPN: 10902124
                                                                                              SCREW
                                                                                              from £0.50
                                                                                              from £0.50
                                                                                              This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                              # 045
                                                                                              MPN: 12643724
                                                                                              FLAT WASHER
                                                                                              from £0.47
                                                                                              from £0.47
                                                                                              This part replaces part number 109684 - and 4 more. Click to view details
                                                                                              # 046
                                                                                              MPN: 127494
                                                                                              SPRING WASHER
                                                                                              from £0.50
                                                                                              from £0.50
                                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                              # 047
                                                                                              MPN: 60758600
                                                                                              GAGED NUT
                                                                                              from £0.51
                                                                                              from £0.51
                                                                                              # 048
                                                                                              MPN: 125037
                                                                                              SHIM
                                                                                              from £2.00
                                                                                              from £2.00
                                                                                              # 049
                                                                                              MPN: 129085
                                                                                              SILENCER
                                                                                              from £201.78
                                                                                              from £201.78
                                                                                              # 050
                                                                                              MPN: 133337
                                                                                              SLEEVE
                                                                                              Supersession
                                                                                              Supersession
                                                                                              # 051
                                                                                              MPN: 133338
                                                                                              UNION
                                                                                              from £0.71
                                                                                              from £0.71
                                                                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
