ferrari testarossa (1990) timing system - controls parts diagram

005 - timing system - controls

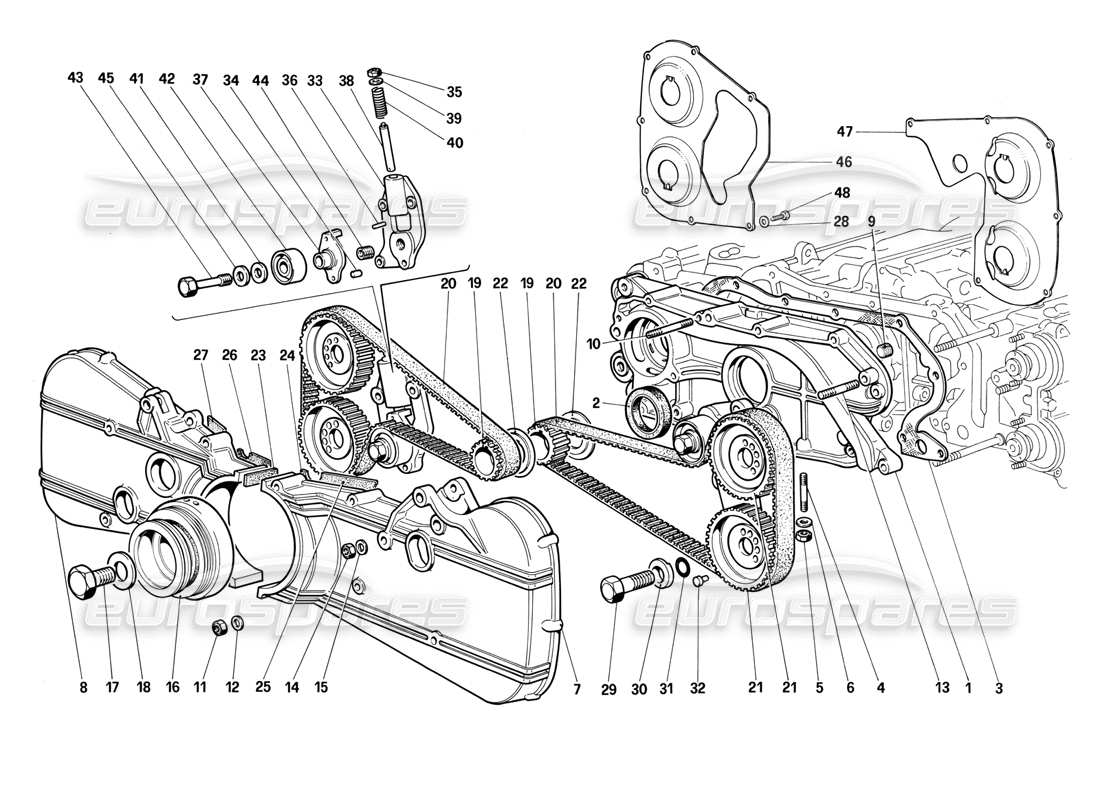

Ferrari Testarossa (1990) Timing System - Controls Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                            #
                                                                                            Part number
                                                                                            Description
                                                                                            Price
                                                                                            # 000
                                                                                            MPN: OILKTR
                                                                                            ENGINE OIL SEAL KIT
                                                                                            Original Oil seal kit consists of: x1 121094 / x1 138391 / x4 114639 / x2 132452
                                                                                            # 001
                                                                                            MPN: 121433
                                                                                            FRONT COVER, COMPLETE
                                                                                            With complete cranckase - Until engine no. 20820
                                                                                            # 001
                                                                                            MPN: 143102
                                                                                            FRONT COVER, COMPLETE
                                                                                            With complete cranckase - Starting engine no. 20821

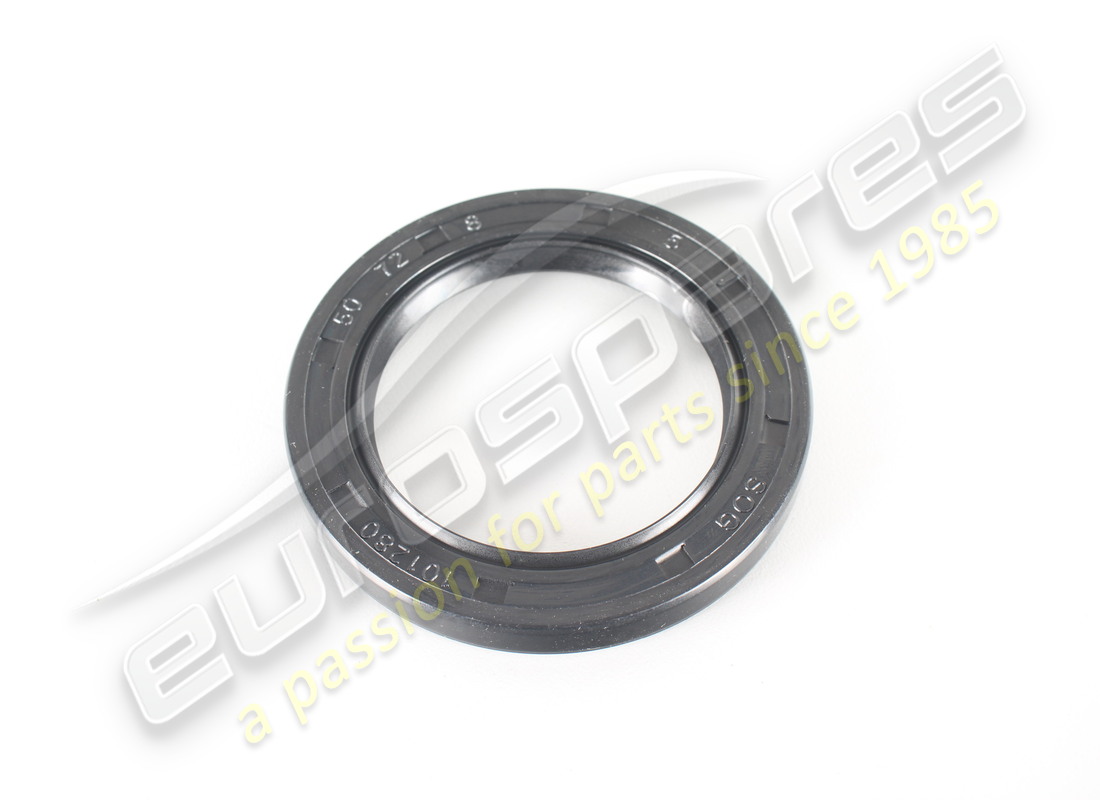

                                                                                            # 002
                                                                                            MPN: 121094
                                                                                            SEAL RING
                                                                                            from £23.45
                                                                                            from £23.45
                                                                                            # 003
                                                                                            MPN: 134947
                                                                                            GASKET - WITHOUT AMIANTHUS
                                                                                            Supersession
                                                                                            Supersession
                                                                                            This part replaces part number 122172

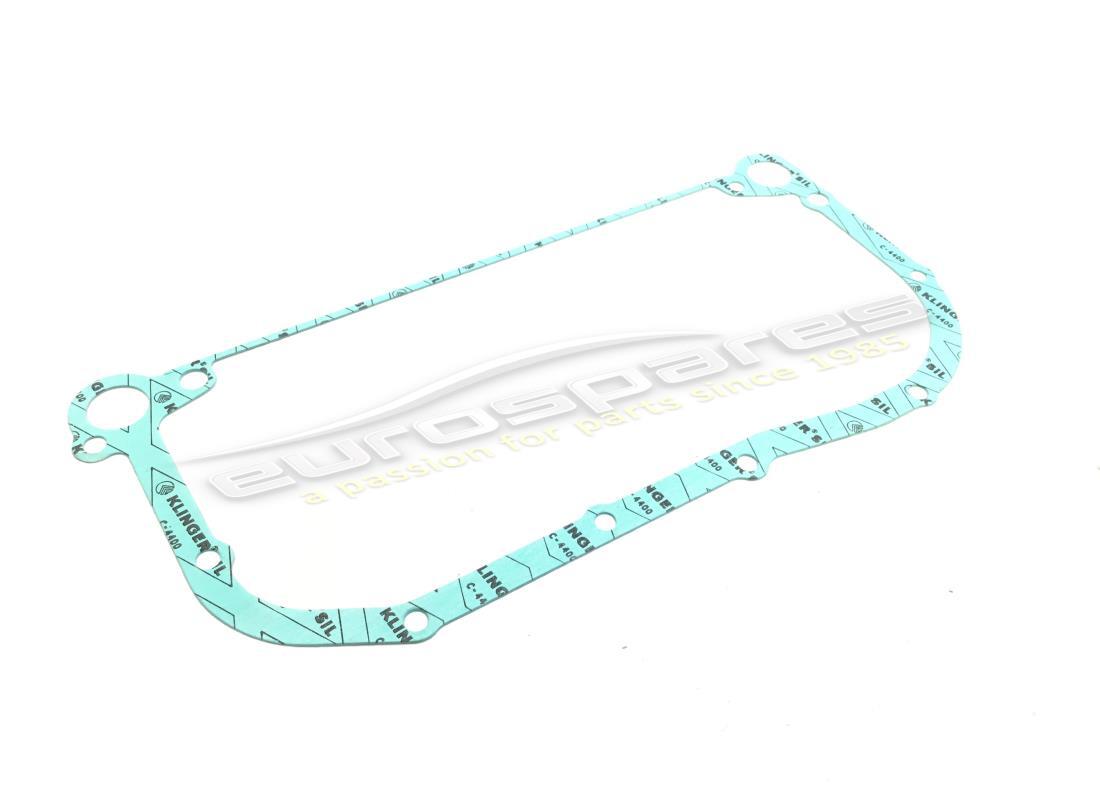

                                                                                            # 003
                                                                                            MPN: 150197
                                                                                            GASKET
                                                                                            from £29.99
                                                                                            from £29.99
                                                                                            This part replaces part number 134947
                                                                                            # 004
                                                                                            MPN: 13449621
                                                                                            STUD
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 005
                                                                                            MPN: 12575621
                                                                                            NUT
                                                                                            from £1.37
                                                                                            from £1.37
                                                                                            # 006
                                                                                            MPN: 12601471
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 007
                                                                                            MPN: 126068
                                                                                            LH COVER
                                                                                            from £507.48
                                                                                            from £507.48
                                                                                            This part replaces part number 123007
                                                                                            # 008
                                                                                            MPN: 125778
                                                                                            RH COVER
                                                                                            This part replaces part number 123016
                                                                                            # 009
                                                                                            MPN: 127635
                                                                                            PLUG
                                                                                            from £1.48
                                                                                            from £1.48
                                                                                            This part replaces part number 183447
                                                                                            # 010
                                                                                            MPN: 13544324
                                                                                            STUD
                                                                                            from £7.83
                                                                                            from £7.83
                                                                                            This part replaces part number 13544321
                                                                                            # 011
                                                                                            MPN: 101139
                                                                                            NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 16104425
                                                                                            # 012
                                                                                            MPN: 12601371
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 013
                                                                                            MPN: 13450421
                                                                                            STUD
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 014
                                                                                            MPN: 12575611
                                                                                            NUT
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 015
                                                                                            MPN: 12601471
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession

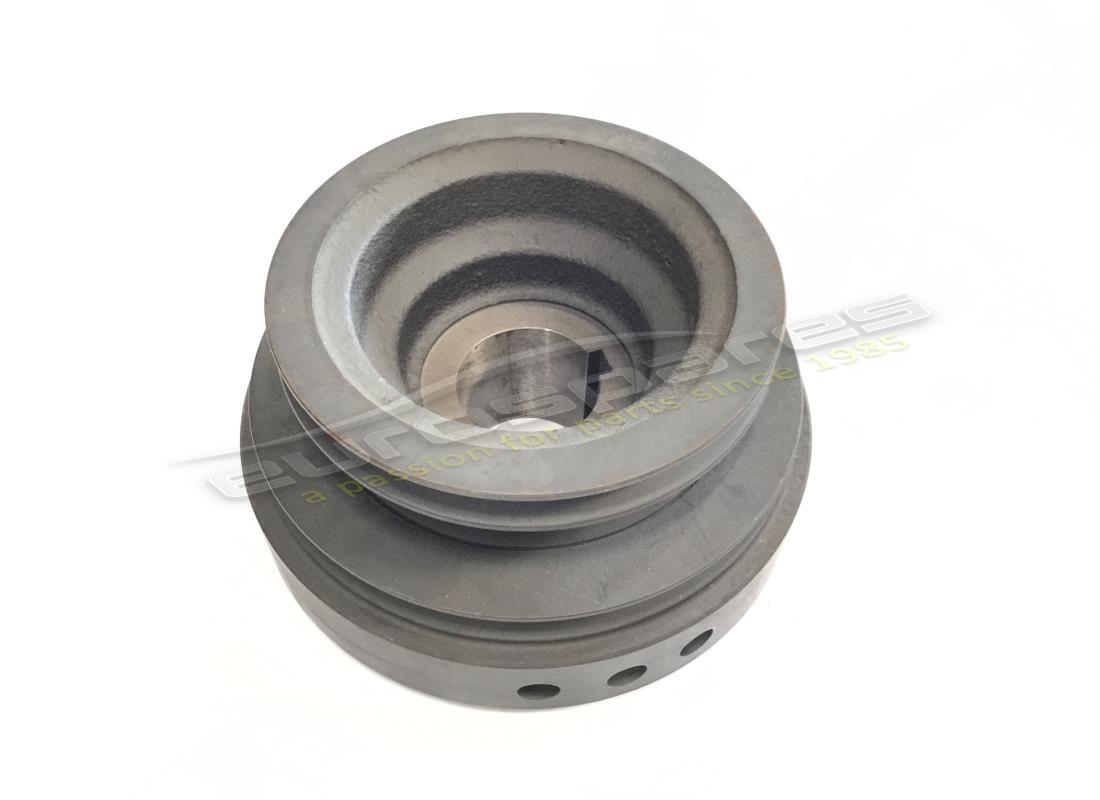

                                                                                            # 016
                                                                                            MPN: 125194
                                                                                            CRANK PULLEY
                                                                                            from £5,481.00
                                                                                            from £5,481.00
                                                                                            # 016
                                                                                            MPN: 134145
                                                                                            DAMPER
                                                                                            For Poli V control belt
                                                                                            from £2,034.30
                                                                                            from £2,034.30

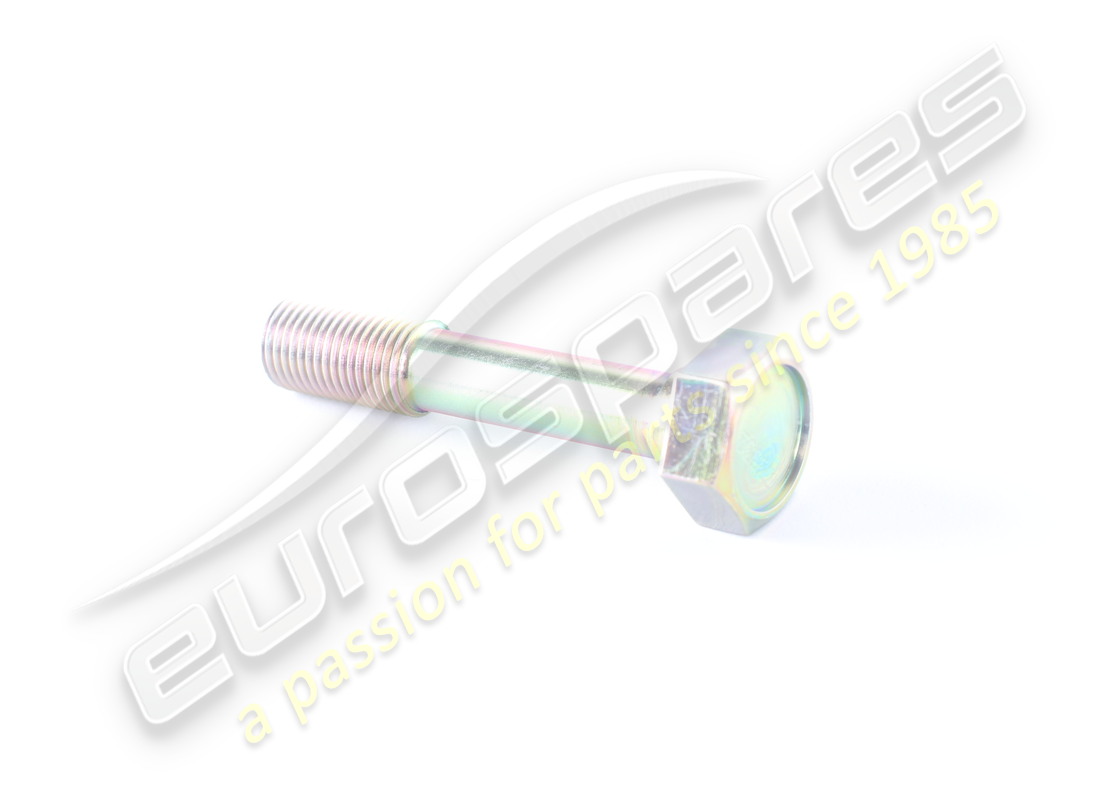

                                                                                            # 017
                                                                                            MPN: 138793
                                                                                            SCREW
                                                                                            from £44.61
                                                                                            from £44.61
                                                                                            This part replaces part number 100476 - and 8 more. Click to view details
                                                                                            # 018
                                                                                            MPN: 102775
                                                                                            WASHER
                                                                                            from £1.21
                                                                                            from £1.21
                                                                                            # 020
                                                                                            MPN: 154401
                                                                                            TIMING BELT
                                                                                            from £14.10
                                                                                            from £14.10
                                                                                            This part replaces part number 154727
                                                                                            # 020
                                                                                            MPN: FTBK007
                                                                                            TIMING BELT KIT
                                                                                            # 021
                                                                                            MPN: 123108
                                                                                            TIMING BELT PULLEY
                                                                                            from £239.54
                                                                                            from £239.54
                                                                                            # 022
                                                                                            MPN: 120733
                                                                                            TIMING BELT LOCK RING
                                                                                            from £120.73
                                                                                            from £120.73
                                                                                            # 023
                                                                                            MPN: 128029
                                                                                            ADHESIVE PROTECTION
                                                                                            from £1.61
                                                                                            from £1.61
                                                                                            # 024
                                                                                            MPN: 128030
                                                                                            ADHESIVE PROTECTION
                                                                                            from £4.96
                                                                                            from £4.96
                                                                                            # 025
                                                                                            MPN: 128031
                                                                                            ADHESIVE PROTECTION
                                                                                            from £2.25
                                                                                            from £2.25
                                                                                            # 026
                                                                                            MPN: 128032
                                                                                            ADHESIVE PROTECTION
                                                                                            from £2.25
                                                                                            from £2.25
                                                                                            # 027
                                                                                            MPN: 128033
                                                                                            ADHESIVE PROTECTION
                                                                                            from £1.85
                                                                                            from £1.85
                                                                                            # 028
                                                                                            MPN: 12601171
                                                                                            WASHER
                                                                                            Supersession
                                                                                            Supersession
                                                                                            # 029
                                                                                            MPN: 146450
                                                                                            SCREW
                                                                                            Starting engine no. 21581
                                                                                            # 029
                                                                                            MPN: 146540
                                                                                            SCREW
                                                                                            from £9.06
                                                                                            from £9.06
                                                                                            This part replaces part number 16326431 - and 3 more. Click to view details
                                                                                            # 030
                                                                                            MPN: 114802
                                                                                            GEAR RETAINING WASHER
                                                                                            from £6.15
                                                                                            from £6.15
                                                                                            # 031
                                                                                            MPN: 114808
                                                                                            SEAL RING
                                                                                            from £2.25
                                                                                            from £2.25
                                                                                            # 032
                                                                                            MPN: 114803
                                                                                            DRIVE PIN
                                                                                            from £18.02
                                                                                            from £18.02
                                                                                            # 033
                                                                                            MPN: 121044
                                                                                            CHAIN PAD
                                                                                            from £83.60
                                                                                            from £83.60
                                                                                            # 034
                                                                                            MPN: 125717
                                                                                            DOWEL
                                                                                            from £1.55
                                                                                            from £1.55
                                                                                            # 035
                                                                                            MPN: 102948
                                                                                            SELF LOCKING NUT
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                            # 036
                                                                                            MPN: 13933570
                                                                                            SPRING PIN
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            # 037
                                                                                            MPN: 121045
                                                                                            BELT STRETCHER SUPPORT PLATE
                                                                                            from £315.57
                                                                                            from £315.57
                                                                                            # 038
                                                                                            MPN: 121047
                                                                                            SPRING CONTROL PIN
                                                                                            from £7.90
                                                                                            from £7.90
                                                                                            # 039
                                                                                            MPN: 121558
                                                                                            SPRING RETAINING WASHER
                                                                                            from £0.94
                                                                                            from £0.94
                                                                                            # 040
                                                                                            MPN: 121249
                                                                                            SPRING
                                                                                            from £11.77
                                                                                            from £11.77
                                                                                            # 041
                                                                                            MPN: 111460
                                                                                            SPACER
                                                                                            from £12.77
                                                                                            from £12.77
                                                                                            # 042
                                                                                            MPN: 116750
                                                                                            BELT STRETCHER BEARING
                                                                                            from £104.00
                                                                                            from £104.00
                                                                                            This part replaces part number 116750/A
                                                                                            # 043
                                                                                            MPN: 111458
                                                                                            SCREW
                                                                                            from £40.19
                                                                                            from £40.19
                                                                                            # 044
                                                                                            MPN: 13524670
                                                                                            HELI-COIL
                                                                                            from £0.71
                                                                                            from £0.71
                                                                                            # 045
                                                                                            MPN: 102824
                                                                                            WASHER
                                                                                            from £14.96
                                                                                            from £14.96
                                                                                            # 046
                                                                                            MPN: 123705
                                                                                            RH BELT PROTECTION PLATE
                                                                                            from £383.26
                                                                                            from £383.26
                                                                                            # 047
                                                                                            MPN: 123706
                                                                                            LH BELT PROTECTION PLATE
                                                                                            from £358.31
                                                                                            from £358.31
                                                                                            # 048
                                                                                            MPN: 10977711
                                                                                            SCREW
                                                                                            from £0.47
                                                                                            from £0.47
                                                                                            This part replaces part number 10977721
