026 - WATER PUMP

Ferrari Testarossa (1987) Water Pump Parts Diagram

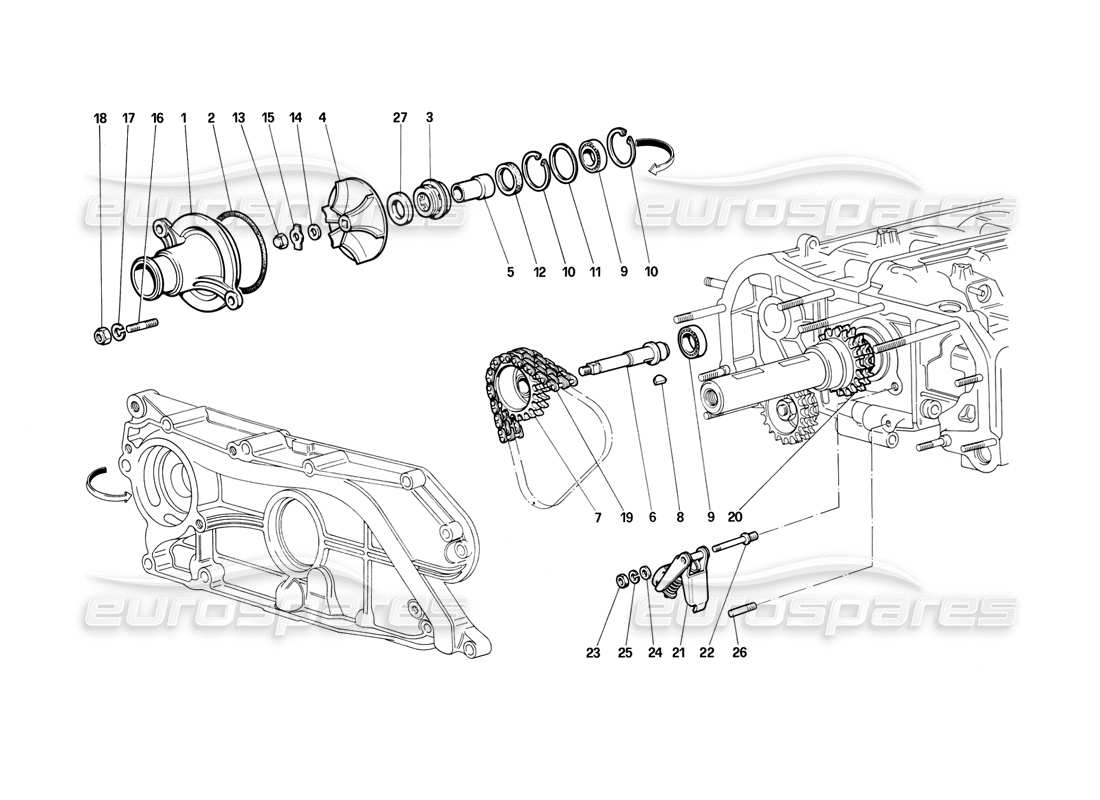

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 121012
                                                      WATER PUMP COVER
                                                      from £463.85
                                                      from £463.85
                                                      # 002
                                                      MPN: 101023
                                                      SEAL RING
                                                      from £4.03
                                                      from £4.03
                                                      # 003
                                                      MPN: 152051/A
                                                      WATER PUMP SEAL
                                                      from £122.65
                                                      from £122.65

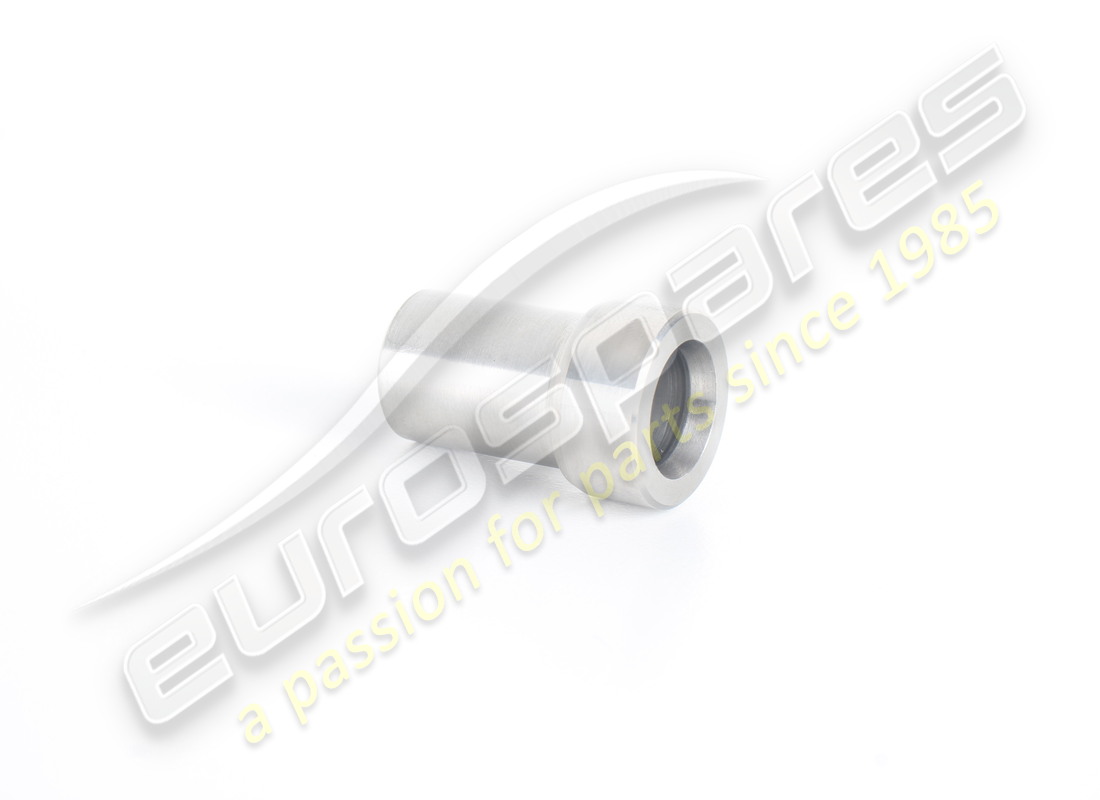

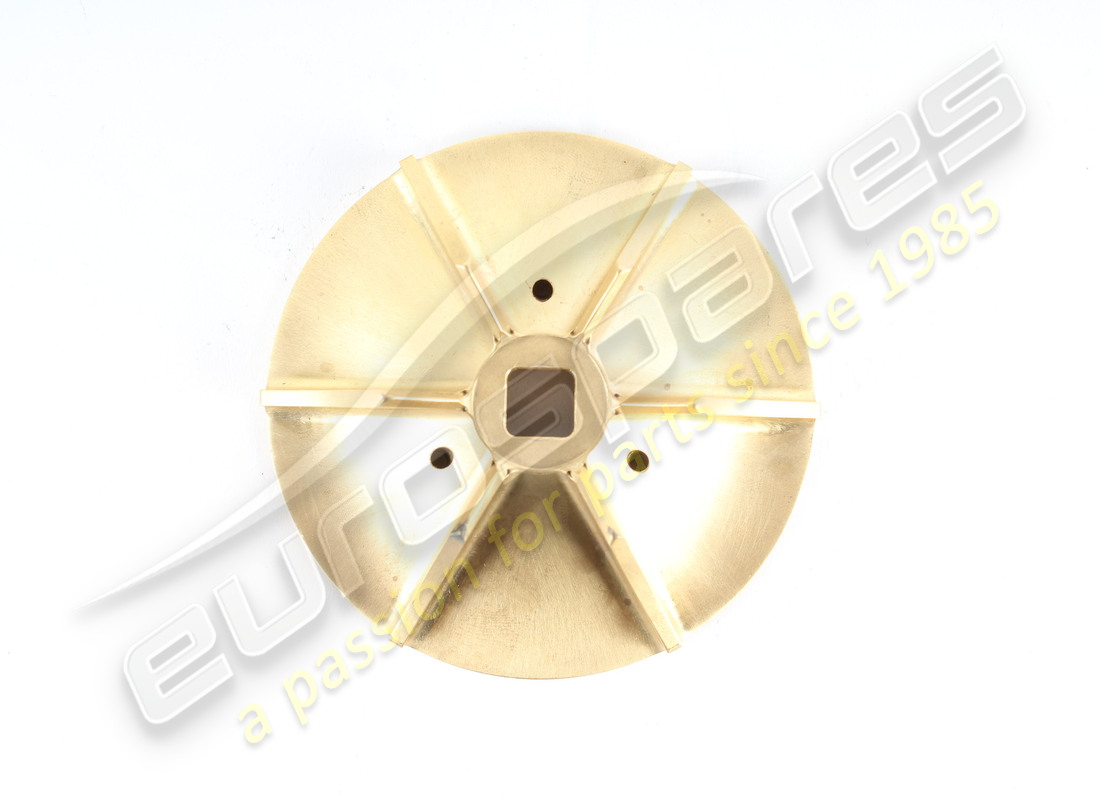

                                                      # 005
                                                      MPN: 121066
                                                      SPACER
                                                      from £84.60
                                                      from £84.60
                                                      # 006
                                                      MPN: 121065
                                                      SPINDLE
                                                      from £301.04
                                                      from £301.04
                                                      # 007
                                                      MPN: 121064
                                                      DRIVEN GEAR
                                                      from £850.71
                                                      from £850.71
                                                      # 008
                                                      MPN: 10202320
                                                      FEATHER KEY
                                                      from £0.58
                                                      from £0.58
                                                      # 009
                                                      MPN: 121145
                                                      BEARING
                                                      from £8.01
                                                      from £8.01
                                                      This part replaces part number 101617 - and 1 more. Click to view details
                                                      # 010
                                                      MPN: 11059476
                                                      SEEGER RING
                                                      from £8.94
                                                      from £8.94
                                                      This part replaces part number 11059475
                                                      # 011
                                                      MPN: 121084
                                                      SPRING WASHER
                                                      from £5.80
                                                      from £5.80
                                                      # 012
                                                      MPN: 121165
                                                      SEAL RING
                                                      from £112.74
                                                      from £112.74
                                                      # 013
                                                      MPN: 100436
                                                      CAP NUT
                                                      from £7.41
                                                      from £7.41
                                                      This part replaces part number 92896
                                                      # 014
                                                      MPN: 10730321
                                                      WASHER
                                                      from £0.66
                                                      from £0.66
                                                      This part replaces part number 10730301 - and 2 more. Click to view details
                                                      # 015
                                                      MPN: 100434
                                                      SAFETY PLATE
                                                      from £7.26
                                                      from £7.26
                                                      This part replaces part number 92361 - and 1 more. Click to view details
                                                      # 016
                                                      MPN: 13541021
                                                      STUD
                                                      Supersession
                                                      Supersession
                                                      # 017
                                                      MPN: 12601279
                                                      WASHER
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12601271 - and 2 more. Click to view details
                                                      # 018
                                                      MPN: 102741
                                                      NUT
                                                      from £0.47
                                                      from £0.47
                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                      # 019
                                                      MPN: 133065
                                                      WATER AND OIL PUMPS CONTROL BELT
                                                      from £106.34
                                                      from £106.34
                                                      This part replaces part number 121195
                                                      # 020
                                                      MPN: 121063
                                                      WATER AND OIL PUMPS CONTROL GEAR
                                                      from £572.33
                                                      from £572.33
                                                      # 021
                                                      MPN: 114329
                                                      Belt stretcher
                                                      from £236.84
                                                      from £236.84
                                                      This part replaces part number 100304
                                                      # 022
                                                      MPN: 121269
                                                      BELT STRETCHER SUPPORTING PIN
                                                      from £97.80
                                                      from £97.80
                                                      # 023
                                                      MPN: 10720121
                                                      NUT
                                                      from £0.93
                                                      from £0.93
                                                      # 024
                                                      MPN: 10730121
                                                      TAB WASHER
                                                      from £0.47
                                                      from £0.47
                                                      # 025
                                                      MPN: 127494
                                                      WASHER
                                                      from £0.54
                                                      from £0.54
                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                      # 026
                                                      MPN: 14604670
                                                      BELT STRETCHER SECURING PIN
                                                      from £0.47
                                                      from £0.47
                                                      # 027
                                                      MPN: 152051
                                                      WATER PUMP SEALN NOT A SPARE PART NOW
                                                      Suppiled with 152051
                                                      Supersession
                                                      Supersession
                                                      This part replaces part number 120948 - and 1 more. Click to view details
