ferrari testarossa (1987) air injection and lines (for ch and sa) parts diagram

015 - Air Injection and Lines (for CH and SA)

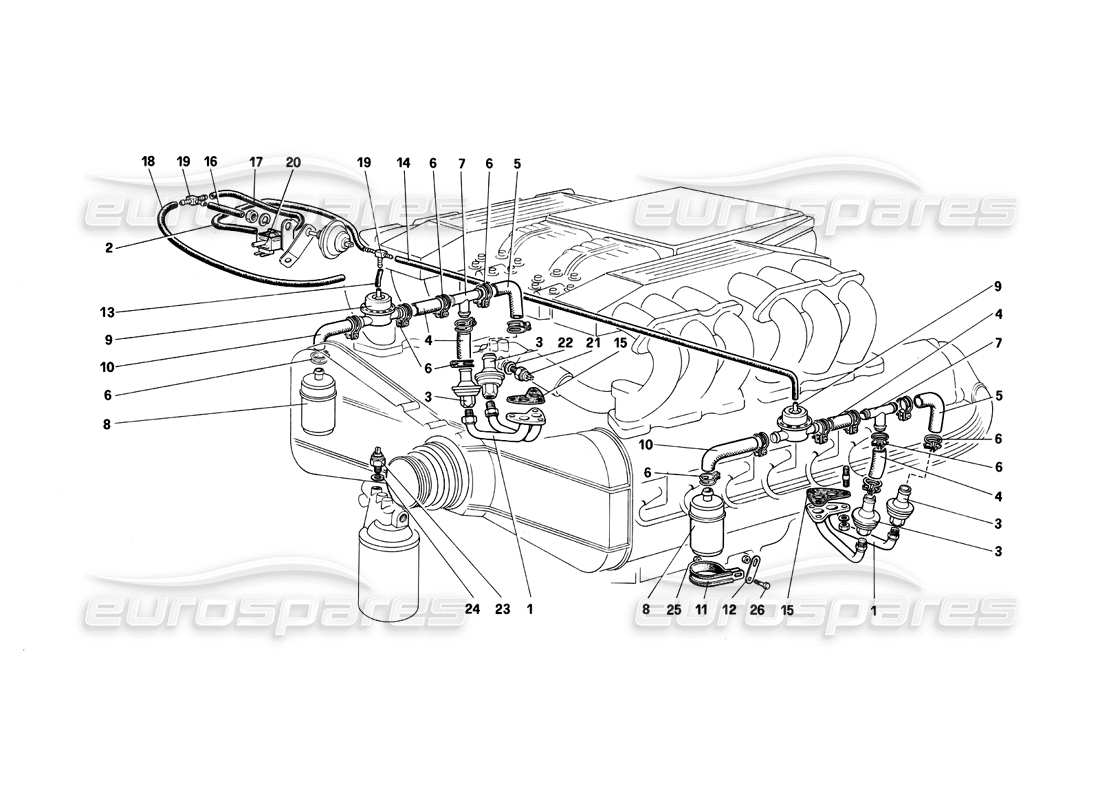

Ferrari Testarossa (1987) Air Injection and Lines (for CH and SA) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 001
                                        MPN: 126983
                                        AIR INJECTION PIPE
                                        from £195.83
                                        from £195.83

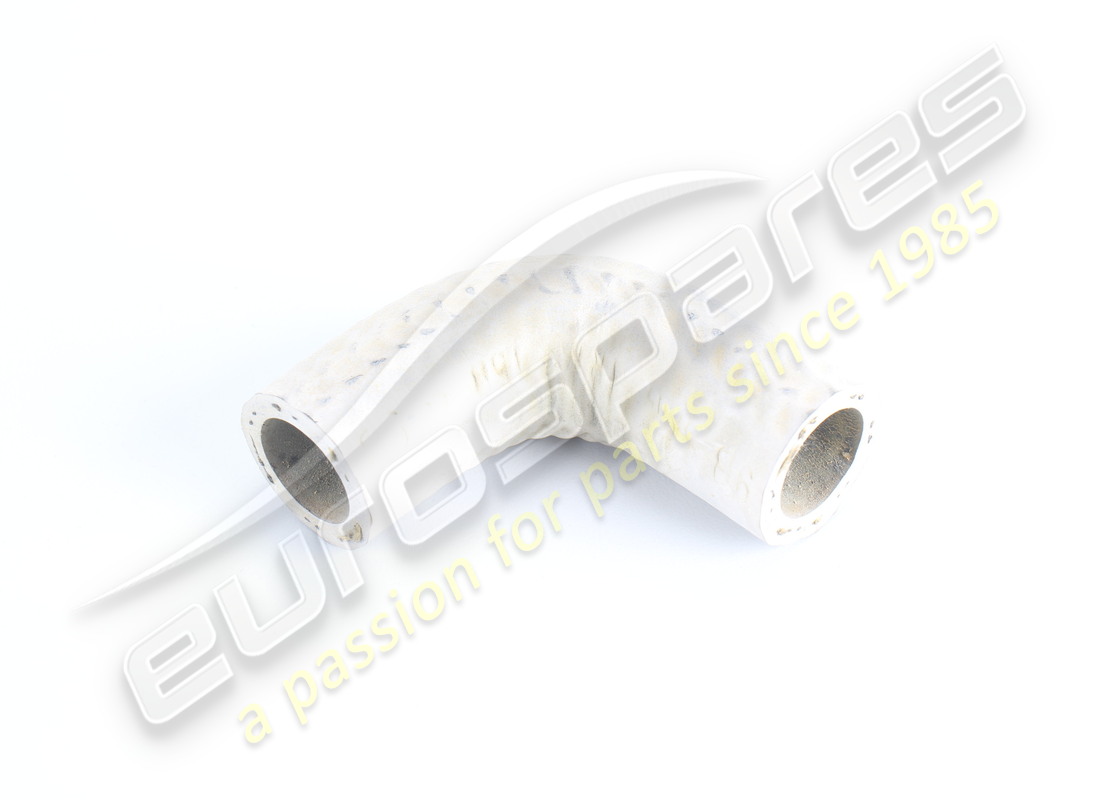

                                        # 002
                                        MPN: 128907
                                        PIPE
                                        from £64.44
                                        from £64.44
                                        # 003
                                        MPN: 148494
                                        CHECK VALVE
                                        from £402.05
                                        from £402.05
                                        This part replaces part number 121769 - and 9 more. Click to view details
                                        # 004
                                        MPN: 128714
                                        PIPE
                                        from £3.08
                                        from £3.08
                                        # 006
                                        MPN: 13000490
                                        CLAMP
                                        from £0.48
                                        from £0.48
                                        This part replaces part number 10169090 - and 3 more. Click to view details
                                        # 007
                                        MPN: 109887
                                        T UNION
                                        from £332.49
                                        from £332.49
                                        # 008
                                        MPN: 127144
                                        AIR INJECTION FILTER
                                        from £163.71
                                        from £163.71
                                        # 009
                                        MPN: 147390
                                        CUT-OFF VALVE
                                        from £176.28
                                        from £176.28
                                        This part replaces part number 121751 - and 3 more. Click to view details
                                        # 010
                                        MPN: 123860
                                        PIPE
                                        from £598.90
                                        from £598.90
                                        # 012
                                        MPN: 128827
                                        BRACKET
                                        from £2.00
                                        from £2.00
                                        # 013
                                        MPN: 122759
                                        PIPE
                                        from £3.15
                                        from £3.15
                                        # 014
                                        MPN: 127893
                                        PIPE
                                        from £10.14
                                        from £10.14
                                        # 015
                                        MPN: 146193
                                        GASKET
                                        from £2.92
                                        from £2.92
                                        This part replaces part number 127143
                                        # 016
                                        MPN: 121831
                                        PIPE
                                        For C6 and S6
                                        from £1.35
                                        from £1.35
                                        # 017
                                        MPN: 121828
                                        PIPE
                                        For C6 and S6
                                        from £2.75
                                        from £2.75
                                        # 018
                                        MPN: 122761
                                        PIPE
                                        from £52.71
                                        from £52.71
                                        This part replaces part number 275542
                                        # 019
                                        MPN: 121793
                                        3 WAY UNION
                                        For C7 and S7 Q.ty=1
                                        from £0.47
                                        from £0.47
                                        # 020
                                        MPN: 121782
                                        ELECTROVAIVE
                                        For C7 and S7 use PN. 129059
                                        from £39.02
                                        from £39.02
                                        # 021
                                        MPN: 121777
                                        BIMETALLIC THERMOSWITCH
                                        For C7 and S7 use PN. 128878
                                        from £168.47
                                        from £168.47
                                        # 022
                                        MPN: 10260060
                                        GASKET
                                        from £0.79
                                        from £0.79
                                        # 023
                                        MPN: 127155
                                        OIL TEMPERATURE SENSOR
                                        Not for C7-S7
                                        from £12.98
                                        from £12.98
                                        # 024
                                        MPN: 10260060
                                        GASKET
                                        Not for C7 and S7
                                        from £0.79
                                        from £0.79
                                        # 025
                                        MPN: 104030
                                        SELF LOCKING NUT
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 16104125
                                        # 026
                                        MPN: 16043321
                                        SCREW
                                        from £0.47
                                        from £0.47
                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
