ferrari testarossa (1987) anti-evaporative emission control system (for u.s. and sa) parts diagram

010 - anti-evaporative emission control system (for u.s. and sa)

Ferrari Testarossa (1987) Anti-Evaporative Emission Control System (for U.S. and SA) Parts Diagram

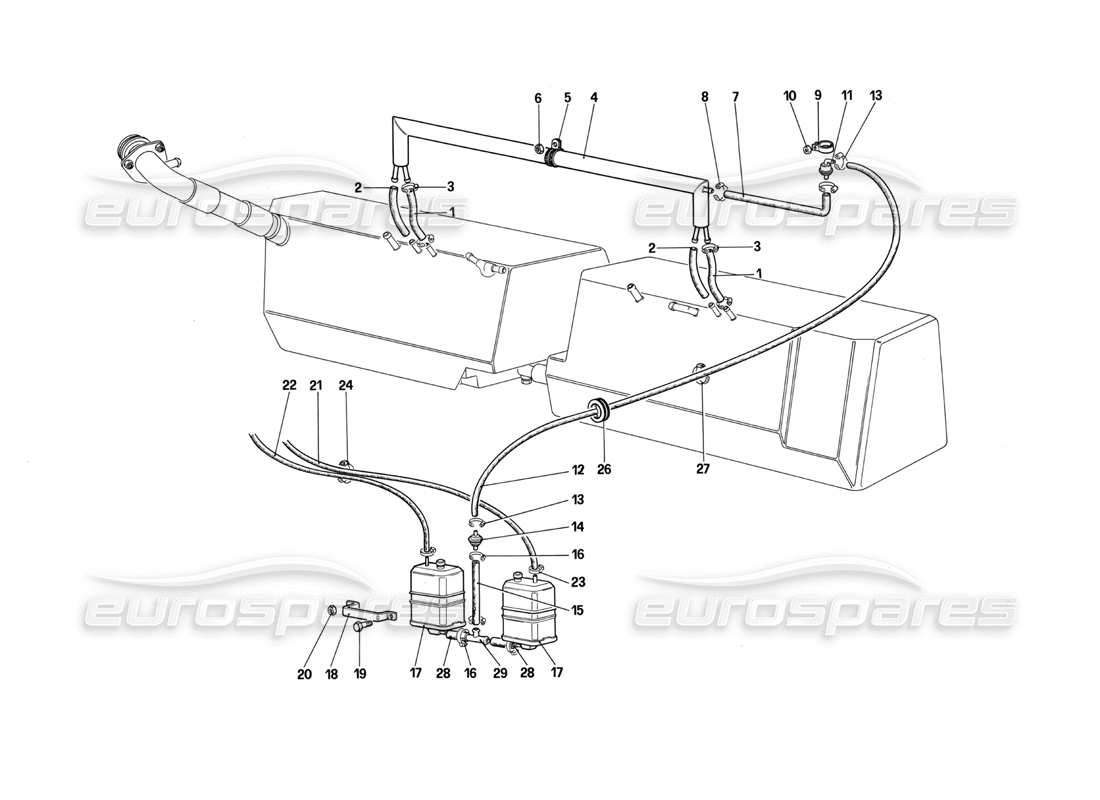

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Price
                                                            # 001
                                                            MPN: 126919
                                                            PIPE
                                                            from £4.71
                                                            from £4.71
                                                            # 002
                                                            MPN: 118283
                                                            PIPE
                                                            from £22.98
                                                            from £22.98
                                                            # 003
                                                            MPN: 13000190
                                                            SCREW COLLAR
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                            # 004
                                                            MPN: 125488
                                                            VAPOUR LIQUID SEPARATING MANIFOLD
                                                            from £149.41
                                                            from £149.41
                                                            # 005
                                                            MPN: 10442290
                                                            CLAMP
                                                            from £0.47
                                                            from £0.47
                                                            # 006
                                                            MPN: 102948
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                            # 007
                                                            MPN: 114882
                                                            PIPE
                                                            Supersession
                                                            Supersession
                                                            # 008
                                                            MPN: 13000190
                                                            SCREW COLLAR
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                            # 009
                                                            MPN: 124226
                                                            CLAMP
                                                            from £3.34
                                                            from £3.34
                                                            # 010
                                                            MPN: 102948
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                            # 011
                                                            MPN: 124193
                                                            ANTI ROLL-OVER VALVE
                                                            from £44.90
                                                            from £44.90
                                                            This part replaces part number 114843 - and 1 more. Click to view details
                                                            # 012
                                                            MPN: 116775
                                                            PIPE
                                                            from £48.20
                                                            from £48.20
                                                            This part replaces part number 103927
                                                            # 013
                                                            MPN: 13000190
                                                            SCREW COLLAR
                                                            from £0.52
                                                            from £0.52
                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                            # 014
                                                            MPN: 114910
                                                            2 WAY CHECK VALVE
                                                            from £66.15
                                                            from £66.15
                                                            # 015
                                                            MPN: 114876
                                                            PIPE
                                                            from £9.78
                                                            from £9.78
                                                            # 016
                                                            MPN: 13000190
                                                            SCREW COLLAR
                                                            from £0.53
                                                            from £0.53
                                                            This part replaces part number 12178990 - and 1 more. Click to view details
                                                            # 017
                                                            MPN: 114675
                                                            CHARCOAL CARBON CANISTER
                                                            from £361.73
                                                            from £361.73
                                                            # 018
                                                            MPN: 114676
                                                            BRACKET
                                                            from £20.50
                                                            from £20.50
                                                            # 019
                                                            MPN: 10902321
                                                            NUT
                                                            from £0.71
                                                            from £0.71
                                                            # 020
                                                            MPN: 102948
                                                            NUT
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 12574211 - and 4 more. Click to view details
                                                            # 021
                                                            MPN: 126852
                                                            PIPE
                                                            from £92.12
                                                            from £92.12
                                                            # 022
                                                            MPN: 113438
                                                            PIPE
                                                            from £48.57
                                                            from £48.57
                                                            # 023
                                                            MPN: 12179090
                                                            CLAMP
                                                            Supersession
                                                            Supersession
                                                            This part replaces part number 102721
                                                            # 024
                                                            MPN: 40135402
                                                            CLAMP
                                                            from £2.45
                                                            from £2.45
                                                            This part replaces part number 111193
                                                            # 025
                                                            MPN: 126672
                                                            BRACKET
                                                            from £1.74
                                                            from £1.74
                                                            # 026
                                                            MPN: 10397180
                                                            FAIR LEAD
                                                            from £1.76
                                                            from £1.76
                                                            # 027
                                                            MPN: 40135402
                                                            CLAMP
                                                            from £2.45
                                                            from £2.45
                                                            This part replaces part number 111193
                                                            # 028
                                                            MPN: 116761
                                                            PIPE
                                                            from £56.94
                                                            from £56.94
                                                            This part replaces part number 116760
                                                            # 029
                                                            MPN: 105823
                                                            3 WAY UNION
                                                            from £1.24
                                                            from £1.24
                                                            This part replaces part number 125497
                                                            Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
