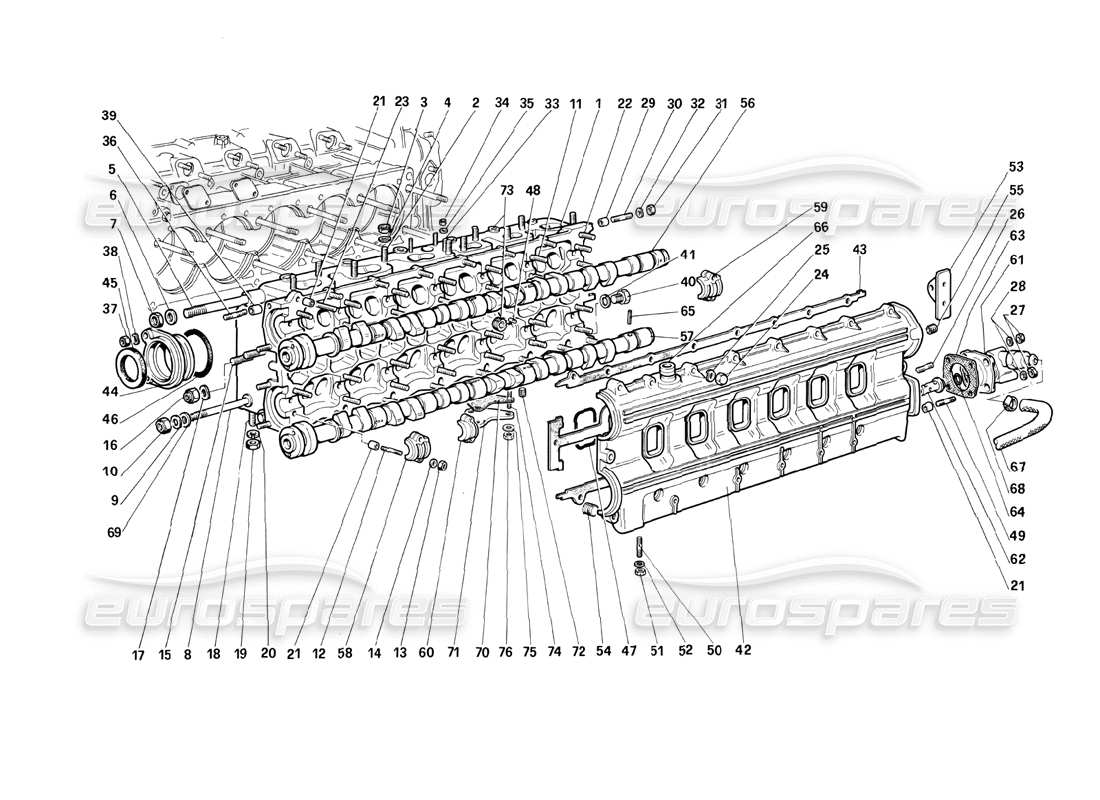

004 - cylinder head (left)
Ferrari Testarossa (1987) Cylinder Head (Left) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 123065
left cylinder head
from £12,835.86
from £12,835.86
This part replaces part number 121441 - and 3 more. Click to view details
# 002
MPN: 12354524
STUD
from £16.01
from £16.01
This part replaces part number 12354521
# 003
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 004
MPN: 11194071
WASHER
Supersession
Supersession
# 005
MPN: 13953121
STUD
Supersession
Supersession
# 006
MPN: 12601471
WASHER
Supersession
Supersession
# 007
MPN: 12575611
NUT
Supersession
Supersession
# 008
MPN: 13970321
STUD
Supersession
Supersession
# 009
MPN: 12604471
WASHER
from £0.47
from £0.47
# 010
MPN: 16104411
NUT
from £0.54
from £0.54
# 011
MPN: 102735
STUD
Inner caps
from £11.07
from £11.07
This part replaces part number 4146561
# 012
MPN: 102754
STUD
Outer caps
from £5.00
from £5.00
# 013
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 014
MPN: 11197773
WASHER
Supersession
Supersession
# 015
MPN: 13543421
STUD
Belt stretcher
Supersession
Supersession
# 016
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 017
MPN: 12601371
WASHER
Supersession
Supersession
# 018
MPN: 13543521
STUD
Supersession
Supersession
# 019
MPN: 114748
NUT
PN. 124525 in alternative
from £8.67
from £8.67
# 020
MPN: 127496
WASHER
For nut PN. 105938
from £0.52
from £0.52
This part replaces part number 10516671 - and 2 more. Click to view details
# 021
MPN: 102725
DOWEL
from £0.58
from £0.58
# 022
MPN: 13541324
STUD FOR COVERS
from £0.96
from £0.96
This part replaces part number 13541321
# 023
MPN: 13541421
STUD ON DOWEL
Supersession
Supersession
# 024
MPN: 100044
CAP NUT
from £0.29
from £0.29
This part replaces part number 151230 - and 1 more. Click to view details
# 025
MPN: 12601279
WASHER
from £0.48
from £0.48
This part replaces part number 12601271 - and 2 more. Click to view details
# 026
MPN: 11500521
VACUUM PUMP SECURING STUD
from £1.85
from £1.85
# 027
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 028
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 029
MPN: 102725
DOWEL
from £0.64
from £0.64
# 030
MPN: 13541124
STUD
from £12.30
from £12.30
This part replaces part number 13541121
# 031
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 032
MPN: 11197773
WASHER
Supersession
Supersession
# 033
MPN: 13541021
STUD
Supersession
Supersession
# 034
MPN: 102741
NUT
from £0.52
from £0.52
This part replaces part number 12575411 - and 1 more. Click to view details
# 035
MPN: 12601279
WASHER
from £0.53
from £0.53
This part replaces part number 12601271 - and 2 more. Click to view details
# 036
MPN: 13541124
STUD
from £11.62
from £11.62
This part replaces part number 13541121
# 037
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 038
MPN: 12601279
WASHER
from £0.53
from £0.53
This part replaces part number 12601271 - and 2 more. Click to view details
# 039
MPN: 102725
DOWEL
from £0.63
from £0.63
# 040
MPN: 10300740
WATER DRAIN PLUG
from £12.10
from £12.10
# 041
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 042
MPN: 121447
LEFT CAM COVER
# 042
MPN: 128796
LEFT CYL.HEAD COVER
# 043

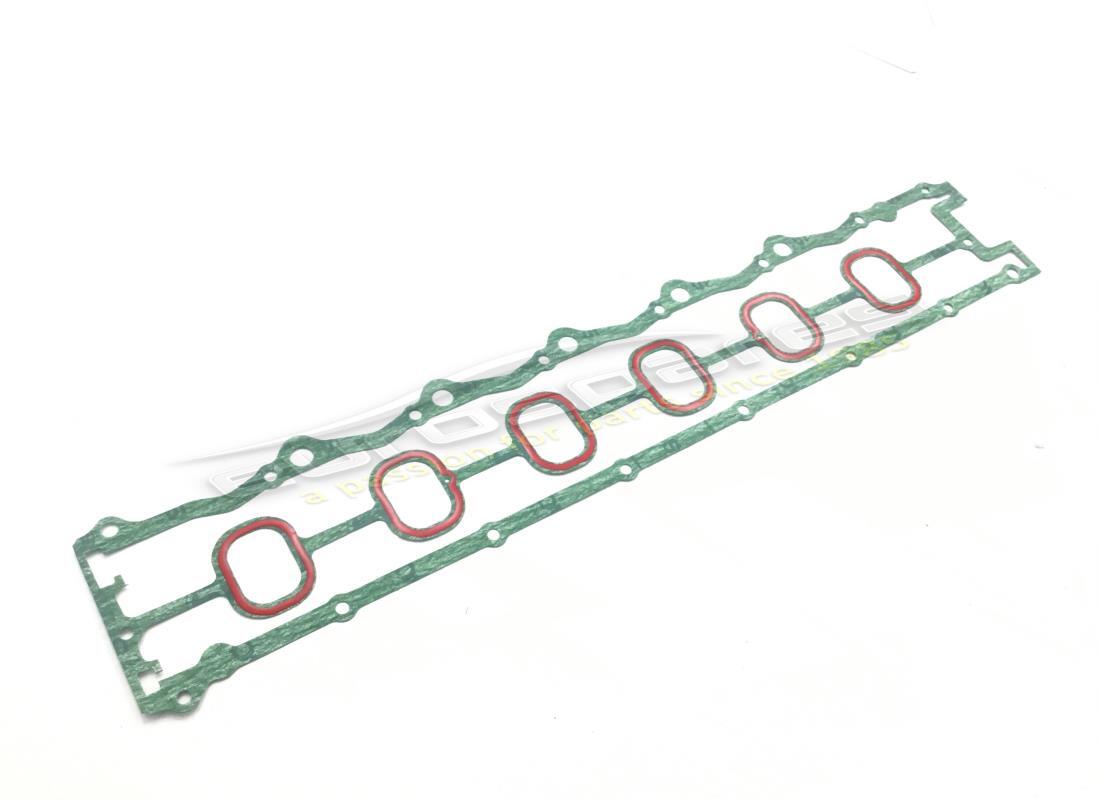

MPN: 147765
LH CENTRE GASKET
(early model only)
from £93.29
from £93.29
This part replaces part number 121127
# 043
MPN: 150195

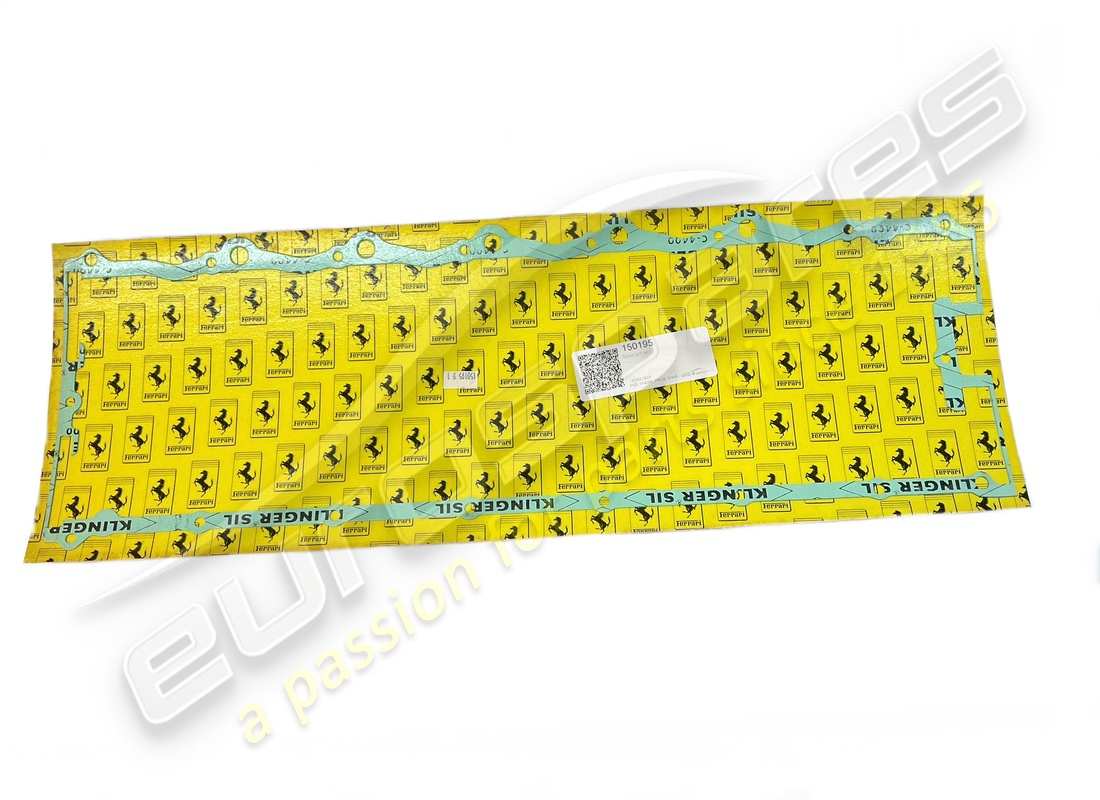

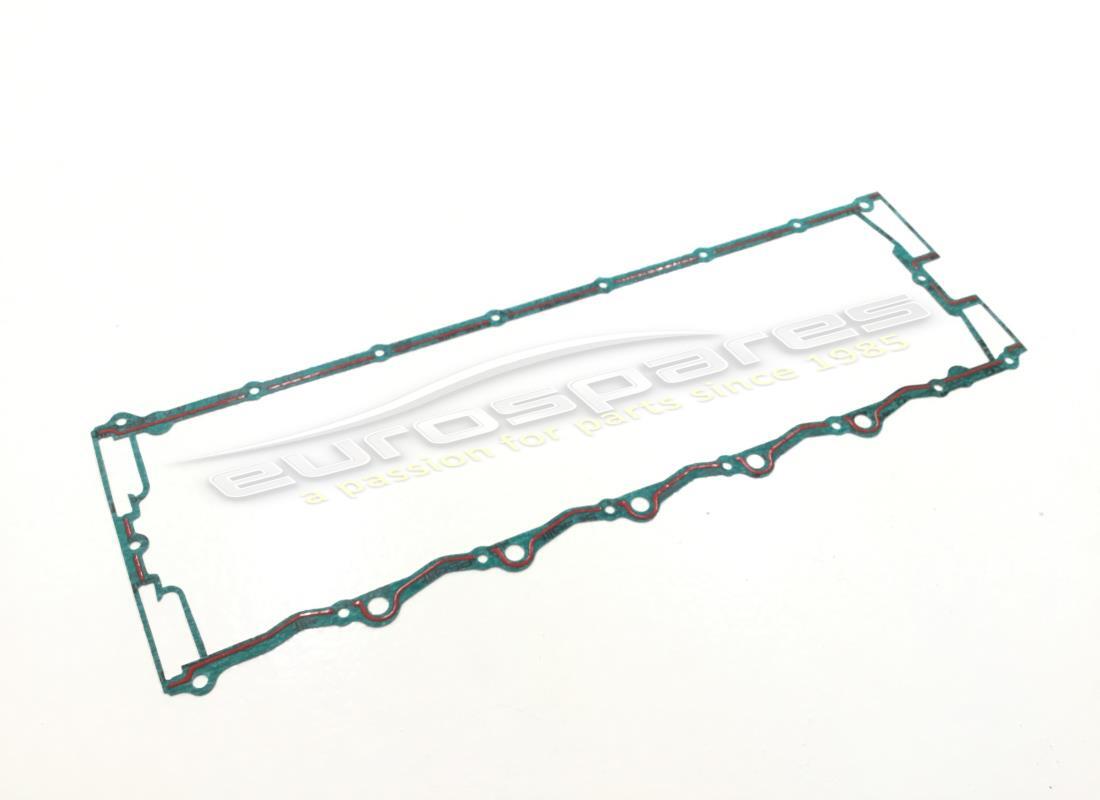

GASKET
from £53.52
from £53.52
This part replaces part number 134949 - and 1 more. Click to view details
# 043
MPN: FCCG030
CAM COVER GASKET SET
# 044
MPN: 121116
FRONT COVER
from £65.66
from £65.66
# 045

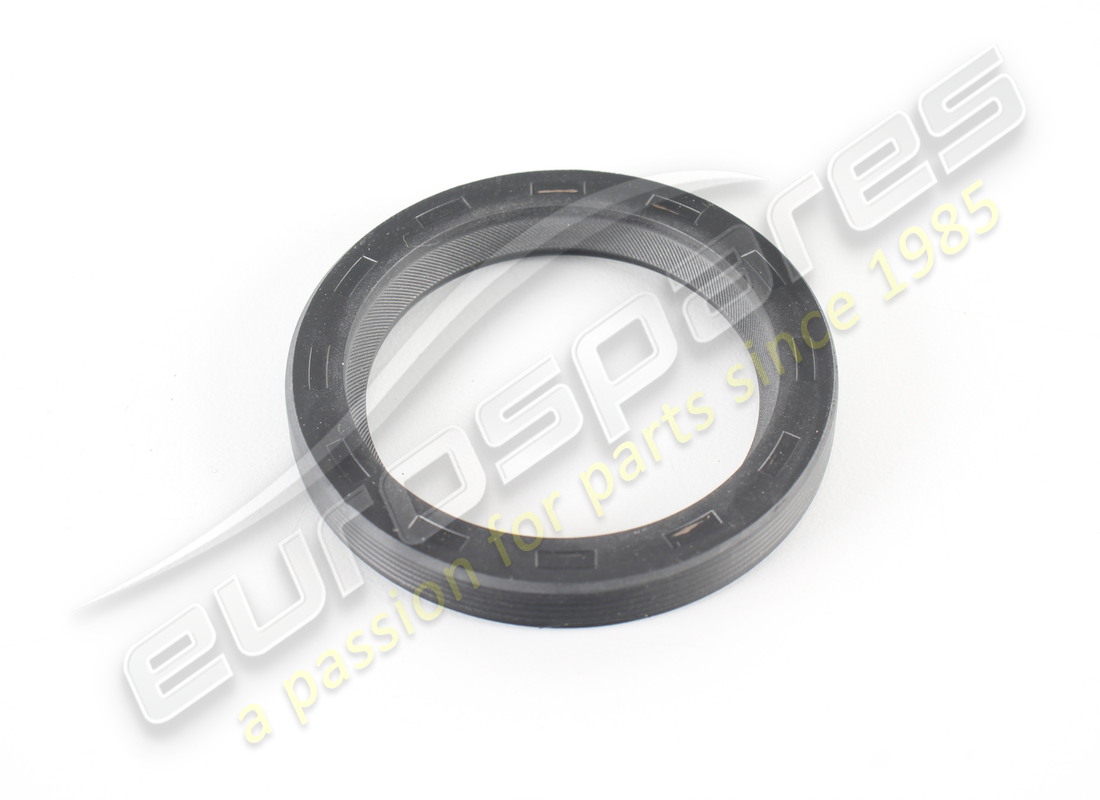

MPN: 114639
SEAL RING
PN. 128260 in alternative
from £19.51
from £19.51
This part replaces part number 128260
# 046
MPN: 117036
SEAL RING
from £4.93
from £4.93
# 047
MPN: 127649
SEAL RING
For cover PN. 128796
from £5.33
from £5.33
# 048
MPN: 10330210
DOWEL
For cover PN. 121447
from £0.47
from £0.47
# 049
MPN: 13541124
STUD
from £12.30
from £12.30
This part replaces part number 13541121
# 050
MPN: 11500121
STUD
Supersession
Supersession
This part replaces part number 13540820
# 051
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 052
MPN: 12601279
WASHER
from £0.53
from £0.53
This part replaces part number 12601271 - and 2 more. Click to view details
# 053
MPN: 124594
BRACKET
from £137.46
from £137.46
# 054
MPN: 10269750
PLUG
from £0.88
from £0.88
This part replaces part number 95184
# 055
MPN: 13525470
HELI-COIL
from £0.53
from £0.53
This part replaces part number 107333
# 056
MPN: 123103
LEFT INTAKE CAMSHAFT, COMPLETE
For A1, until engine no. 257
Supersession
Supersession
# 056
MPN: 143958
LEFT INTAKE CAMSHAFT, COMPLETE
from £1,084.77
from £1,084.77
This part replaces part number 124033
# 057
MPN: 123107

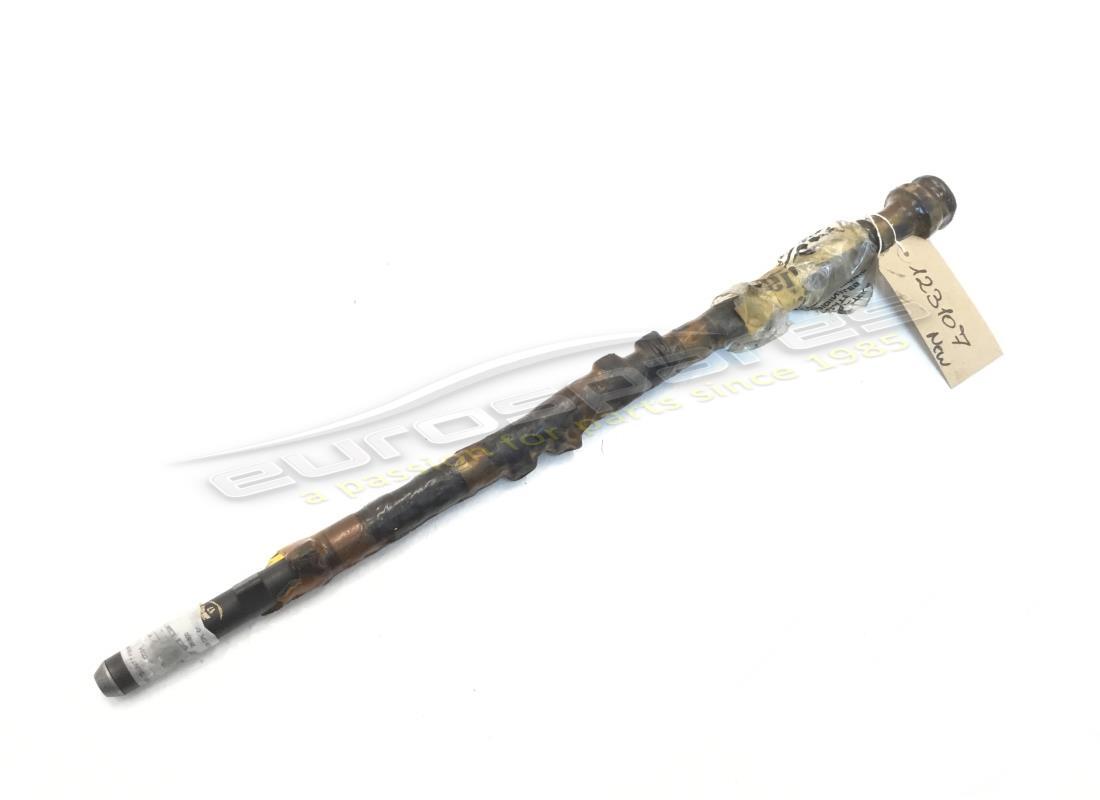

LEFT EXHAUST CAMSHAFT, COMPLETE
from £1,522.44
from £1,522.44
# 058
MPN: 114499
FRONT CAP
With complete cylinder head
# 059
MPN: 114497
REAR CAP
With complete cylinder head
# 060
MPN: 117043
INTERMEDIATE CAP
With complete cylinder head, after exhaustion use no. 126811
# 061
MPN: 170956

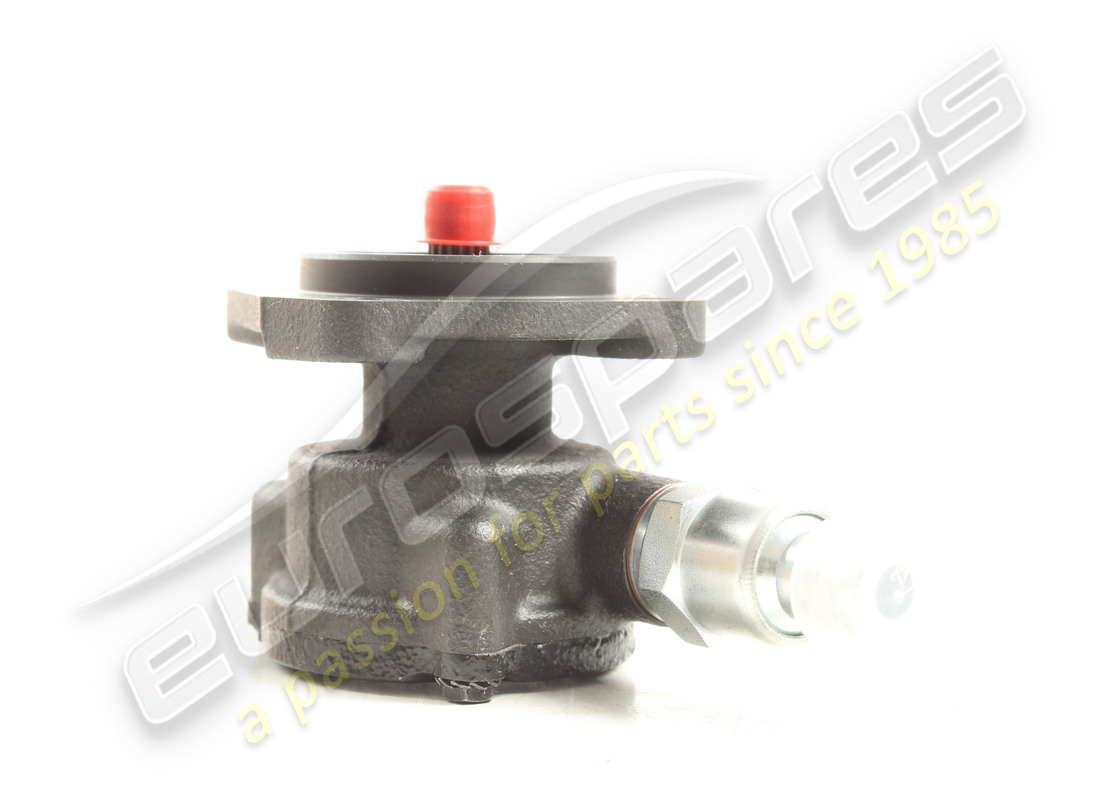

VACUUM PUMP
from £2,330.50
from £2,330.50
This part replaces part number 122737
# 062
MPN: 121054
COUPLING
from £42.11
from £42.11

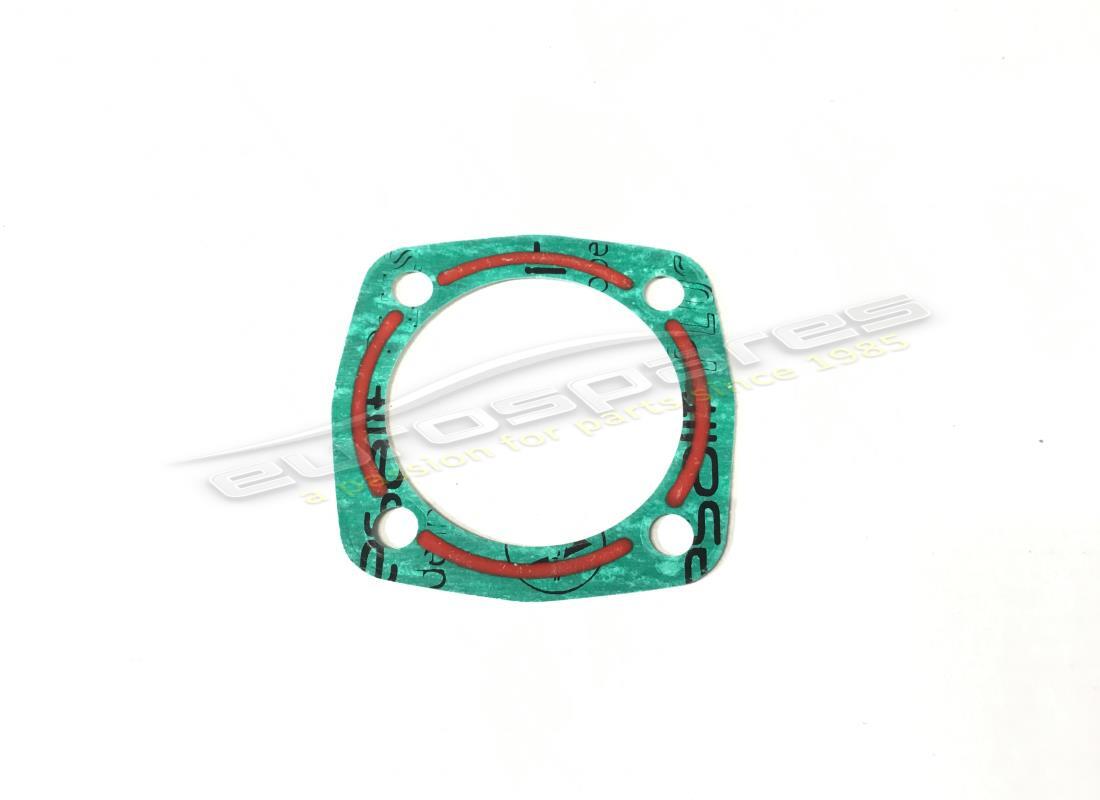

# 063

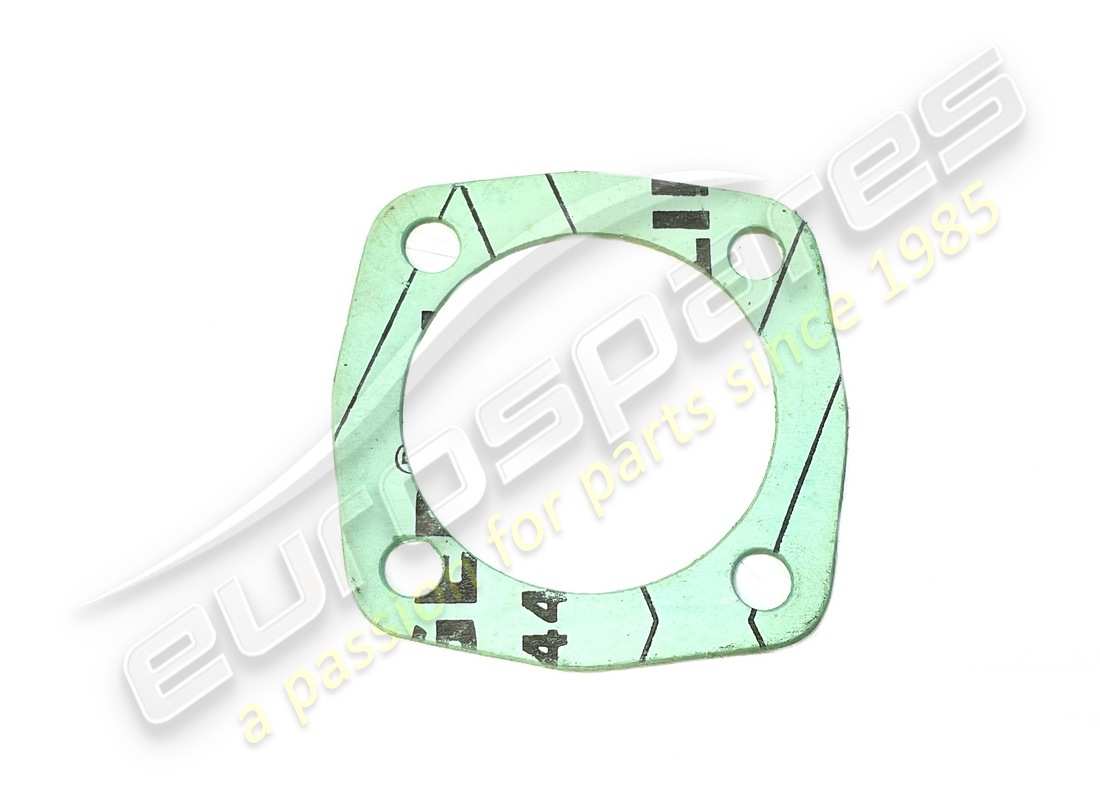

MPN: 150194
GASKET
from £16.34
from £16.34
This part replaces part number 134954 - and 1 more. Click to view details
# 064
MPN: 105661
0-RING
from £1.30
from £1.30
# 064
MPN: 123065
LEFT CYLINDER HEAD, COMPLETE
from £12,835.86
from £12,835.86
This part replaces part number 121441 - and 3 more. Click to view details

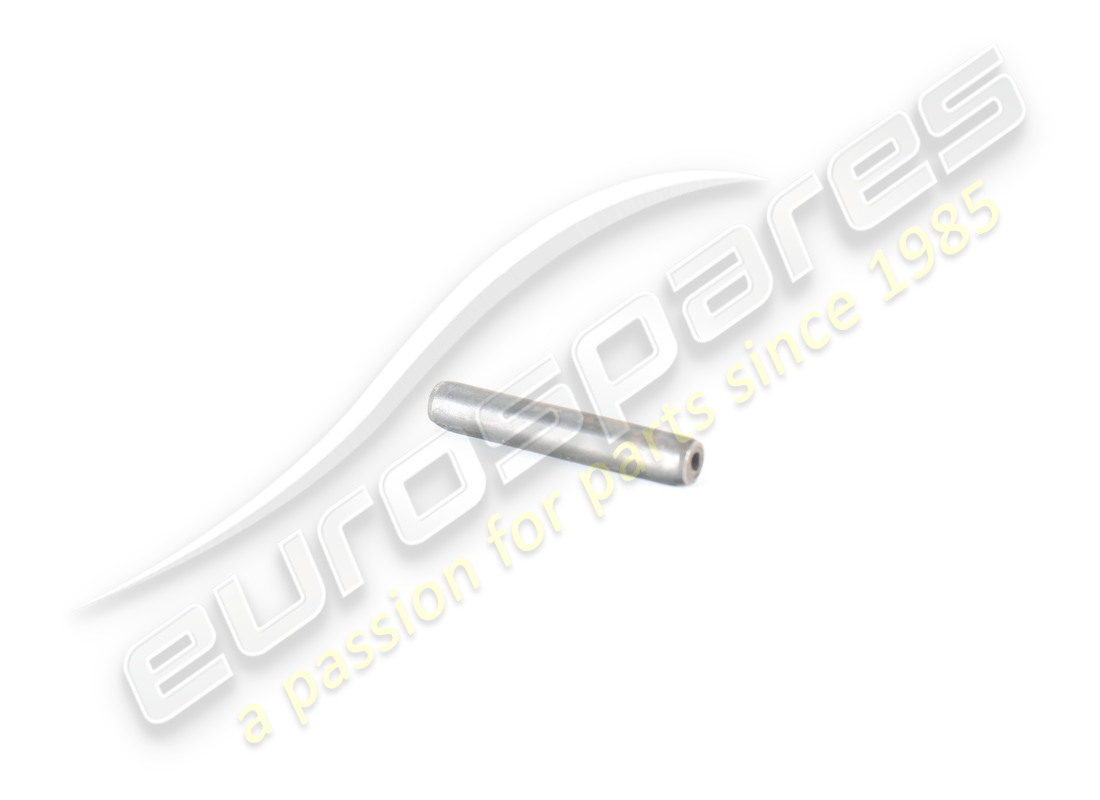

# 065
MPN: 13938070
PIN (Ø 4)
from £0.47
from £0.47
# 065
MPN: 13940270
PIN (Ø 5)
from £0.47
from £0.47
# 066
MPN: 102705
UNION
from £79.26
from £79.26
# 067
MPN: 125031
3-WAY UNION
from £11.81
from £11.81
# 068
MPN: 13000390
CLAMP
from £0.53
from £0.53
This part replaces part number 12179590 - and 1 more. Click to view details
# 069
MPN: 128010
WASHER
from £2.16
from £2.16
# 070
MPN: 146193
GASKET
from £2.88
from £2.88
This part replaces part number 127143
# 071
MPN: 127834
COVER
For A1 - B1
from £21.32
from £21.32
# 072
MPN: 14326150
PLUG
8 x 1,25
from £0.50
from £0.50
This part replaces part number 12326150
# 073
MPN: 127635
PLUG
from £1.48
from £1.48
This part replaces part number 183447
# 074
MPN: 13541021
STUD
Supersession
Supersession
# 075
MPN: 127494
WASHER
from £0.52
from £0.52
This part replaces part number 10516470 - and 4 more. Click to view details
# 076
MPN: 115201
NUT
from £12.68
from £12.68
-part-diagram-005.webp "FERRARI TESTAROSSA (1987) TIMING SYSTEM - CONTROLS PARTS DIAGRAM")
-part-diagram-006.webp "FERRARI TESTAROSSA (1987) TIMING SYSTEM - VALVES PARTS DIAGRAM")
-part-diagram-007.webp "FERRARI TESTAROSSA (1987) FUEL PUMPS AND PIPES PARTS DIAGRAM")
-part-diagram-008.webp "FERRARI TESTAROSSA (1987) FUEL TANKS (NOT FOR U.S. AND SA) PARTS DIAGRAM")
-part-diagram-009.webp "FERRARI TESTAROSSA (1987) FUEL TANKS (FOR U.S. AND SA) PARTS DIAGRAM")
-part-diagram-010.webp "FERRARI TESTAROSSA (1987) ANTI-EVAPORATIVE EMISSION CONTROL SYSTEM (FOR U.S. AND SA) PARTS DIAGRAM")
-part-diagram-011.webp "FERRARI TESTAROSSA (1987) FUEL DISTRIBUTORS LINES (K-JETRONIC SYSTEM) PARTS DIAGRAM")
-part-diagram-012.webp "FERRARI TESTAROSSA (1987) FUEL DISTRIBUTORS LINES (KE-JETRONIC SYSTEM) PARTS DIAGRAM")
-part-diagram-013.webp "FERRARI TESTAROSSA (1987) FUEL INJECTION SYSTEM - VALVES AND LINES PARTS DIAGRAM")
-part-diagram-014.webp "FERRARI TESTAROSSA (1987) SECONDARY AIR PUMP AND LINES (FOR U.S. VERSION) PARTS DIAGRAM")
-part-diagram-015.webp "FERRARI TESTAROSSA (1987) AIR INJECTION AND LINES (FOR CH AND SA) PARTS DIAGRAM")
-part-diagram-016.webp "FERRARI TESTAROSSA (1987) AIR INTAKE MANIFOLDS PARTS DIAGRAM")
-part-diagram-017.webp "FERRARI TESTAROSSA (1987) AIR INTAKE PARTS DIAGRAM")
-part-diagram-018.webp "FERRARI TESTAROSSA (1987) THROTTLES CONTROL PARTS DIAGRAM")
-part-diagram-019.webp "FERRARI TESTAROSSA (1987) EXHAUST SYSTEM (NOT FOR U.S.- SA AND CH87) PARTS DIAGRAM")
-part-diagram-020.webp "FERRARI TESTAROSSA (1987) EXHAUST SYSTEM (FOR U.S. - SA AND CH87) PARTS DIAGRAM")
-part-diagram-021.webp "FERRARI TESTAROSSA (1987) BLOW - BY SYSTEM PARTS DIAGRAM")
-part-diagram-022.webp "FERRARI TESTAROSSA (1987) LUBRICATION PARTS DIAGRAM")
-part-diagram-023.webp "FERRARI TESTAROSSA (1987) LUBRICATION - PUMPS AND OIL FILTER PARTS DIAGRAM")
-part-diagram-024.webp "FERRARI TESTAROSSA (1987) ENGINE COOLING PARTS DIAGRAM")
-part-diagram-025.webp "FERRARI TESTAROSSA (1987) COOLING SYSTEM PARTS DIAGRAM")
-part-diagram-026.webp "FERRARI TESTAROSSA (1987) WATER PUMP PARTS DIAGRAM")
-part-diagram-027.webp "FERRARI TESTAROSSA (1987) CLUTCH AND CONTROLS PARTS DIAGRAM")
-part-diagram-028.webp "FERRARI TESTAROSSA (1987) CLUTCH RELEASE CONTROL PARTS DIAGRAM")
-part-diagram-029.webp "FERRARI TESTAROSSA (1987) GEAR BOX TRANSMISSION PARTS DIAGRAM")
-part-diagram-030.webp "FERRARI TESTAROSSA (1987) GEAR BOX - MOUNTINGS AND COVERS PARTS DIAGRAM")
-part-diagram-031.webp "FERRARI TESTAROSSA (1987) GEAR BOX PARTS DIAGRAM")
-part-diagram-032.webp "FERRARI TESTAROSSA (1987) MAIN SHAFT GEARS PARTS DIAGRAM")
-part-diagram-033.webp "FERRARI TESTAROSSA (1987) LAY SHAFT GEARS PARTS DIAGRAM")
-part-diagram-034.webp "FERRARI TESTAROSSA (1987) GEAR BOX CONTROLS PARTS DIAGRAM")
-part-diagram-035.webp "FERRARI TESTAROSSA (1987) DIFFERENTIAL & AXLE SHAFTS PARTS DIAGRAM")
-part-diagram-036.webp "FERRARI TESTAROSSA (1987) BRAKE HYDRAULIC SYSTEM PARTS DIAGRAM")
-part-diagram-037.webp "FERRARI TESTAROSSA (1987) BRAKE SYSTEM PARTS DIAGRAM")
-part-diagram-038.webp "FERRARI TESTAROSSA (1987) CALIPERS FOR FRONT AND REAR BRAKES PARTS DIAGRAM")
-part-diagram-039.webp "FERRARI TESTAROSSA (1987) HAND - BRAKE CONTROL PARTS DIAGRAM")
-part-diagram-040.webp "FERRARI TESTAROSSA (1987) STEERING BOX AND LINKAGE PARTS DIAGRAM")
-part-diagram-041.webp "FERRARI TESTAROSSA (1987) STEERING COLUMN PARTS DIAGRAM")
-part-diagram-042.webp "FERRARI TESTAROSSA (1987) FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC PARTS DIAGRAM")
-part-diagram-043.webp "FERRARI TESTAROSSA (1987) FRONT SUSPENSION - WISHBONES PARTS DIAGRAM")
-part-diagram-044.webp "FERRARI TESTAROSSA (1987) REAR SUSPENSION - BRAKE DISC PARTS DIAGRAM")
-part-diagram-045.webp "FERRARI TESTAROSSA (1987) REAR SUSPENSION - WISHBONES AND SHOCK ABSORBERS PARTS DIAGRAM")
-part-diagram-046.webp "FERRARI TESTAROSSA (1987) WHEELS PARTS DIAGRAM")
-part-diagram-047.webp "FERRARI TESTAROSSA (1987) ENGINE IGNITION PARTS DIAGRAM")
-part-diagram-048.webp "FERRARI TESTAROSSA (1987) CURRENT GENERATION PARTS DIAGRAM")
-part-diagram-049.webp "FERRARI TESTAROSSA (1987) AIR CONDITIONING SYSTEM PARTS DIAGRAM")
-part-diagram-050.webp "FERRARI TESTAROSSA (1987) TOOL KIT PARTS DIAGRAM")
-part-diagram-051.webp "FERRARI TESTAROSSA (1987) CLUTCH RELEASE CONTROL (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-052.webp "FERRARI TESTAROSSA (1987) BRAKE HYDRAULIC SYSTEM - ACCELERATOR CONTROL (VARIANTS FOR RHD VERSIONS) PARTS DIAGRAM")
-part-diagram-101.webp "FERRARI TESTAROSSA (1987) BODY - EXTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-102.webp "FERRARI TESTAROSSA (1987) BODY - EXTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-103.webp "FERRARI TESTAROSSA (1987) BODY - INTERNAL COMPONENTS PARTS DIAGRAM")
-part-diagram-104.webp "FERRARI TESTAROSSA (1987) REAR FRAME PARTS DIAGRAM")
-part-diagram-105.webp "FERRARI TESTAROSSA (1987) EXTERNAL FINISHING PARTS DIAGRAM")
-part-diagram-106.webp "FERRARI TESTAROSSA (1987) BUMPERS PARTS DIAGRAM")
-part-diagram-107.webp "FERRARI TESTAROSSA (1987) LUGGAGE COMPARTMENT CARPET AND INSULATION PANELS PARTS DIAGRAM")
-part-diagram-108.webp "FERRARI TESTAROSSA (1987) FRONT HOOD PARTS DIAGRAM")
-part-diagram-109.webp "FERRARI TESTAROSSA (1987) REAR HOOD PARTS DIAGRAM")
-part-diagram-110.webp "FERRARI TESTAROSSA (1987) DOOR PARTS DIAGRAM")
-part-diagram-111.webp "FERRARI TESTAROSSA (1987) DOOR - LOCKING DEVICE PARTS DIAGRAM")
-part-diagram-112.webp "FERRARI TESTAROSSA (1987) DOOR - POWER WINDOW PARTS DIAGRAM")
-part-diagram-113.webp "FERRARI TESTAROSSA (1987) WINDOWS PARTS DIAGRAM")
-part-diagram-114.webp "FERRARI TESTAROSSA (1987) ACCESSORIES AND TRIMS PARTS DIAGRAM")
-part-diagram-115.webp "FERRARI TESTAROSSA (1987) SEATS AND CARPETS PARTS DIAGRAM")
-part-diagram-116.webp "FERRARI TESTAROSSA (1987) DASHBOARD (NOT FOR U.S. VERSION MY 1987) PARTS DIAGRAM")
-part-diagram-116a.webp "FERRARI TESTAROSSA (1987) DASHBOARD (FOR U.S. VERSION MY 1987) PARTS DIAGRAM")
-part-diagram-117.webp "FERRARI TESTAROSSA (1987) CENTRAL TUNNEL (NOT FOR U.S. VERSION MY 1987) PARTS DIAGRAM")
-part-diagram-117a.webp "FERRARI TESTAROSSA (1987) CENTRAL TUNNEL (FOR U.S. VERSION MY 1987) PARTS DIAGRAM")
-part-diagram-118.webp "FERRARI TESTAROSSA (1987) INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (NOT FOR U.S. VERSION MY 1987) PARTS DIAGRAM")
-part-diagram-118a.webp "FERRARI TESTAROSSA (1987) INSTRUMENTS AND PASSENGER COMPARTMENT ACCESSORIES (FOR U.S. VERSION MY 1987) PARTS DIAGRAM")
-part-diagram-119.webp "FERRARI TESTAROSSA (1987) FRONT HEADLIGHT LIFTING DEVICE PARTS DIAGRAM")
-part-diagram-120.webp "FERRARI TESTAROSSA (1987) LAMPS PARTS DIAGRAM")
-part-diagram-121.webp "FERRARI TESTAROSSA (1987) ELECTRIC SYSTEM PARTS DIAGRAM")
-part-diagram-122.webp "FERRARI TESTAROSSA (1987) VALVES AND ELECTROMAGNETIC SWITCHES PARTS DIAGRAM")
-part-diagram-123.webp "FERRARI TESTAROSSA (1987) ELECTRIC CONTROLS FOR KE - JETRONIC AND EXHAUST PARTS DIAGRAM")
-part-diagram-124.webp "FERRARI TESTAROSSA (1987) WINDSHIELD WIPER, WASHER AND HORNS PARTS DIAGRAM")
-part-diagram-125.webp "FERRARI TESTAROSSA (1987) HEATER UNIT PARTS DIAGRAM")
-part-diagram-001.webp "FERRARI TESTAROSSA (1987) CRANKCASE PARTS DIAGRAM")
-part-diagram-002.webp "FERRARI TESTAROSSA (1987) CRANKSHAFT - CONNECTING RODS AND PISTONS PARTS DIAGRAM")
-part-diagram-003.webp "FERRARI TESTAROSSA (1987) CYLINDER HEAD (RIGHT) PARTS DIAGRAM")
