ferrari testarossa (1987) cylinder head (right) parts diagram

003 - cylinder head (right)

Ferrari Testarossa (1987) Cylinder Head (Right) Parts Diagram

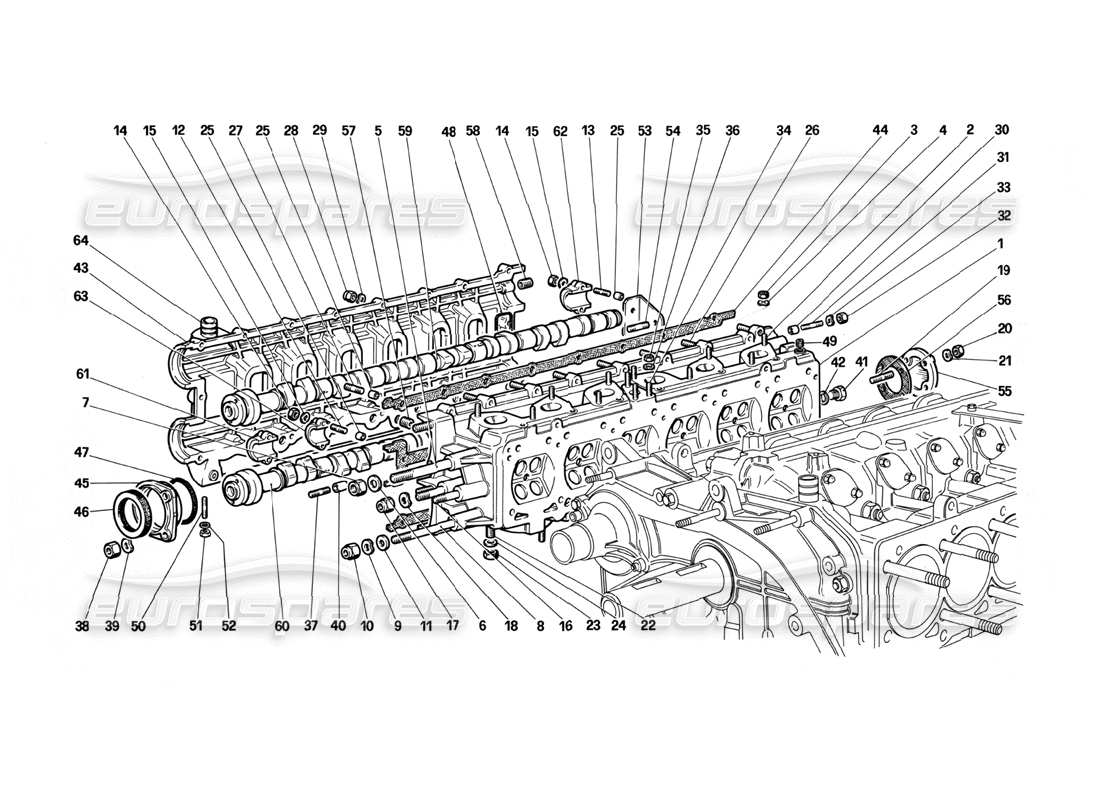

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Price
                                                                                                        # 001
                                                                                                        MPN: 123064
                                                                                                        right cylinder head
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 121440 - and 3 more. Click to view details
                                                                                                        # 002
                                                                                                        MPN: 12354524
                                                                                                        STUD
                                                                                                        from £15.48
                                                                                                        from £15.48
                                                                                                        This part replaces part number 12354521
                                                                                                        # 003
                                                                                                        MPN: 16100824
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                        # 004
                                                                                                        MPN: 11194071
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 005
                                                                                                        MPN: 13953121
                                                                                                        STUD
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 006
                                                                                                        MPN: 12601471
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 007
                                                                                                        MPN: 12575611
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 008
                                                                                                        MPN: 13970321
                                                                                                        STUD
                                                                                                        For Al - B1
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 008
                                                                                                        MPN: 13970421
                                                                                                        STUD
                                                                                                        For US - CH - SA
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 009
                                                                                                        MPN: 12604471
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        # 011
                                                                                                        MPN: 128010
                                                                                                        SPRING WASHER
                                                                                                        from £2.16
                                                                                                        from £2.16
                                                                                                        # 012
                                                                                                        MPN: 102735
                                                                                                        STUD FOR INNER CAPS
                                                                                                        from £11.07
                                                                                                        from £11.07
                                                                                                        This part replaces part number 4146561
                                                                                                        # 013
                                                                                                        MPN: 102754
                                                                                                        STUD FOR OUTER CAPS
                                                                                                        from £5.00
                                                                                                        from £5.00
                                                                                                        # 014
                                                                                                        MPN: 15896211
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 15896210
                                                                                                        # 015
                                                                                                        MPN: 11197773
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 016
                                                                                                        MPN: 13543421
                                                                                                        STUD
                                                                                                        Belt stretcher
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 017
                                                                                                        MPN: 101139
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 16104425
                                                                                                        # 018
                                                                                                        MPN: 12601371
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 019
                                                                                                        MPN: 11500321
                                                                                                        STUD
                                                                                                        for A1
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 019
                                                                                                        MPN: 13541021
                                                                                                        STUD
                                                                                                        For B1 - US - CH - SA
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 020
                                                                                                        MPN: 102741
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                        # 021
                                                                                                        MPN: 12601279
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                        # 022
                                                                                                        MPN: 13543521
                                                                                                        STUD
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 023
                                                                                                        MPN: 114748
                                                                                                        NUT
                                                                                                        PN 124525 in alternative
                                                                                                        from £8.88
                                                                                                        from £8.88
                                                                                                        # 024
                                                                                                        MPN: 127496
                                                                                                        WASHER
                                                                                                        For nut PN 105938
                                                                                                        from £0.52
                                                                                                        from £0.52
                                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                        # 025
                                                                                                        MPN: 102725
                                                                                                        DOWEL
                                                                                                        from £0.60
                                                                                                        from £0.60
                                                                                                        # 025
                                                                                                        MPN: 123064
                                                                                                        RIGHT CYLINDER HEAD, COMPLETE
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 121440 - and 3 more. Click to view details
                                                                                                        # 026
                                                                                                        MPN: 13541324
                                                                                                        STUD FOR COVERS
                                                                                                        from £0.94
                                                                                                        from £0.94
                                                                                                        This part replaces part number 13541321
                                                                                                        # 027
                                                                                                        MPN: 13541421
                                                                                                        STUD ON DOWEL
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 028
                                                                                                        MPN: 100044
                                                                                                        CAP NUT
                                                                                                        from £0.26
                                                                                                        from £0.26
                                                                                                        This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                        # 029
                                                                                                        MPN: 12601279
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                        # 030
                                                                                                        MPN: 102725
                                                                                                        DOWEL
                                                                                                        from £0.66
                                                                                                        from £0.66
                                                                                                        # 031
                                                                                                        MPN: 13541124
                                                                                                        STUD
                                                                                                        from £12.64
                                                                                                        from £12.64
                                                                                                        This part replaces part number 13541121
                                                                                                        # 032
                                                                                                        MPN: 15896211
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 15896210
                                                                                                        # 033
                                                                                                        MPN: 11197773
                                                                                                        WASHER
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 034
                                                                                                        MPN: 13541021
                                                                                                        STUD
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 035
                                                                                                        MPN: 102741
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                        # 036
                                                                                                        MPN: 12601279
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                        # 037
                                                                                                        MPN: 13541124
                                                                                                        STUD
                                                                                                        from £11.95
                                                                                                        from £11.95
                                                                                                        This part replaces part number 13541121
                                                                                                        # 038
                                                                                                        MPN: 102741
                                                                                                        NUT
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                        # 039
                                                                                                        MPN: 12601279
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                        # 040
                                                                                                        MPN: 102725
                                                                                                        DOWEL
                                                                                                        from £0.65
                                                                                                        from £0.65
                                                                                                        # 041
                                                                                                        MPN: 10300740
                                                                                                        WATER DRAIN PLUG
                                                                                                        from £12.10
                                                                                                        from £12.10
                                                                                                        # 042
                                                                                                        MPN: 10257060
                                                                                                        GASKET
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                        # 043
                                                                                                        MPN: 128795
                                                                                                        RIGHT CYL. HEAD COVER
                                                                                                        # 044
                                                                                                        MPN: 147764
                                                                                                        RH CAM COVER GASKET
                                                                                                        from £88.52
                                                                                                        from £88.52
                                                                                                        This part replaces part number 121126 - and 2 more. Click to view details
                                                                                                        # 044
                                                                                                        MPN: 150196
                                                                                                        GASKET
                                                                                                        from £54.24
                                                                                                        from £54.24
                                                                                                        This part replaces part number 134948 - and 1 more. Click to view details
                                                                                                        # 044
                                                                                                        MPN: 150196
                                                                                                        GASKET
                                                                                                        from £54.24
                                                                                                        from £54.24
                                                                                                        This part replaces part number 134948 - and 1 more. Click to view details
                                                                                                        # 044
                                                                                                        MPN: FCCG014
                                                                                                        CAM COVER SET
                                                                                                        from £73.06
                                                                                                        from £73.06
                                                                                                        # 044
                                                                                                        MPN: FCCG014/A
                                                                                                        Ferrari Testarossa (1987) Cam Cover Gasket Set &
                                                                                                        # 044
                                                                                                        MPN: FCCG030
                                                                                                        CAM COVER GASKET SET
                                                                                                        (Early Model)
                                                                                                        # 045
                                                                                                        MPN: 121116
                                                                                                        FRONT COVER
                                                                                                        from £65.66
                                                                                                        from £65.66
                                                                                                        # 046
                                                                                                        MPN: 114639
                                                                                                        SEAL RING
                                                                                                        PN. 128260 in alternative
                                                                                                        from £13.52
                                                                                                        from £13.52
                                                                                                        This part replaces part number 128260
                                                                                                        # 047
                                                                                                        MPN: 117036
                                                                                                        SEAL RING
                                                                                                        from £4.93
                                                                                                        from £4.93
                                                                                                        # 048
                                                                                                        MPN: 127649
                                                                                                        SEAL RING
                                                                                                        For cover PN. 128796
                                                                                                        from £5.33
                                                                                                        from £5.33
                                                                                                        # 049
                                                                                                        MPN: 14326150
                                                                                                        PLUG
                                                                                                        8 x 1,25
                                                                                                        from £0.50
                                                                                                        from £0.50
                                                                                                        This part replaces part number 12326150
                                                                                                        # 050
                                                                                                        MPN: 11500121
                                                                                                        STUD
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 13540820
                                                                                                        # 051
                                                                                                        MPN: 15896211
                                                                                                        NUT
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        This part replaces part number 15896210
                                                                                                        # 052
                                                                                                        MPN: 12601279
                                                                                                        WASHER
                                                                                                        from £0.47
                                                                                                        from £0.47
                                                                                                        This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                        # 053
                                                                                                        MPN: 124594
                                                                                                        BRACKET
                                                                                                        from £137.46
                                                                                                        from £137.46
                                                                                                        # 054
                                                                                                        MPN: 13541124
                                                                                                        STUD
                                                                                                        from £12.64
                                                                                                        from £12.64
                                                                                                        This part replaces part number 13541121
                                                                                                        # 055
                                                                                                        MPN: 103796
                                                                                                        REAR COVER
                                                                                                        from £167.71
                                                                                                        from £167.71
                                                                                                        # 056
                                                                                                        MPN: 150075
                                                                                                        GASKET
                                                                                                        from £16.34
                                                                                                        from £16.34
                                                                                                        This part replaces part number 104694 - and 3 more. Click to view details
                                                                                                        # 057
                                                                                                        MPN: 10269750
                                                                                                        PLUG
                                                                                                        from £0.90
                                                                                                        from £0.90
                                                                                                        This part replaces part number 95184
                                                                                                        # 058
                                                                                                        MPN: 13525470
                                                                                                        HELI-COIL
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 107333
                                                                                                        # 059
                                                                                                        MPN: 123101
                                                                                                        RIGHT INTAKE CAMSHAFT, COMPLETE
                                                                                                        For A1, until engine no. 257
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 059
                                                                                                        MPN: 143957
                                                                                                        RIGHT INTAKE CAMSHAFT, COMPLETE
                                                                                                        For Al, starting from engine no. 258, B1-US-CH-SA
                                                                                                        from £2,489.60
                                                                                                        from £2,489.60
                                                                                                        This part replaces part number 123413
                                                                                                        # 060
                                                                                                        MPN: 123105
                                                                                                        RIGHT EXHAUST CAMSHAFT, COMPLETE
                                                                                                        from £1,522.44
                                                                                                        from £1,522.44
                                                                                                        # 061
                                                                                                        MPN: 114499
                                                                                                        FRONT CAP
                                                                                                        With complete cylinder head
                                                                                                        # 062
                                                                                                        MPN: 114497
                                                                                                        REAR CAP
                                                                                                        With complete cylinder head
                                                                                                        # 063
                                                                                                        MPN: 117043
                                                                                                        INTERMEDIATE CUP
                                                                                                        With complete cylinder head, after exhaustion use no. 126811
                                                                                                        # 064
                                                                                                        MPN: 102705
                                                                                                        UNION
                                                                                                        from £79.26
                                                                                                        from £79.26
