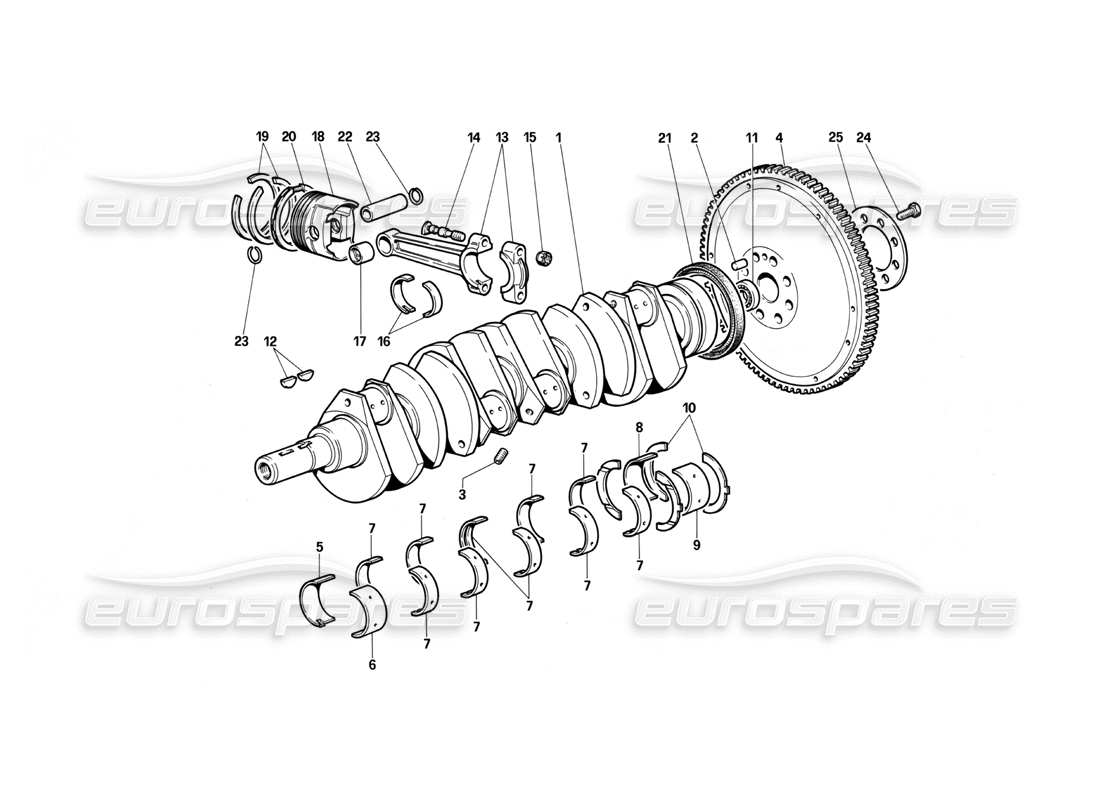

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Key
                                      Price
                                      # 001
                                      MPN: 120902
                                      crankshaft
                                      from £2,338.82
                                      from £2,338.82
                                      This part replaces part number 121452
                                      crankshaft Genuine Ferrari Part - New (to order)
                                      # 002
                                      MPN: 100185
                                      DOWEL
                                      from £21.05
                                      from £21.05
                                      This part replaces part number 94129
                                      DOWEL Genuine Ferrari Part - New In stock
                                      # 003
                                      MPN: 14326150
                                      PLUG
                                      from £0.48
                                      from £0.48
                                      This part replaces part number 12326150
                                      PLUG Genuine Ferrari Part - New In stock
                                      TAPERED THREADED PLUG D.8X1.2 Genuine Maserati Part - New (to order)
                                      # 004
                                      MPN: 123923
                                      FLYWHEEL
                                      For A1, from engine no. 258 use PN 128538
                                      from £4,609.16
                                      from £4,609.16
                                      FLYWHEEL Genuine Ferrari Part - New (to order)
                                      # 004
                                      MPN: 128538
                                      FLYWHEEL
                                      For A1, from engine no. 258
                                      from £2,169.80
                                      from £2,169.80
                                      FLYWHEEL Genuine Ferrari Part - New (to order)
                                      # 005
                                      MPN: 100118
                                      UPPER MAIN HALF BEARING SHELL STANDARD
                                      from £42.25
                                      from £42.25
                                      This part replaces part number 9100035
                                      UPPER MAIN HALF BEARING SHELL STANDARD Genuine Ferrari Part - New (to order)
                                      # 005
                                      MPN: 100119
                                      UPPER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                      from £75.69
                                      from £75.69
                                      UPPER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM Genuine Ferrari Part - New In stock
                                      # 005
                                      MPN: 100120
                                      UPPER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                      from £26.93
                                      from £26.93
                                      UPPER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM Genuine Ferrari Part - New In stock
                                      # 006
                                      MPN: 100122
                                      LOWER MAIN HALF BEARING SHELL STANDARD
                                      from £34.08
                                      from £34.08
                                      This part replaces part number 9100602
                                      LOWER MAIN HALF BEARING SHELL STANDARD Genuine Ferrari Part - New (to order)
                                      # 006
                                      MPN: 100123
                                      LOWER MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM
                                      from £70.79
                                      from £70.79
                                      MAIN BEARING Genuine Ferrari Part - New In stock
                                      # 006
                                      MPN: 100124
                                      LOWER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM
                                      from £34.49
                                      from £34.49
                                      LOWER MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM Genuine Ferrari Part - New In stock
                                      # 007
                                      MPN: 100134
                                      SEMICUSCINETTO INFERIORE E SUPERIORE
                                      from £35.97
                                      from £35.97
                                      This part replaces part number 9100618 - and 1 more. Click to view details
                                      MAIN HALF BEARING SHELL STANDARD Genuine Ferrari Part - New (to order)
                                      MAIN HALF BEARING SHELL STANDARD Genuine Ferrari Part - New (other) In stock
                                      std
                                      # 007
                                      MPN: 100135
                                      1ª Undersize mm. 0,254
                                      from £49.86
                                      from £49.86
                                      MAIN HALF BEARING SHELL 1ST UNDERSIZE 0.254MM Genuine Ferrari Part - New In stock
                                      # 007
                                      MPN: 100136
                                      2ND UNDERSIZE 0.508 MM. ON Ø
                                      from £31.50
                                      from £31.50
                                      MAIN HALF BEARING SHELL 2ND UNDERSIZE 0.508MM Genuine Ferrari Part - New In stock
                                      # 008
                                      MPN: 100138
                                      RIGHT REAR HALF BEARING
                                      from £29.70
                                      from £29.70
                                      This part replaces part number 9100037
                                      MAIN HALF BEARING SHELL STANDARD Genuine Ferrari Part - New In stock
                                      MAIN HALF BEARING SHELL STANDARD Eurospares Approved Part - New In stock
                                      # 008
                                      MPN: 100139
                                      1ST UNDERSIZE 0.254 ON Ø
                                      from £53.34
                                      from £53.34
                                      REAR UPPER BEARING SHELL 1ST UNDERSIZE 0.254MM Genuine Ferrari Part - New (to order)
                                      # 008
                                      MPN: 100140
                                      2ND UNDERSIZE 0.508 ON Ø
                                      from £33.57
                                      from £33.57
                                      REAR UPPER BEARING SHELL 2ND UNDERSIZE 0.508MM Genuine Ferrari Part - New In stock
                                      # 009
                                      MPN: 100142
                                      LEFT REAR HALF BEARING
                                      from £64.50
                                      from £64.50
                                      This part replaces part number 9100603
                                      MAIN HALF BEARING SHELL STANDARD Genuine Ferrari Part - New (to order)
                                      # 009
                                      MPN: 100143
                                      1ST UNDERSIZE 0.254 MM. ON Ø
                                      from £71.61
                                      from £71.61
                                      REAR LOWER BEARING SHELL 1ST UNDERSIZE 0.254MM Genuine Ferrari Part - New (to order)
                                      # 009
                                      MPN: 100144
                                      2ND UNDERSIZE 0.508 MM. ON Ø
                                      from £50.99
                                      from £50.99
                                      REAR LOWER BEARING SHELL 2ND UNDERSIZE 0.508MM Genuine Ferrari Part - New In stock
                                      # 010
                                      MPN: 100146
                                      THRUST WASHERS SET STD
                                      sold in pairs -
                                      from £22.19
                                      from £22.19
                                      This part replaces part number 10345 - and 1 more. Click to view details
                                      Thrust Washers Per Pair Standard Genuine Ferrari Part - New In stock
                                      Thrust Washers Per Pair Standard Genuine Ferrari Part - New (other) In stock
                                      Pairs.
                                      # 010
                                      MPN: 100147
                                      THRUST WASHERS (2ND OVERSIZE)
                                      from £19.11
                                      from £19.11
                                      This part replaces part number 4153187/C
                                      RING Genuine Ferrari Part - New In stock
                                      # 010
                                      MPN: 113984
                                      1ST OVERSIZE 0.127 MM.
                                      from £51.93
                                      from £51.93
                                      RING Genuine Ferrari Part - New In stock
                                      # 011
                                      MPN: 103877
                                      PILOT BEARING
                                      from £18.43
                                      from £18.43
                                      This part replaces part number 24940440
                                      BALL BEARING Genuine Ferrari Part - New In stock
                                      BALL BEARING, 30-35 X 1 Genuine Maserati Part - New In stock
                                      # 012
                                      MPN: 10206520
                                      FEATHER KEY ON CRANKSHAFT
                                      from £9.95
                                      from £9.95
                                      WOODRUFF KEY Genuine Ferrari Part - New (to order)
                                      # 012
                                      MPN: 109738/U
                                      CON ROD
                                      from £230.00
                                      from £230.00
                                      CON ROD WEIGHT CODE U Genuine Ferrari Part - New (to order)
                                      CON ROD WEIGHT CODE U Genuine Ferrari Part - Used In stock
                                      # 013
                                      MPN: 109738/U
                                      CON ROD
                                      from £230.00
                                      from £230.00
                                      CON ROD WEIGHT CODE U Genuine Ferrari Part - New (to order)
                                      CON ROD WEIGHT CODE U Genuine Ferrari Part - Used In stock
                                      # 014
                                      MPN: 100156
                                      CONNECTING ROD TIGHTENING BOLT
                                      from £16.69
                                      from £16.69
                                      This part replaces part number 140020 - and 1 more. Click to view details
                                      CON ROD BOLT Genuine Ferrari Part - New (to order)
                                      # 015
                                      MPN: 104011
                                      NUT FOR CONNECTING ROD TIGHTENING
                                      from £9.62
                                      from £9.62
                                      This part replaces part number 14511 which we have in stock - and 2 more. Click to view details
                                      SELF LOCKING NUT 10X1MM Genuine Ferrari Part - New In stock
                                      # 016
                                      MPN: 100150/A
                                      BIG ENDS BEARING SET
                                      Std - Bearings C/Rod Pack Of 4Prs Std / Sold per pack
                                      from £20.04
                                      from £20.04
                                      CON ROD HALF BEARING STANDARD SET 4 PAIRS Genuine Ferrari Part - New (to order)
                                      Alternative (#106183) CON ROD HALF BEARING Genuine Ferrari Part - New In stock
                                      # 016
                                      MPN: 100151
                                      CON ROD BEARING +10
                                      (1st Undersize mm 0,254)
                                      from £45.05
                                      from £45.05
                                      This part replaces part number 106184
                                      CONNECTING ROD BEARING Genuine Ferrari Part - New (to order)
                                      # 016
                                      MPN: 100152
                                      CON ROD BEARING +20
                                      (2ª Undersize mm 0,508)
                                      from £63.11
                                      from £63.11
                                      This part replaces part number 106185
                                      HALF BEARING Genuine Ferrari Part - New In stock
                                      # 016
                                      MPN: 106183
                                      CON ROD HALF BEARING STANDARD
                                      from £20.04
                                      from £20.04
                                      This part replaces part number 100150
                                      CON ROD HALF BEARING Genuine Ferrari Part - New In stock
                                      Alternative (#100150/A) CON ROD HALF BEARING STANDARD SET 4 PAIRS Genuine Ferrari Part - New (to order)
                                      # 017
                                      MPN: 107100
                                      SMALL END BUSH
                                      from £25.36
                                      from £25.36
                                      This part replaces part number 100155 - and 2 more. Click to view details
                                      SMALL END BUSH Genuine Ferrari Part - New (to order)
                                      SMALL END BUSH Eurospares Approved Part - New In stock
                                      # 018
                                      MPN: 120449
                                      PISTON, COMPLETE
                                      Not for U.S.
                                      from £246.75
                                      from £246.75
                                      PISTON COMPLETE Genuine Ferrari Part - New In stock
                                      # 018
                                      MPN: 120450
                                      PISTON, COMPLETE
                                      U.S.A. model
                                      from £333.64
                                      from £333.64
                                      Genuine Ferrari Part (no longer available to order)
                                      PISTON COMPLETE Genuine Ferrari Part - New (other) In stock
                                      (USA model) red dot
                                      # 018
                                      MPN: 121531
                                      PISTON RINGS SET
                                      (price for 1 piston)
                                      from £112.00
                                      from £112.00
                                      This part replaces part number 119850
                                      PISTON RING SET Genuine Ferrari Part - New In stock
                                      # 018
                                      MPN: 136294
                                      PISTON
                                      from £246.75
                                      from £246.75
                                      This part replaces part number 120449 which we have in stock
                                      PISTON COMPLETE Genuine Ferrari Part - New In stock
                                      PISTON COMPLETE Eurospares Approved Part - New (to order)
                                      # 019
                                      MPN: 121531
                                      PISTON RINGS SET
                                      (price for 1 piston)
                                      from £112.00
                                      from £112.00
                                      This part replaces part number 119850
                                      PISTON RING SET Genuine Ferrari Part - New In stock
                                      # 020
                                      MPN: 119851
                                      ROF SCRAPER RING
                                      3rd groove with set P.N. 121531
                                      ROF SCRAPER RING - 3RD GROOVE Genuine Ferrari Part - New (to order)
                                      # 021
                                      MPN: 138391
                                      SEAL RING
                                      (100x120x13)
                                      from £31.80
                                      from £31.80
                                      This part replaces part number 100014
                                      Genuine Ferrari Part (no longer available to order)
                                      REAR MAIN OIL SEAL Eurospares Approved Part - New In stock
                                      # 022
                                      MPN: 119537
                                      GUDGEON PIN
                                      from £34.44
                                      from £34.44
                                      GUDGEON PIN Genuine Ferrari Part - New In stock
                                      Split pin, 1/8 x l 1/8 Genuine Aston Martin - New (to order)
                                      GUDGEON PIN Genuine Ferrari Part - Used In stock
                                      # 023
                                      MPN: 100174
                                      GUDGEON PIN CIRCLIP
                                      from £3.47
                                      from £3.47
                                      This part replaces part number 14594
                                      GUDGEON PIN CIRCLIP Genuine Ferrari Part - New In stock
                                      # 024
                                      MPN: 201755
                                      FLYWHEEL SECURING SCREW
                                      from £1.16
                                      from £1.16
                                      This part replaces part number 103875
                                      SCREW Genuine Ferrari Part - New In stock
                                      SCREW Genuine Maserati Part - New In stock
                                      # 025
                                      MPN: 108662
                                      SAFETY PLATE
                                      from £48.05
                                      from £48.05
                                      LOCKING PLATE Genuine Ferrari Part - New (to order)
