ferrari testarossa (1987) crankcase parts diagram

001 - crankcase

Ferrari Testarossa (1987) Crankcase Parts Diagram

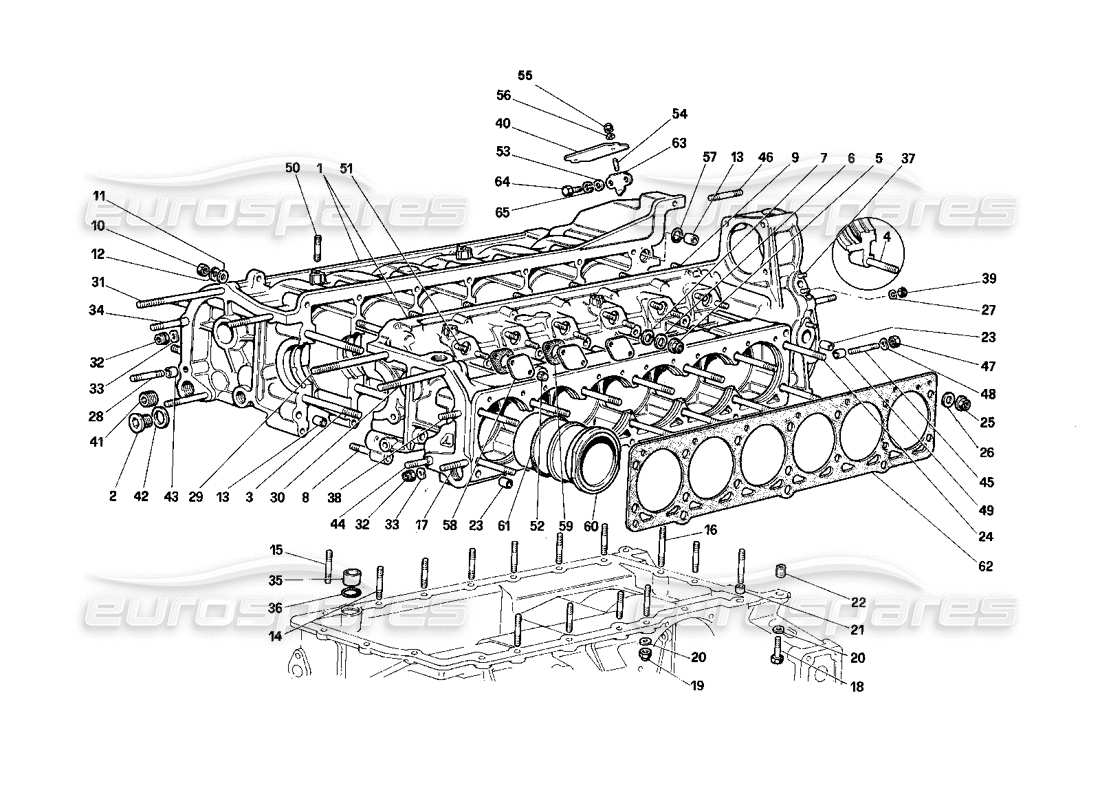

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                  #
                                                                                                                                  Part number
                                                                                                                                  Description
                                                                                                                                  Price
                                                                                                                                  # 001
                                                                                                                                  MPN: 121431
                                                                                                                                  CRANKCASE, COMPLETE
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  This part replaces part number 122169 - and 3 more. Click to view details
                                                                                                                                  # 001
                                                                                                                                  MPN: 122169
                                                                                                                                  RIGHT SEMI-CRANKCASE
                                                                                                                                  As part of complete
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 001
                                                                                                                                  MPN: 122170
                                                                                                                                  LEFT SEMI-CRANKCASE
                                                                                                                                  As part of complete
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 002
                                                                                                                                  MPN: 10304611
                                                                                                                                  PLUG
                                                                                                                                  from £2.62
                                                                                                                                  from £2.62
                                                                                                                                  # 003
                                                                                                                                  MPN: 102687
                                                                                                                                  SEMI-CRANKCASE SECURING STUD
                                                                                                                                  from £36.07
                                                                                                                                  from £36.07
                                                                                                                                  # 004
                                                                                                                                  MPN: 109539
                                                                                                                                  SEMI-CRANKCASE SECURING STUD
                                                                                                                                  from £13.24
                                                                                                                                  from £13.24
                                                                                                                                  # 005
                                                                                                                                  MPN: 102693
                                                                                                                                  NUT
                                                                                                                                  from £22.78
                                                                                                                                  from £22.78
                                                                                                                                  # 006
                                                                                                                                  MPN: 102694
                                                                                                                                  WASHER
                                                                                                                                  from £1.11
                                                                                                                                  from £1.11
                                                                                                                                  # 007
                                                                                                                                  MPN: 106855
                                                                                                                                  WASHER
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 008
                                                                                                                                  MPN: 12546630
                                                                                                                                  SEMI-CRANKCASE SECURING STUD
                                                                                                                                  # 009
                                                                                                                                  MPN: 102689
                                                                                                                                  SEMI-CRANKCASE SECURING STUD
                                                                                                                                  from £10.40
                                                                                                                                  from £10.40
                                                                                                                                  # 009
                                                                                                                                  MPN: 102690
                                                                                                                                  SEMI-CRANKCASE SECURING STUD
                                                                                                                                  from £9.66
                                                                                                                                  from £9.66
                                                                                                                                  # 010
                                                                                                                                  MPN: 12164721
                                                                                                                                  NUT
                                                                                                                                  from £0.61
                                                                                                                                  from £0.61
                                                                                                                                  # 011
                                                                                                                                  MPN: 102695
                                                                                                                                  WASHER
                                                                                                                                  from £1.85
                                                                                                                                  from £1.85
                                                                                                                                  # 012
                                                                                                                                  MPN: 127497
                                                                                                                                  WASHER
                                                                                                                                  from £0.52
                                                                                                                                  from £0.52
                                                                                                                                  This part replaces part number 10516871 - and 2 more. Click to view details
                                                                                                                                  # 013
                                                                                                                                  MPN: 102692
                                                                                                                                  SEMI-CRANKCASE CENTERING DOWEL
                                                                                                                                  from £4.94
                                                                                                                                  from £4.94
                                                                                                                                  # 014
                                                                                                                                  MPN: 13449621
                                                                                                                                  STUD SECURING CRANKCASE TO GEARBOX
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 015
                                                                                                                                  MPN: 13449921
                                                                                                                                  STUD
                                                                                                                                  from £0.74
                                                                                                                                  from £0.74
                                                                                                                                  # 015
                                                                                                                                  MPN: 13449924
                                                                                                                                  STUD
                                                                                                                                  See also 13449921
                                                                                                                                  from £11.20
                                                                                                                                  from £11.20
                                                                                                                                  This part replaces part number 13449921 which we have in stock
                                                                                                                                  # 016
                                                                                                                                  MPN: 13450121
                                                                                                                                  STUD
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  This part replaces part number 13450120
                                                                                                                                  # 017
                                                                                                                                  MPN: 13543821
                                                                                                                                  STUD
                                                                                                                                  from £1.21
                                                                                                                                  from £1.21
                                                                                                                                  This part replaces part number 210x1,25
                                                                                                                                  # 018
                                                                                                                                  MPN: 11306921
                                                                                                                                  BOLT
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  This part replaces part number 11306934 which we have in stock
                                                                                                                                  # 019
                                                                                                                                  MPN: 107314
                                                                                                                                  NUT
                                                                                                                                  from £7.42
                                                                                                                                  from £7.42
                                                                                                                                  # 019
                                                                                                                                  MPN: 12575621
                                                                                                                                  NUT
                                                                                                                                  from £1.35
                                                                                                                                  from £1.35
                                                                                                                                  # 020
                                                                                                                                  MPN: 12601471
                                                                                                                                  WASHER
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 021
                                                                                                                                  MPN: 100052
                                                                                                                                  DOWEL
                                                                                                                                  from £1.13
                                                                                                                                  from £1.13
                                                                                                                                  # 022
                                                                                                                                  MPN: 13526070
                                                                                                                                  THREADED INSERT
                                                                                                                                  from £1.93
                                                                                                                                  from £1.93
                                                                                                                                  This part replaces part number 104657
                                                                                                                                  # 023
                                                                                                                                  MPN: 124382
                                                                                                                                  DOWEL
                                                                                                                                  Supersession
                                                                                                                                  Supersession

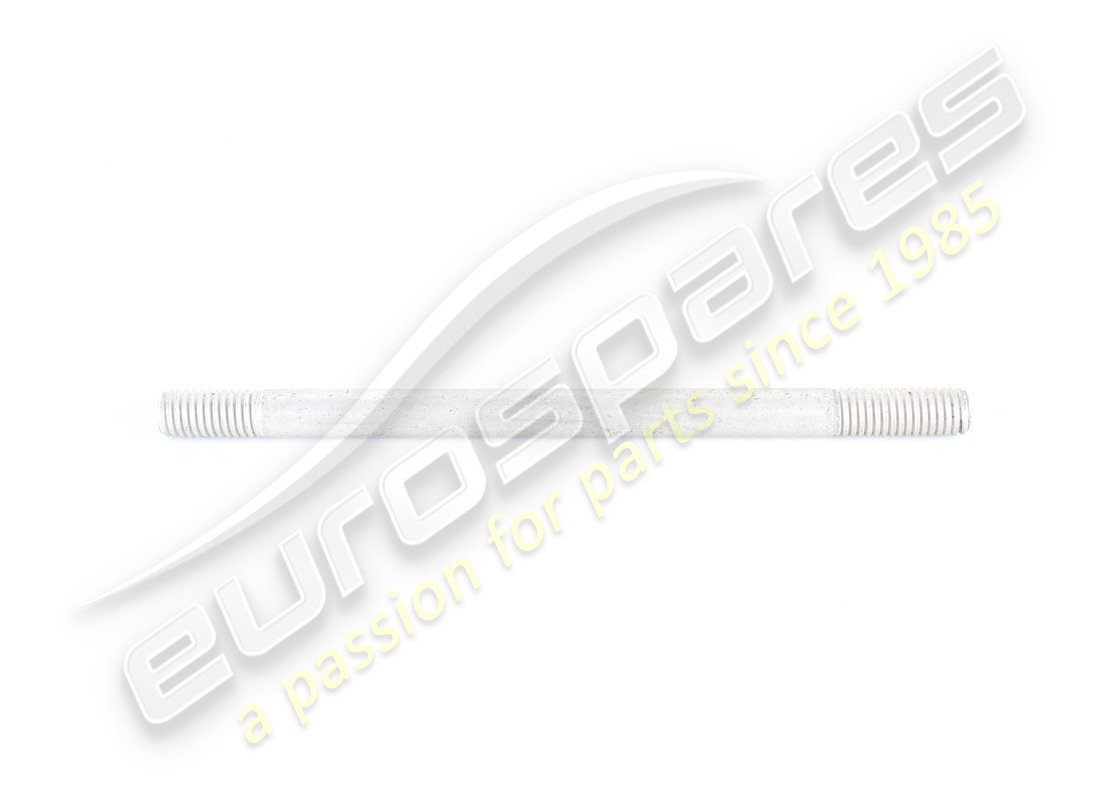

                                                                                                                                  # 024
                                                                                                                                  MPN: 102691
                                                                                                                                  CYL. HEADS SECURING STUDS
                                                                                                                                  from £44.60
                                                                                                                                  from £44.60
                                                                                                                                  # 025
                                                                                                                                  MPN: 100101/A
                                                                                                                                  NUT
                                                                                                                                  from £12.10
                                                                                                                                  from £12.10
                                                                                                                                  # 026
                                                                                                                                  MPN: 100100
                                                                                                                                  WASHER
                                                                                                                                  from £1.52
                                                                                                                                  from £1.52
                                                                                                                                  This part replaces part number 95242
                                                                                                                                  # 027
                                                                                                                                  MPN: 106849
                                                                                                                                  WASHER
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  This part replaces part number 11195473
                                                                                                                                  # 028
                                                                                                                                  MPN: 13543621
                                                                                                                                  STUD ON RH DOWEL
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 029
                                                                                                                                  MPN: 13970921
                                                                                                                                  STUD
                                                                                                                                  from £0.76
                                                                                                                                  from £0.76
                                                                                                                                  # 030
                                                                                                                                  MPN: 13970421
                                                                                                                                  STUD
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 031
                                                                                                                                  MPN: 13970521
                                                                                                                                  STUD
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 032
                                                                                                                                  MPN: 101139
                                                                                                                                  NUT
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  This part replaces part number 16104425
                                                                                                                                  # 033
                                                                                                                                  MPN: 12601371
                                                                                                                                  WASHER
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 034
                                                                                                                                  MPN: 13544324
                                                                                                                                  STUD
                                                                                                                                  from £7.83
                                                                                                                                  from £7.83
                                                                                                                                  This part replaces part number 13544321
                                                                                                                                  # 035
                                                                                                                                  MPN: 121201
                                                                                                                                  DOWEL
                                                                                                                                  from £3.65
                                                                                                                                  from £3.65
                                                                                                                                  # 036
                                                                                                                                  MPN: 123263
                                                                                                                                  SEAL RING
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 037
                                                                                                                                  MPN: 13539024
                                                                                                                                  PROBES SECURING STUD
                                                                                                                                  from £0.75
                                                                                                                                  from £0.75
                                                                                                                                  This part replaces part number 13539021
                                                                                                                                  # 038
                                                                                                                                  MPN: 13543421
                                                                                                                                  STUD
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 039
                                                                                                                                  MPN: 15896411
                                                                                                                                  NUT
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  This part replaces part number 15896401
                                                                                                                                  # 040
                                                                                                                                  MPN: 102697
                                                                                                                                  COVER FOR FLYWHEEL INSPECTION SLOT
                                                                                                                                  from £80.60
                                                                                                                                  from £80.60
                                                                                                                                  # 041
                                                                                                                                  MPN: 10269850
                                                                                                                                  THREADED PLUG
                                                                                                                                  from £0.94
                                                                                                                                  from £0.94
                                                                                                                                  # 041
                                                                                                                                  MPN: 14326050
                                                                                                                                  PLUG FOR LUBRICATING PORTS
                                                                                                                                  from £0.97
                                                                                                                                  from £0.97
                                                                                                                                  # 041
                                                                                                                                  MPN: 14326150
                                                                                                                                  PLUG FOR LUBRICATING PORTS.
                                                                                                                                  from £0.53
                                                                                                                                  from £0.53
                                                                                                                                  This part replaces part number 12326150
                                                                                                                                  # 042
                                                                                                                                  MPN: 10264560
                                                                                                                                  GASKET
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  # 043
                                                                                                                                  MPN: 102704
                                                                                                                                  DOWEL
                                                                                                                                  from £1.59
                                                                                                                                  from £1.59
                                                                                                                                  This part replaces part number 500805
                                                                                                                                  # 044
                                                                                                                                  MPN: 13543721
                                                                                                                                  STUD ON LH DOWEL
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 045
                                                                                                                                  MPN: 13544221
                                                                                                                                  STUD ON DOWEL
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  This part replaces part number 13517820 - and 1 more. Click to view details
                                                                                                                                  # 046
                                                                                                                                  MPN: 13544121
                                                                                                                                  STUD
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 047
                                                                                                                                  MPN: 16100824
                                                                                                                                  NUT
                                                                                                                                  from £0.51
                                                                                                                                  from £0.51
                                                                                                                                  This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                                                  # 048
                                                                                                                                  MPN: 12601371
                                                                                                                                  WASHER
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 049
                                                                                                                                  MPN: 102704
                                                                                                                                  DOWEL
                                                                                                                                  from £1.59
                                                                                                                                  from £1.59
                                                                                                                                  This part replaces part number 500805
                                                                                                                                  # 050
                                                                                                                                  MPN: 13541821
                                                                                                                                  STUD FOR METERING DEVICES SUPPORT
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  # 051
                                                                                                                                  MPN: 11500021
                                                                                                                                  STUD
                                                                                                                                  from £9.50
                                                                                                                                  from £9.50
                                                                                                                                  # 052
                                                                                                                                  MPN: 100044
                                                                                                                                  NUT
                                                                                                                                  from £0.26
                                                                                                                                  from £0.26
                                                                                                                                  This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                                                  # 053
                                                                                                                                  MPN: 10519301
                                                                                                                                  WASHER
                                                                                                                                  from £12.68
                                                                                                                                  from £12.68
                                                                                                                                  This part replaces part number 10517377 - and 2 more. Click to view details
                                                                                                                                  # 054
                                                                                                                                  MPN: 11500021
                                                                                                                                  STUD FOR COVER OF FLYWHEEL INSPECTION SLOT
                                                                                                                                  from £9.50
                                                                                                                                  from £9.50
                                                                                                                                  # 055
                                                                                                                                  MPN: 100044
                                                                                                                                  NUT
                                                                                                                                  from £0.26
                                                                                                                                  from £0.26
                                                                                                                                  This part replaces part number 151230 - and 1 more. Click to view details
                                                                                                                                  # 056
                                                                                                                                  MPN: 12601279
                                                                                                                                  WASHER
                                                                                                                                  from £0.47
                                                                                                                                  from £0.47
                                                                                                                                  This part replaces part number 12601271 - and 2 more. Click to view details
                                                                                                                                  # 057
                                                                                                                                  MPN: 102743
                                                                                                                                  SEAL RING
                                                                                                                                  from £1.03
                                                                                                                                  from £1.03
                                                                                                                                  This part replaces part number 105328
                                                                                                                                  # 058
                                                                                                                                  MPN: 102698
                                                                                                                                  COVER
                                                                                                                                  from £20.99
                                                                                                                                  from £20.99
                                                                                                                                  # 059
                                                                                                                                  MPN: 150191
                                                                                                                                  GASKET
                                                                                                                                  from £1.36
                                                                                                                                  from £1.36
                                                                                                                                  This part replaces part number 102699 which we have in stock - and 1 more. Click to view details
                                                                                                                                  # 060
                                                                                                                                  MPN: 138519
                                                                                                                                  CYLINDER LINER
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  This part replaces part number 119853
                                                                                                                                  # 061
                                                                                                                                  MPN: 110021
                                                                                                                                  SEAL RING
                                                                                                                                  from £7.02
                                                                                                                                  from £7.02
                                                                                                                                  This part replaces part number 102797
                                                                                                                                  # 062
                                                                                                                                  MPN: 151532
                                                                                                                                  GASKET
                                                                                                                                  from £255.19
                                                                                                                                  from £255.19
                                                                                                                                  This part replaces part number 125045 - and 1 more. Click to view details
                                                                                                                                  # 063
                                                                                                                                  MPN: 124676
                                                                                                                                  PLATE WITH TIMING MARK
                                                                                                                                  from £2.88
                                                                                                                                  from £2.88
                                                                                                                                  # 064
                                                                                                                                  MPN: 10977621
                                                                                                                                  BOLT
                                                                                                                                  from £1.08
                                                                                                                                  from £1.08
                                                                                                                                  # 065
                                                                                                                                  MPN: 106849
                                                                                                                                  WASHER
                                                                                                                                  Supersession
                                                                                                                                  Supersession
                                                                                                                                  This part replaces part number 11195473
