107 - Luggage Compartment Lid

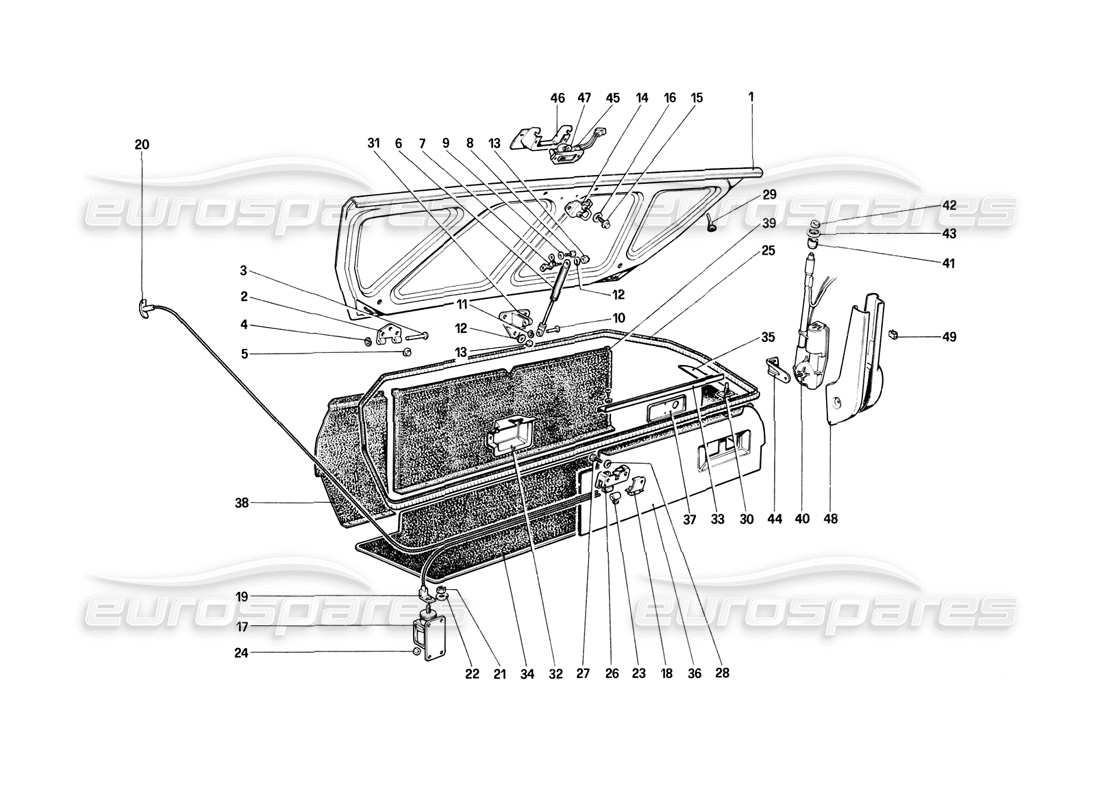

Ferrari Mondial 8 (1981) Luggage Compartment Lid Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60544200
COFANO BAULE
Supersession
Supersession
# 002
MPN: 60523600
CERNIERA MOBILE
from £11.26
from £11.26
# 003
MPN: 60523800
PIVOT
from £7.30
from £7.30
# 004
MPN: 11087976
SEEGER RING
Supersession
Supersession
This part replaces part number 11087975
# 005
MPN: 13832101
NUT
from £0.52
from £0.52
# 006
MPN: 60563300
LUGGAGE COMPARTMENT STRUT
from £63.66
from £63.66
# 007
MPN: 60700700
SUPPORT
from £11.42
from £11.42
# 008
MPN: 14304220
SCREW
from £0.53
from £0.53
# 009
MPN: 60700900
WASHER
from £0.76
from £0.76
# 010
MPN: 60563200
PET NO
from £7.17
from £7.17
# 011
MPN: 11087976
SEEGER RING
Supersession
Supersession
This part replaces part number 11087975
# 012
MPN: 60698400
WASHER
from £0.53
from £0.53
# 013
MPN: 20293000
NUT
from £0.52
from £0.52
# 014
MPN: 60560100
GANCIO
from £17.60
from £17.60
# 015
MPN: 13810311
SCREW
# 016
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 017
MPN: 60536500
BONNET OPENING DEVICE
Supersession
Supersession
# 018
MPN: 60528700
BONNET OPEN LIGHT CONTROL
Supersession
Supersession
# 019
MPN: 60670700
CAVO APERTURA COFANO
from £1.76
from £1.76
# 020
MPN: 60670800
BONNET OPENING SAFETY CABLE
from £12.36
from £12.36
# 021
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 022
MPN: 11195471
WASHER
Supersession
Supersession
# 023
MPN: 60276607
MORSETTO
from £11.72
from £11.72
This part replaces part number 60276707 - and 4 more. Click to view details
# 024
MPN: 12574211
NUT
from £0.71
from £0.71
# 025
MPN: 60545300
GASKET
Supersession
Supersession
# 026
MPN: 60277400
SERRATURA COFANO
# 027
MPN: 20297503
SCREW
from £0.70
from £0.70
# 028
MPN: 10519501
WASHER
from £0.47
from £0.47
# 029
MPN: 60819100
SPACER
from £3.15
from £3.15
# 030
MPN: 60731100
TRUNK LIGHT SWITCH
from £11.38
from £11.38
# 031
MPN: 60563100
BRACKET / SUPPORT
from £231.68
from £231.68
# 032
MPN: 60678300
SCATOLA COPRISERRATURE
from £33.60
from £33.60
# 033
MPN: 60678600
MODANATURA DX. PER TAPPUIO POST.
from £40.35
from £40.35
# 033
MPN: 60731900
MODANATURA SX. PER TAPPETO POST.
from £39.86
from £39.86
# 034
MPN: 60725700
TAPPETO FONDO BAULE
from £192.07
from £192.07
# 035
MPN: 60729800
TRUNK SIDE CARPET
from £30.43
from £30.43
# 036
MPN: 60678100
PARATIA POST. DX.
from £214.05
from £214.05
# 036
MPN: 60678200
PARATIA POST. SX.
from £117.73
from £117.73
# 037
MPN: 60726100
PORT FOR REAR LIGHTS. DX.
from £24.10
from £24.10
# 037
MPN: 60726200
RIPORTO PER FANALI POST. SX.
from £36.42
from £36.42
# 038
MPN: 60725900
PARATIA ANT. DX.
from £31.43
from £31.43
# 038
MPN: 60726000
PARATIA ANT. SX.
from £29.93
from £29.93
# 039
MPN: 60725800
PARATIA ANT.
from £82.87
from £82.87
# 040
MPN: 60622900
ANTENNA AUTORADIO
Vale fino esaurimento
# 040
MPN: 66235900
ANTENNA AUTORADIO
After exhaustion 60622900
from £207.24
from £207.24
This part replaces part number 61928800
# 041
MPN: 60623000
BUSH
from £3.98
from £3.98
# 042
MPN: 60623100
BUSH
from £14.01
from £14.01
# 043
MPN: 60623200
GASKET OR SEAL
# 044
MPN: 60623300
BRACKET / SUPPORT
Con antenna 60622900
Supersession
Supersession
# 044
MPN: 60872300
BRACKET / SUPPORT
Con antenna 60871800
from £4.14
from £4.14
This part replaces part number 60623300
# 045
MPN: 109388
FANALE ILLUMINAZIONE TARGA
Con isponde 60044906
# 046
MPN: 60544800
LICENSE LIGHT SUPPORT
Valid up to 31-1-81
Supersession
Supersession
# 046
MPN: 60846500
LICENSE LIGHT SUPPORT
Vale dal 1 - 2 - 81
from £156.09
from £156.09
This part replaces part number 60544800
# 047
MPN: 20083002
BULB 12V-5W
Supersession
Supersession
This part replaces part number 101524 - and 1 more. Click to view details
# 048
MPN: 60735700
PROTEZIONE ANTENNA RADIO
Con antenna 60622900
from £49.25
from £49.25
# 048
MPN: 60874000
PROTEZIONE ANTENNA RADIO
Con antenna 60871800
from £82.11
from £82.11
# 049
MPN: 60523500
COMPLETE TRUNK HOOD HINGE
from £68.78
from £68.78
# 049
MPN: 60794900
CLIP
Con antenna 60622900
