ferrari mondial 8 (1981) main shaft gears parts diagram

022 - Main Shaft Gears

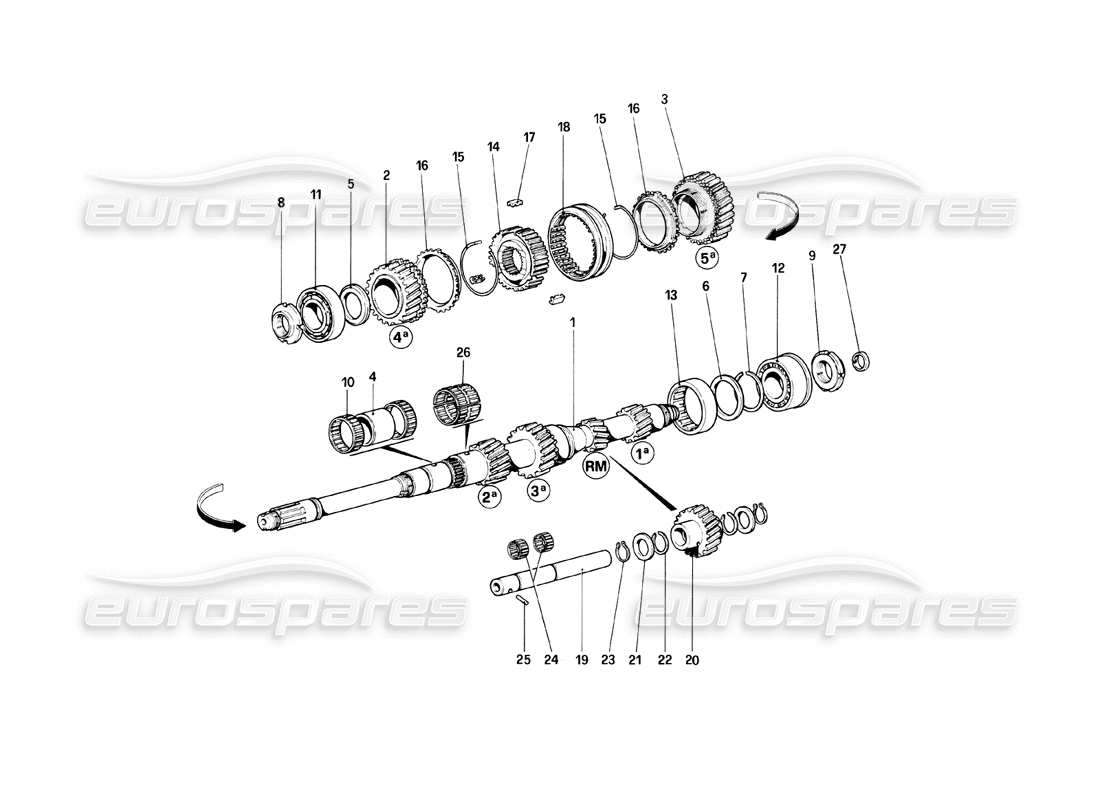

Ferrari Mondial 8 (1981) Main Shaft Gears Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                      #
                                                      Part number
                                                      Description
                                                      Price
                                                      # 001
                                                      MPN: 113074
                                                      ALBERO PRIMARIO
                                                      Supersession
                                                      Supersession
                                                      # 002
                                                      MPN: 119718
                                                      Ingranaggio 4ª velocita
                                                      from £4,118.22
                                                      from £4,118.22
                                                      This part replaces part number 104236 - and 1 more. Click to view details
                                                      # 003
                                                      MPN: 113465
                                                      Ingranaggio 5ª velocita
                                                      Supersession
                                                      Supersession
                                                      # 004
                                                      MPN: 113085
                                                      PISTA PER RULLINI 4A VELOCITA
                                                      from £23.59
                                                      from £23.59
                                                      # 005
                                                      MPN: 104242
                                                      SPACER
                                                      from £33.95
                                                      from £33.95
                                                      # 006
                                                      MPN: 105538
                                                      SPACER
                                                      from £22.19
                                                      from £22.19
                                                      # 007
                                                      MPN: 112699
                                                      SEEGER RING
                                                      from £35.71
                                                      from £35.71
                                                      This part replaces part number 105559 - and 1 more. Click to view details
                                                      # 008
                                                      MPN: 104252
                                                      RING NUT
                                                      from £77.96
                                                      from £77.96
                                                      This part replaces part number 104352 - and 1 more. Click to view details
                                                      # 009
                                                      MPN: 104253
                                                      RING NUT
                                                      from £76.63
                                                      from £76.63
                                                      This part replaces part number 524259
                                                      # 010
                                                      MPN: 104255
                                                      GABBIA RULLINI PER 4ª VELOCITA
                                                      from £30.50
                                                      from £30.50
                                                      # 011
                                                      MPN: 108656
                                                      CUSCINETTO LATO FRIZIONE
                                                      In alternativa al N. 104257
                                                      from £309.40
                                                      from £309.40
                                                      This part replaces part number 104257
                                                      # 012
                                                      MPN: 103042
                                                      BEARING
                                                      from £153.66
                                                      from £153.66
                                                      # 013
                                                      MPN: 105539
                                                      CUSCINETTO CENTRALE
                                                      from £71.85
                                                      from £71.85
                                                      # 014
                                                      MPN: 106046
                                                      CORPO SINCRONIZZATORE
                                                      from £674.44
                                                      from £674.44
                                                      # 015
                                                      MPN: 108363
                                                      SPRING
                                                      from £63.94
                                                      from £63.94
                                                      This part replaces part number 106047
                                                      # 016
                                                      MPN: 106048
                                                      RING
                                                      from £595.76
                                                      from £595.76
                                                      # 017
                                                      MPN: 106049
                                                      TASSELLO PER SINCRONIZZATORE
                                                      Supersession
                                                      Supersession
                                                      # 018
                                                      MPN: 106051
                                                      MANICOTTO PER SINCRONIZZATORE
                                                      from £410.84
                                                      from £410.84
                                                      # 019
                                                      MPN: 104221
                                                      PIVOT
                                                      from £65.80
                                                      from £65.80
                                                      This part replaces part number 524554 - and 2 more. Click to view details
                                                      # 020
                                                      MPN: 105541
                                                      INGRANAGGIO FOLLE RM
                                                      from £154.40
                                                      from £154.40
                                                      # 021
                                                      MPN: 104249
                                                      SPACER
                                                      from £37.56
                                                      from £37.56
                                                      # 022
                                                      MPN: 104250
                                                      SEEGER RING
                                                      from £0.96
                                                      from £0.96
                                                      # 023
                                                      MPN: 11067075
                                                      SEEGER RING
                                                      Supersession
                                                      Supersession
                                                      # 024
                                                      MPN: 104256
                                                      GABBIA A RULLINI INGRANAGGIO FOLLE RM
                                                      from £5.97
                                                      from £5.97
                                                      # 025
                                                      MPN: 10336210
                                                      PIN
                                                      from £4.64
                                                      from £4.64
                                                      # 026
                                                      MPN: 109002
                                                      GABBIA A RULLINI PER 5ª VELOCITA
                                                      from £16.40
                                                      from £16.40
                                                      This part replaces part number 114059
                                                      # 027
                                                      MPN: 113087
                                                      RING
                                                      from £38.88
                                                      from £38.88
                                                      This part replaces part number 22804
