Ferrari Mondial 3.4 t Coupe/Cabrio Air Condition Set Parts Diagram

129A - Air Condition Set

Ferrari Mondial 3.4 t Coupe/Cabrio Air Condition Set Parts Diagram

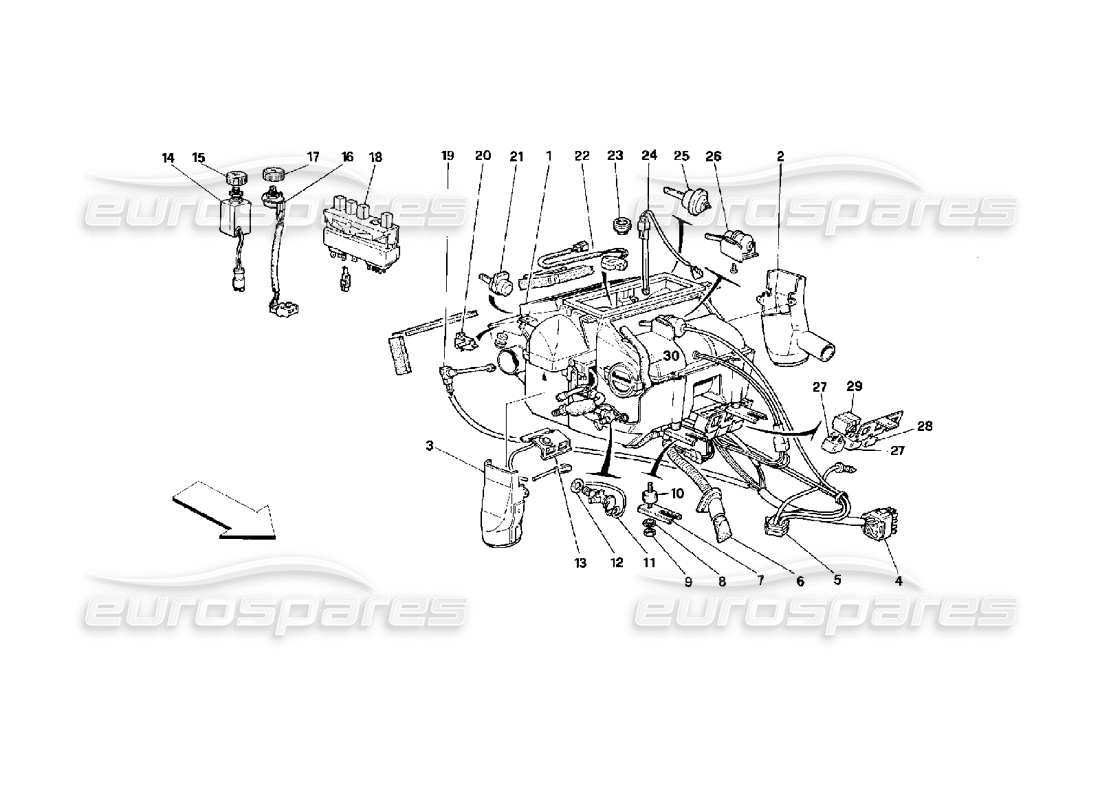

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 62518600
                                                  HEATER METRIX
                                                  - Valid for GS
                                                  from £3,045.00
                                                  from £3,045.00
                                                  # 001
                                                  MPN: 62920700
                                                  COMPLETE AIR CONDITIONER
                                                  - Valid for GD
                                                  from £1,575.00
                                                  from £1,575.00
                                                  # 002
                                                  MPN: 61425900
                                                  LH CONVEYOR
                                                  - Valid for GS
                                                  from £70.77
                                                  from £70.77
                                                  # 002
                                                  MPN: 61426300
                                                  LH CONVEYOR
                                                  - Valid for GD
                                                  from £67.40
                                                  from £67.40
                                                  # 003
                                                  MPN: 61425800
                                                  RH CONVEYOR
                                                  - Valid for GS
                                                  Supersession
                                                  Supersession
                                                  # 003
                                                  MPN: 62339300
                                                  RH CONVEYOR
                                                  - Valid for GD
                                                  from £88.32
                                                  from £88.32
                                                  This part replaces part number 61425800
                                                  # 004
                                                  MPN: 61976500
                                                  ELECTRIC CABLE SET
                                                  from £90.17
                                                  from £90.17
                                                  # 005
                                                  MPN: 61976400
                                                  CONNECTION SET FOR VACUUM PIPES
                                                  from £16.93
                                                  from £16.93
                                                  # 006
                                                  MPN: 61136600
                                                  PIPE FOR CONDENSATE VENT
                                                  from £40.66
                                                  from £40.66
                                                  # 007
                                                  MPN: 60726800
                                                  BRACKET
                                                  from £8.06
                                                  from £8.06
                                                  # 008
                                                  MPN: 12640624
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12640601 - and 1 more. Click to view details
                                                  # 009
                                                  MPN: 102948
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12574211 - and 4 more. Click to view details
                                                  # 010
                                                  MPN: 102947
                                                  ANTI-VIBRATION SUPPORT
                                                  from £6.07
                                                  from £6.07
                                                  This part replaces part number 102007 - and 14 more. Click to view details
                                                  # 011
                                                  MPN: 60929600
                                                  EXPANSION VALVE
                                                  from £160.19
                                                  from £160.19
                                                  This part replaces part number 106644 - and 1 more. Click to view details
                                                  # 012
                                                  MPN: 60929700

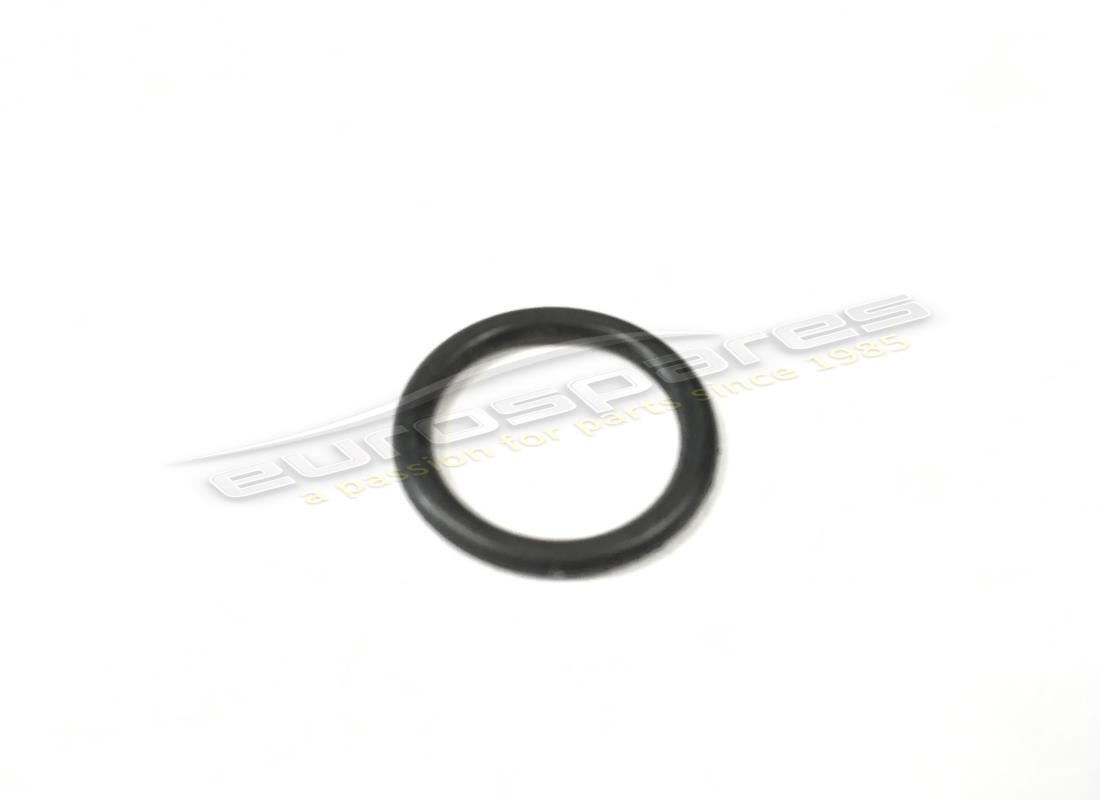

                                                  SEAL RING
                                                  from £3.35
                                                  from £3.35
                                                  # 013
                                                  MPN: 127014
                                                  POWER TRANSISTOR WITH BRACKET
                                                  from £103.22
                                                  from £103.22
                                                  This part replaces part number 60930200 which we have in stock
                                                  # 014
                                                  MPN: 140151
                                                  FAN SPEED REGULATION UNIT
                                                  (late type)
                                                  from £3,711.56
                                                  from £3,711.56
                                                  This part replaces part number 131473 - and 1 more. Click to view details
                                                  # 015
                                                  MPN: 61112400
                                                  KNOB FOR SPEED VARIATOR
                                                  from £52.54
                                                  from £52.54
                                                  # 016
                                                  MPN: 142779
                                                  POTENTIOMETER
                                                  from £213.09
                                                  from £213.09
                                                  # 017
                                                  MPN: 61112500
                                                  POTENTIOMETER KNOB
                                                  from £53.06
                                                  from £53.06
                                                  # 018
                                                  MPN: 61078600
                                                  SWITCH PANEL
                                                  - Valid for GS
                                                  from £215.90
                                                  from £215.90
                                                  # 018
                                                  MPN: 61131300
                                                  SWITCH PANEL
                                                  - Valid for GD
                                                  from £174.58
                                                  from £174.58
                                                  # 019
                                                  MPN: 61079600
                                                  SENSOR
                                                  from £105.37
                                                  from £105.37
                                                  # 020
                                                  MPN: 60931200
                                                  MICROSWITCH
                                                  from £30.52
                                                  from £30.52
                                                  # 021
                                                  MPN: 61268000
                                                  INNER ACTUATOR
                                                  from £14.42
                                                  from £14.42
                                                  # 022
                                                  MPN: 61797200
                                                  TEMPERATURE SENSOR
                                                  from £66.82
                                                  from £66.82
                                                  # 023
                                                  MPN: 61086200
                                                  CABLE GROMMET
                                                  from £1.49
                                                  from £1.49
                                                  # 024
                                                  MPN: 62341000
                                                  SENSOR ON EVAPORATOR
                                                  from £174.20
                                                  from £174.20
                                                  This part replaces part number 61079500
                                                  # 025
                                                  MPN: 60930700
                                                  ACTUATOR
                                                  from £25.71
                                                  from £25.71
                                                  # 026
                                                  MPN: 60930500
                                                  ACTUATOR
                                                  from £35.43
                                                  from £35.43
                                                  # 027
                                                  MPN: 40130007
                                                  RELAY
                                                  0332209151
                                                  from £15.87
                                                  from £15.87
                                                  This part replaces part number 110356 - and 1 more. Click to view details
                                                  # 028
                                                  MPN: 40130106
                                                  RELAY
                                                  from £10.40
                                                  from £10.40
                                                  This part replaces part number 110355
                                                  # 029
                                                  MPN: 61430700
                                                  BLOCK
                                                  from £3.89
                                                  from £3.89
                                                  # 030
                                                  MPN: 61084700
                                                  PIPE
                                                  from £14.49
                                                  from £14.49
                                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
