ferrari mondial 3.4 t coupe/cabrio air conditioning system parts diagram

129 - air conditioning system

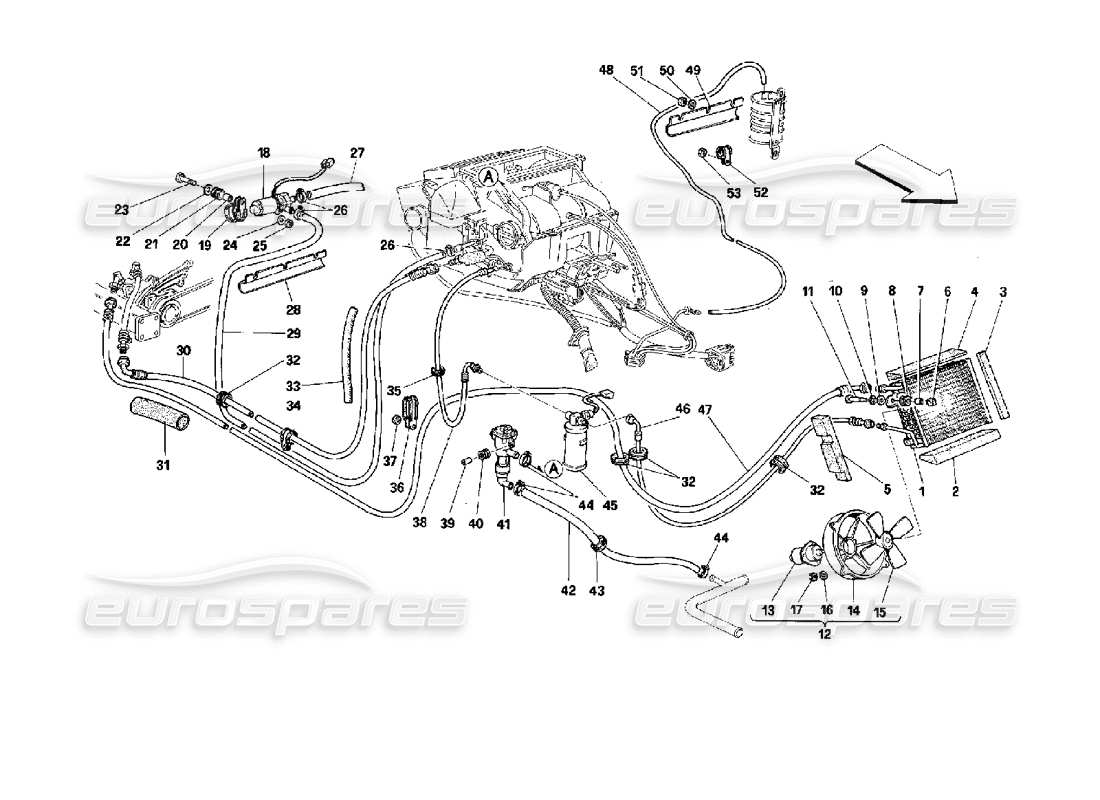

Ferrari Mondial 3.4 t Coupe/Cabrio Air Conditioning System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 60649100
                                                                                        A.C. CONDENSER
                                                                                        from £298.57
                                                                                        from £298.57
                                                                                        # 002
                                                                                        MPN: 60729100
                                                                                        LOWER GASKET
                                                                                        from £19.52
                                                                                        from £19.52
                                                                                        # 003
                                                                                        MPN: 60729400
                                                                                        LH GASKET
                                                                                        from £1.85
                                                                                        from £1.85
                                                                                        # 004
                                                                                        MPN: 60729200
                                                                                        UPPER GASKET
                                                                                        from £13.01
                                                                                        from £13.01
                                                                                        # 005
                                                                                        MPN: 60729300
                                                                                        RH GASKET
                                                                                        from £33.18
                                                                                        from £33.18
                                                                                        # 006
                                                                                        MPN: 60659100
                                                                                        NUT WITH CAGE
                                                                                        from £0.61
                                                                                        from £0.61
                                                                                        This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                                        # 007
                                                                                        MPN: 103550
                                                                                        SPACER
                                                                                        from £1.86
                                                                                        from £1.86
                                                                                        This part replaces part number 4130913
                                                                                        # 008
                                                                                        MPN: 103549
                                                                                        CABLE GROMMET
                                                                                        from £0.69
                                                                                        from £0.69
                                                                                        # 009
                                                                                        MPN: 12643724
                                                                                        WASHER
                                                                                        from £0.51
                                                                                        from £0.51
                                                                                        This part replaces part number 109684 - and 3 more. Click to view details
                                                                                        # 010
                                                                                        MPN: 10615471
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 011
                                                                                        MPN: 10902511
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 011
                                                                                        MPN: 10902611
                                                                                        SCREW
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        # 012
                                                                                        MPN: 65519200
                                                                                        FAN ASSEMBLY AC
                                                                                        from £219.14
                                                                                        from £219.14
                                                                                        This part replaces part number 61432000 which we have in stock
                                                                                        # 013
                                                                                        MPN: 123136
                                                                                        MOTOR
                                                                                        from £692.24
                                                                                        from £692.24
                                                                                        # 014
                                                                                        MPN: 60870300
                                                                                        CONVEYOR
                                                                                        from £159.46
                                                                                        from £159.46
                                                                                        # 015
                                                                                        MPN: 122953
                                                                                        BLOWER
                                                                                        from £42.27
                                                                                        from £42.27
                                                                                        # 016
                                                                                        MPN: 12644401
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 017
                                                                                        MPN: 102948
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                        # 018
                                                                                        MPN: 70000900
                                                                                        PUMP
                                                                                        from £202.44
                                                                                        from £202.44
                                                                                        This part replaces part number 61787900
                                                                                        # 019
                                                                                        MPN: 107002
                                                                                        BRACKET
                                                                                        from £7.56
                                                                                        from £7.56
                                                                                        # 020
                                                                                        MPN: 103550
                                                                                        SPACER
                                                                                        from £1.94
                                                                                        from £1.94
                                                                                        This part replaces part number 4130913
                                                                                        # 021
                                                                                        MPN: 103549
                                                                                        CABLE GROMMET
                                                                                        from £0.69
                                                                                        from £0.69
                                                                                        # 022
                                                                                        MPN: 14496401
                                                                                        WASHER
                                                                                        Supersession
                                                                                        Supersession
                                                                                        # 023
                                                                                        MPN: 10902821
                                                                                        SCREW
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        This part replaces part number 10902801 - and 1 more. Click to view details
                                                                                        # 024
                                                                                        MPN: 12643724
                                                                                        WASHER
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 109684 - and 3 more. Click to view details
                                                                                        # 025
                                                                                        MPN: 102948
                                                                                        NUT
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                        # 026
                                                                                        MPN: 13000390
                                                                                        CLAMP
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        This part replaces part number 12179590 - and 1 more. Click to view details
                                                                                        # 027
                                                                                        MPN: 62842300
                                                                                        PIPE FROM ENGINE TO PUMP
                                                                                        - Valid for GS
                                                                                        from £12.15
                                                                                        from £12.15
                                                                                        # 027
                                                                                        MPN: 62842400
                                                                                        PIPE FROM ENGINE TO PUMP
                                                                                        - Valid for GD
                                                                                        from £40.23
                                                                                        from £40.23
                                                                                        # 028
                                                                                        MPN: 141179
                                                                                        RH PROTECTION - CABRIOLET
                                                                                        from £25.21
                                                                                        from £25.21
                                                                                        # 029
                                                                                        MPN: 60839700
                                                                                        PIPE FROM PUMP TO HEATER
                                                                                        - Valid for GS
                                                                                        from £69.91
                                                                                        from £69.91
                                                                                        # 029
                                                                                        MPN: 62842500
                                                                                        PIPE FROM PUMP TO HEATER - COUPE'
                                                                                        - Valid for GD
                                                                                        from £53.72
                                                                                        from £53.72
                                                                                        # 029
                                                                                        MPN: 62842600
                                                                                        PIPE FROM PUMP TO HEATER - CABRIOLET
                                                                                        - Valid for GD
                                                                                        from £63.88
                                                                                        from £63.88
                                                                                        # 030
                                                                                        MPN: 62502100
                                                                                        EVAPORATOR-COMPRESSOR PIPE - COUPE'
                                                                                        - Valid for GS
                                                                                        from £92.75
                                                                                        from £92.75
                                                                                        # 030
                                                                                        MPN: 62677400
                                                                                        EVAPORATOR-COMPRESSOR PIPE - CABRIOLET
                                                                                        - Valid for GS - Not for USA 4P
                                                                                        from £124.11
                                                                                        from £124.11
                                                                                        # 030
                                                                                        MPN: 62839300
                                                                                        EVAPORATOR-COMPRESSOR PIPE - COUPE'
                                                                                        - Valid for GD
                                                                                        from £60.27
                                                                                        from £60.27
                                                                                        # 030
                                                                                        MPN: 62839500
                                                                                        EVAPORATOR-COMPRESSOR PIPE - CABRIOLET
                                                                                        - Valid for GD
                                                                                        from £156.83
                                                                                        from £156.83
                                                                                        # 030
                                                                                        MPN: 62943000
                                                                                        EVAPORATOR-COMPRESSOR PIPE - CABRIOLET
                                                                                        - Valid for GS - Valid for USA 4P
                                                                                        from £170.17
                                                                                        from £170.17
                                                                                        # 031
                                                                                        MPN: 108031
                                                                                        PROTECTION
                                                                                        from £18.74
                                                                                        from £18.74
                                                                                        # 032
                                                                                        MPN: 10396880
                                                                                        CABLE GROMMET
                                                                                        from £2.32
                                                                                        from £2.32
                                                                                        # 033
                                                                                        MPN: 61275000
                                                                                        INSULATOR FOR EVAPORATOR COMPRESSOR PIPE
                                                                                        from £68.78
                                                                                        from £68.78
                                                                                        # 034
                                                                                        MPN: 61193800
                                                                                        BRACKET - COUPE'
                                                                                        from £4.72
                                                                                        from £4.72
                                                                                        # 034
                                                                                        MPN: 61712100
                                                                                        BRACKET - CABRIOLET
                                                                                        from £1.76
                                                                                        from £1.76
                                                                                        # 035
                                                                                        MPN: 10396780
                                                                                        CABLE GROMMET
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 036
                                                                                        MPN: 61712500
                                                                                        BRACKET Ø 24
                                                                                        from £1.03
                                                                                        from £1.03
                                                                                        # 036
                                                                                        MPN: 61712600
                                                                                        BRACKET Ø 28
                                                                                        from £1.16
                                                                                        from £1.16
                                                                                        # 037
                                                                                        MPN: 102948
                                                                                        NUT
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                        # 038
                                                                                        MPN: 62502200
                                                                                        CLEANER-EVAPORATOR PIPE
                                                                                        from £35.27
                                                                                        from £35.27
                                                                                        # 039
                                                                                        MPN: 103550
                                                                                        SPACER
                                                                                        from £1.92
                                                                                        from £1.92
                                                                                        This part replaces part number 4130913
                                                                                        # 040
                                                                                        MPN: 103549
                                                                                        CABLE GROMMET
                                                                                        from £0.69
                                                                                        from £0.69
                                                                                        # 041
                                                                                        MPN: 61079000
                                                                                        ELECTRO-MAGNETIC VALVE
                                                                                        from £1,697.63
                                                                                        from £1,697.63
                                                                                        This part replaces part number 63241600
                                                                                        # 042
                                                                                        MPN: 61084800
                                                                                        PIPE FROM VALVE TO ENGINE RETURN
                                                                                        - Valid for GS
                                                                                        from £28.17
                                                                                        from £28.17
                                                                                        # 042
                                                                                        MPN: 61129700
                                                                                        PIPE FROM VALVE TO ENGINE RETURN
                                                                                        - Valid for GD
                                                                                        from £61.53
                                                                                        from £61.53
                                                                                        # 043
                                                                                        MPN: 10396980
                                                                                        CABLE GROMMET
                                                                                        # 044
                                                                                        MPN: 13000490
                                                                                        CLAMP
                                                                                        from £0.52
                                                                                        from £0.52
                                                                                        This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                        # 045
                                                                                        MPN: 129101

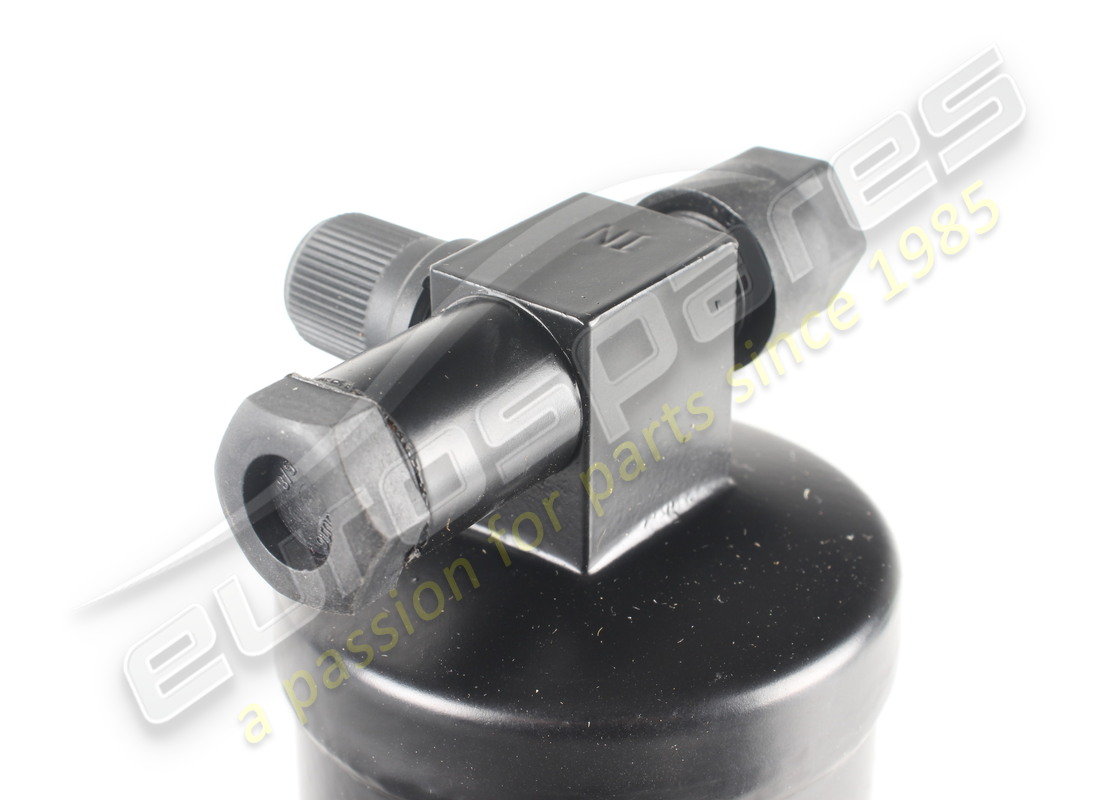

                                                                                        DRYER FILTER
                                                                                        from £104.52
                                                                                        from £104.52
                                                                                        This part replaces part number 114730 - and 5 more. Click to view details
                                                                                        # 045
                                                                                        MPN: 129101/A
                                                                                        DRYER FILTER
                                                                                        from £96.71
                                                                                        from £96.71
                                                                                        This part replaces part number 129101 which we have in stock - and 7 more. Click to view details
                                                                                        # 046
                                                                                        MPN: 61369800
                                                                                        AIR CONDITION PIPE
                                                                                        Valid For RHD
                                                                                        from £36.81
                                                                                        from £36.81
                                                                                        This part replaces part number 60839500
                                                                                        # 046
                                                                                        MPN: 62502400
                                                                                        AIR CONDITION PIPE
                                                                                        valid for LHD
                                                                                        from £254.14
                                                                                        from £254.14
                                                                                        # 047
                                                                                        MPN: 62502300
                                                                                        COMPRESSOR-CONDENSER PIPE
                                                                                        from £416.08
                                                                                        from £416.08
                                                                                        # 048
                                                                                        MPN: 61739100
                                                                                        PIPE FROM VACUUM TANK TO UNION
                                                                                        from £36.38
                                                                                        from £36.38
                                                                                        # 049
                                                                                        MPN: 141178
                                                                                        PROTECTION
                                                                                        Cabriolet
                                                                                        from £23.60
                                                                                        from £23.60
