120B - Tunnel - Components - Coupe

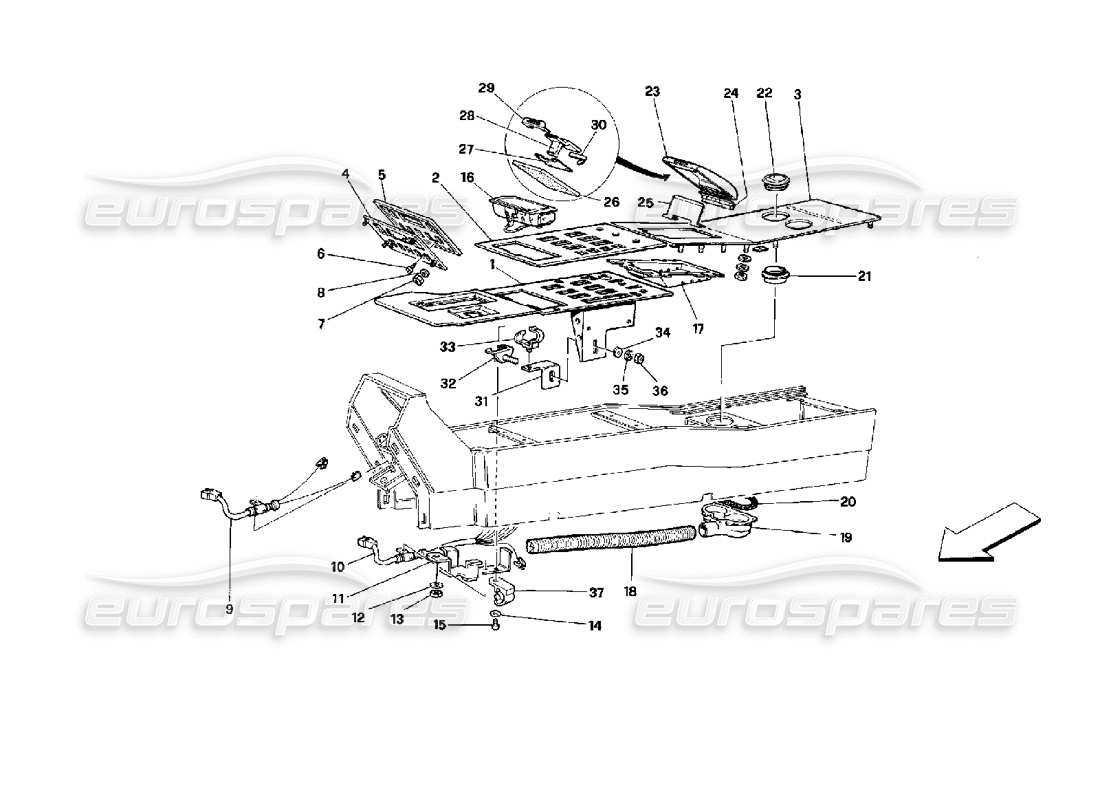

Ferrari Mondial 3.4 t Coupe/Cabrio Tunnel - Components - Coupe Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 625240..
FRONT PLATE LINED OF TUNNEL
- Valid for GS
Supersession
Supersession
# 001
MPN: 628107..
FRONT PLATE LINED OF TUNNEL
- Valid for GD
Supersession
Supersession
# 001
MPN: 628626..
FRONT PLATE LINING
Supersession
Supersession
# 002
MPN: 62489900
UPPER FRONT PLATE
- Valid for GS - Not for USA-SA and J
from £250.02
from £250.02
# 002
MPN: 62635900
UPPER FRONT PLATE
- Valid for GS - Valid for USA-SA and J
from £499.72
from £499.72
# 002
MPN: 62811100
UPPER FRONT PLATE
- Valid for GD
from £142.90
from £142.90
# 003
MPN: 625242..
REAR PLATE LINED OF TUNNEL
Supersession
Supersession
# 003
MPN: 625243..
REAR PLATE LINING
Supersession
Supersession
# 004
MPN: 62566100
PLATE
from £5.50
from £5.50
# 005
MPN: 62530700
INSTRUMENT PANEL FOR CONSOLE DASHBOARD DRAWER
- Valid for cars with
from £125.66
from £125.66
# 005
MPN: 62825700
INSTRUMENT PANEL FOR CONSOLE DASHBOARD DRAWER
- Valid for cars without
from £73.26
from £73.26
# 006
MPN: 15660301
SCREW
from £0.47
from £0.47
# 007
MPN: 10794011
NUT
from £0.26
from £0.26
# 008
MPN: 14496204
WASHER
from £0.47
from £0.47
This part replaces part number 14496201
# 009
MPN: 62584700
CONSOLE LIGHTING CABLES
from £12.70
from £12.70
# 010
MPN: 62584800
TUNNEL LIGHTING CABLES
from £180.60
from £180.60
# 011
MPN: 62510200
BRACKET
from £9.28
from £9.28
# 012
MPN: 14496101
WASHER
from £0.47
from £0.47
# 013
MPN: 16101711
NUT
from £0.47
from £0.47
This part replaces part number 16101715
# 014
MPN: 14496204
WASHER
from £0.47
from £0.47
This part replaces part number 14496201
# 015
MPN: 15687270
SCREW
from £0.47
from £0.47
This part replaces part number 15642670

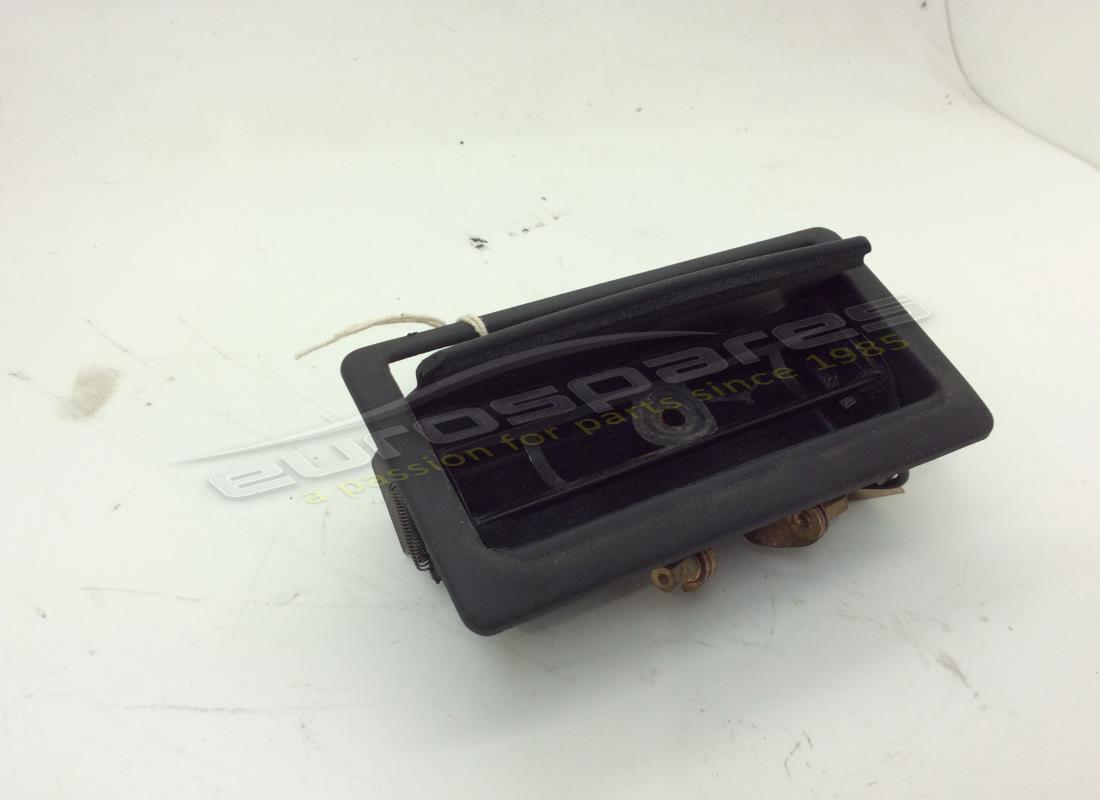

# 016
MPN: 61058900
ASHTRAY
from £205.80
from £205.80
# 017
MPN: 61059000
CASSETTE BOX
from £11.58
from £11.58
# 018
MPN: 62671800
PIPE
from £23.09
from £23.09
# 019
MPN: 61058400
OPENING AIR CONVEYOR
from £15.07
from £15.07
# 020
MPN: 61120300
GASKET
from £4.02
from £4.02
# 021
MPN: 61058500
RING NUT FOR OPENING
from £3.66
from £3.66
# 022
MPN: 60656500
opening
from £23.94
from £23.94
# 023
MPN: 610594..
Lined door
Supersession
Supersession
# 023
MPN: 610595..
LINING DOOR
Supersession
Supersession
# 024
MPN: 61059200
HINGE DOOR
from £19.18
from £19.18
# 025
MPN: 61059100
CASSETTE BOX PANEL
from £1.59
from £1.59
# 026
MPN: 61060000
INNER DOOR LINING
from £3.60
from £3.60
# 027
MPN: 61059800
SPRING COVER
from £2.00
from £2.00
# 028
MPN: 61059600
DOOR BUTTON
from £2.74
from £2.74
# 029
MPN: 61059900
BUTTON LINING
from £8.06
from £8.06
# 030
MPN: 61059700
SPRING FOR BUTTON
from £2.90
from £2.90
# 031
MPN: 61727800
BRACKET
from £4.19
from £4.19
# 032
MPN: 61079900
BRACKET
from £7.89
from £7.89
# 033
MPN: 61681600
SPRING
from £0.47
from £0.47
# 034
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 035
MPN: 10615471
WASHER
Supersession
Supersession
# 036
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 037
MPN: 129544
SPRING
from £0.96
from £0.96
