Ferrari Mondial 3.4 t Coupe/Cabrio Bumpers Parts Diagram

115A - Bumpers

Ferrari Mondial 3.4 t Coupe/Cabrio Bumpers Parts Diagram

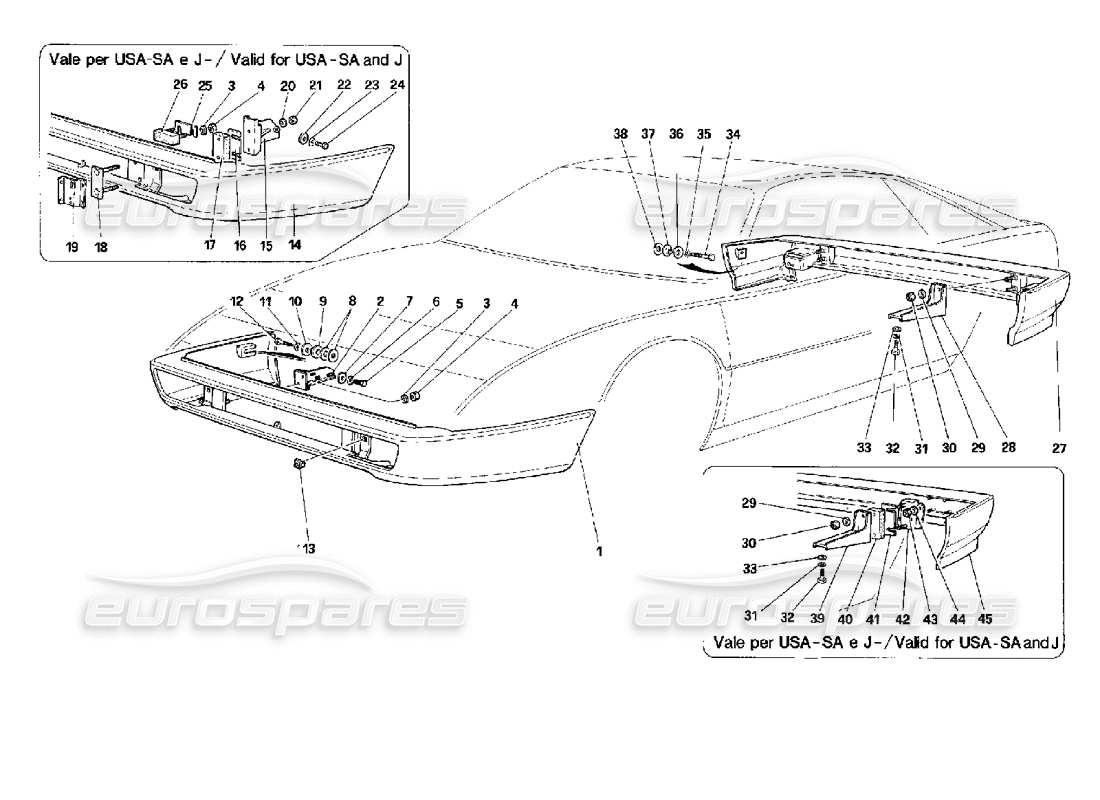

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 62612110

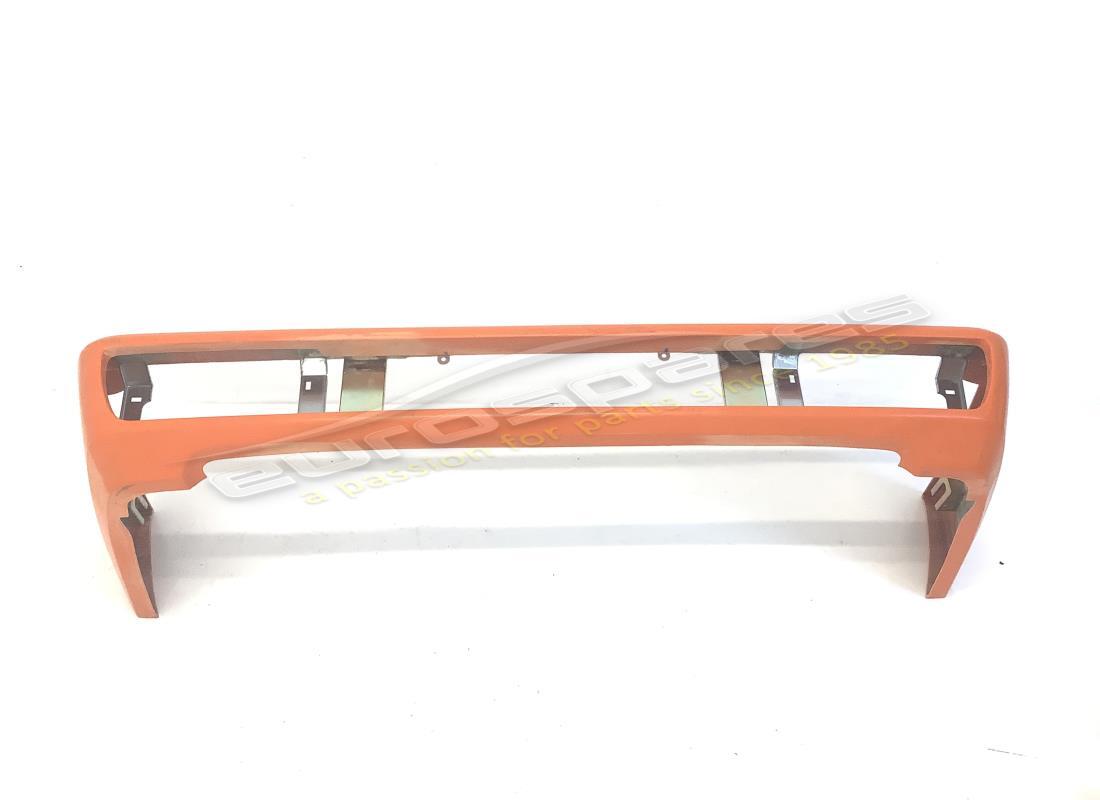

                                      FRONT BUMPER
                                      - Not for USA-SA and J
                                      from £2,495.00
                                      from £2,495.00
                                      # 002
                                      MPN: 60572400
                                      RH BRACKET
                                      - Not for USA-SA and J
                                      from £217.06
                                      from £217.06
                                      # 002
                                      MPN: 60572500
                                      LH BRACKET
                                      - Not for USA-SA and J
                                      from £206.72
                                      from £206.72
                                      # 003
                                      MPN: 12646724
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12601571 - and 3 more. Click to view details
                                      # 004
                                      MPN: 104030
                                      NUT
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 16104125
                                      # 005
                                      MPN: 16043211
                                      SCREW
                                      - Not for USA-SA and J
                                      from £0.47
                                      from £0.47
                                      # 006
                                      MPN: 10615679
                                      WASHER
                                      - Not for USA-SA and J
                                      Supersession
                                      Supersession
                                      # 007
                                      MPN: 12646724
                                      WASHER
                                      - Not for USA-SA and J
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 12601571 - and 3 more. Click to view details
                                      # 008
                                      MPN: 61802800

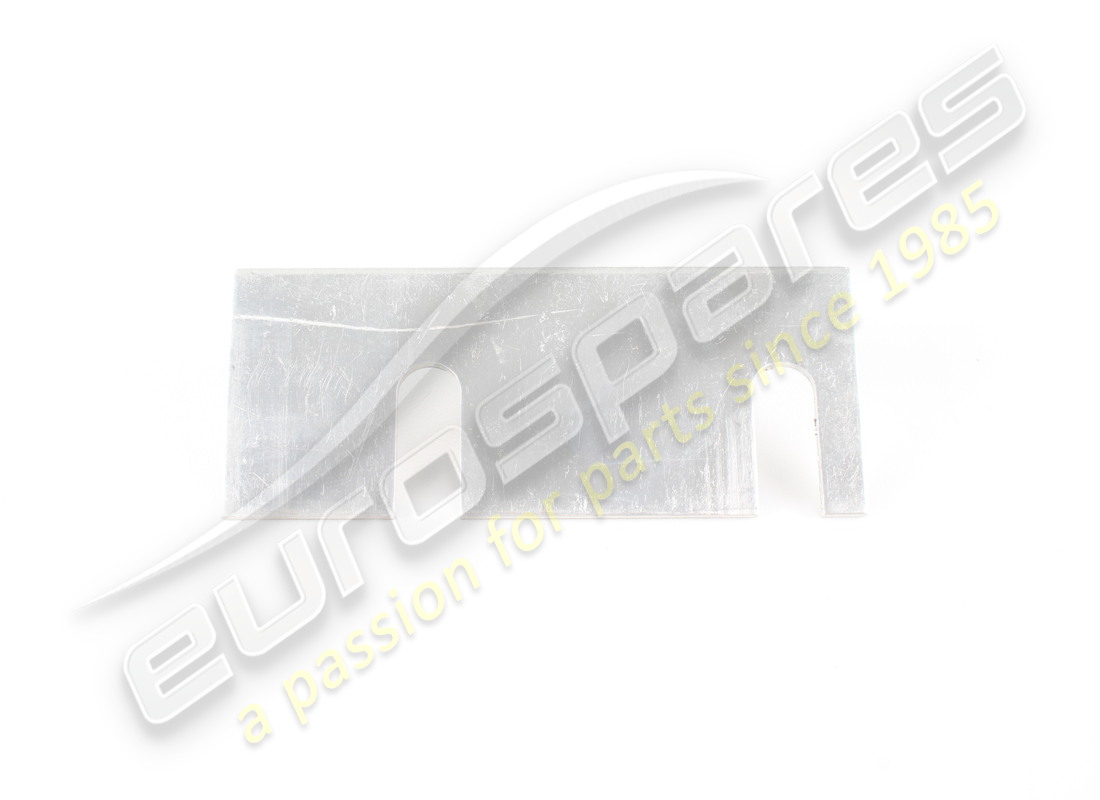

                                      SPACER
                                      from £2.17
                                      from £2.17
                                      # 009
                                      MPN: 62428800
                                      BUSH
                                      from £22.45
                                      from £22.45
                                      This part replaces part number 61693400 - and 1 more. Click to view details
                                      # 010
                                      MPN: 12646201
                                      WASHER
                                      from £0.54
                                      from £0.54
                                      # 011
                                      MPN: 10615670
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      # 012
                                      MPN: 16044021
                                      SCREW
                                      from £1.65
                                      from £1.65
                                      This part replaces part number 119631
                                      # 013
                                      MPN: 60659100
                                      NUT
                                      from £0.62
                                      from £0.62
                                      This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                      # 014
                                      MPN: 62636910
                                      FRONT BUMPER
                                      - Valid for USA-SA and J
                                      from £2,217.26
                                      from £2,217.26
                                      This part replaces part number 62636900
                                      # 015
                                      MPN: 61934900
                                      RH BRACKET
                                      - Valid for USA-SA and J
                                      from £32.49
                                      from £32.49
                                      # 015
                                      MPN: 61935000
                                      LH BRACKET
                                      - Valid for USA-SA and J
                                      from £33.74
                                      from £33.74
                                      # 016
                                      MPN: 61934700
                                      SPACER
                                      - Valid for USA-SA and J
                                      from £4.70
                                      from £4.70
                                      # 017
                                      MPN: 61934800
                                      PAD
                                      - Valid for USA-SA and J
                                      from £41.75
                                      from £41.75
                                      # 018
                                      MPN: 61734900

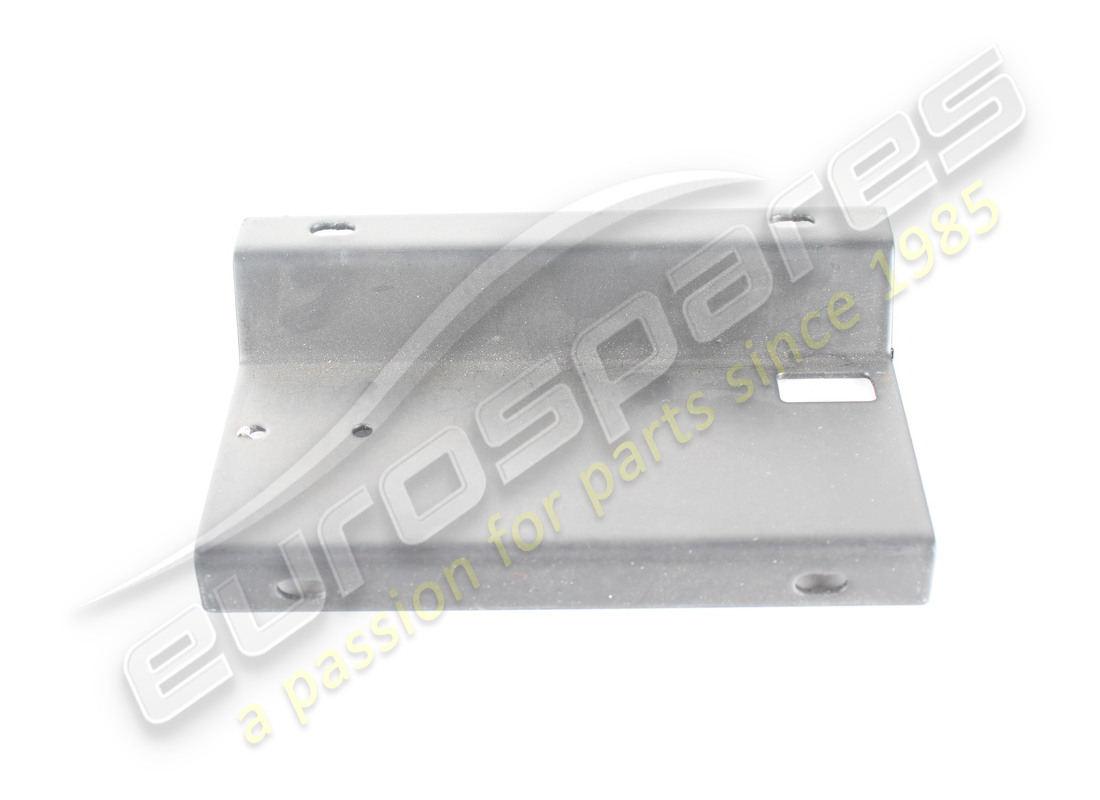

                                      BRACKET
                                      - Valid for USA-SA and J
                                      from £44.71
                                      from £44.71
                                      # 019
                                      MPN: 61735200
                                      RH BRACKET FOR FIXING LAMP
                                      - Valid for USA-SA and J
                                      from £54.85
                                      from £54.85
                                      # 019
                                      MPN: 61735300
                                      LH BRACKET FOR FIXING LAMP
                                      - Valid for USA-SA and J
                                      from £93.99
                                      from £93.99
                                      # 020
                                      MPN: 14496609
                                      WASHER
                                      - Valid for USA-SA and J
                                      Supersession
                                      Supersession
                                      # 021
                                      MPN: 12575625
                                      NUT
                                      - Valid for USA-SA and J
                                      Supersession
                                      Supersession
                                      This part replaces part number 121660 - and 2 more. Click to view details
                                      # 022
                                      MPN: 14496607
                                      WASHER
                                      - Valid for USA-SA and J
                                      Supersession
                                      Supersession
                                      # 023
                                      MPN: 10615770
                                      WASHER
                                      - Valid for USA-SA and J
                                      Supersession
                                      Supersession
                                      # 024
                                      MPN: 11234721
                                      SCREW
                                      - Valid for USA-SA and J
                                      from £0.50
                                      from £0.50
                                      # 025
                                      MPN: 61935200
                                      SPACER
                                      - Valid for USA-SA and J
                                      from £18.68
                                      from £18.68
                                      # 026
                                      MPN: 61935100
                                      PAD
                                      - Valid for USA-SA and J
                                      from £41.75
                                      from £41.75
                                      # 027
                                      MPN: 62468810

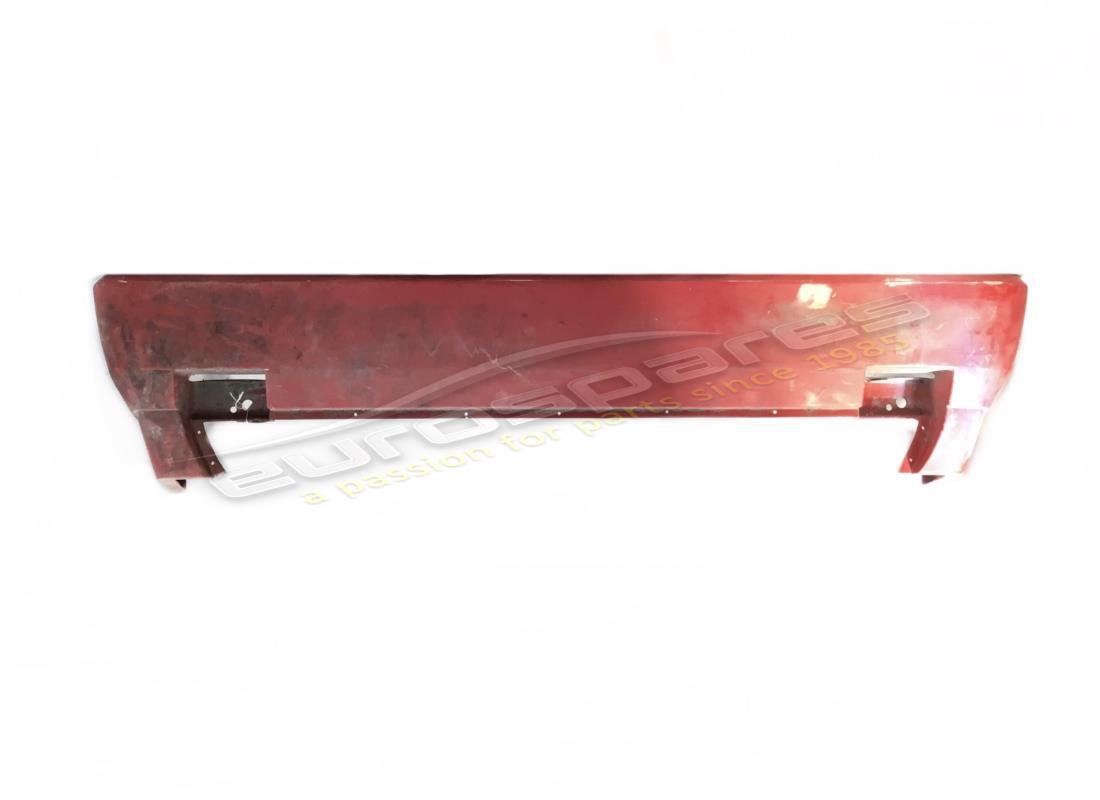

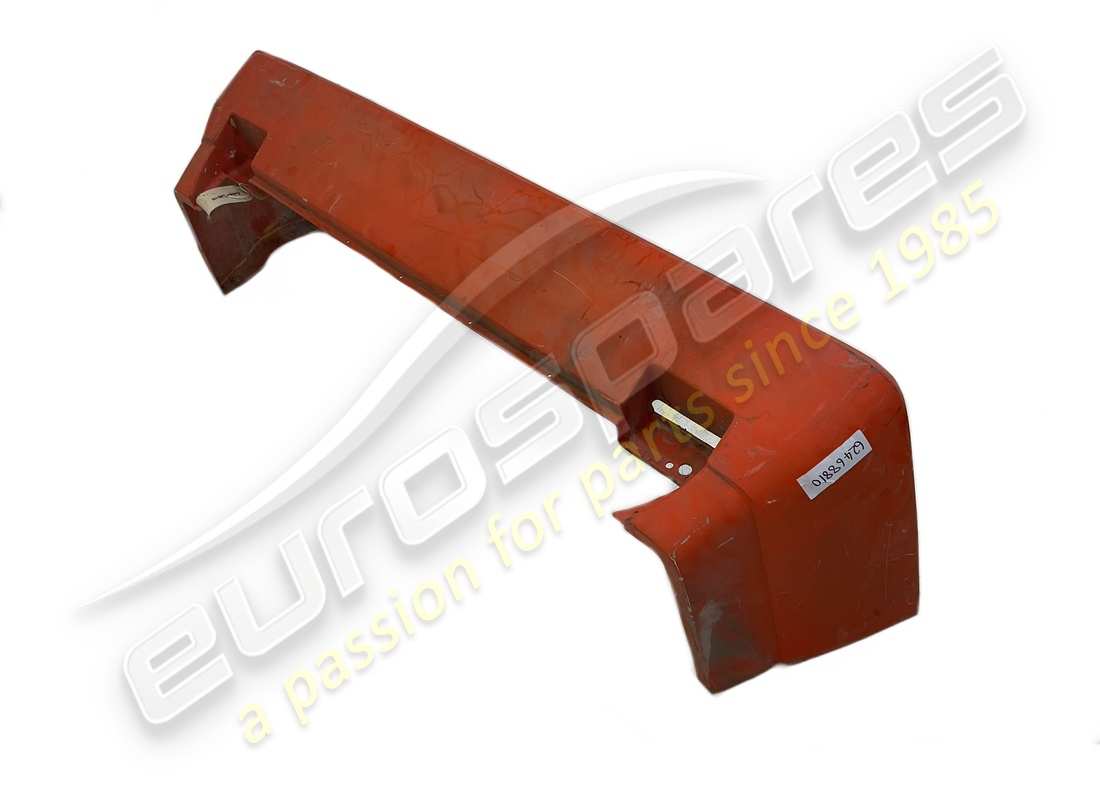

                                      REAR BUMPER
                                      - Not for USA-SA and J
                                      from £2,098.25
                                      from £2,098.25
                                      # 028
                                      MPN: 62513700
                                      LH BRACKET
                                      - Not for USA-SA and J
                                      from £282.78
                                      from £282.78
                                      # 028
                                      MPN: 62513800
                                      RH BRACKET
                                      - Not for USA-SA and J
                                      from £282.78
                                      from £282.78
                                      # 029
                                      MPN: 12638601
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 20232104
                                      # 030
                                      MPN: 12575625
                                      NUT
                                      Supersession
                                      Supersession
                                      This part replaces part number 121660 - and 2 more. Click to view details
                                      # 031
                                      MPN: 127497
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 10516871 - and 2 more. Click to view details
                                      # 032
                                      MPN: 11306931
                                      SCREW
                                      from £1.08
                                      from £1.08
                                      # 033
                                      MPN: 14496601
                                      WASHER
                                      Supersession
                                      Supersession
                                      # 034
                                      MPN: 16043921
                                      SCREW
                                      from £1.00
                                      from £1.00
                                      # 035
                                      MPN: 10615670
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      # 036
                                      MPN: 12646201
                                      WASHER
                                      from £0.54
                                      from £0.54
                                      # 037
                                      MPN: 62428800
                                      BUSH
                                      from £22.45
                                      from £22.45
                                      This part replaces part number 61693400 - and 1 more. Click to view details
                                      # 038
                                      MPN: 61802800
                                      SPACER
                                      from £2.17
                                      from £2.17
                                      # 039
                                      MPN: 62562300
                                      LH BRACKET
                                      - Valid for USA-SA and J
                                      from £259.07
                                      from £259.07
                                      # 039
                                      MPN: 62562400
                                      RH BRACKET
                                      - Valid for USA-SA and J
                                      from £259.07
                                      from £259.07
                                      # 040
                                      MPN: 61952500
                                      PAD
                                      - Valid for USA-SA and J
                                      from £15.68
                                      from £15.68
                                      # 041
                                      MPN: 61757000
                                      SPACER
                                      - Valid for USA-SA and J
                                      from £3.10
                                      from £3.10
                                      # 042
                                      MPN: 61729900
                                      BRACKET
                                      - Valid for USA-SA and J
                                      from £40.66
                                      from £40.66
                                      # 043
                                      MPN: 104030
                                      NUT
                                      - Valid for USA-SA and J
                                      from £0.51
                                      from £0.51
                                      This part replaces part number 16104125
                                      # 044
                                      MPN: 10519624
                                      WASHER
                                      - Valid for USA-SA and J
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 10519601 - and 3 more. Click to view details
                                      # 045
                                      MPN: 62563110
                                      REAR BUMPER
                                      - Valid for USA-SA and J
                                      from £2,498.53
                                      from £2,498.53
                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
