111 - Engine Compartment Lid - Coupe

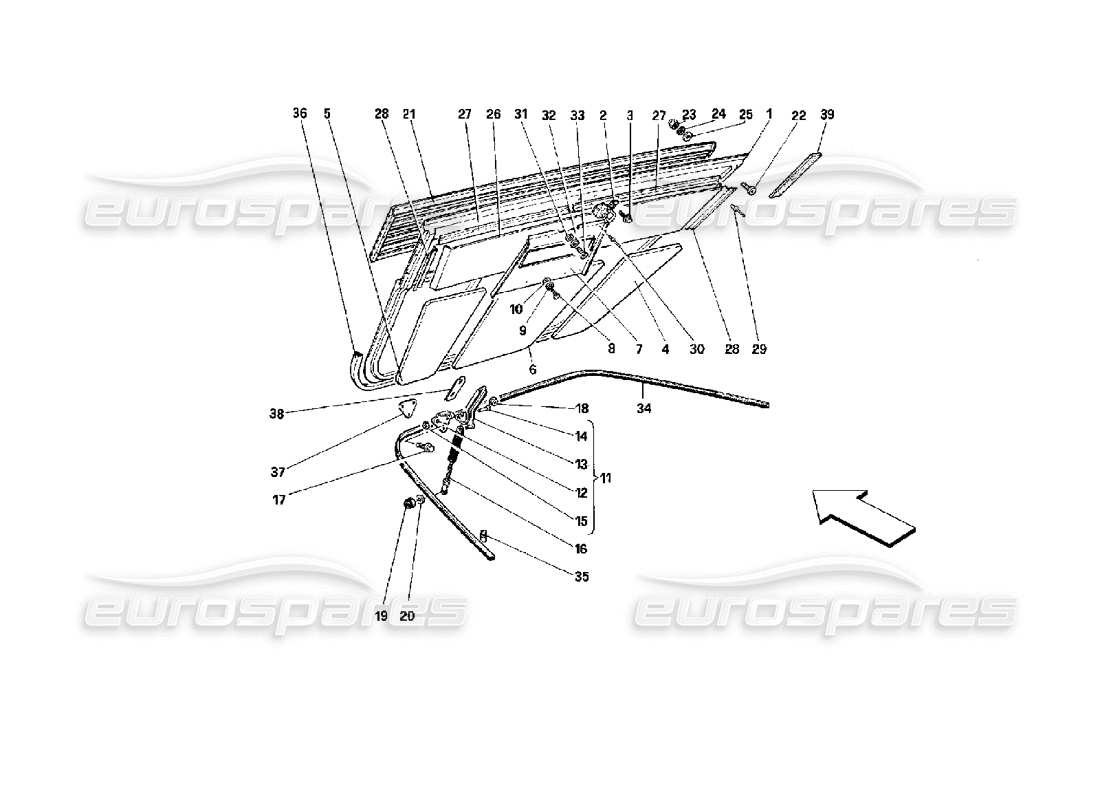

Ferrari Mondial 3.4 t Coupe/Cabrio Engine Compartment Lid - Coupe Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 60533900
Engine Bonnet
from £370.13
from £370.13
# 002
MPN: 60702100
CATCH
from £7.12
from £7.12
# 003
MPN: 13836371
SCREW
from £1.49
from £1.49
# 004
MPN: 61155600
INSULATION RH
from £40.72
from £40.72
# 005
MPN: 61155700
INSULATION LH
from £40.72
from £40.72
# 006
MPN: 61155800
Insulation
from £48.19
from £48.19
# 007
MPN: 62612900
WATER SHIELD
from £68.31
from £68.31
# 008
MPN: 14072416
SCREW
from £0.47
from £0.47
# 009
MPN: 149951
WASHER
from £0.47
from £0.47
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 010
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 011
MPN: 60514900
COMPLETE HINGE FOR BONNET
from £37.77
from £37.77
This part replaces part number 60784000 - and 1 more. Click to view details
# 012
MPN: 60515000
FIXED HINGE
from £29.91
from £29.91
This part replaces part number 60784100
# 013
MPN: 60515100
MOBILE HINGE
from £56.33
from £56.33
This part replaces part number 60784200
# 014
MPN: 60515200
PIN
from £8.06
from £8.06
# 015
MPN: 11087974
CIRCLIP
from £0.51
from £0.51
This part replaces part number 11087976
# 016
MPN: 60559500

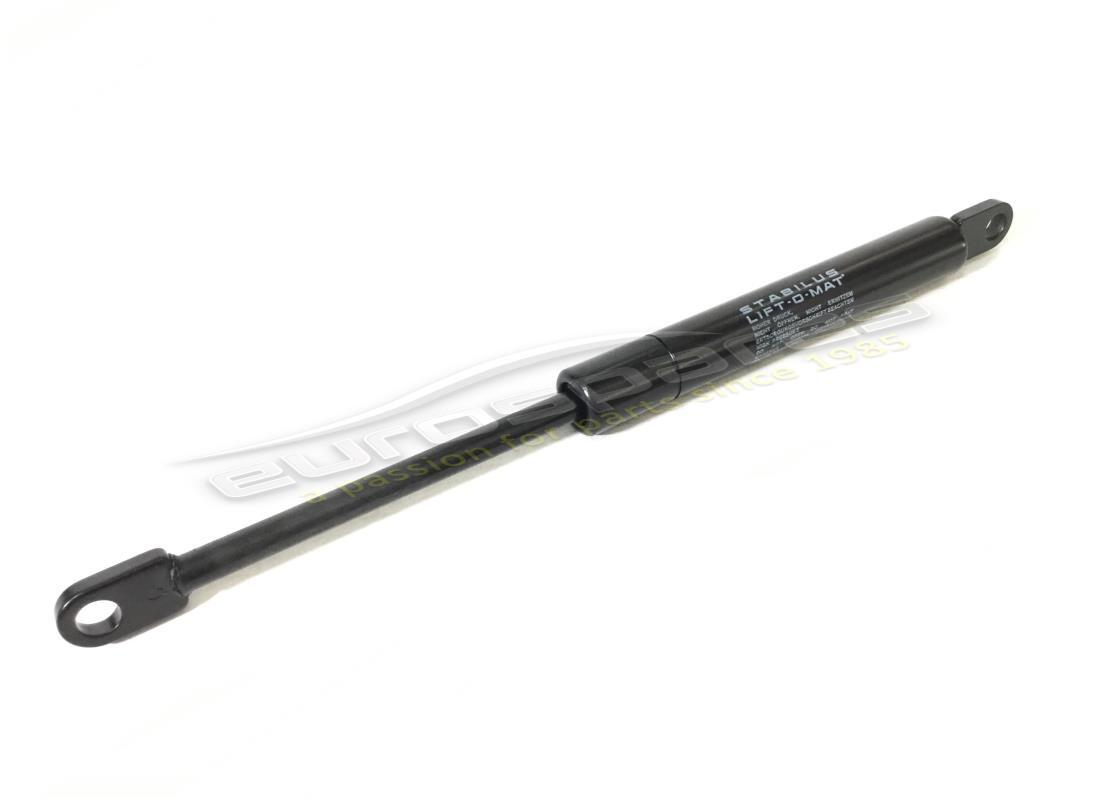

FRONT COVER/ENGINE COVER STRUT
from £74.17
from £74.17
# 017
MPN: 13836071
SCREW
from £0.47
from £0.47
# 018
MPN: 13832101
NUT
from £0.53
from £0.53
# 019
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 020
MPN: 12639701
WASHER
Supersession
Supersession
This part replaces part number 12639704
# 021
MPN: 60536400

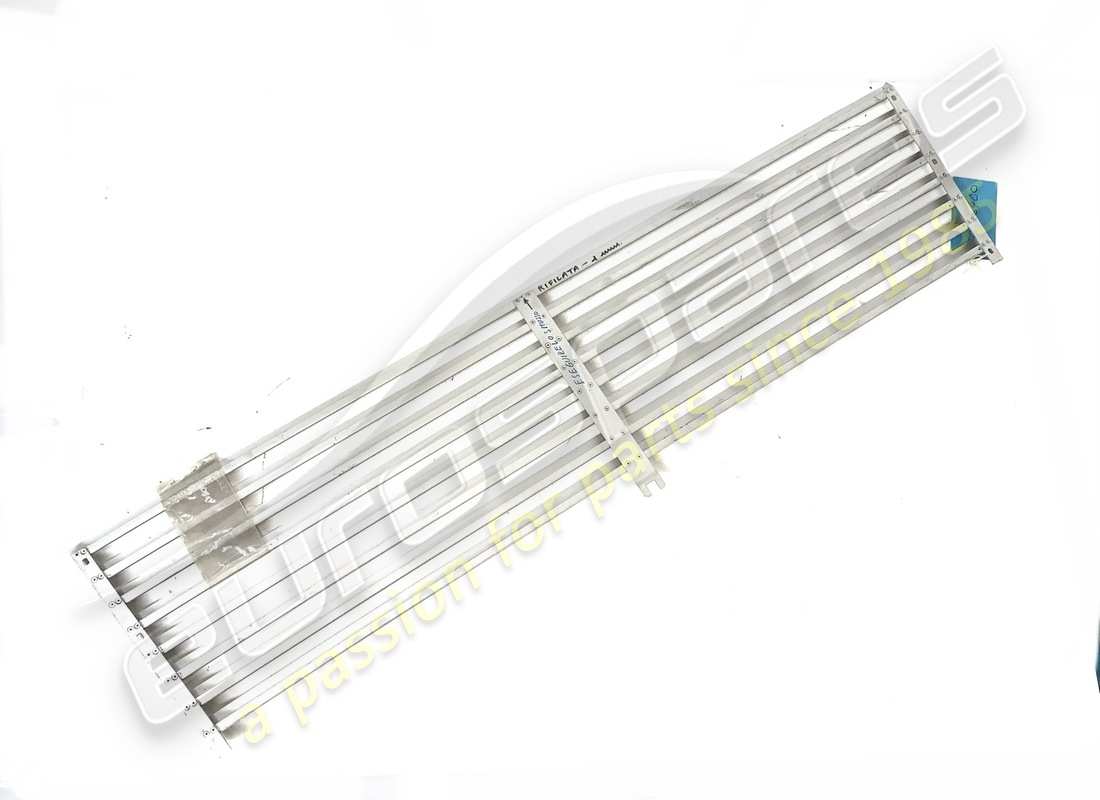

GRILL
from £229.36
from £229.36
# 022
MPN: 20297602
SCREW (FOR DARK-COLOUR CARS)
from £5.65
from £5.65
# 022
MPN: 61349600
SCREW (FOR LIGHT-COLOUR CARS)
from £0.77
from £0.77
# 023
MPN: 14054048
NUT
This part replaces part number 14054042
# 024
MPN: 10519377
WASHER
Supersession
Supersession
This part replaces part number 10519305 which we have in stock - and 1 more. Click to view details
# 025
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 026
MPN: 60561100
NET UNDER THE GRILL
from £43.14
from £43.14
# 027
MPN: 60534800
REAR ANGULAR
from £181.19
from £181.19
# 028
MPN: 60535200
SIDE ANGULAR
from £25.08
from £25.08
# 029
MPN: 60853400
RIVET TO FIX. NET UNDER THE GRILL
from £0.87
from £0.87
# 030
MPN: 60159001
RIVET TO FIX. WATER SHIELD
from £0.75
from £0.75
# 031
MPN: 12644406
WASHER
Supersession
Supersession
# 032
MPN: 10615471
WASHER
Supersession
Supersession
# 033
MPN: 61681100
NUT
from £0.47
from £0.47
# 034
MPN: 60880600
GASKET
from £28.27
from £28.27
# 035
MPN: 60568000
STOP BUFFER
Supersession
Supersession
# 036
MPN: 60997100
GASKET
from £33.76
from £33.76
# 037
MPN: 60732300
ZINCFOIL
from £1.06
from £1.06
# 038
MPN: 60732400
ZINCFOIL
from £2.14
from £2.14
# 039
MPN: 61349700
GASKET
from £1.61
from £1.61
