109 - Engine Compartment Insulation - Cabriolet - for CH Version Cars

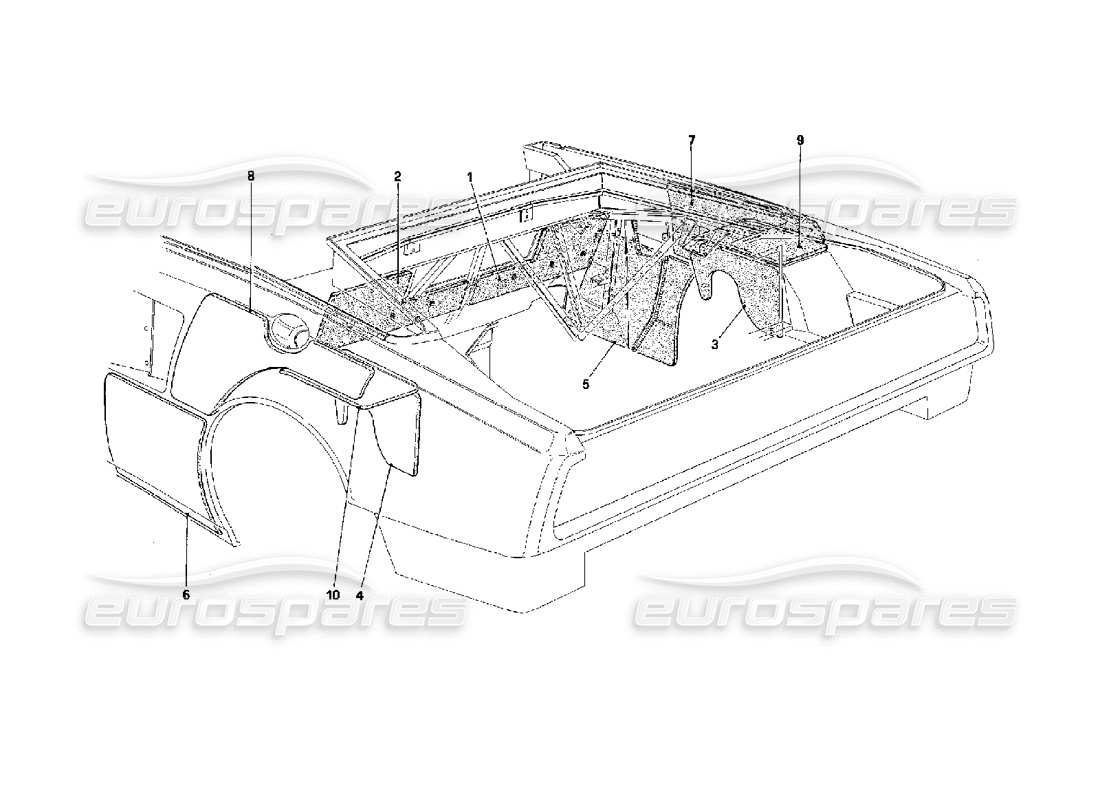

Ferrari Mondial 3.4 t Coupe/Cabrio Engine Compartment Insulation - Cabriolet - for CH Version Cars Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62814800
MOTOR INSULATION BEHIND RH REAR SEAT
from £16.71
from £16.71
# 002
MPN: 62814900
MOTOR INSULATION BEHIND LH REAR SEAT
from £16.71
from £16.71
# 003
MPN: 62815100
RH WHEELHOUSE INSULATION
from £96.34
from £96.34
# 004
MPN: 62815000
LH WHEELHOUSE INSULATION
from £96.34
from £96.34
# 005
MPN: 62860700
FRONT RH MUDGUARD INSULATION
from £34.11
from £34.11
# 006
MPN: 62860800
FRONT LH MUDGUARD INSULATION
from £45.05
from £45.05
# 007
MPN: 62815400
RH CENTRAL INSULATION
from £173.35
from £173.35
# 008
MPN: 62815500
LH CENTRAL INSULATION
from £126.55
from £126.55
# 009
MPN: 62815800
RH UPPER WHEELHOUSE INSULATION
from £138.67
from £138.67
# 010
MPN: 62815900
LH UPPER WHEELHOUSE INSULATION
from £138.67
from £138.67
