103A - Body Shell: Inner Elements - Rear Part - Cabriolet

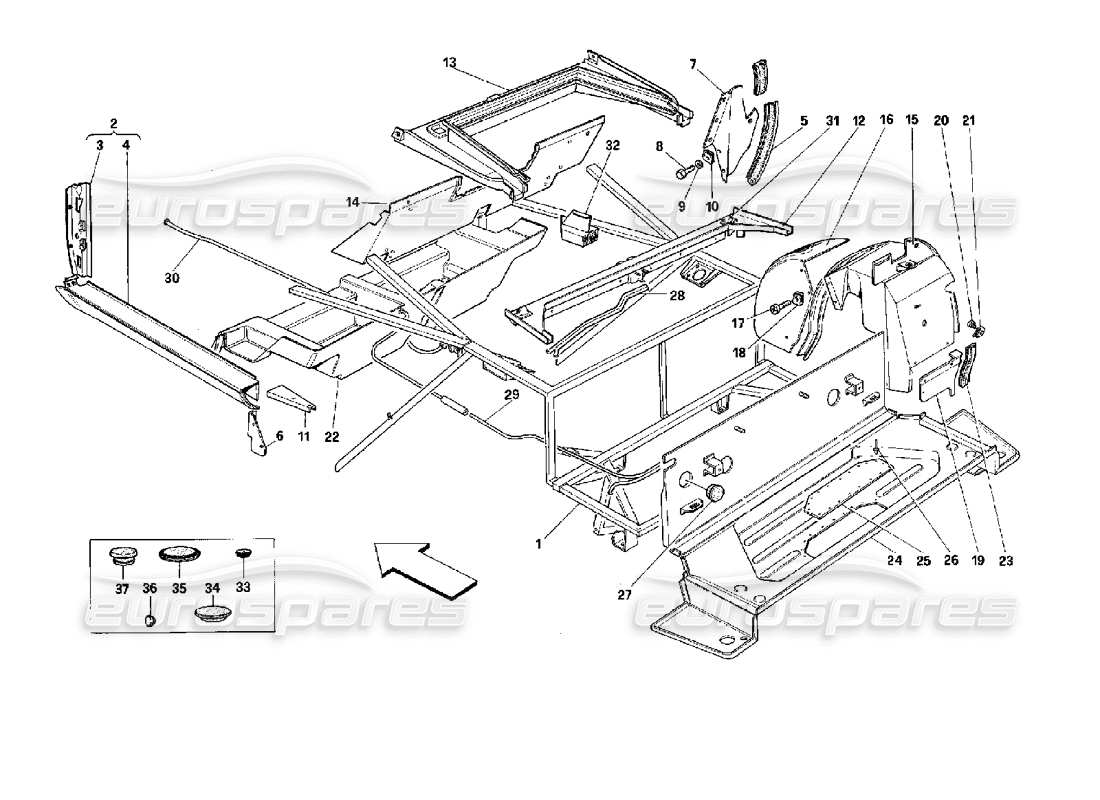

Ferrari Mondial 3.4 t Coupe/Cabrio Body Shell: Inner Elements - Rear Part - Cabriolet Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 142184
Rear Frame
- Valid for 3P
from £2,457.17
from £2,457.17
# 001
MPN: 142184
Rear Frame
- Valid for 4P - Valid for USA
from £2,457.17
from £2,457.17
# 001
MPN: 146427
Rear Frame
- Valid for 4P - Valid for AUS
# 001
MPN: 146457
Rear Frame
- Valid for 4P - Valid for J
# 001
MPN: 147189
Rear Frame
- Valid for 4P - Valid for ZA and GB
# 001
MPN: 147216
Rear Frame
- Valid for 4P - Not for USA-CH-ZA-GB-J and AUS
# 001
MPN: 147941
Rear Frame
- Valid for 4P - Valid for CH
# 002
MPN: 62658400
RH DOOR OPENING
from £292.24
from £292.24
# 002
MPN: 62658500
LH DOOR OPENING
from £292.24
from £292.24
# 003
MPN: 62534100
RH SEAT FOR DOOR HINGE
from £18.04
from £18.04
# 003
MPN: 62534200
LH SEAT FOR DOOR HINGE
from £37.05
from £37.05
# 005
MPN: 61303400
GASKET
from £6.58
from £6.58
# 006
MPN: 62670000
RH LOWER SHEET
from £8.17
from £8.17
# 006
MPN: 62830200
LH LOWER SHEET
from £8.17
from £8.17
# 007
MPN: 62668100
RH SHIELD PANEL
from £40.90
from £40.90
# 007
MPN: 62680700
LH SHIELD PANEL
- Valid for not catalyst cars and USA 3P
from £63.61
from £63.61
# 007
MPN: 62851100
LH SHIELD PANEL
- Valid for catalyst cars and USA 4P
from £42.24
from £42.24
# 008
MPN: 15924806
SCREW
from £0.47
from £0.47
# 009
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 010
MPN: 14189776
SPRING
from £0.50
from £0.50
# 011
MPN: 136756
SUPPORT FOR RH REAR BODY SIDE
- Not for CH
from £6.19
from £6.19
# 011
MPN: 136757
SUPPORT FOR LH REAR BODY SIDE
- Not for CH
from £4.96
from £4.96
# 011
MPN: 143945
SUPPORT FOR RH REAR BODY SIDE
- Valid for CH
from £15.58
from £15.58
# 011
MPN: 143946
SUPPORT FOR LH REAR BODY SIDE
- Valid for CH
from £9.92
from £9.92
# 012
MPN: 61869200
UNION BETWEEN LUGGAGE ROOM AND LUGGAGE ENGINE
from £88.32
from £88.32
# 013
MPN: 62669300
SEAT FOR TOP
- Valid for cars with rear abdominal belt
from £852.24
from £852.24
# 013
MPN: 63228100
SEAT FOR TOP
- Valid for cars with rear belt with 3 fixing points - Valid for AUS
from £1,847.09
from £1,847.09
# 013
MPN: 63521700
SEAT FOR TOP
- Valid for cars with rear belt with 3 fixing points - Not for AUS
from £1,200.19
from £1,200.19
# 014
MPN: 62669900
SHIELD PANEL BETWEEN PASSENGER COMPARTMENTE AND ENGINE
- Not for USA 4P
from £136.34
from £136.34
# 014
MPN: 62918900
SHIELD PANEL BETWEEN PASSENGER COMPARTMENTE AND ENGINE
- Valid for USA 4P
from £175.61
from £175.61
# 015
MPN: 62637500
RH REAR WHEELHOUSE
- Not for CH
Supersession
Supersession
# 015
MPN: 62637600
LH REAR WHEELHOUSE
- Not for F.E.
Supersession
Supersession
# 015
MPN: 62822700
RH REAR WHEELHOUSE
- Valid for CH
from £144.36
from £144.36
# 015
MPN: 62916200
LH REAR WHEELHOUSE
- Valid for F.E.
from £332.40
from £332.40
# 016
MPN: 62608500
FRONT SECTION FOR RH WHEELHOUSE
from £427.51
from £427.51
# 016
MPN: 62608600
FRONT SECTION FOR LH WHEELHOUSE
from £777.29
from £777.29
# 017
MPN: 15903802
SCREW
Supersession
Supersession
This part replaces part number 15903802 - and 1 more. Click to view details
# 018
MPN: 60517200
CLIP
from £2.18
from £2.18
# 019
MPN: 61816100
LH REAR GRAVEL
from £19.42
from £19.42
# 019
MPN: 61816200
RH REAR GRAVEL
from £19.42
from £19.42
# 020
MPN: 15688075
SCREW
from £0.53
from £0.53
This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
# 021
MPN: 40136707
CLIP
from £0.98
from £0.98
# 022
MPN: 62667600
HOUSING FOR REAR SEATS
- Not for USA 4P
from £363.02
from £363.02
This part replaces part number 61223200
# 022
MPN: 62875400
HOUSING FOR REAR SEATS
- Valid for USA 4P
from £393.65
from £393.65
# 023
MPN: 61816300
GASKET
from £1.26
from £1.26
# 024
MPN: 62839000
VERTICAL PANEL AND LUGGAGE BOTTOM
- Valid for 3P
from £346.13
from £346.13
# 024
MPN: 62919000
VERTICAL PANEL AND LUGGAGE BOTTOM
- Valid for 4P
from £532.33
from £532.33
# 025
MPN: 60810000
LUGGAGE BOTTOM COVER
from £30.76
from £30.76
This part replaces part number 61810000
# 026
MPN: 60565600
RIVET
from £0.47
from £0.47
# 027
MPN: 14507387
PLUG
- Not for F.E.
from £0.95
from £0.95
# 028
MPN: 61307200
CABLE FOR ENGINE BONNET
from £60.83
from £60.83
# 029
MPN: 61221100
CABLE DUCT FOR TRUNK BONNET
- Not for USA and J
from £58.81
from £58.81
# 029
MPN: 61436600
CABLE DUCT FOR TRUNK BONNET
- Valid for USA and J
from £72.11
from £72.11
# 030
MPN: 61344700
FRONT CABLE DUCT FOR TRUNK BONNET
from £27.43
from £27.43
# 031
MPN: 60523700
FIXED HINGE FOR TRUNK BONNET
from £30.75
from £30.75
# 032
MPN: 61292800
RH WOOD STOPPER
from £34.11
from £34.11
# 032
MPN: 61292900
LH WOOD STOPPER
from £34.11
from £34.11
# 033
MPN: 112934
PLUG TO CLOSE EDP HOLES ON THE FRAME
from £6.43
from £6.43
# 034
MPN: 60659400
PLUG TO CLOSE EDP HOLE ON THE BENCH
from £1.51
from £1.51
# 034
MPN: 60659400
PLUG TO CLOSE EDP HOLE UNDERFRAME
from £1.51
from £1.51
# 035
MPN: 14507187
PLUG TO CLOSE HOLE TRUNK ROOM
from £2.02
from £2.02
# 036
MPN: 14506587
PLUG TO CLOSE HOLE SWITCH ENCLOSURE
from £0.53
from £0.53
# 037
MPN: 62446300
PLUG TO CLOSE HOLE UNDER FRAME
from £20.81
from £20.81
