102A - Front Part - Inner Element

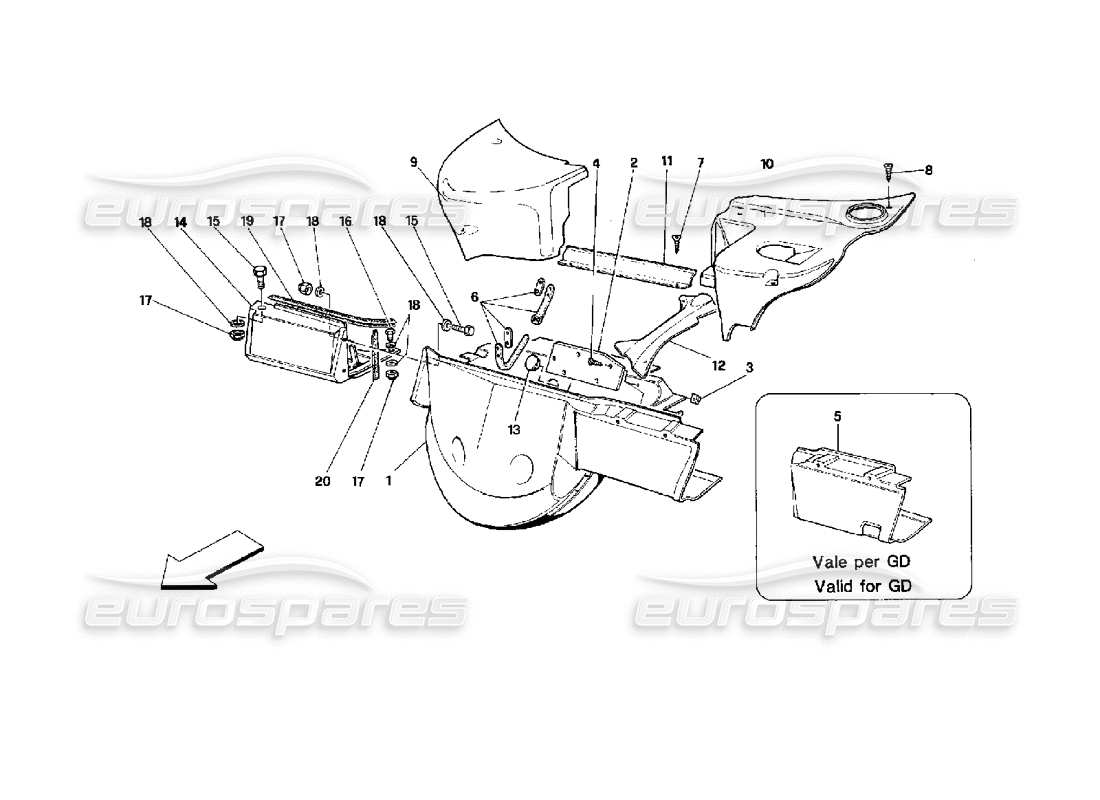

Ferrari Mondial 3.4 t Coupe/Cabrio Front Part - Inner Element Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 62574100
SPARE WHEEL CARRIER
- Not for GD
from £835.34
from £835.34
# 001
MPN: 62814200
SPARE WHEEL CARRIER
- Valid for GD
from £618.68
from £618.68
# 002
MPN: 62574200
INSPECTION DOOR
- Not for GD
from £52.35
from £52.35
# 002
MPN: 62814300
INSPECTION DOOR
- Valid for GD
from £53.60
from £53.60
# 003
MPN: 60597000
SPRING
from £0.59
from £0.59
# 004
MPN: 15915807
SCREW
from £0.47
from £0.47
# 005
MPN: 62840700
CONDENSER COVER A.C.
- Valid for GD
from £91.69
from £91.69
# 006
MPN: 62848300
BELT TO RET. TOOL BAG
- Valid for horizontal tool kit
from £41.40
from £41.40
# 006
MPN: 63568000
BELT TO RET. TOOL BAG
- Valid for vertical tool kit
from £39.76
from £39.76
# 007
MPN: 15688375
SCREW
(minimum order quantity = 30)
from £0.53
from £0.53
This part replaces part number 15688306 which we have in stock
# 008
MPN: 20286209
SCREW
from £5.40
from £5.40
# 009
MPN: 61994000
COVER
- Not for GD
from £125.35
from £125.35
# 009
MPN: 62802400
COVER
- Valid for GD
from £50.68
from £50.68
# 010
MPN: 62587600
APRON
- Not for GD
from £133.35
from £133.35
# 010
MPN: 62802500
APRON
- Valid for GD
from £381.55
from £381.55
# 011
MPN: 62377500
APRON
- Not for GD
from £30.28
from £30.28
# 011
MPN: 62802600
APRON
- Valid for GD
from £30.36
from £30.36
# 012
MPN: 61994400
CABLE APRON
- Not for GD
from £44.71
from £44.71
# 012
MPN: 62380400
CABLE APRON
- Valid for GD
from £25.47
from £25.47
# 013
MPN: 14507187
CAP
from £2.02
from £2.02
# 014
MPN: 62516100
CABLE APRON
from £254.38
from £254.38
# 015
MPN: 10902421
SCREW
from £0.54
from £0.54
# 016
MPN: 10902221
SCREW
from £0.57
from £0.57
# 017
MPN: 12574221
NUT
Supersession
Supersession
This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
# 018
MPN: 12643721
WASHER
from £0.48
from £0.48
This part replaces part number 12643724 which we have in stock
# 019
MPN: 60920200
GASKET
from £12.69
from £12.69
# 020
MPN: 63501100
GASKET
from £1.95
from £1.95
This part replaces part number 60920500
