102 - Body Shell: Inner Element - Front Part

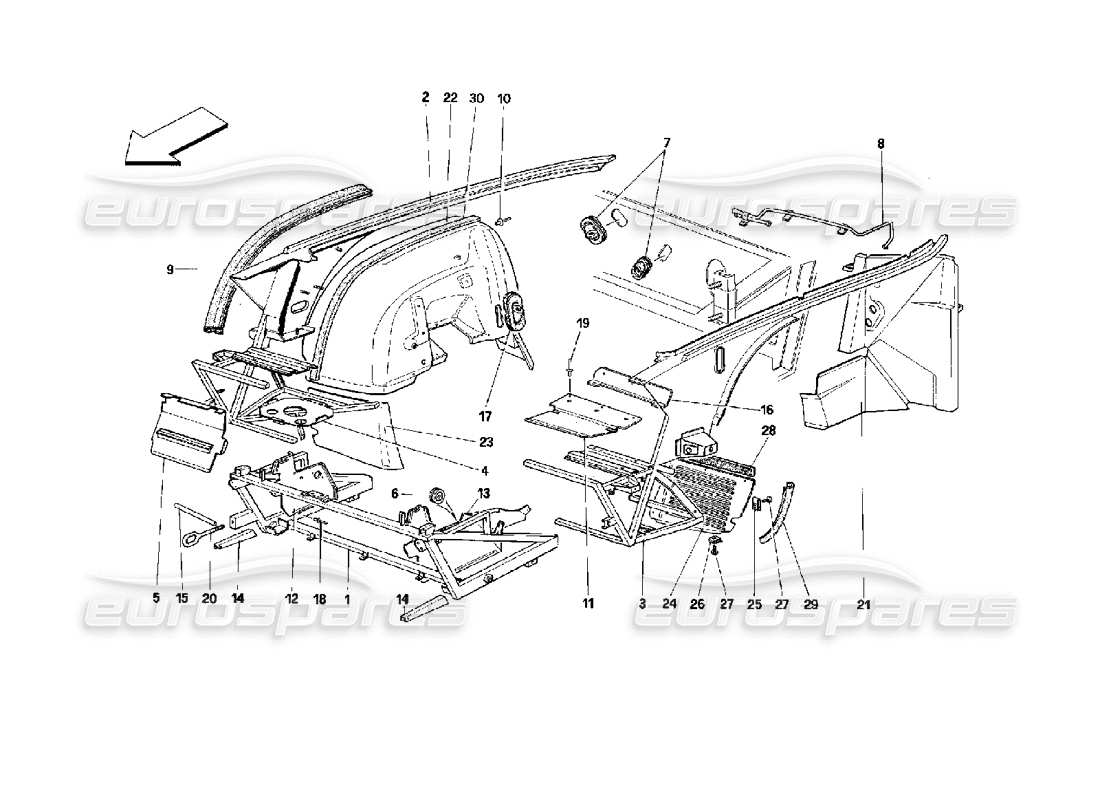

Ferrari Mondial 3.4 t Coupe/Cabrio Body Shell: Inner Element - Front Part Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 139266
FRONT FRAME - COUPÉ E CABRIOLET
- Valid for USA 3P and USA 4P
from £980.19
from £980.19
This part replaces part number 142534
# 001
MPN: 139287
FRONT FRAME - COUPÉ E CABRIOLET
- Valid for 3P - Not for USA
from £1,350.00
from £1,350.00
This part replaces part number 142532
# 001
MPN: 146410
FRONT FRAME - COUPÉ
- Valid for 4P - Valid for SA
from £1,164.27
from £1,164.27
# 001
MPN: 146426
FRONT FRAME - CABRIOLET
- Valid for 4P - Valid for AUS
from £1,110.80
from £1,110.80
# 001
MPN: 146456
FRONT FRAME - CABRIOLET
- Valid for 4P - Valid for J
from £1,110.80
from £1,110.80
# 001
MPN: 146484
FRONT FRAME - COUPÉ
- Valid for 4P - Valid for J
from £1,166.00
from £1,166.00
# 001
MPN: 147172
FRONT FRAME - CABRIOLET
- Valid for 4P - Valid for ZA and GB
from £811.42
from £811.42
# 001
MPN: 147215
FRONT FRAME - CABRIOLET
- Valid for 4P - Not for USA-CH-ZA-GB-J and AUS
from £778.96
from £778.96
# 001
MPN: 147230
FRONT FRAME - COUPÉ
- Valid for 4P - Not for USA-CH-SA-J and GD
from £795.07
from £795.07
# 001
MPN: 147305
FRONT FRAME - COUPÉ
- Valid for 4P - Valid for GD
from £852.00
from £852.00
# 001
MPN: 147931
FRONT FRAME - COUPÉ
- Valid for 4P - Valid for CH
from £834.83
from £834.83
# 001
MPN: 147940
FRONT FRAME - CABRIOLET
- Valid for 4P - Valid for CH
from £795.07
from £795.07
# 002
MPN: 62517800
FRONT RH PANEL WORK
from £729.16
from £729.16
# 003
MPN: 62517900
FRONT LH PANEL WORK
from £433.94
from £433.94
# 004
MPN: 62465600
BATTERY SUPPORT
from £113.40
from £113.40
# 005
MPN: 62517100
PROTECTION FOR BATTERY
from £125.35
from £125.35
# 006
MPN: 10396480
FAIR-LAID
from £2.34
from £2.34
This part replaces part number 103516
# 007
MPN: 60679700
GASKET
from £5.91
from £5.91
# 008
MPN: 60787400
CABLE DUCT FOR FRONT BONNET
- Not for GD
from £16.07
from £16.07
# 008
MPN: 60896500
CABLE DUCT FOR FRONT BONNET
- Valid for GD
from £29.79
from £29.79
# 009
MPN: 63337500
OUTSIDE GASKET
from £103.87
from £103.87
This part replaces part number 60839300
# 010
MPN: 20293702
RIVET
from £0.47
from £0.47
# 010
MPN: 20293801
RIVET
from £1.39
from £1.39
# 011
MPN: 62517200
RH FRONT UPPER SHIELD PANEL
from £18.19
from £18.19
# 011
MPN: 62517500
LH FRONT UPPER SHIELD PANEL FOR A.C. CONDENSER
from £86.44
from £86.44
# 012
MPN: 62549300
RH SHIELD PANEL FOR RADIATOR
- Not for USA
from £23.48
from £23.48
# 012
MPN: 62632200
RH SHIELD PANEL FOR RADIATOR
- Valid for USA
from £31.50
from £31.50
# 013
MPN: 62549400
LH SHIELD PANEL FOR RADIATOR
- Not for USA and GD
from £149.42
from £149.42
# 013
MPN: 62632300
LH SHIELD PANEL FOR RADIATOR
- Valid for USA
from £81.49
from £81.49
# 013
MPN: 62840800
LH SHIELD PANEL FOR RADIATOR
- Valid for GD
from £104.23
from £104.23
# 014
MPN: 124974
BRACKET
from £41.75
from £41.75
This part replaces part number 124975
# 015
MPN: 61894500
REINFORCEMENT
from £5.94
from £5.94
# 016
MPN: 62561600
UPPER REAR PANEL FOR A.C. CONDENSER
from £17.68
from £17.68
# 017
MPN: 101100
GASKET FOR WATER DRAIN PIPES
from £22.39
from £22.39
This part replaces part number 740419
# 018
MPN: 60174307
RIVET TO FIX. RADIATOR SIDE PANELS
from £1.88
from £1.88
# 019
MPN: 60643400
RIVET TO FIX. EVAPORATOR APRON PANELS
from £0.47
from £0.47
# 020
MPN: 128705
ANCHORAGE
from £43.21
from £43.21
# 021
MPN: 141416
FRONT RH SHIELD
- Coupé - Valid for GD
from £163.89
from £163.89
# 021
MPN: 141441
FRONT LH SHIELD
- Coupé - Valid for GD
from £130.29
from £130.29
# 021
MPN: 141448
FRONT LH SHIELD
- Cabriolet - Valid for GD
from £163.89
from £163.89
# 021
MPN: 141451
FRONT RH SHIELD
- Cabriolet - Valid for GD
from £163.89
from £163.89
# 021
MPN: 142545
FRONT RH SHIELD
- Coupé - Not for GD
from £664.32
from £664.32
# 021
MPN: 142548
FRONT LH SHIELD
- Coupé - Not for GD
from £353.63
from £353.63
# 021
MPN: 142553
FRONT RH SHIELD
- Cabriolet - Valid for 3P - Not for GD
from £664.32
from £664.32
# 021
MPN: 142557
FRONT LH SHIELD
- Cabriolet - Not for GD
from £789.26
from £789.26
# 021
MPN: 143960
FRONT RH SHIELD
- Cabriolet - Valid for 4P - Not for GD
from £664.32
from £664.32
# 022
MPN: 62489200
FRONT RH WHEELHOUSE
- Not for GD
from £1,291.56
from £1,291.56
# 022
MPN: 62489300
FRONT LH WHEELHOUSE
- Not for GD
from £1,291.56
from £1,291.56
# 022
MPN: 62802100
FRONT RH WHEELHOUSE
- Valid for GD
from £238.38
from £238.38
# 022
MPN: 62802200
FRONT LH WHEELHOUSE
- Valid for GD
from £433.41
from £433.41
# 023
MPN: 61732200
RH FRONT GRAVEL GUARD
from £250.53
from £250.53
# 024
MPN: 61732300
LH FRONT GRAVEL GUARD
from £121.78
from £121.78
# 025
MPN: 60696300
UPPER CLIP
from £0.47
from £0.47
# 026
MPN: 60646900
LOWER CLIP
from £0.47
from £0.47
# 027
MPN: 15644101
SCREW
from £0.74
from £0.74
# 028
MPN: 60696500
GASKET
from £8.29
from £8.29
# 029
MPN: 61701600
GASKET
from £5.94
from £5.94
# 030
MPN: 61731500
GASKET
from £53.87
from £53.87
